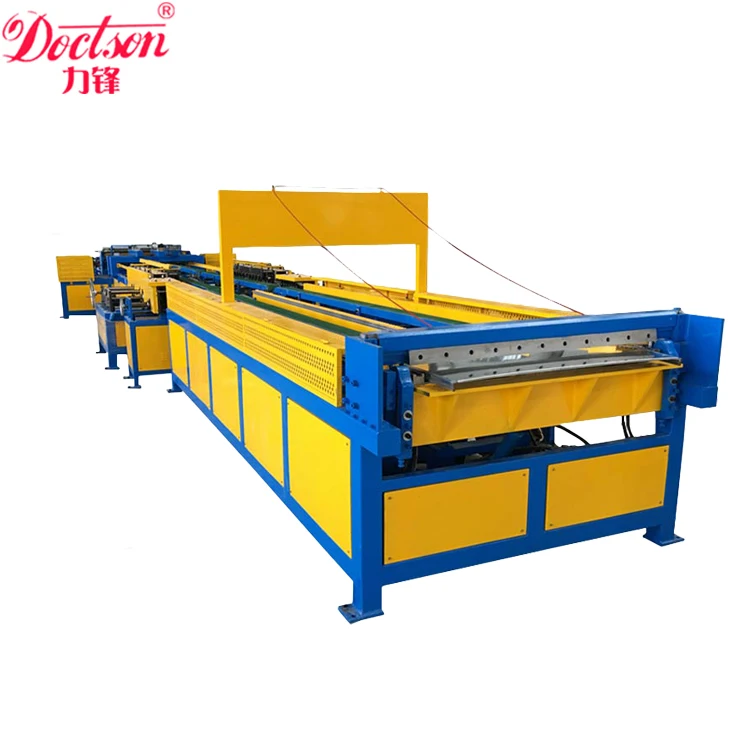

Industrial Sale HVAC Auto Duct Line Air Duct Line 5 Duct Production Line
- Category: >>>
- Supplier: Zhenjiang Lifeng Machinery Technology Co. Ltd.
Share on (1600645905527):
Product Overview
Description
Specification
Model | Sheet thickness(mm) | Max width(mm) | Max working speed(m/min) | Coiler max weight(T) | Dimensions(m) | Power(kw) | Weight (T) | ||||
L | W | H | |||||||||
LF-Ⅴ | 0.5-1.2 | 1300 | 15 | 7 | 22000x3500x1300 | 36 | 9.5 | ||||
1500 | 15 | 7 | 22000x3800x1300 | 36 | 10 | ||||||
Main Feature:
It's mainly for TDF/angle steel/C-shaped flange forming with daily processing capability of 1000-2500 square meters.
Only with inputting dimensions in duct, production line can automatically complete uncoiling , leveling, beading, punching,shearing, locking, forming TDF/angle steel/C- shaped flange and folding.
●Linear structure reduces sheets transferring time and improve production efficiency；
●The material frame is controlled by the speed adjustable converter motor；
●10 Rollers for leveling and grooving which ensure the flatness of sheet metal for various thickness；
●with material processing saving mode, users can reduce the waste of sheet metal significantly to less than 20mm per material coiler；
●with features of servo motor driven in folding process and accurate positioning, it has the obvious advantage especially when produce the square shaped duct；
●The input adopt two modes: screen tough and keyboard input which ensure stability of the system；
●require only one person to operate the machine, two persons can take away the ducts；
●The speed of each part can be adjusted as needed；
●A processing counting function for statistics and management with day count and total count；
●support print function for production management；
It's mainly for TDF/angle steel/C-shaped flange forming with daily processing capability of 1000-2500 square meters.
Only with inputting dimensions in duct, production line can automatically complete uncoiling , leveling, beading, punching,shearing, locking, forming TDF/angle steel/C- shaped flange and folding.
●Linear structure reduces sheets transferring time and improve production efficiency；
●The material frame is controlled by the speed adjustable converter motor；
●10 Rollers for leveling and grooving which ensure the flatness of sheet metal for various thickness；
●with material processing saving mode, users can reduce the waste of sheet metal significantly to less than 20mm per material coiler；
●with features of servo motor driven in folding process and accurate positioning, it has the obvious advantage especially when produce the square shaped duct；
●The input adopt two modes: screen tough and keyboard input which ensure stability of the system；
●require only one person to operate the machine, two persons can take away the ducts；
●The speed of each part can be adjusted as needed；
●A processing counting function for statistics and management with day count and total count；
●support print function for production management；
configuration
●A motor-driven material feeding frame(4 coils; the max loading per coiler is 7tons)；
●Optional 8tons or 10 tons of hydraulic material frame；
●A material supporting frame；
●A main machine；
●A manipulator for material clutch, transferring and positioning platform；
●A movable high-speed Pittsburgh lock forming machine；
●A duplex angle steel flange forming machine；
●A duplex TDF flange forming machine；
●A servo-motor driven material feeding platform；
●A TDF Hydraulic folding machine；
●A CNC system and a set of production software；
●Optional 8tons or 10 tons of hydraulic material frame；
●A material supporting frame；
●A main machine；
●A manipulator for material clutch, transferring and positioning platform；
●A movable high-speed Pittsburgh lock forming machine；
●A duplex angle steel flange forming machine；
●A duplex TDF flange forming machine；
●A servo-motor driven material feeding platform；
●A TDF Hydraulic folding machine；
●A CNC system and a set of production software；

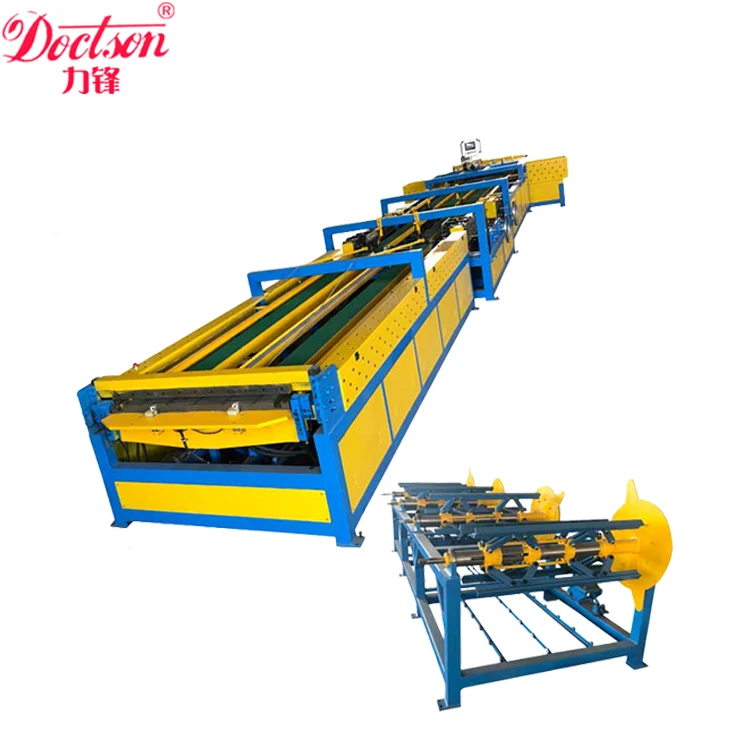

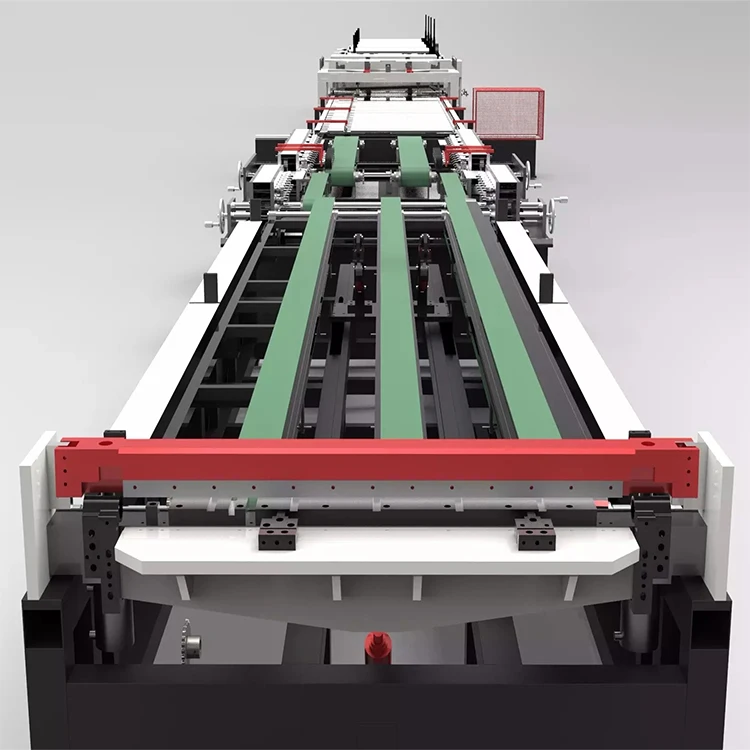

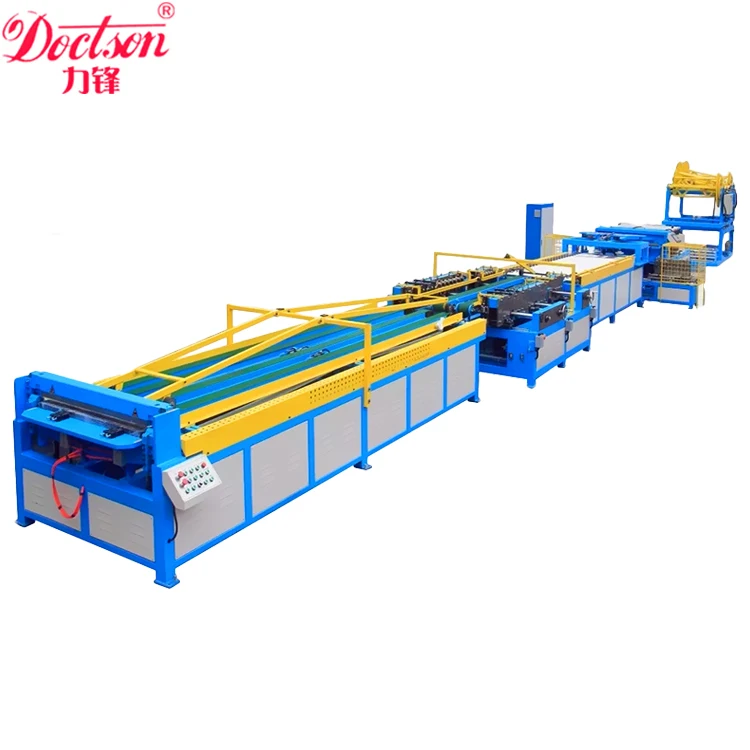

Product Picture
Company Profile
Zhenjiang Lifeng Machinery Technology Co., Ltd is located in the western suburbs of Zhenjiang.
The transportation is convenient .And it is only 50 kilometers from the Nanjing Lukou International Airport.
Our company is a medium-lot producer which is professional in producing machinery blade,mold,roll,CNC machine tools,ventilation machinery,sheet metal machinery.
The products are sold throughout the large and medium enterprises including steel.
Mills,paper,plastics,metallurgical,chemical,rubber tire factories and various packaging industry.With excellent facilities,superb technology,strict testing and advanced management,the company’s product quality has always been at the top of the same industry.
We have been in good faith-based and pragmatic sense,step by step to move forward with excellent product quality,perfect after-sales service.We have created the corporate image to the satisfaction of users and established a broad market space.
The transportation is convenient .And it is only 50 kilometers from the Nanjing Lukou International Airport.
Our company is a medium-lot producer which is professional in producing machinery blade,mold,roll,CNC machine tools,ventilation machinery,sheet metal machinery.
The products are sold throughout the large and medium enterprises including steel.
Mills,paper,plastics,metallurgical,chemical,rubber tire factories and various packaging industry.With excellent facilities,superb technology,strict testing and advanced management,the company’s product quality has always been at the top of the same industry.
We have been in good faith-based and pragmatic sense,step by step to move forward with excellent product quality,perfect after-sales service.We have created the corporate image to the satisfaction of users and established a broad market space.
Workshop

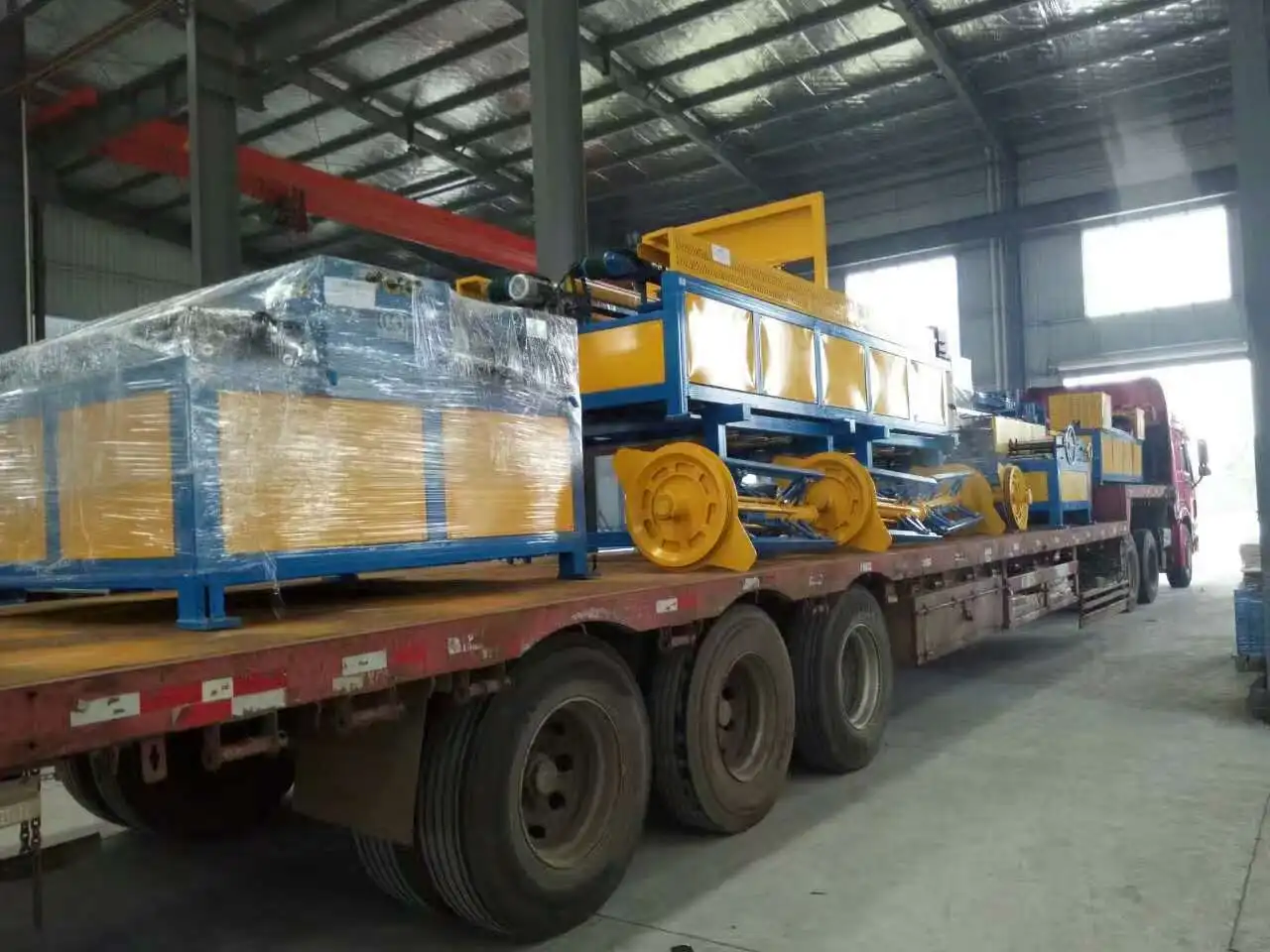

Payment & Delivery
FAQ
Q:Are you trading company or manufacturer?
A:We are factory.
Q: How about your machine quality?
A: Doctson is a mature brand in China. Through our over ten years research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the or more strict standard.
A:We are factory.
Q: How about your machine quality?
A: Doctson is a mature brand in China. Through our over ten years research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the or more strict standard.
