Miran ML F 50MM Inductance Frequency Modulation LVDT Sensors Transducer
- Category: >>>
- Supplier: Zaoyang City Milang Science & Technology Co. Ltd.
Share on (1600646958467):
Product Overview
Description
Company Information
MIRAN Technology Co.,Ltd is the largest Linear Position Sensor manufacturer in China.Since 2003 we have been developed and produced Linear Position Sensor(brand:MIRAN,LinecSKI,WANSUNG),Wire Rope Potentiometer,Magnetostrictive Liquid Level Sensor,Angle Sensor,Lubricating Pump(Oil/Grease/Butter),LVDT,Eddy Current Sensor, and many other motion control products to support many different industries.As a leading manufacturer in China,our factory is approved by ISO9001:2008, and all our products have CE, CCC,Rohs certificates.Our Principles: Quality First, Credit First, Customer First.Our Advantages 1. Strong capability in Research&Design.We spend million dollars every year for developing new tech and new products. 2. Promise high quality after strict tests. Every product will go through vibration test, low and high temperature test,electromagnetic interference regulatory test,endurance test, and explosion proof test. 3. Strong production capacity. We have factories both in Shenzhen and Hubei Province, and also a lot of in-stock products in warehouses. We can meet large demands from our customers, and deliver the orders on time. 4. Excellent sales & after-sales service. We are headquartered in Shenzhen, and have branches all over China. We guarantee life-long for all products.We can offer you the competitive perfect products.We also support to put your logo on the products if you need.Hope we can build up the long-term and harmonious business relationship!
Product Description
voltage supply: 12VDC
work current :≤5mA
effective stroke :0-50mm,0-100mm
output signal: The amplitude >2V square wave signal
linearity :0.1%---1.0%
resolution :≤0.001MM
operating temperature :-25℃----+85℃
Impact Resistance: 250g/11milliseconds
Vibration Allowed Limit :10g/2KHZ
Temperature Coefficient: Zero to 0.01% or less / ℃
Center Frequency: 16KHZ ±4%
Relative Humidity :100%
allowed cable length: ≤1000m
The inductance frequency modulation displacement sensor can be widely used in the national defense engineering science experiment, the engineering survey and design geotechnical experiment and the in situ test to all walks of life and the field of automation and measurement and control technology. Become the ideal choice for the intelligent two meter and the computer application department.
Main Feature

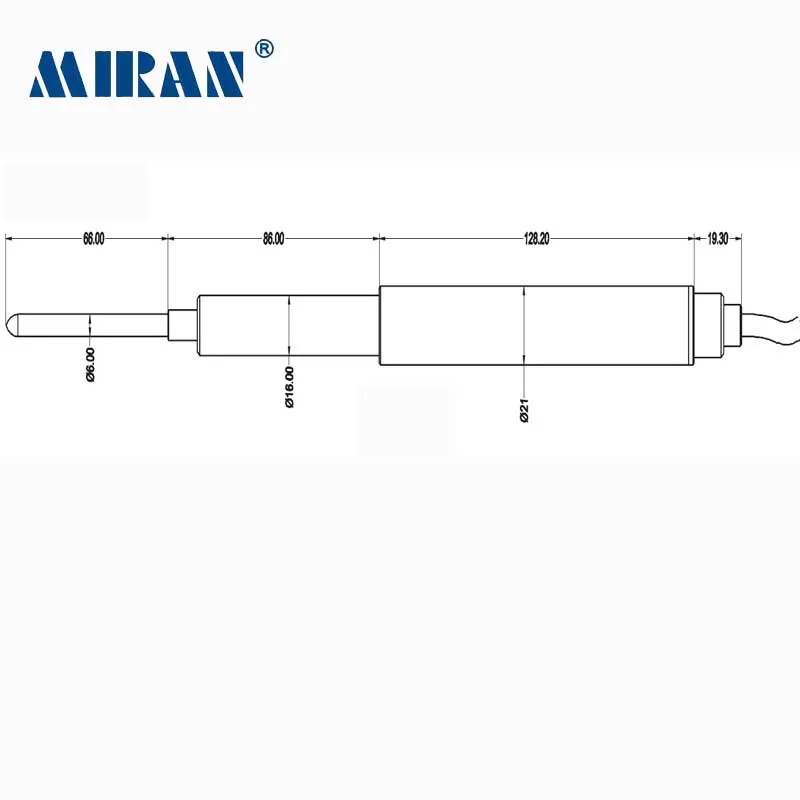

1.Built-in precision linear bearing, good repeatability ,high resolution,long cable distance will not effect the linearity, outer diameter Φ 21 mm
2.Can be used for harsh environment.
3.Measuring range :50mm, 304 stainless steel material
4.Dc 12V power supply, square wave output.
5.Cable length 5 meters,accept customized.
6.Pay attention to the protection,aviod drop.
7.get the data after power on for 30 minutes
