6cavity Fully automatic blow molding machine up to 2 liter PET bottle
- Category: >>>
- Supplier: ZHEJIANG HANYU AUTOMATION TECHNOLOGY CO. LTD
Share on (1600646993420):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
6 cavity blow molding machine | ||||||
CONTAINER | Max.Container Volume | L | 2 | |||
Cavity | 6 | |||||
Theoretical Output | BPH | 6000 | ||||
ELECTRICAL | Heating Power | KW | 80 | |||
Installed Power | KW | 120 | ||||
Clamping Force | KN | 600 | ||||
COMPRESSEDAIR | Operating Power | MPA | 0.8 | |||
Air Consuming | L/MIN | 1400 | ||||
Blowing Pressure | MPA | 3.0 | ||||
Air Consuming | L/MIN | 4000-6000（**） | ||||
CHILLED WATER | Pressure | MPA | 0.3-0.5 | |||
Temperature | C | 10-12 | ||||
Flow Rate | L/MIN | 30 | ||||
MACHINE | Size(L*W*H) | M | 5.2*1.93*2.03 | |||
Weight | KG | 6000 | ||||
HY-6000 is the fastest liner blow molding machine in mainland of China by now. HY-6000 reaches around 6000BPH for 350ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
HY-6000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. HY-6000 consists of three main parts: preform loading system, Heater channel & blow station.
MACHINE FEATURES:
1. Machine use of advanced PLC control system , stable in performance, automatic preform feeding .
2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater
3. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
4. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
5. No contamination and low noise with the air cylinder to drive the action instead of the oil
pump.
6. Air route design is divide into two parts ,
7. Ideal effect of the chilling with the chilling system
8. Low rejection rate: less than 0.3percent
HY-6000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. HY-6000 consists of three main parts: preform loading system, Heater channel & blow station.
MACHINE FEATURES:
1. Machine use of advanced PLC control system , stable in performance, automatic preform feeding .
2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater
3. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
4. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
5. No contamination and low noise with the air cylinder to drive the action instead of the oil
pump.
6. Air route design is divide into two parts ,
7. Ideal effect of the chilling with the chilling system
8. Low rejection rate: less than 0.3percent

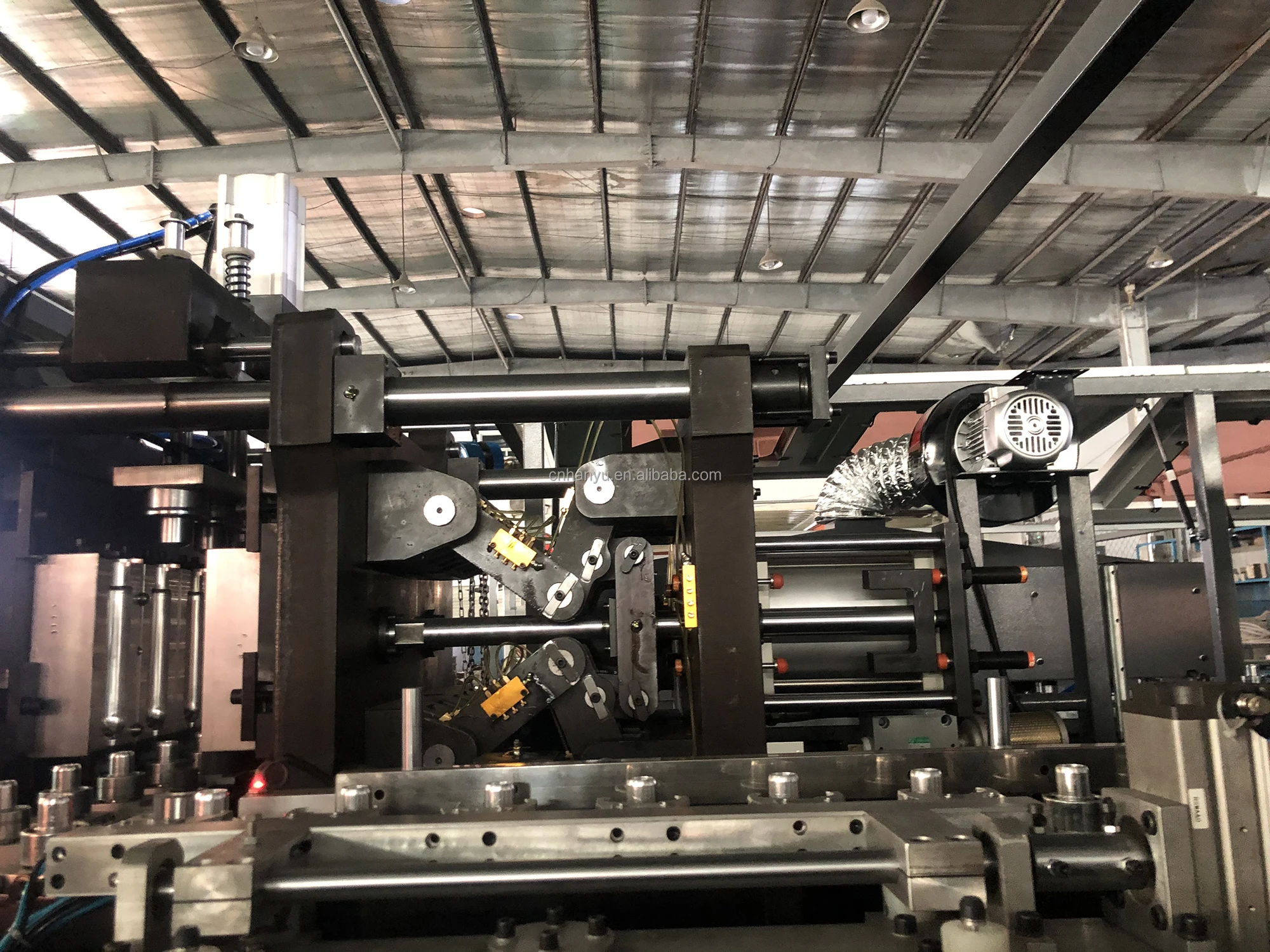

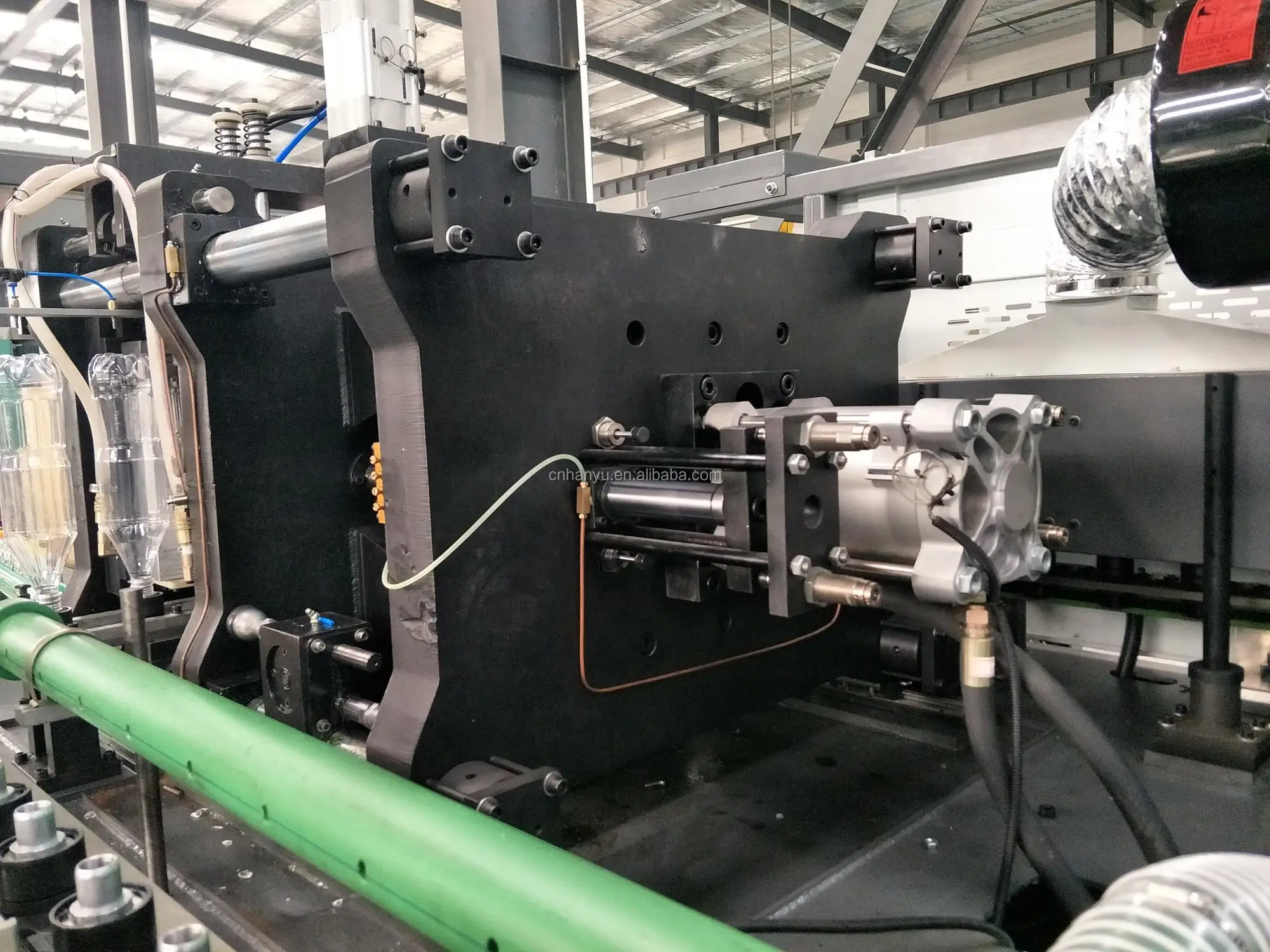

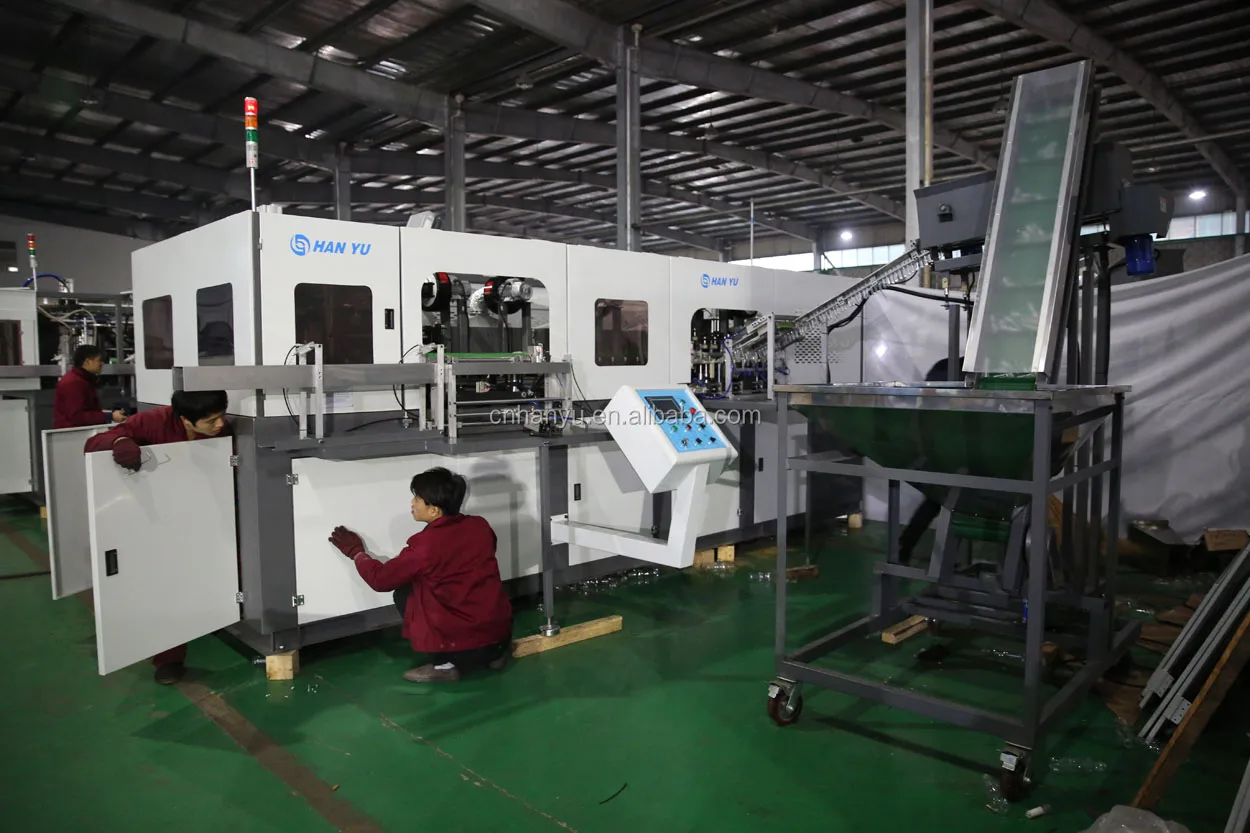

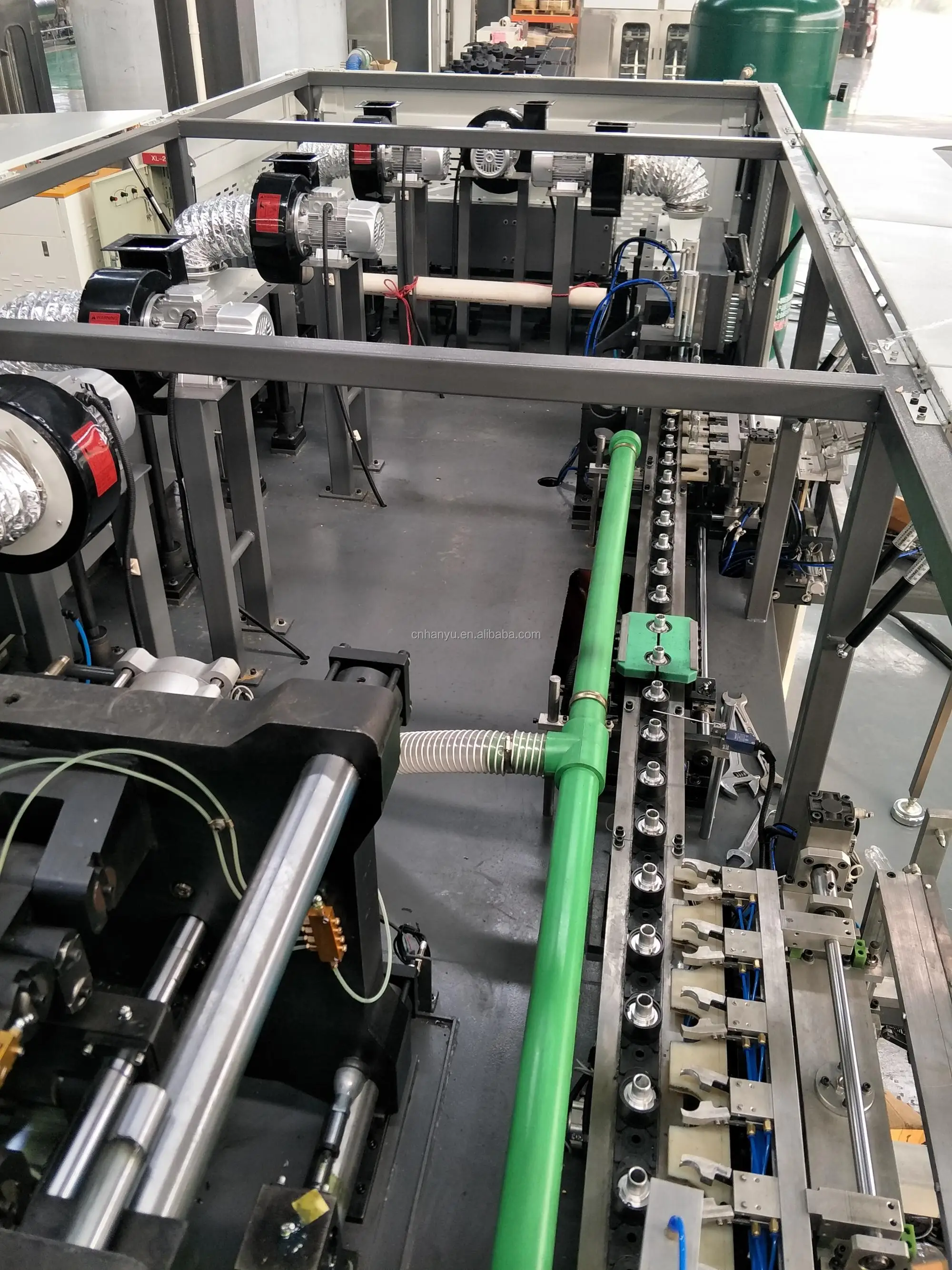

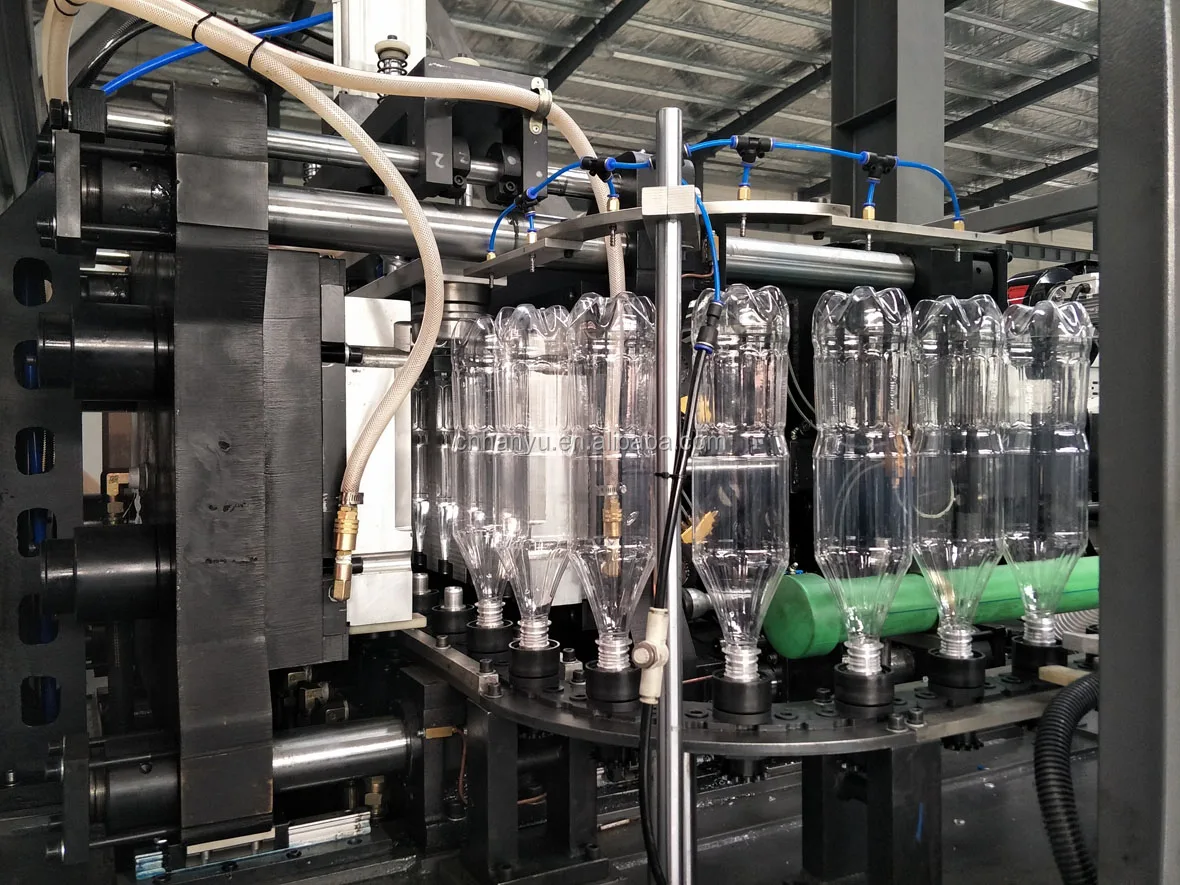

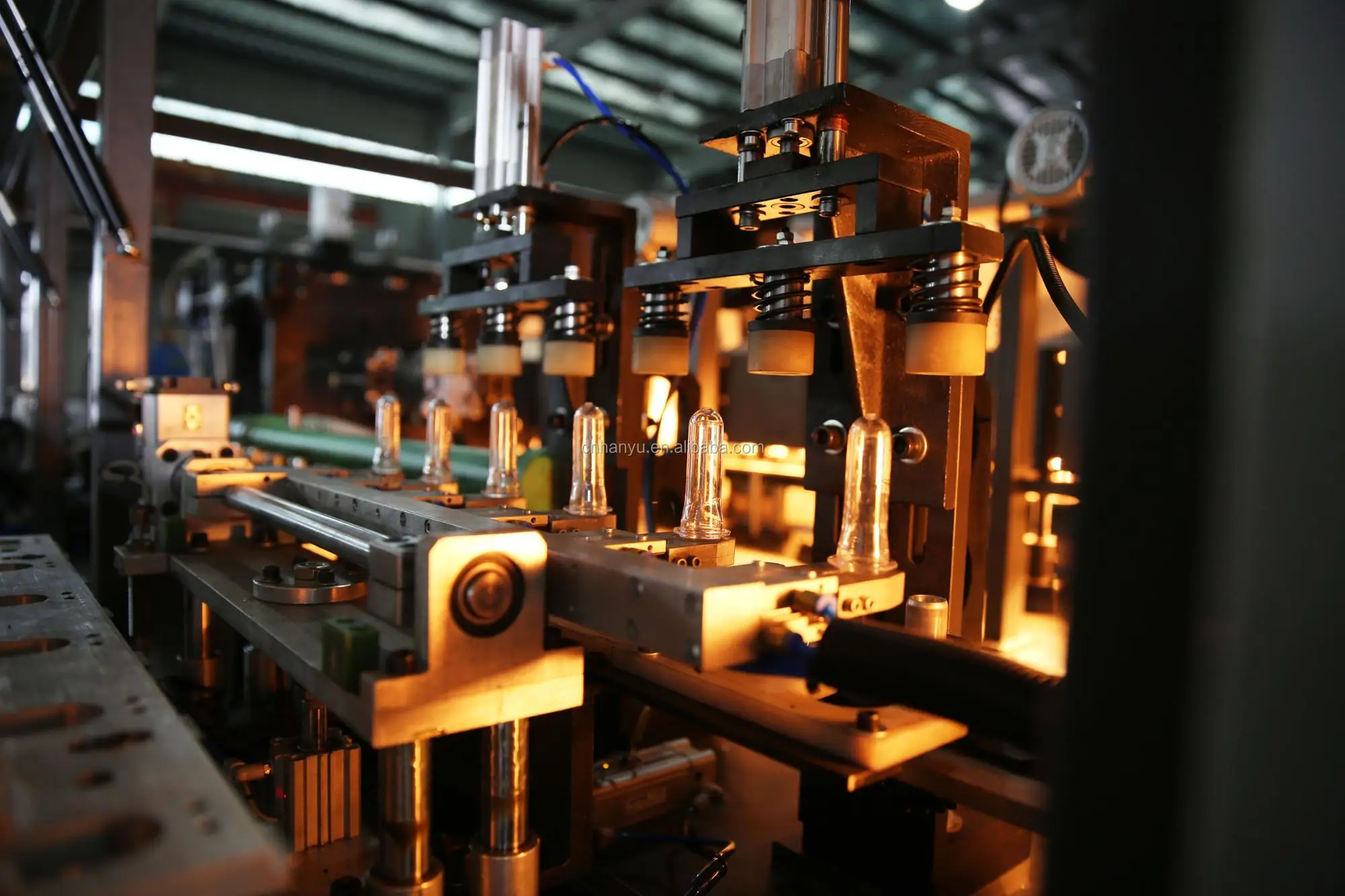

Detailed Images
Packing & Delivery
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Factory
FAQ
Q:Have the blow molding machine in stock
A:semi-automatic blow molding machine in stock ,and the fully automatic are newly,the mold according your sample to make .
Q:What is the delivery time?
A:50-60days for this machine.
Q:What is the payment team?
A:T/T.L/C
Q:Can i trust you?
A:YES.We are "Alibaba" verified supplier
Q:May i visit your factory?
A:Of course,welcome any time,we can also pick you up at airport or station,
