Product Overview
Description

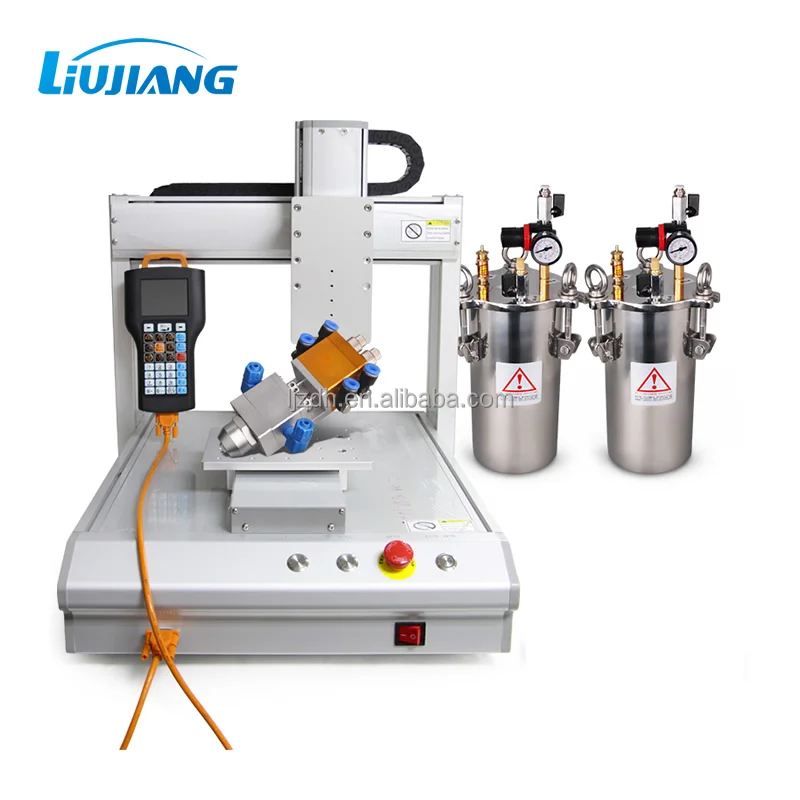

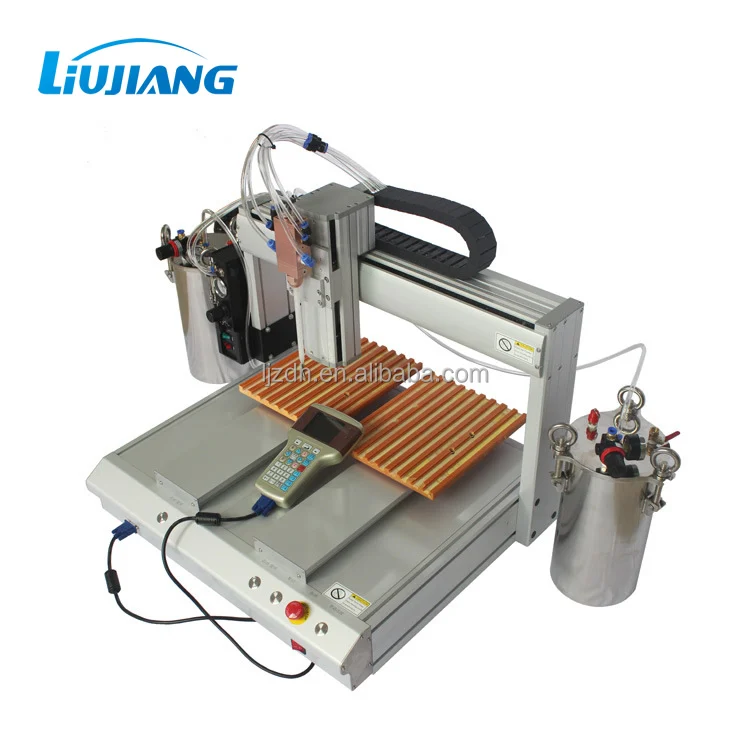

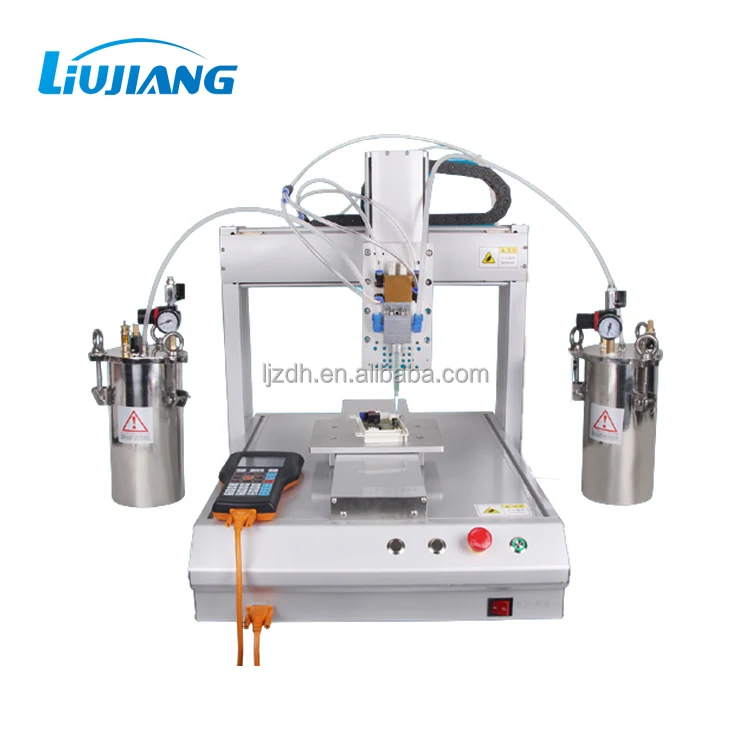

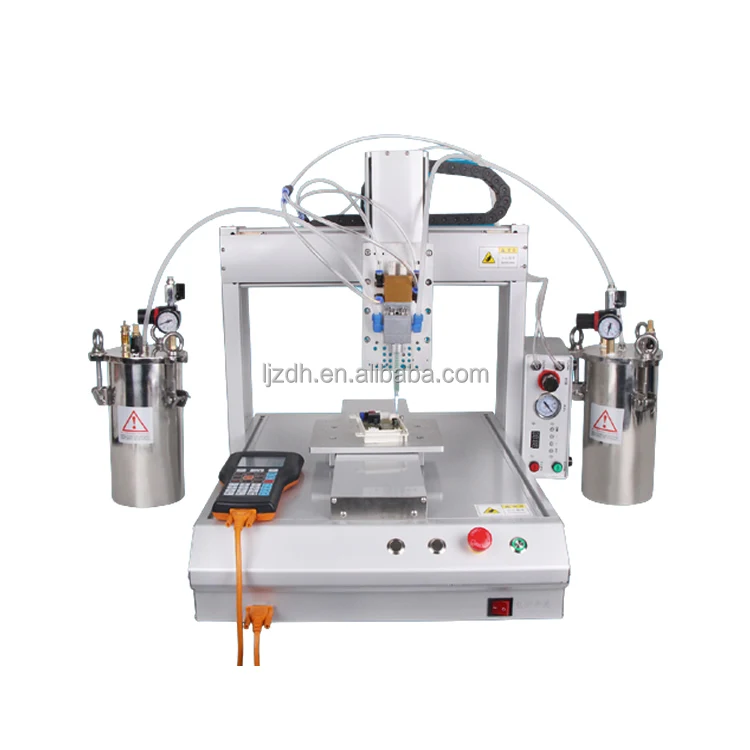

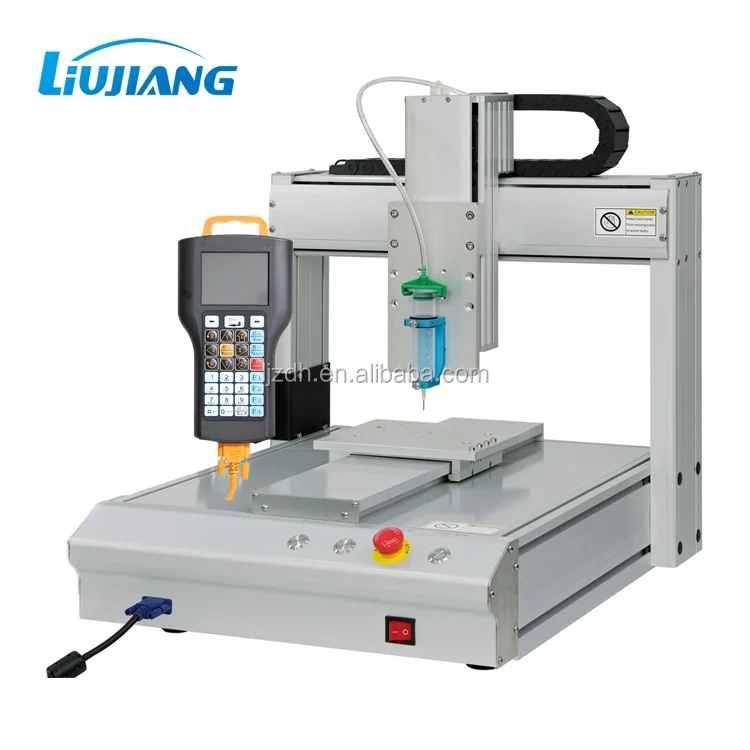

Liujiang desktop 3-axis dispensing robot AB glue machine for doming stickers
support epoxy resin and PU glue 1:1 2:1 3:1
Product Description
300 parameters
| Item/Model | LJ-D3311 | LJ-D3312 | LJ-D3313 | LJ-D3314 |
| Number of axes | 3 | 3 | 3 | 3 |
| Maximum working area (X / Y / Z) | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm |
| Head Number | 1 | 2 | 3 | 4 |
| Rotation Axis | - | - | - | - |
| Workpiece payload | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) |
| Tool payload | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) |
| Maximum speed(XY / Z) | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec |
| Unit weight | 45 kg | 45 kg | 46kg | 46 kg |
| Dimensions | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm |
| Drive system | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor |
| Memory capacity | 1–99 programs | 1–99 programs | 1–99 programs | 1–99 programs |
| 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | |
| Data storage | USB | USB | USB | USB |
| General purpose I/O | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs |
| Drive method | PTP and CP | PTP and CP | PTP and CP | PTP and CP |
| Dispensing controller | External | External | External | External |
| Power supply | Auto-switching | Auto-switching | Auto-switching | Auto-switching |
| AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | |
| Interpolation | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) |
| Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.02 mm |
| Working temperature | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) |
| Teach pendant(ENG) | Included | Included | Included | Included |
| Moving Method | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle |
| Available Graph | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line |
| Heating function | Optional | Optional | Optional | Optional |
| Preheat function | Optional | Optional | Optional | Optional |
| Pressure | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 |
| Approvals | CE | CE | CE | CE |
Silicone dispensing machine

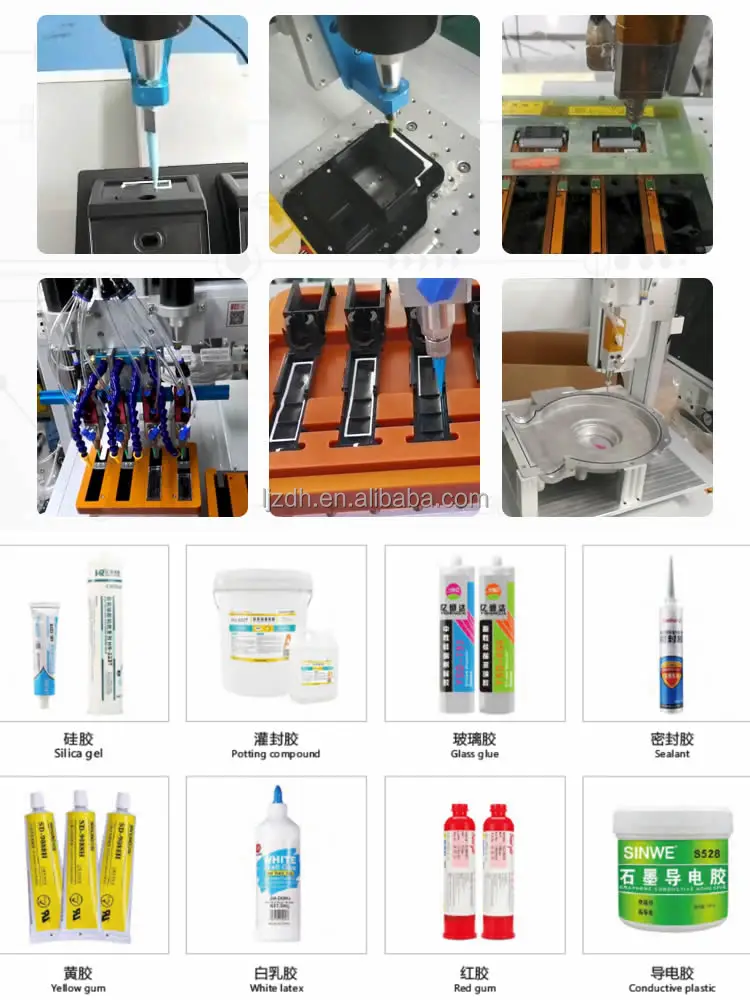

1.Automatic dispenser use:
Mobile phone screen TP hot melt adhesive dispensing, flat TP dispensing, PCB dot solder paste, HD HDMI line solder paste, semiconductor package, PCB board part fixing and protection, LCD glass package and paste, mobile phone board dispensing, Button products, dispensing, speaker packaging and dispensing, battery box dispensing, automotive parts coating, metal parts packaging, quantitative liquid filling, chip bonding and so on.
2.Adapt to glue:
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint, screw glue, etc.
Our Services
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English
3. OEM&ODM
4. Good quality paper box & carton packing
5. Double check before shipping
6. Safely Shipping method,such as DHL /EMS /FEDEX/TNT /UPS
7. Ocean Freight or cargo forwarder service
8. Sample order in small quantity is acceptable
For more detailed information or catalog, please kindly contact us!
Company Information
Liujiang 10 years focused on research and development in the field of dispensing and Solder,Lock screw manufacture.
Dongguan Liujiang Automation Co., Ltd. It was founded in 2008, is a specialized in hot melt glue machine,pur hot melt glue machine. automatic dispensing machine, electronic product dispensing machines, 3/4/5 axis dispensing machine, PCB dispensing machines .Liujiang have granted the certification of CE. It’s a research,development,manufacturing and sales of international high and new technology enterprise. R& D Headoffice is located in Dongguan city, Guangdong province, China. The total area is 2000 square meters, We have advanced R&D center of the engineers and technicians 18 people, 2 modern production workshops , more than 130 staffs.
