Product Overview
Description
Veinasa-THPPWU-02 Pyranometer Temperature Humidity Outdoor Ultrasonic Wind Speed Monitor Sensor Weather Station Digital
Products Description
Veinasa-THPPWU-02 is a integrated 7 in 1 digital ultrasonic weather station. This measuring device is a civilian level integrated meteorological station developed by Veinasa independently, it can simultaneously measure 7 parameters: temperature, humidity, air pressure, wind speed, wind direction, total radiation and UV. It is characterized by high integration of all modules and fast response time.
It also can add other parameters: light intensity, PM2.5, PM10 and altitude according to your needs.
Product Parameters
Item | Parameters | ||||||
Power Supply | 7-30V DC | ||||||
Average Consumption | 1.7w | ||||||
Body Material | ABS+Aluminum alloy | ||||||
Installation method | screw installation; sleeve installation, etc | ||||||
Communication Protocol | Modbus, SDI-12 | ||||||

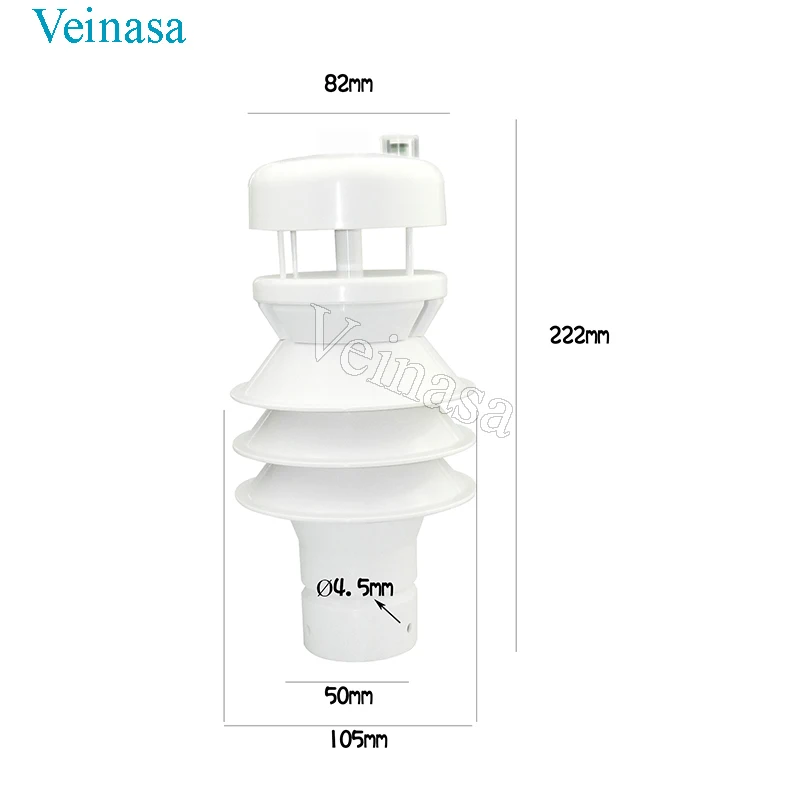

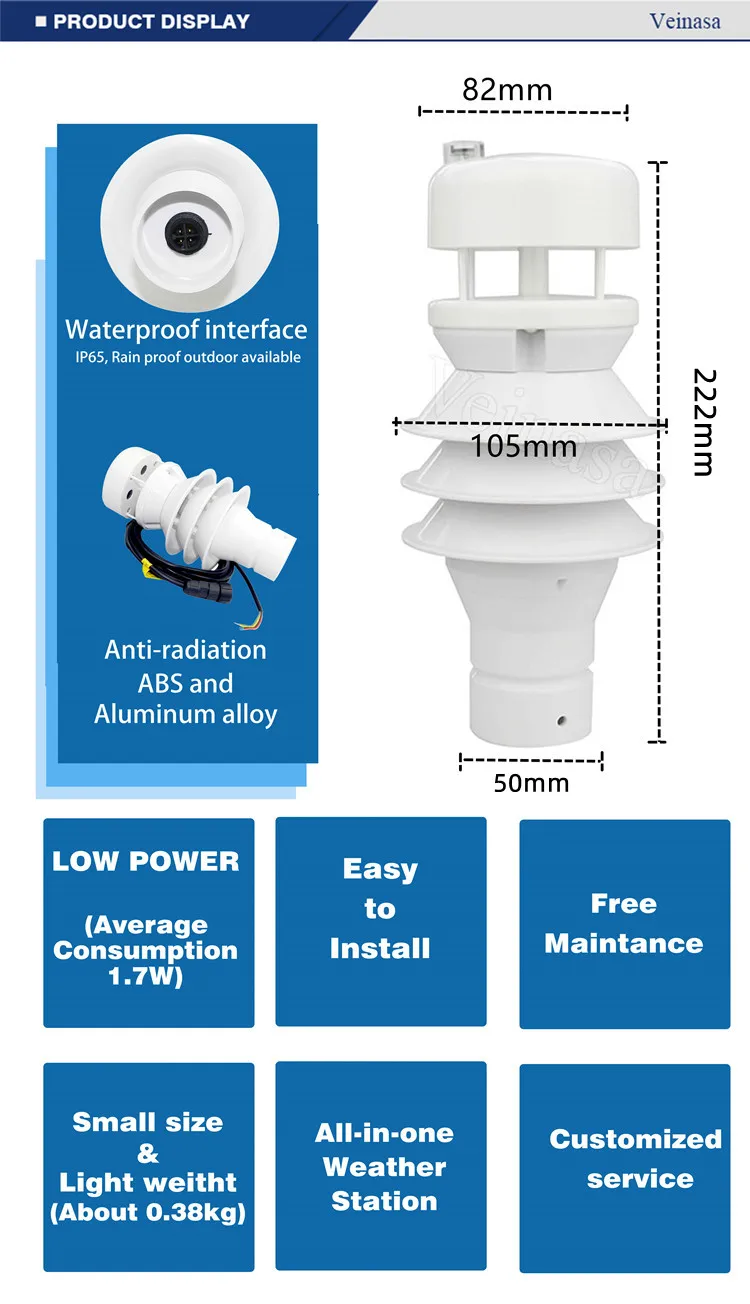

Dimension | (Φ82mm×(105~212mm ) | ||||||
Weight | About 0.38kg | ||||||
The standard cable length | about 4m | ||||||
Working temperature | 30-80 ℃ | ||||||
Protection grade | IP65, Rain proof outdoor available | ||||||
Operating Humidity | 0-100%RH | ||||||
Principle | Range | Accuracy | Resolution | ||||
Air Temperature | MEMS sensor | -40℃ － +80℃ | ±0.5℃ | 0.1℃ | |||
Air Humidity | MEMS sensor | 0－100% | ±3％ | 0.1 | |||
Air Pressure(optional) | MEMS sensor | 300 － 1100hPa | ±3％ | 0.1hPa | |||
Wind Speed | Ultrasonic | 0 - 40m/s | ±3％ | 0.01m/s | |||
Wind Direction | Ultrasonic | 0 - 359° | ±3 ° | 1° | |||
Total radiation | 0-1750W/m2 | ±5％（ @ Vertical illumination） | 0.1 W/m2 | ||||
UV | 0-400mw / m2 | 10% | 1 | ||||
Main Features
Features of Veinasa-THPPWU-02:
* Robust structure, easy for installation, 7/24 continuous monitoring
* Can integrated electric compass, GPS or Beidou Global Position System
* Robust structure, easy for installation, 7/24 continuous monitoring
* Can integrated electric compass, GPS or Beidou Global Position System
* MODBUS Protocol, standard RS485/RS232 output
* Built-in heating device ensures normal operation in cold weather
* 7 elements included, all-in-one weather station
* Built-in heating device ensures normal operation in cold weather
* 7 elements included, all-in-one weather station
Application Field
Veinasa-THPPWU-02 can be applied to:
1.City environmental monitoring
1.City environmental monitoring
2.Hydraulic engineering
3.Construction site
4.Agricultural automatic meteorological station
5.Traffic automatic meteorological station along the highway
6.Meteorological field monitoring station
7.Automatic weather station nearby high-voltage transmission substation or guyed
4.Agricultural automatic meteorological station
5.Traffic automatic meteorological station along the highway
6.Meteorological field monitoring station
7.Automatic weather station nearby high-voltage transmission substation or guyed
Related Products
Company Profile
FAQ
Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used 2 in 1 weather sensor Veinasa-CXS02B which can be used to measure wind speed and direction.
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like PM2.5, PM10 and rain.
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used 2 in 1 weather sensor Veinasa-CXS02B which can be used to measure wind speed and direction.
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like PM2.5, PM10 and rain.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is 7-30V DC, RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this digital weather station?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is about 4m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
A: Common power supply and signal output is 7-30V DC, RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this digital weather station?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is about 4m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
