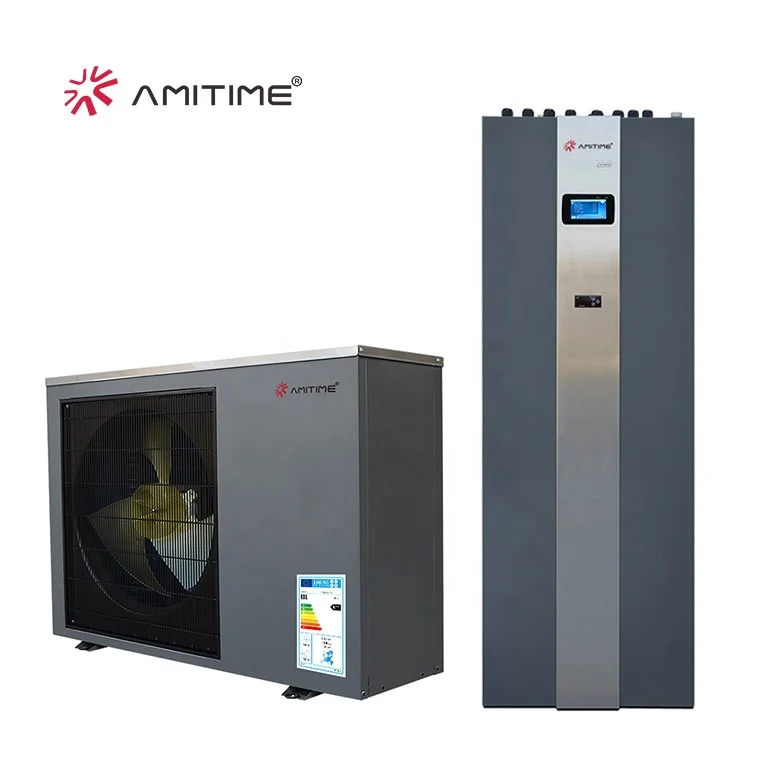

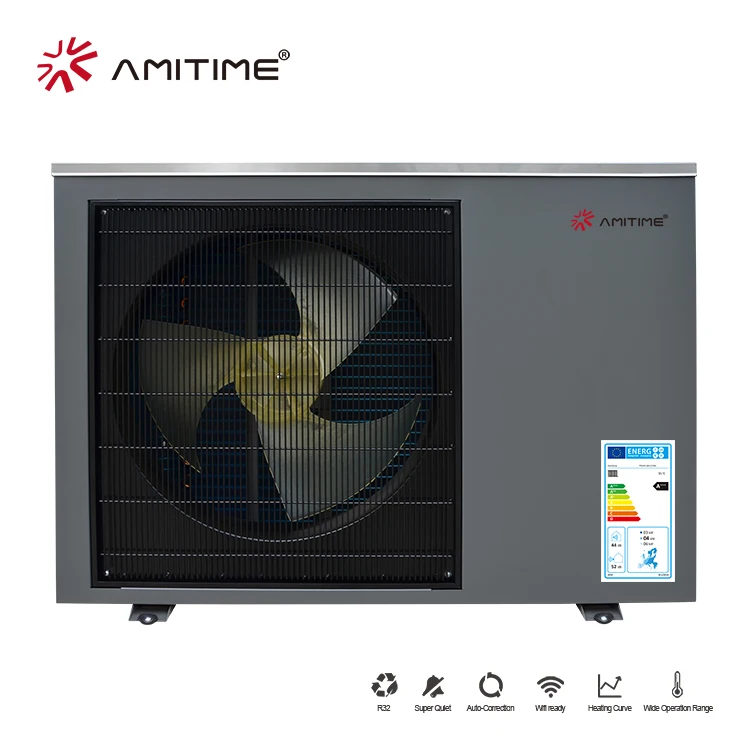

Professional Manufacturer A Wifi Water Tank All In One Air To Water Air Source Domestic Hot Water R32 Heat Pump 12kW
- Category: Water Heaters >>>
- Supplier: Zhongshan Amitime Electric Co. Ltd.
Share on (1600647209530):
Product Overview
Description
Product Paramenters
Model | PAVH-12V1FBA-250L | |||
Power Supply / Refrigerant | V/Hz/Ph | 220-240/50/1 - R32 | ||
Energy class （35℃ SCOP） | A+++ | |||
Max. Heating Capacity (1) | kW | 11.6 | ||
C.O.P (1) | W/W | 4.3 | ||
Heating Capacity Min./Max.(1) | kW | 5.5/11.6 | ||
Heating Power Input Min./Max.(1) | W | 1107/2683 | ||
C.O.P Min./Max.(1) | W/W | 4.3/4.9 | ||
Max. Heating Capacity(2) | kW | 11.2 | ||
C.O.P (2) | W/W | 3.45 | ||
Heating Capacity Min./Max.(2) | kW | 4.9/11.2 | ||
Heating power input Min./Max.(2) | W | 1401/3263 | ||
C.O.P Min./Max.(2) | W/W | 3.3/3.5 | ||
Max. Cooling Capacity (3) | kW | 9.8 | ||
E.E.R (3) | W/W | 3.9 | ||
Cooling Capacity Min./Max.(3) | kW | -/9.8 | ||
Cooling Power Input Min./Max.(3) | W | -/2510 | ||
E.E.R Min./Max.(3) | W/W | -/3.8 | ||
Max. Cooling Capacity (4) | kW | 6.5 | ||
E.E.R (4) | W/W | 2.7 | ||
Cooling Capacity Min./Max.(4) | kW | 4.9/6.5 | ||
Cooling Power Input Min./Max.(4) | W | 1358/2444 | ||
E.E.R Min./Max.(4) | W/W | 2.6/4.5 | ||
Noise Level (sound power) | dB(A) | 44/52 | ||
Note: | ||||
(1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; | ||||
(2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; | ||||
(3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB 35℃/WB 24℃; | ||||
(4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB 35℃/WB 24℃; | ||||
(5) The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. | ||||
