FANUC controller gantry CNC milling machine GMC 1611 heavy cutting double column gantry type CNC machining center
- Category: >>>
- Supplier: Nanjing Prima CNC Machinery Co. Ltd.
Share on (1600647298209):
Product Overview
Description
FANUC controller gantry CNC milling machine GMC 1611 heavy cutting double column gantry type CNC machining center

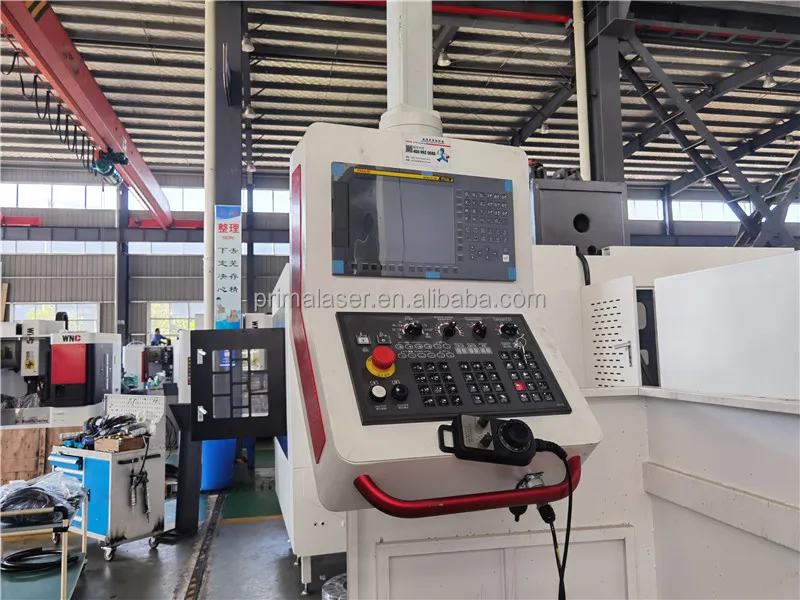

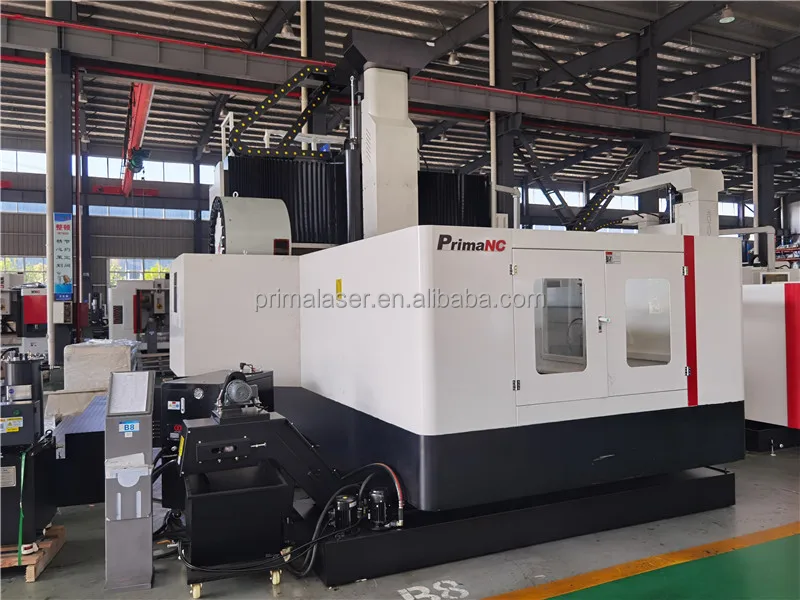

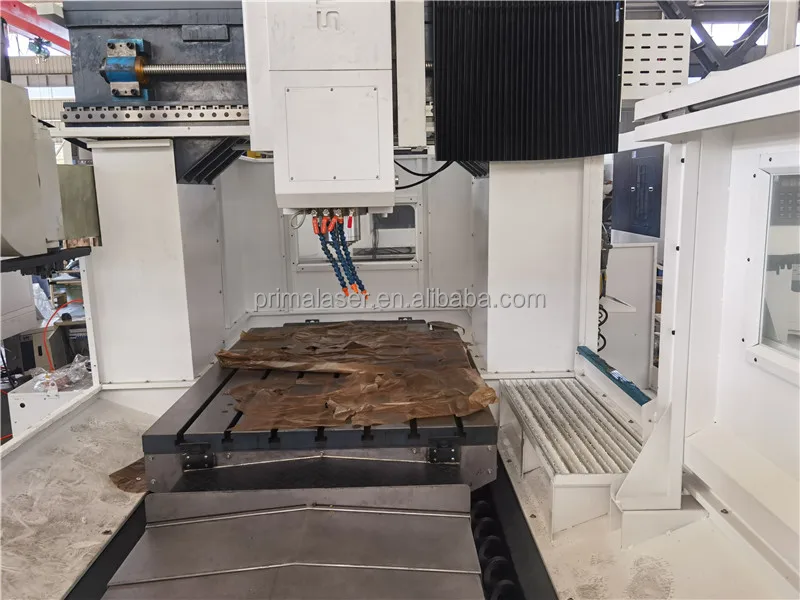

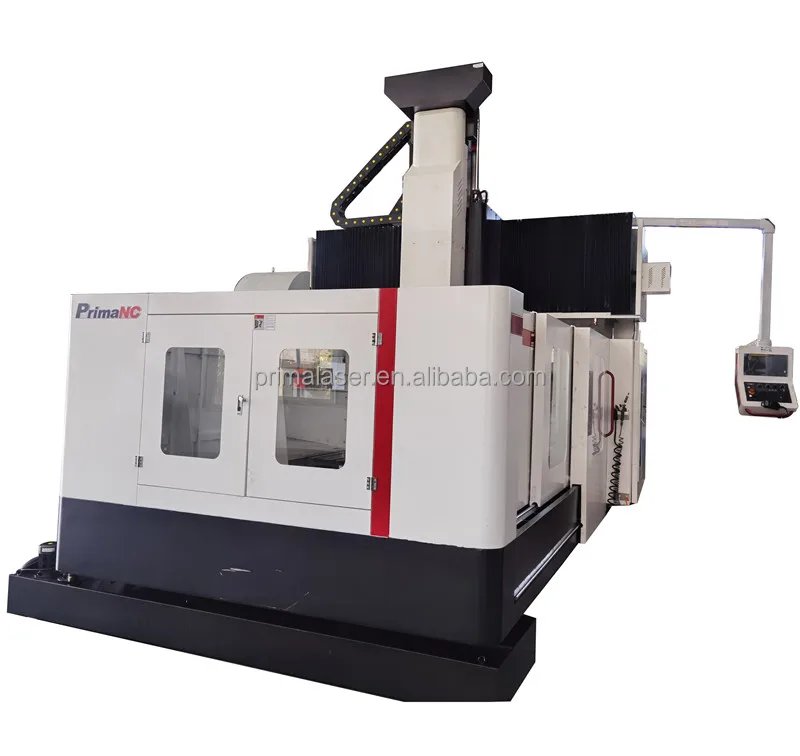

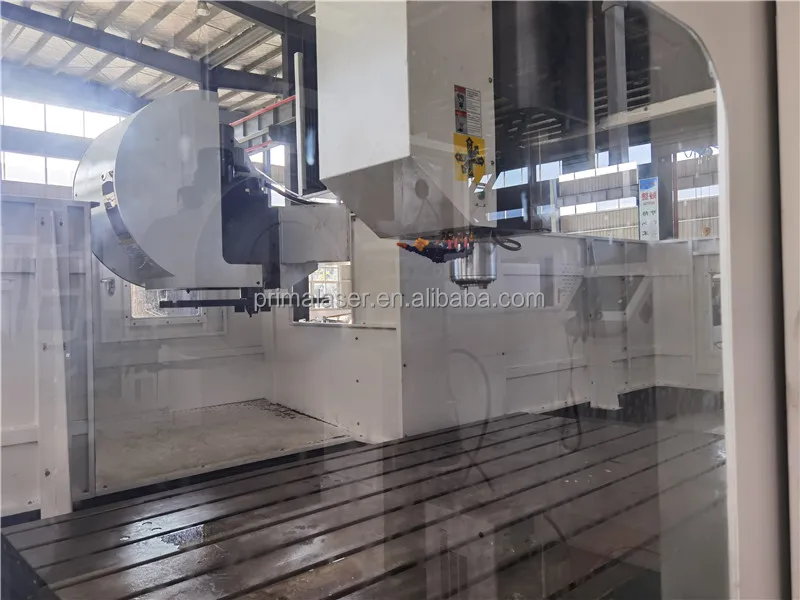

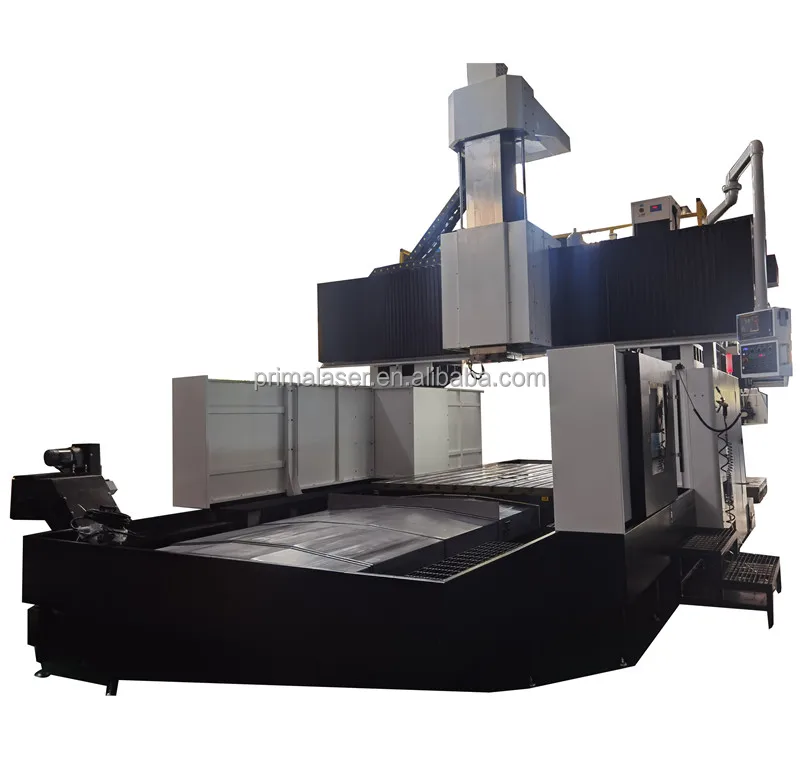

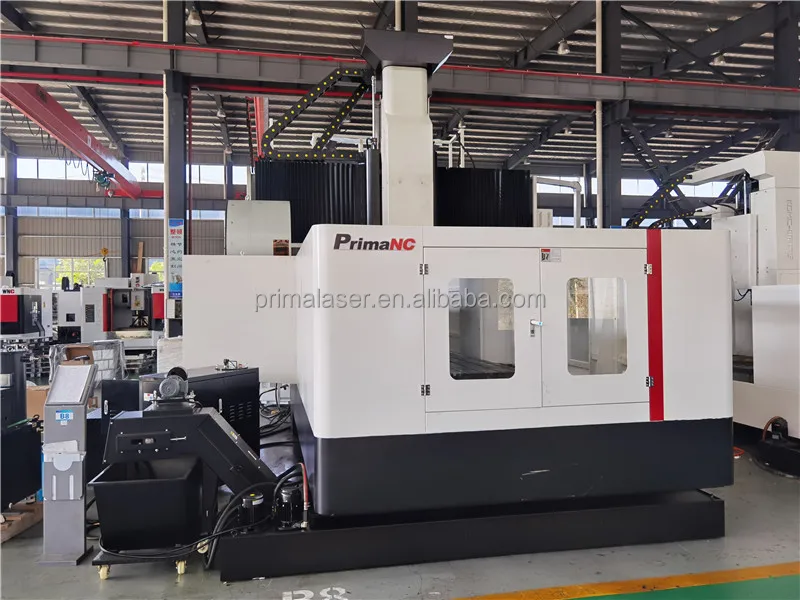

Product Photos:
Product Description
Product Application:
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Main Parameter: we can make all kinds models based on your requirement.
Machine Type | Unit | GMF4027B |
Workbench size | mm | 4000/2300 |
Door width | mm | 2500 |
Workbench load bearing | T | 12 |
T-slot width | mm | 9-22X200/2-22X140 |
X/Y/Zaxis travel | mm | 3200/2500/1000 |
Spindle end to table distance | mm | 255-1255 |
Taper hole type |
| BT50 |
Pull stud specifications |
| P50T-1-MAS403 (45°) |
Speed range | rpm | 10-5000 |
Main drive form |
| Spindle motor + ZF gearbox + belt |
Cutting feed rate range | m/min | 7 |
X-axis rapid movement | m/min | 10/12/10 |

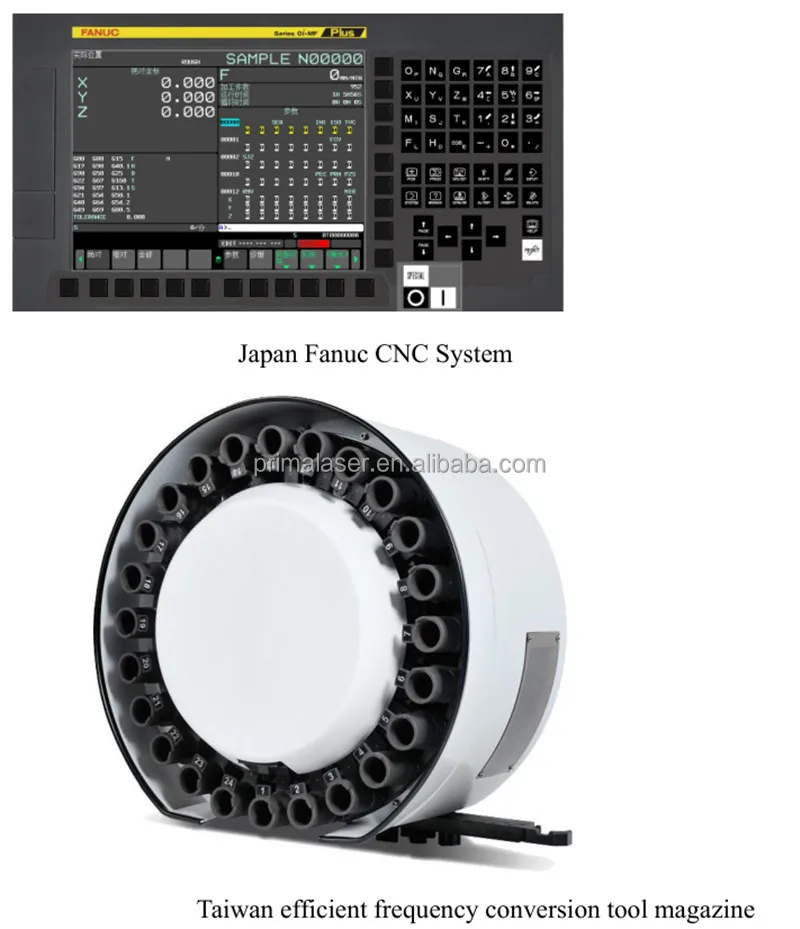

System configuration FANUC Oi MF 1 package | ||
X/Y/Z axis motor |
| αiF40/αiF30/2-αiF40B |
Spindle motor αiI22 | ||
Triaxial guide rail specifications |
| X-axis 2-55# roller rail |
| Y-axis 2-55# roller track | |
| Z-axis square ram | |
Triaxial screw specifications |
| X-axis 8016 |
| Y axis 6316 | |
| Z axis 5010 | |
Bearing specifications |
| X-axis 60TAC120B |
| Y axis 50TAC100B | |
| Z axis 40TAC90B | |
Mainframe dimensions about | mm | 7890X4850X5130(highest point of travel) |
Host weight approx. | T | 18 |
Our Services
(1) 36 months quality guaranty
(2) free lifetime maintenance
(3) free training course in our factory.
(4) 18 hours on line service each day
(5) Strict quality control,3 times of testing
(6) engineers avaiable to go abroad

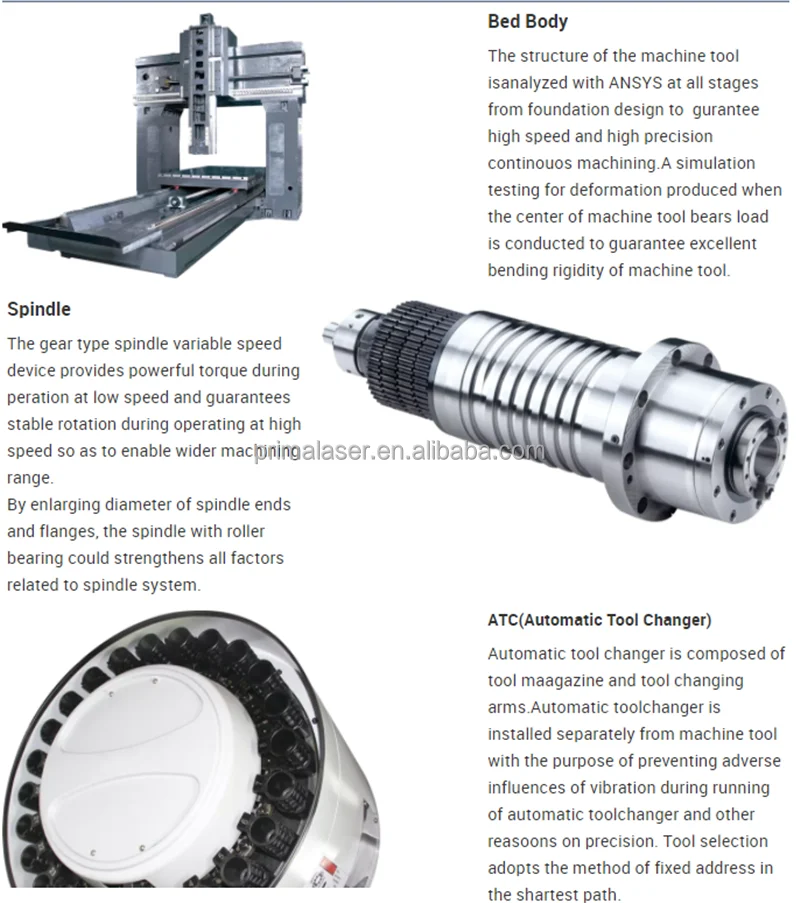

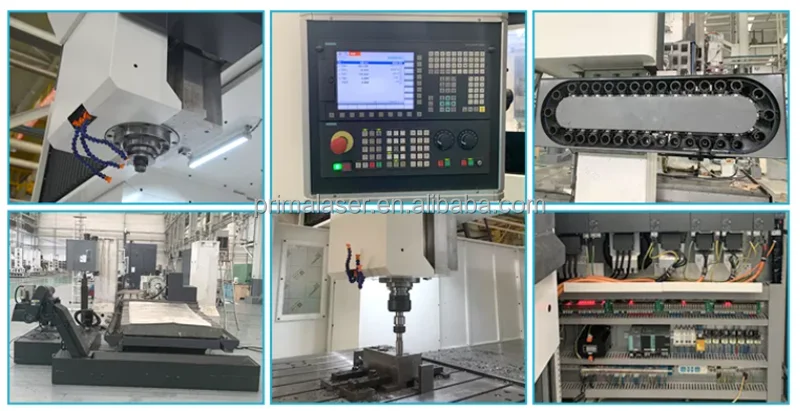

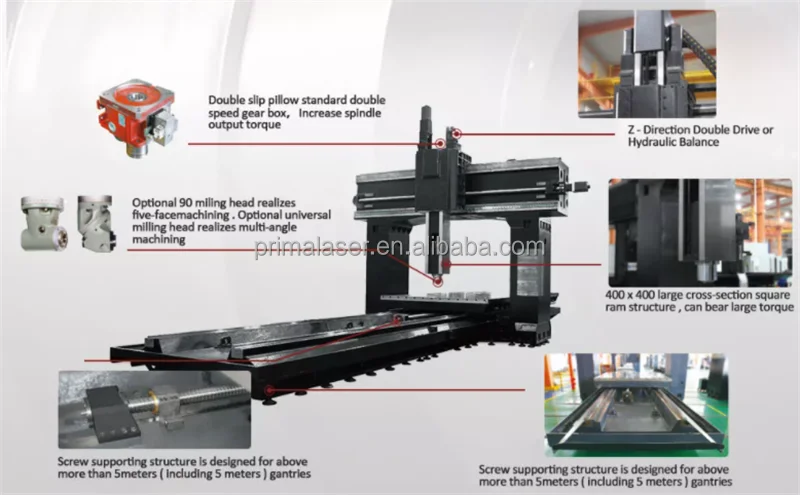

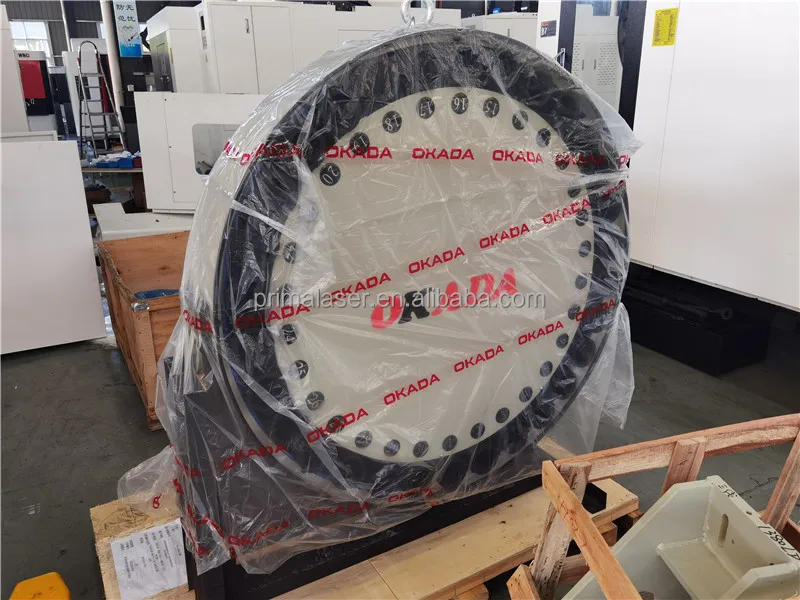

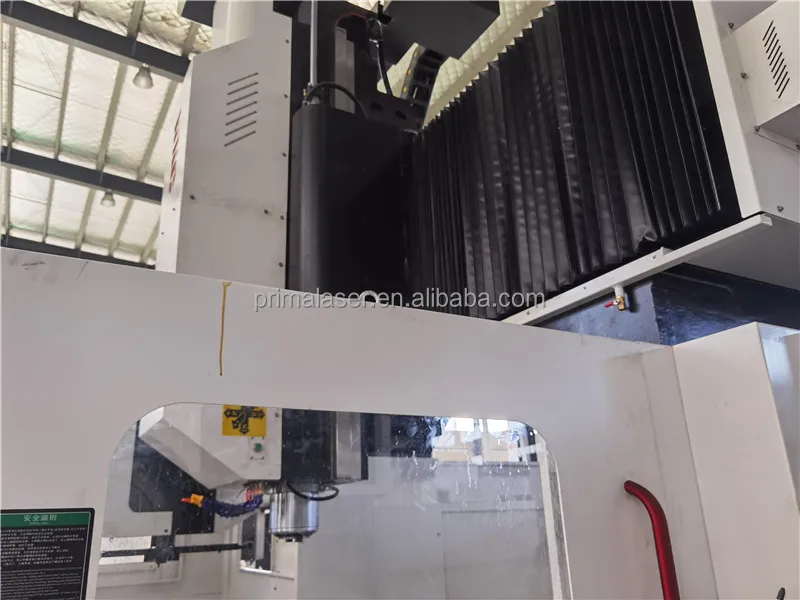

Detailed Images

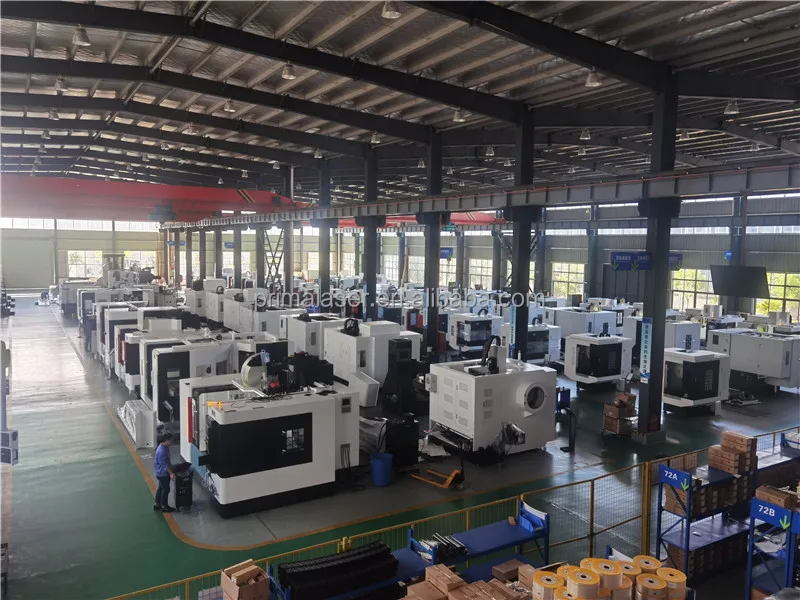

Company Information
FAQ
Price : Give me reply, i will give you my favorable price immediately !
Payment term : 30% deposit and the balance paid against copy of B/L in 3 days .
Package : Standard exporting package .
Operation manual and video disc :
When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .
After-sales service :
1.machine is simple, generally, user can understand how to operate. There is operation instruction and disc .
2.welcome to our factory to learn how to operate our machine, we will give good training .
3.our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user .
