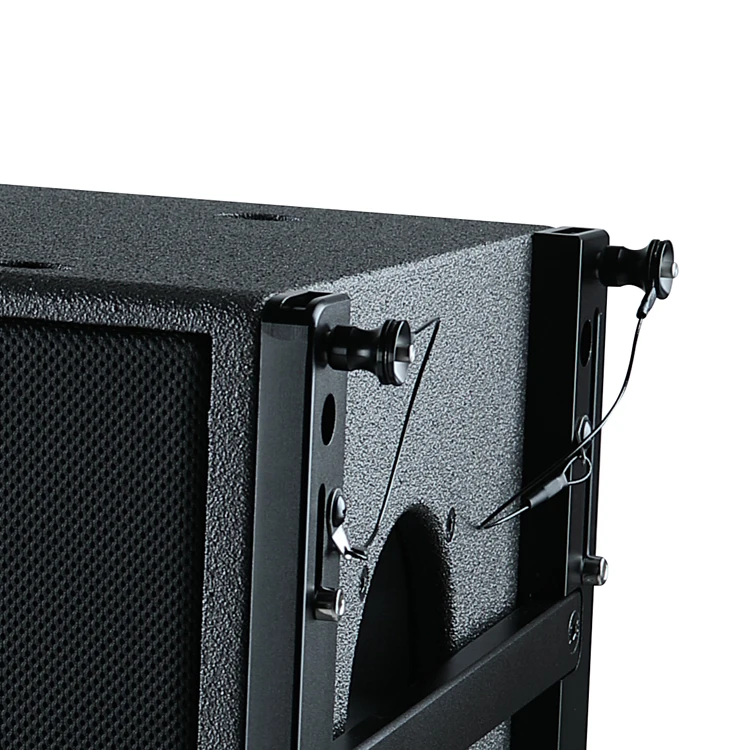

SPL 212 sound system line array
- Category: >>>
- Supplier: Guangzhou Junchuan Shengshi Electroacoustic Equipment Co. Ltd.
Share on (1600647315795):
Product Overview
Description
Product Description
Product Name | SPL-212 |
Components | LF：2x12" (75mm) , 800W (AES) HF：1x3"(75mm) ,200W(AES) |
Frequency Response(±3dB) | 42Hz - 20kHz |
Sensitivity(SPL1W/1M) | 106dB |
Nominal Impedance | 8Ω |
Rated power(AES)/Peak Power： | 1000W/2000W |
Dispersion(H×V) | 120°x30° |
Dispersion vertical: | 0°-12° |
MAX SPL@1m： | 142dB( +6/-6) |
Crossover | 1500Hz passive |
Connector | Neutrik™ NL4MPR-BAG( +1/-1) |
Rigging | Built-in hanging |
Enclosure Material | High strength birch board |
Color | brown |
Grille | Side: Die cast aluminum,Through the 3D acoustic organization of the electroplated mesh |
Dimensionns(W×D×H) | 952mm×353mm×403mm |
Weight | 40Kg |
Product performance description

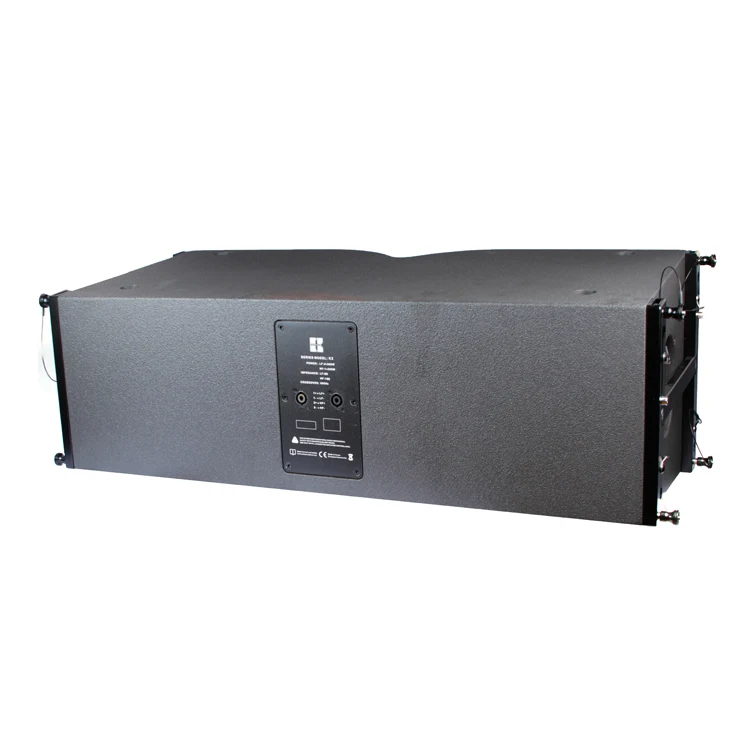

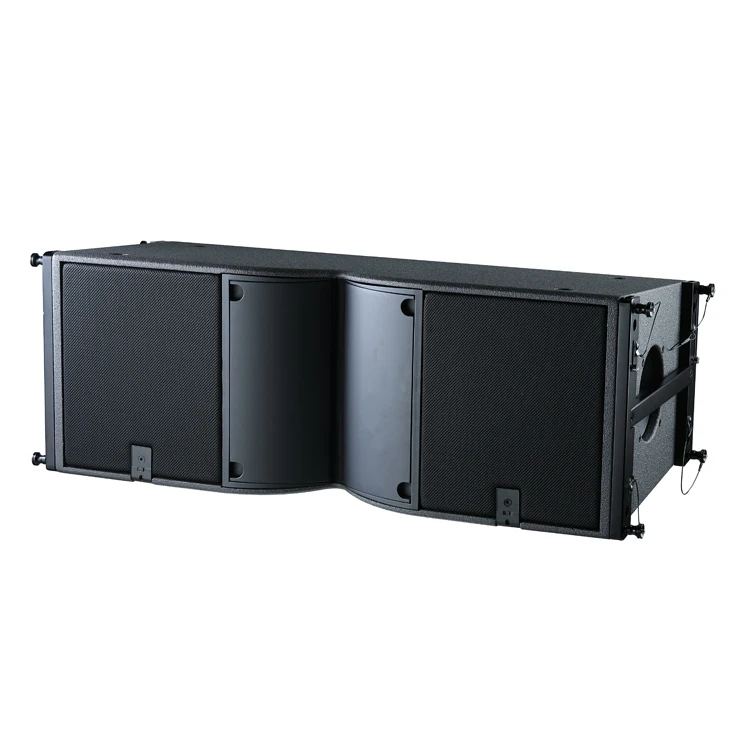

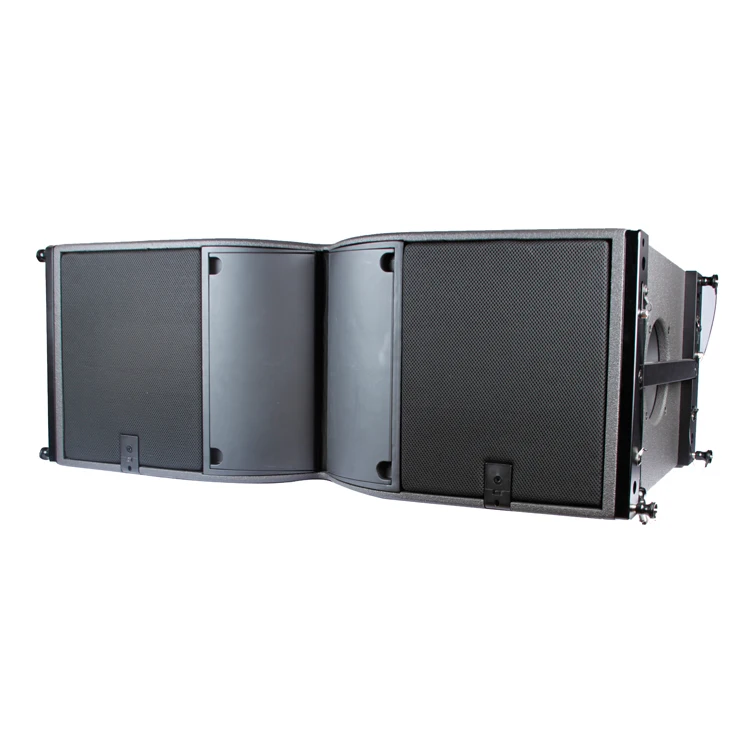

SPL-212 is a high-performance linear array speaker system with two 12 "low-frequency drivers and a 3" high-frequency compression
drive unit loaded with patented Waveguide Horn. All the units used are manufactured according to the standards of Chinese
manufacturers. The vertical coupling angle of the speaker is adjustable from 0 ° to 8 °. The cylindrical wave forms a good
coupling in the vertical plane. The physical positions of the woofer and the tweeter are basically the same, greatly reducing the
overall system delay, making the phase more perfect and the listening feeling more natural. Professional hanging device, safe and
reliable, fast installation, waterproof and heat resistant. The box is made of birch plywood, and the surface of the speaker is
treated with wear-resistant two-component polyurea coating as the final paint, which is waterproof, moisture-proof, abrasion
resistant and durable; The side and rear panels incorporate standard handles, and the rear panel is equipped with two NL4 parallel
interfaces. SPL-212 is a two frequency division structure. Users can choose active frequency division or passive frequency
division according to their own preferences.
drive unit loaded with patented Waveguide Horn. All the units used are manufactured according to the standards of Chinese
manufacturers. The vertical coupling angle of the speaker is adjustable from 0 ° to 8 °. The cylindrical wave forms a good
coupling in the vertical plane. The physical positions of the woofer and the tweeter are basically the same, greatly reducing the
overall system delay, making the phase more perfect and the listening feeling more natural. Professional hanging device, safe and
reliable, fast installation, waterproof and heat resistant. The box is made of birch plywood, and the surface of the speaker is
treated with wear-resistant two-component polyurea coating as the final paint, which is waterproof, moisture-proof, abrasion
resistant and durable; The side and rear panels incorporate standard handles, and the rear panel is equipped with two NL4 parallel
interfaces. SPL-212 is a two frequency division structure. Users can choose active frequency division or passive frequency
division according to their own preferences.
Product Usage
Product usage introduction

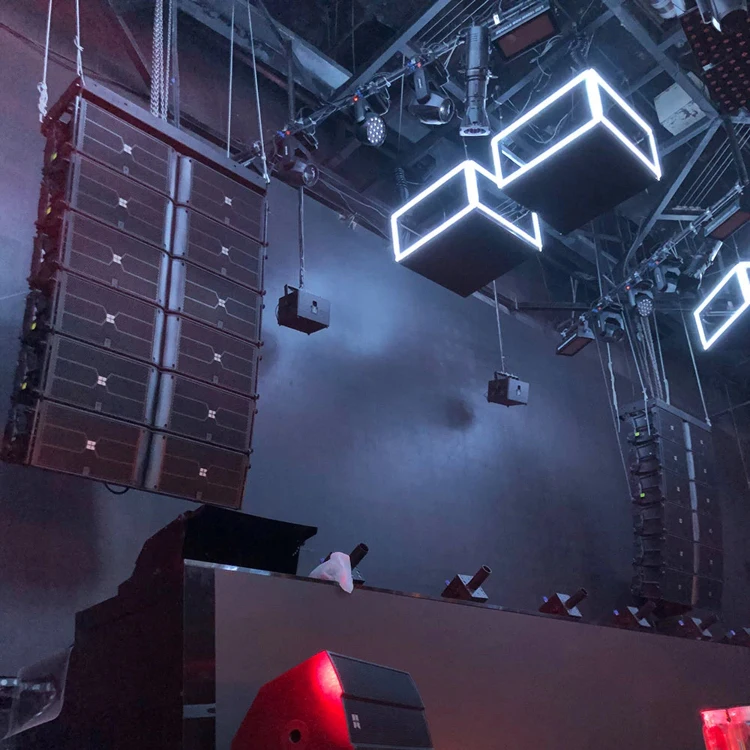

It is mainly used in large-scale outdoor performances, sports venues, theatres, bars and exhibition venues
Packing&Shipping
Company Introduction
K-treasure AUDIO can provide you with professional AUDIO equipment system, such as: indoor and outdoor line array field sound,
subwoofer, backlisten sound, power amplifier and other applications. We HAVE EXPERIENCED AUDIO ENGINEERS TO design reasonable
audio systems for you, from the smallest conference system to the largest stadium or concert sound amplification system can be
handy.
subwoofer, backlisten sound, power amplifier and other applications. We HAVE EXPERIENCED AUDIO ENGINEERS TO design reasonable
audio systems for you, from the smallest conference system to the largest stadium or concert sound amplification system can be
handy.
Why choose us
K-treasure AUDIO is an R&D, manufacturing, sales and technical service facility dedicated to the development of speaker systems of
different quality levels to meet various needs. We have a win-win partner!
professional R & D team and sales team, whether it is brand promotion or OEM/ODM are your most ideal
different quality levels to meet various needs. We have a win-win partner!
professional R & D team and sales team, whether it is brand promotion or OEM/ODM are your most ideal
Marketing Campaign
Certifications
FAQ
1: Are you a manufacturer or a trading company?
A: We have more than 20 years of experience in R&D and manufacturing.
2. Do you have a qualification certificate?
A: Yes, we have 3C.CE and ISO system certification.
3. How to order the samples?
A:Let us know your requirements or application site. We quote according to your request or our suggestion. The customer confirms
the sample and pays the deposit for the official order. We arrange production. The average production time is about 3-10 days.
4. How to pay for the transaction?
A: T/T payment or Visa card, or 30% down payment through Alibaba.com and 70% balance before shipment.
5. Can I use my own trademark?
A: Yes, you can use your own trademark. We are experienced in OED/ODM orders.
6. Can you produce products according to our requirements?
A: Of course, we have experienced engineers to design the anticipated product project you want, and we have a lot of experience in
ODM.
7. What is the delivery time?
A: 7-30 days after receipt of payment, depending on the quantity. Can communicate with sales manager at any time.
8. How long is the warranty period?
A: 12 months after shipment.
9. How do I troubleshoot the fault?
First of all, our products are produced under strict quality control system, and the defect rate will be less than 0.2%. Second,
during the warranty period, we will send out small batches of new orders for parts. For defective batch products, we will repair
them and resend them to you, or we can discuss a solution based on the actual situation.
10. How will you deliver the goods and how long will it take to arrive?
A: We usually send them by sea. It usually takes 30-45 days to arrive. Airlines are also optional.
A: We have more than 20 years of experience in R&D and manufacturing.
2. Do you have a qualification certificate?
A: Yes, we have 3C.CE and ISO system certification.
3. How to order the samples?
A:Let us know your requirements or application site. We quote according to your request or our suggestion. The customer confirms
the sample and pays the deposit for the official order. We arrange production. The average production time is about 3-10 days.
4. How to pay for the transaction?
A: T/T payment or Visa card, or 30% down payment through Alibaba.com and 70% balance before shipment.
5. Can I use my own trademark?
A: Yes, you can use your own trademark. We are experienced in OED/ODM orders.
6. Can you produce products according to our requirements?
A: Of course, we have experienced engineers to design the anticipated product project you want, and we have a lot of experience in
ODM.
7. What is the delivery time?
A: 7-30 days after receipt of payment, depending on the quantity. Can communicate with sales manager at any time.
8. How long is the warranty period?
A: 12 months after shipment.
9. How do I troubleshoot the fault?
First of all, our products are produced under strict quality control system, and the defect rate will be less than 0.2%. Second,
during the warranty period, we will send out small batches of new orders for parts. For defective batch products, we will repair
them and resend them to you, or we can discuss a solution based on the actual situation.
10. How will you deliver the goods and how long will it take to arrive?
A: We usually send them by sea. It usually takes 30-45 days to arrive. Airlines are also optional.
