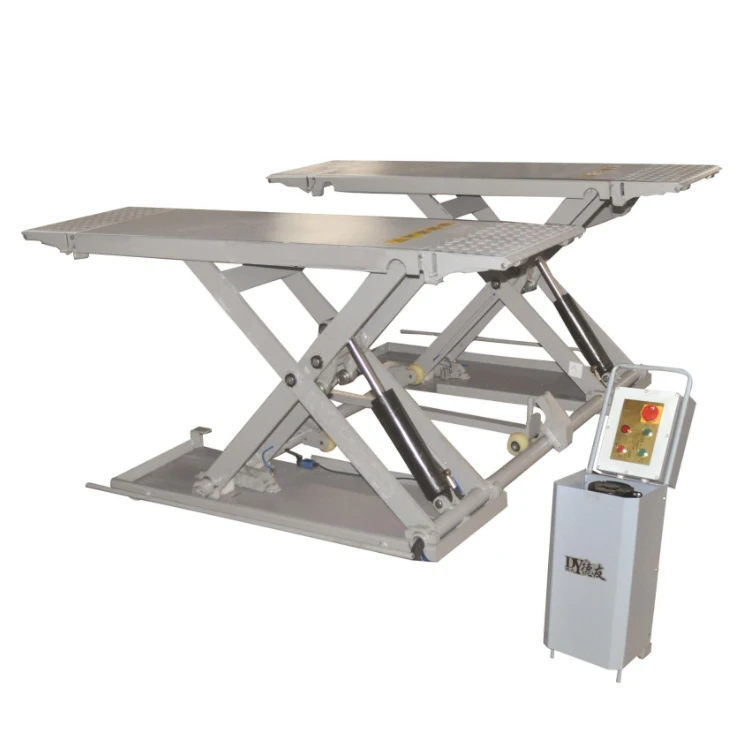

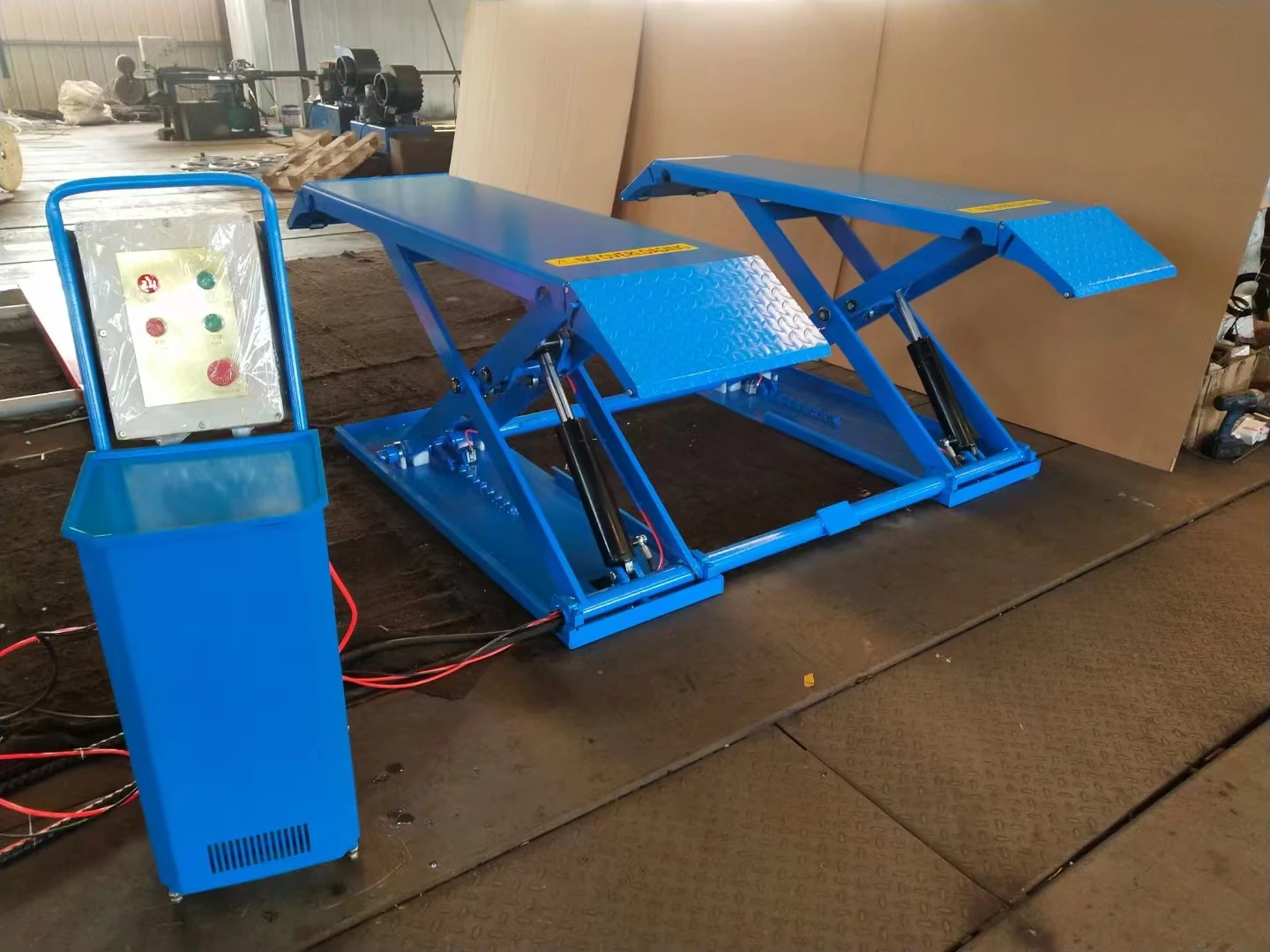

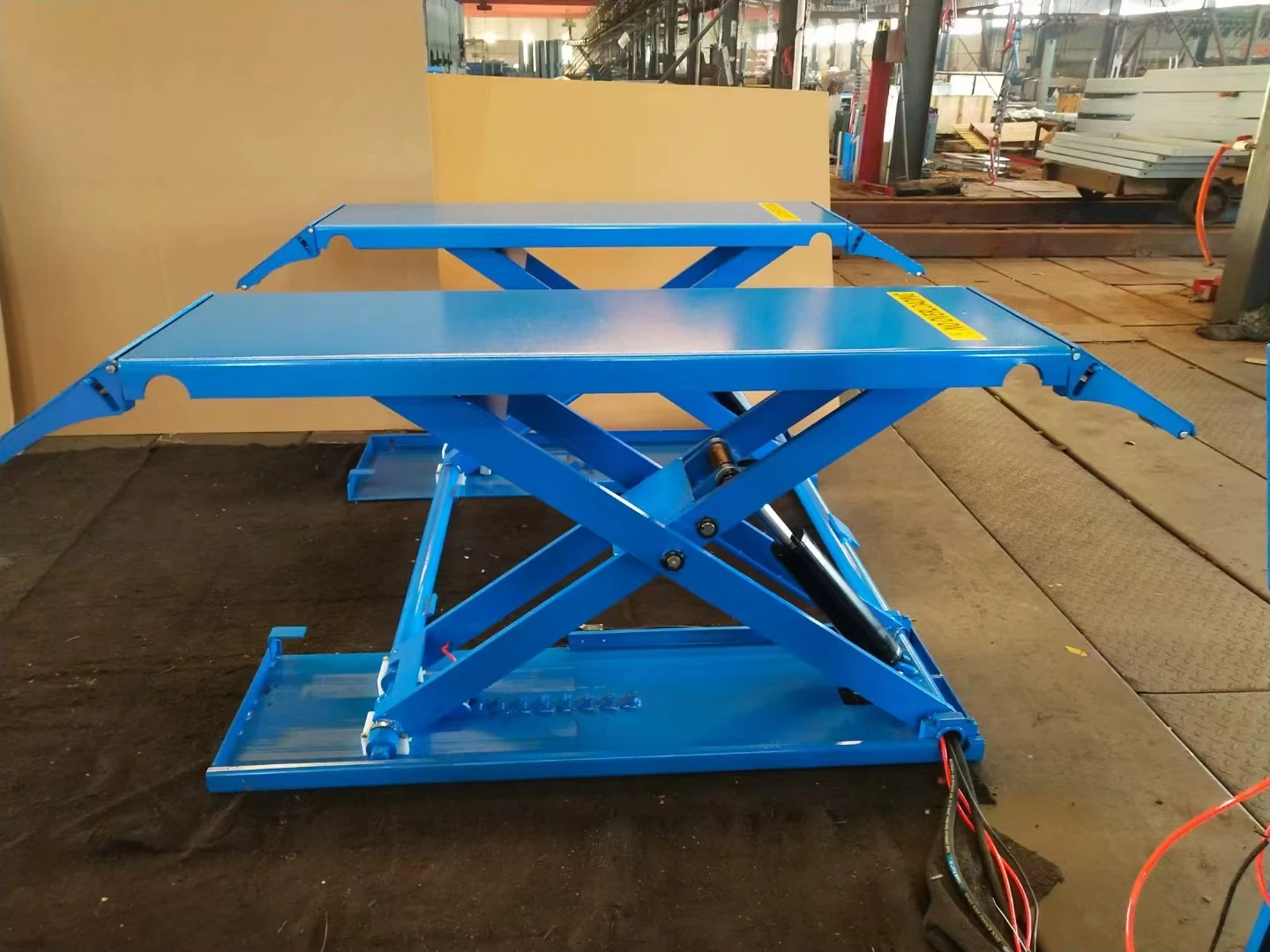

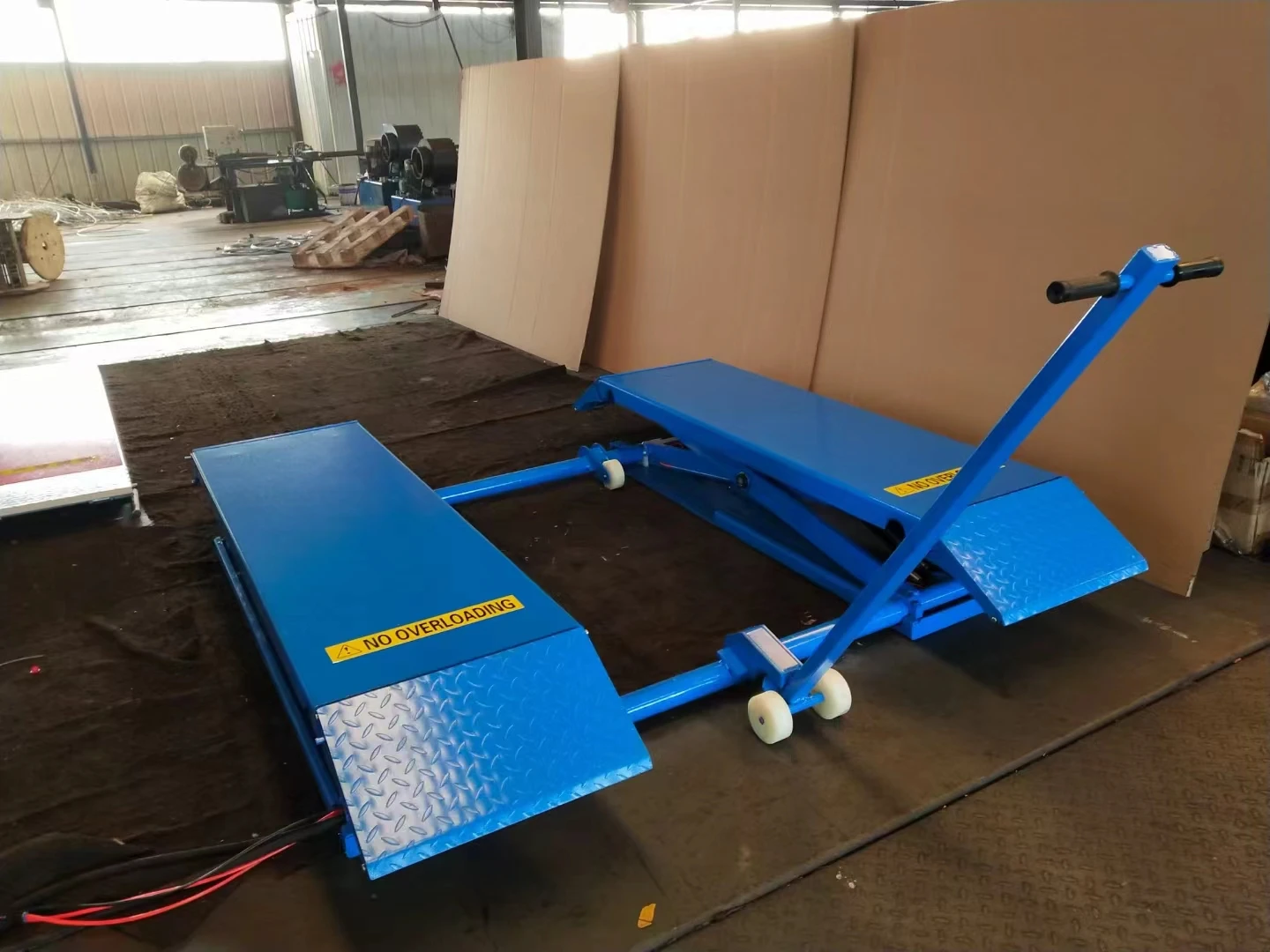

Ground mounted type low shear movable small hydraulic mid rise scissor car lift
- Category: >>>
- Supplier: Shandong UM Technology Co. Ltd.
Share on (1600647429648):
Product Overview
Description
Product Description
The executive part of the scissor lift adopts the form of scissor stacking rod, and the electric drive mechanical transmission structure is widely used in the maintenance of large vehicles.
The lifting speed of the scissor lift is moderate and does not occupy the position of the car pit.
It is undoubtedly the best choice for the repair field of some models with relatively fixed and high work intensity (such as in buses). And because of its simple structure and good synchronization, it is generally used as a platform for four-wheel alignment.
LOAD CAPACITY | PLATFORM SIZE | TRAVEL HEIGHT | MIN.HEIGHT | POWER |
3000kg | 5000x2500mm | 3000mm | 650mm | 5.5KW |
3000kg | 5000x2500mm | 4000mm | 800mm | 5.5KW |
3000kg | 5000x2500mm | 6000mm | 800mm | 7.5KW |
5000kg | 6500x2600mm | 3000mm | 680mm | 7.5KW |
5000kg | 6500x2600mm | 4000mm | 680mm | 7.5KW |
Model | UM-R3000 |
Lift capacity | 3000kg |
Lift height | 950mm |
Min height | 110mm |
Power of motor | 3.0KW |
Oil pressure | 17-19Mpa |
Power supply | 380V/220V |
Rise & Drop time | ≤50s |
Equipment characteristics
1、Using German seal, with the aid arm design, hydraulic system pressure is low, safe and reliable, long service life.
2、Ground installation can be moved, no construction pits, small occupancy space.
3、Self-locking safety and hydraulic tube explosion-proof device when mechanical rise, safe and reliable.
4、Electric unlock, can extend platform design, safe and convenient.
5、Anti-skid pattern plate platform, can effectively prevent vehicle slide.
6、Equipped with an oil flow throtte, the machine does not fall quickly when the tubing bursts.
7、24V control operating system to avoid high voltage electric shock risk.
8、Through 115 % dynamic load test, 1 50 % static load test.
9、EU CE certification.
2、Ground installation can be moved, no construction pits, small occupancy space.
3、Self-locking safety and hydraulic tube explosion-proof device when mechanical rise, safe and reliable.
4、Electric unlock, can extend platform design, safe and convenient.
5、Anti-skid pattern plate platform, can effectively prevent vehicle slide.
6、Equipped with an oil flow throtte, the machine does not fall quickly when the tubing bursts.
7、24V control operating system to avoid high voltage electric shock risk.
8、Through 115 % dynamic load test, 1 50 % static load test.
9、EU CE certification.
