Portable Gas Fuel Station Container Station Portable container fuel dispenser with automation 3000 liter

Portable Gas Fuel Station Container Station Portable 3 nozzle Fuel Dispenser with 2 nozzle 3000 Tank

1000L 2000L or other capacity as require

1-3 nozzle option

Specification of Container station:


Introduction:

Mobile Container station is a complete gas station built in an ISO container for selling the fuel to vehicles and machines, it is widely used in remote area , bus stations, seaports, airports, large construction sites, highways, parking place, private internal station, war-torn area, mining area or even downtown for a temporary use , it is a really good solution comparing to traditional station, because it is convenient, low-cost, non-construction needed, self-supported, customizable, movable and flexible.

Depends on different usage, ecotec can offer different solutions accordingly, normally include 20 Feet ISO container station, 40 Feet ISO container station or other NON-Standard container station

Use in mining area


Main parts including:
    ISO Container with Ventilation grids, removable Ladder, roofs, Access Cover to tank's manhole, Retention Tray and non-slip grating under dispenser area.
Size available with 20 Feet or 40 Feet container, with rolling door or standard container door, open available on the side or on the front and back , also special design is available
-Steel piping welded and tested.
-Suction Line 1.1/2" equipped with a mesh filter, anti siphon valve and cut valve.
-Fuel Loading line 4", inlet near dispenser area, with connection, down pipe and overfill prevention valve.
-Venting: 2" vent pipe with atmospheric vent valve and filter.
-Three layer anti-corrosive Painting , Customer Logo available

    Fuel Tank
Both single and double layer is available , both single and double product is available, fully tested and certified according BS EN 12285-2 Class A, with leak detector.
Capacity from 10000 Liter to 68000 Liter

    Fuel dispenser
Suction / Submersible available
Single products / Multi products available
Standard flow / Heavy duty flow available
All the models of fuel dispenser is available, customer can choose Commercial dispenser, Economic dispenser, mini dispenser or Mechanical dispenser.


    EX Proof Transfer Pump
For discharging and loading the products from Trailer to Tank or from Tank to trailer
Power supply: 380V / 220V / 110V is available, because different area may need different power supply
Size: 1 inch / 2 inch / 3 inch available

Transfer Pump DYB-80                            Vane Pump YB Series
   220/110V, 80L/M                                   380V 100-1500L

    EX controlling box

    Liquid Level Gauge with monitor


    Automation system LTMS with APP
LTMS : Local management system to monitor the fuel dispenser and fuel Tank
Function: Change all parameter on fuel dispenser, employee management, shift management, inventory management, Anti-Fraud ,All reports available
 Hardware request for LTMS management system:
+ Computer installed with English Version XP / Window 7
+ Communication cable, 2 Cable for RS485 communication
+ Cable Internet or GPRs

Mobile APP management system: Wow Station

-Station Owner:
Can monitor all the station, all the dispenser, all the nozzle, all the tank via cell phone, to setup the parameter, to see the real-time transaction, to see the record, to see the status of device, to see the error / Alarm information, to see all the reports

-Maintenance team:
Can see all the error code and location of the device, before go to the station, maintenance team can know what is wrong is on the device

- Driver:
Can deposit the money in the APP, can get the discount / promotion information from the station to choose a better price, also can find a station easily in the map


    EX-proof Lamp for lighting

    Fire extinguisher
Fire extinguisher have manual one and automatic type, automatic type can installed on the dispensing area, in case of fire, it will open and put out the fire

Auto type                                      Manual Type

    Other feature:
--Over Fill Protection
--Over Flow Protection
--Anti-static

    Option:
--Generator,  supplying the power
-- Solar Panel, supplying the power
-- Oil and Gas recovery system for gasoline
-- Integrated Office with AC, Table etc
-- Metering System, to measure the quantity during loading
-- Self-Service with IC card or Bank card or RFID card
-- Advertising LOGO light box

    Standard Specifications for order
-- 1x Economic fuel dispenser 50 liters/min
-- 1x fuel transfer pump, approximately 300Liter/min. Capable unloading and supply.
-- 2x Fire extinguisher
-- Single wall , single product plated carbon steel tank
-- 3" Fuel fill point (Cam Lock) / Overfill protection valve.
-- Tank level and temperature gage indicator.
-- Integrated ladder and sunshield for top of container access.
-- 1xlight in the dispensing room
-- 1x 20FT container or 40FT container
-- 1 x Automation system with LTMS and APP

Detail configuration under quoted price as below

Wenzhou Ecotec Energy Equipment Co., Ltd as a professional supplier of petroleum equipment, energy device, is able to offer customer the better products with better price.

Ecotec team are all with experience for over 10 years. We can package service from Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.

Here Eectec Energy are on the position to offer the below products:

1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations

2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment

3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station

4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc

5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard

6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system

7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc

Ecotec design and manufacturing
Precise, convenient and safe, Customer and user first is the top priority in Ecotec design and manufacturing, J series is the dispenser with highest accuracy, quality, durability and reliability that always provides utmost satisfaction for all

Ecotec top after-sale support

Ecotec offer 1 year warranty and full life tech support for all products. More customer choose ecotec considering the quick response and professional aftersell support.

Owner and User
Fuel dispenser is the essential dispenser for service stations, benefits to both service station owners and drivers, user-friendly and safe best partner that provide greatest fulfillment for all

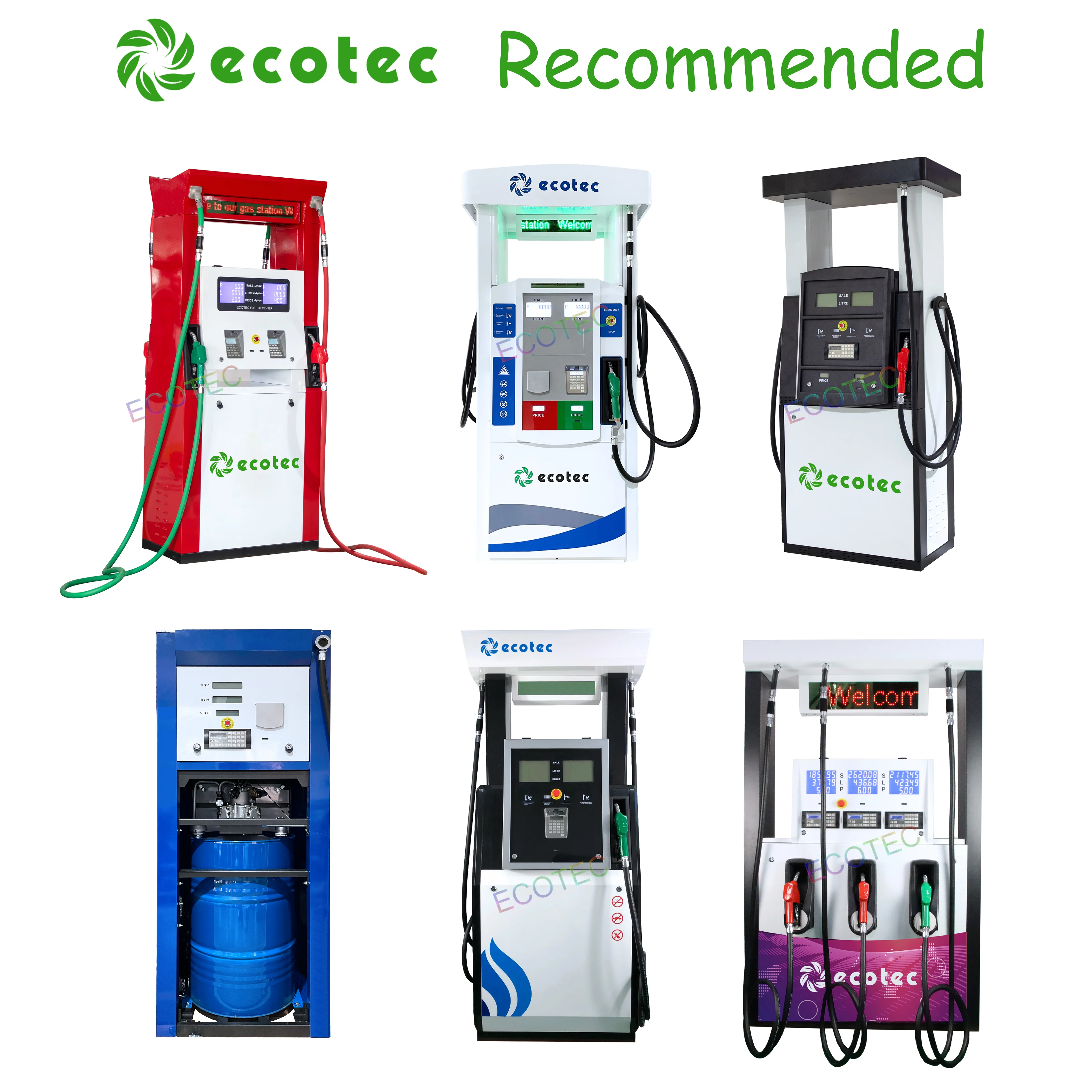

Wide Range of product lineup
Product lineup meets various requirement of sites and customers, the best model with the best function,

• suitable for single nozzle to 8 nozzle


• suitable for both suction and submersible


• suitable for Gilbarco, Tatsuno, Tokhem Bennett, LPG and CNG dispenser


• suitable for regular flow rate and high flow rate


• Option with TV, LED, Printer, Bank Card reader etc

 Standard Carton or Wooden for transportation
