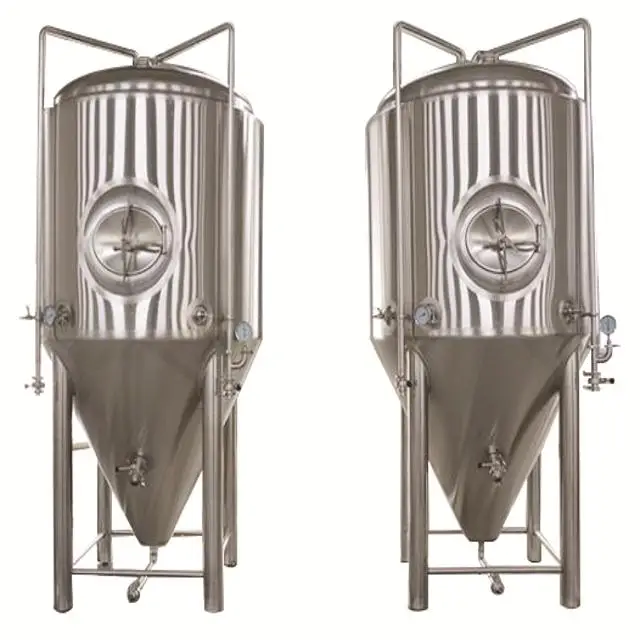

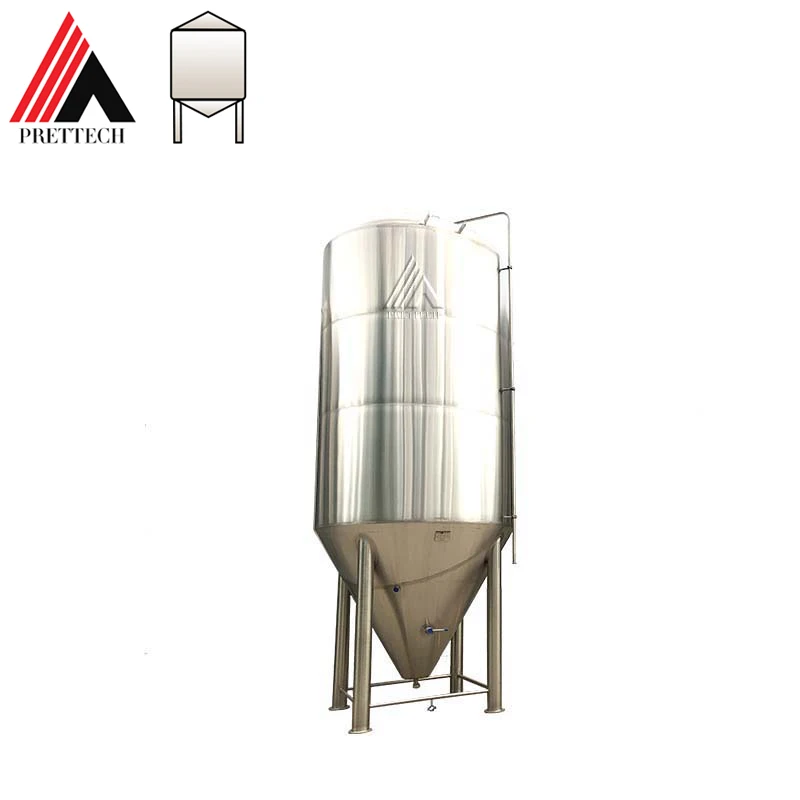

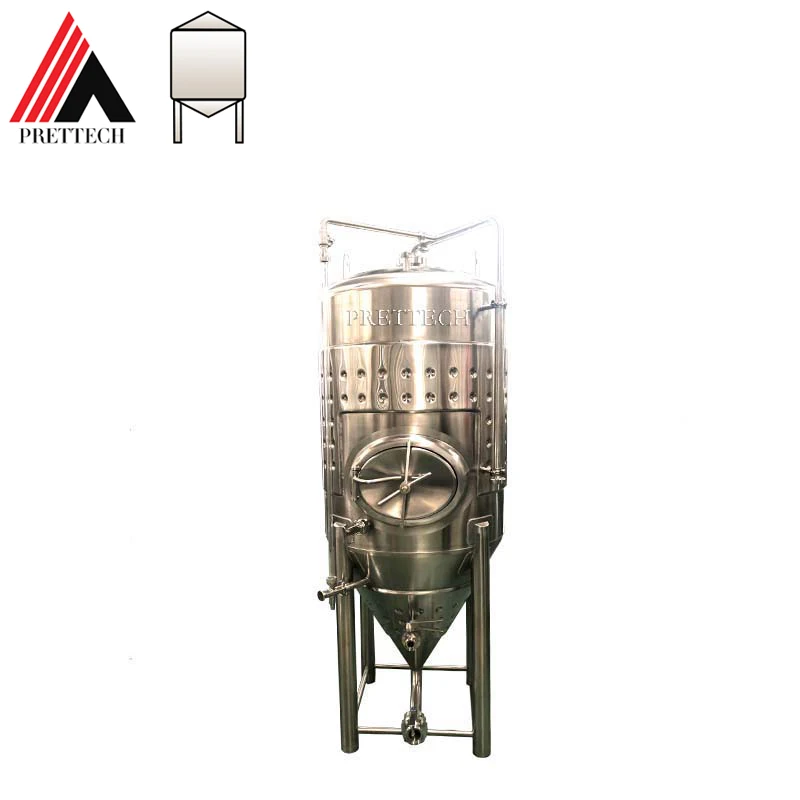

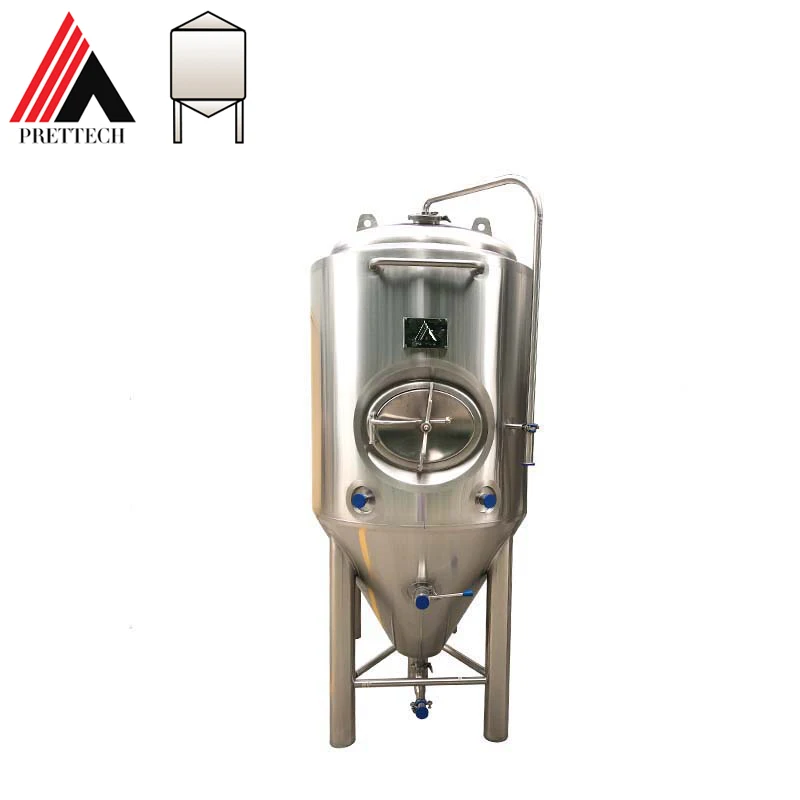

120bbl Double Wall Bright Cider Brite Tank manufacturers

Product Overview

Description

• Material:SS304

• Roughness less than 0.6um

• Finish: Exterior brushed, interior polished<0.4um,welds grounded sanitary.

• Head space: 25%.

• Designing/working pressure: 0.2MPa--0.15MPa.

• Dished top, conical bottom 60 degree.

• Dimple jacket on shell and bottom.

• Insulation 80mm PU foam and 2mm S/S cladding

• 4 legs with leveling foot pads and connecting tubes

• Elliptical manhole 450*350mm.

• Outlet port with tri clamp and butterfly valve.

• Temperature probe PT100 and thermometer.

• Glycol water inlet/outlet NPT

• Safety valve

• CIP ball and tubes with tri clamp and valve.

• Pressure vacuum relief valve with pressure gauge and butterfly valve.

• Racking arm

• Sample valve

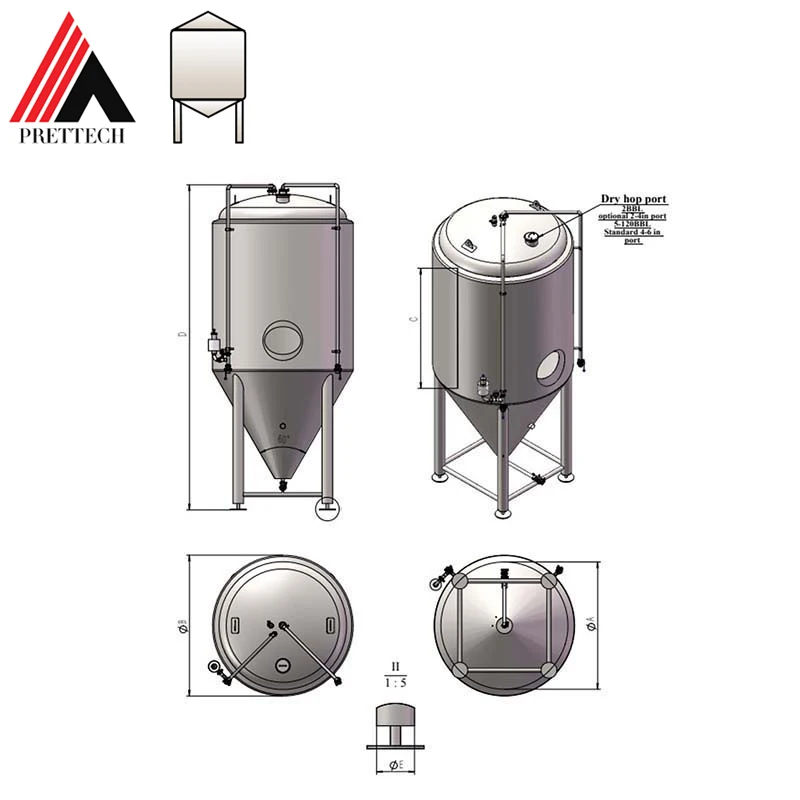

Net Volume	Diameter		Height		Legs		GrossVolume
	Internal Dia.	External Dia.	Shell H	Total H	Diameter	piece
2BBL	600	720	750	1900	76	3	2.48BBL
3BBL	700	820	800	2100	76	3	3.75BBL
5BBL	700	860	1500	2700	89	3	5.97BBL
7BBL	900	1060	1220	2510	89	3	8.80BBL
10HL	1100	1260	970	2570	108	4	13.70HL
10BBL	1100	1260	1150	2815	108	4	13.25BBL
15HL	1300	1460	1000	2900	114	4	20.00HL
15BBL	1300	1460	1150	3030	114	4	18.75BBL
20HL	1200	1360	1830	3700	114	4	26.70HL
20BBL	1500	1660	1150	3200	133	4	26.32BBL
30HL	1400	1560	1830	3860	114	4	37.50HL
30BBL	1600	1760	1500	3715	133	4	37.60BBL
40HL	1600	1760	1750	3970	133	4	48.80HL
40BBL	1700	1860	1750	4080	133	4	48.10BBL
50HL	1800	1960	1750	4300	159	4	65.50HL
50BBL	1800	2000	2250	4800	159	4	65.72BBL
60BBL	1900	2100	2300	4800	159	4	75.50BBL
80BBL	2000	2160	3460	6110	168	4	98.00BBL
90BBL	2000	2160	3500	6150	159	4	116.9BBL
100BBL	2000	2200	4000	6650	219	4	130.3BBL
120BBL	2000	2200	4500	7330	219	4	145.3BBL
