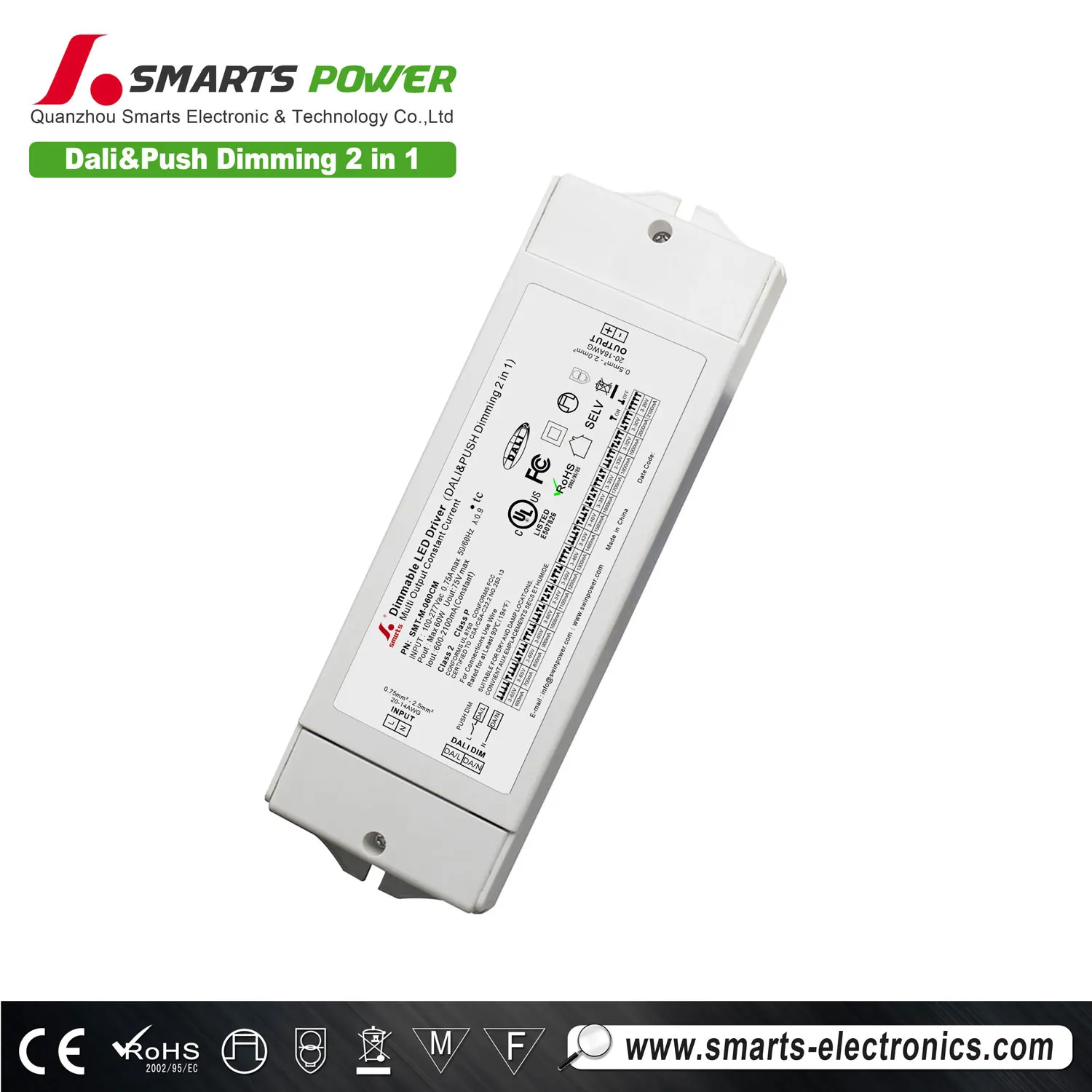

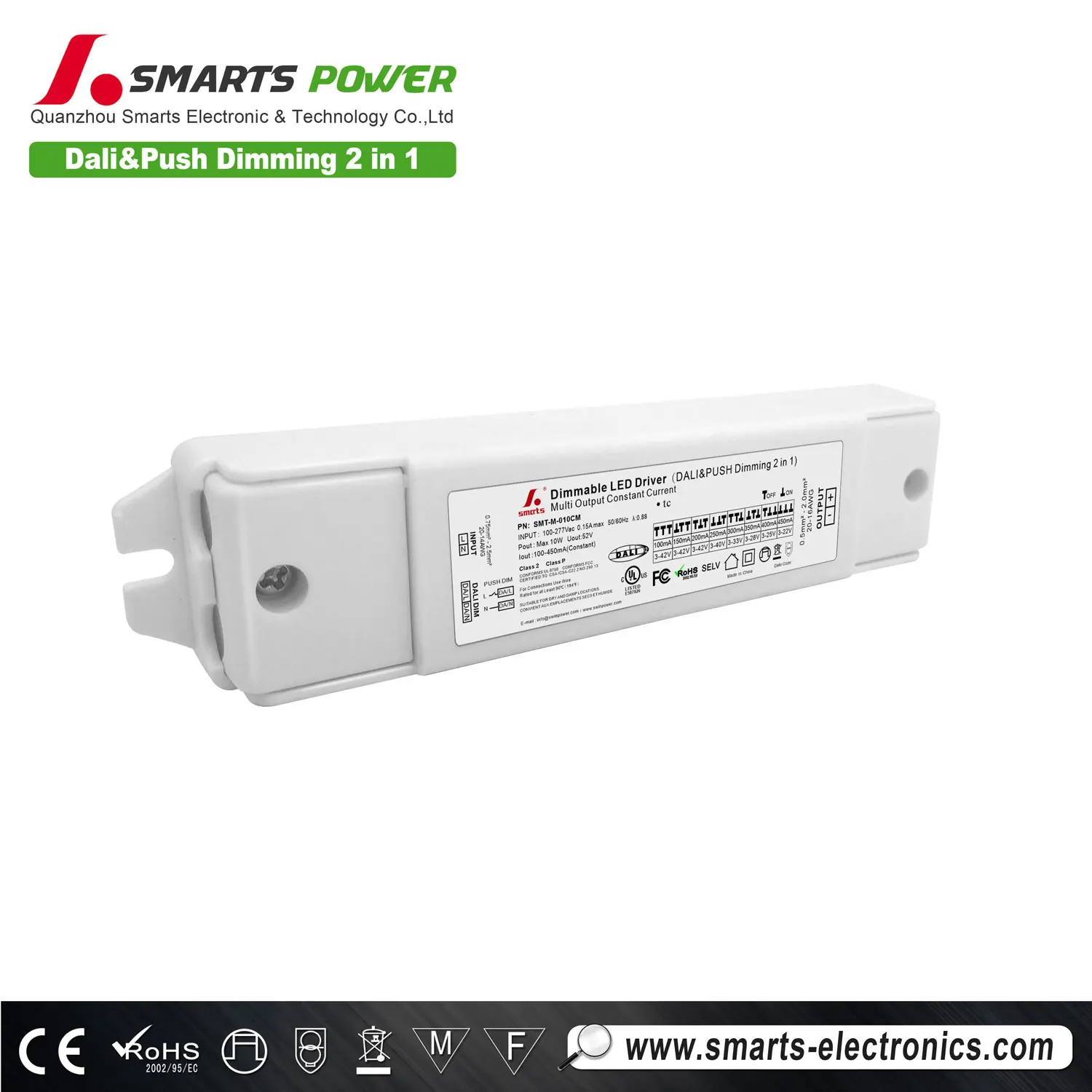

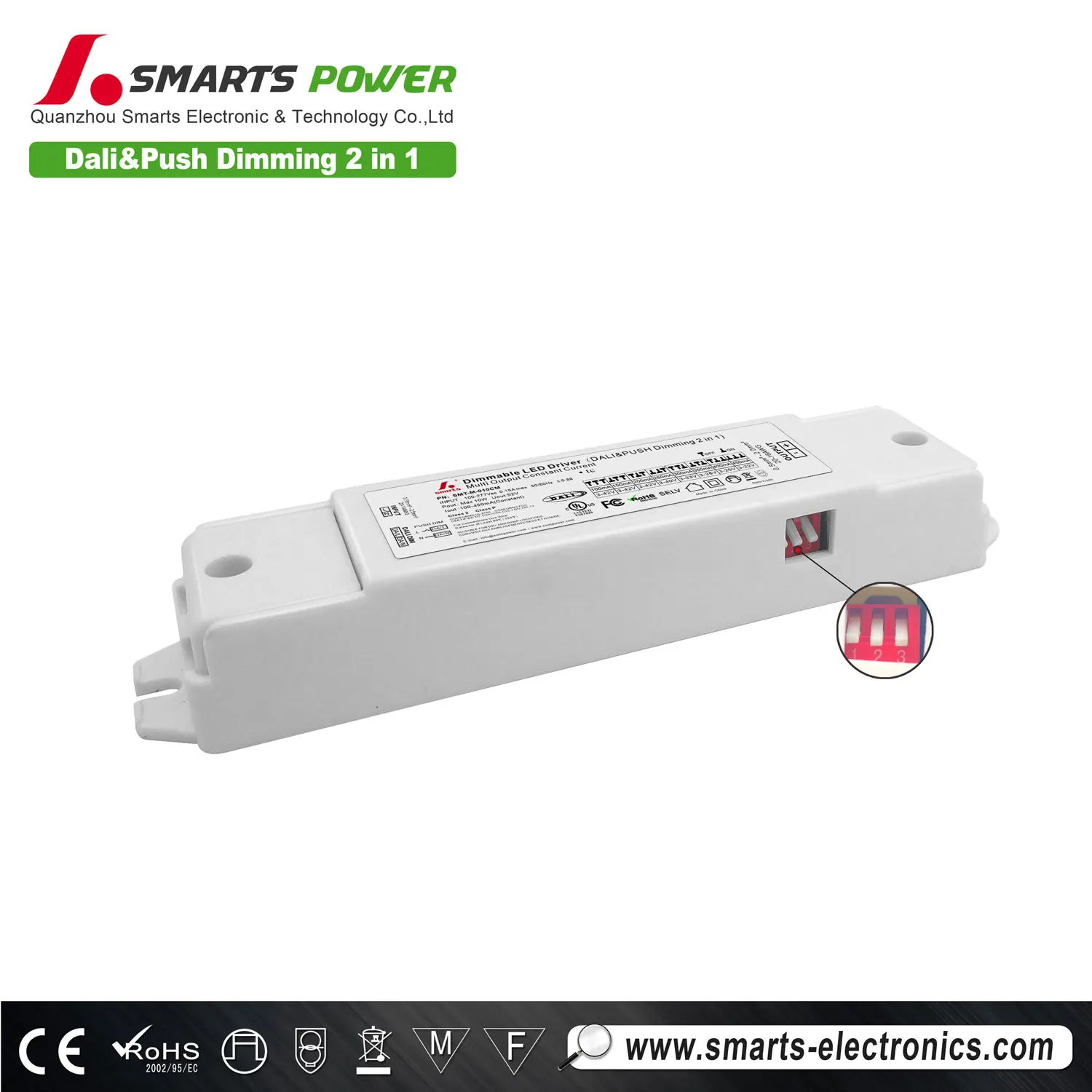

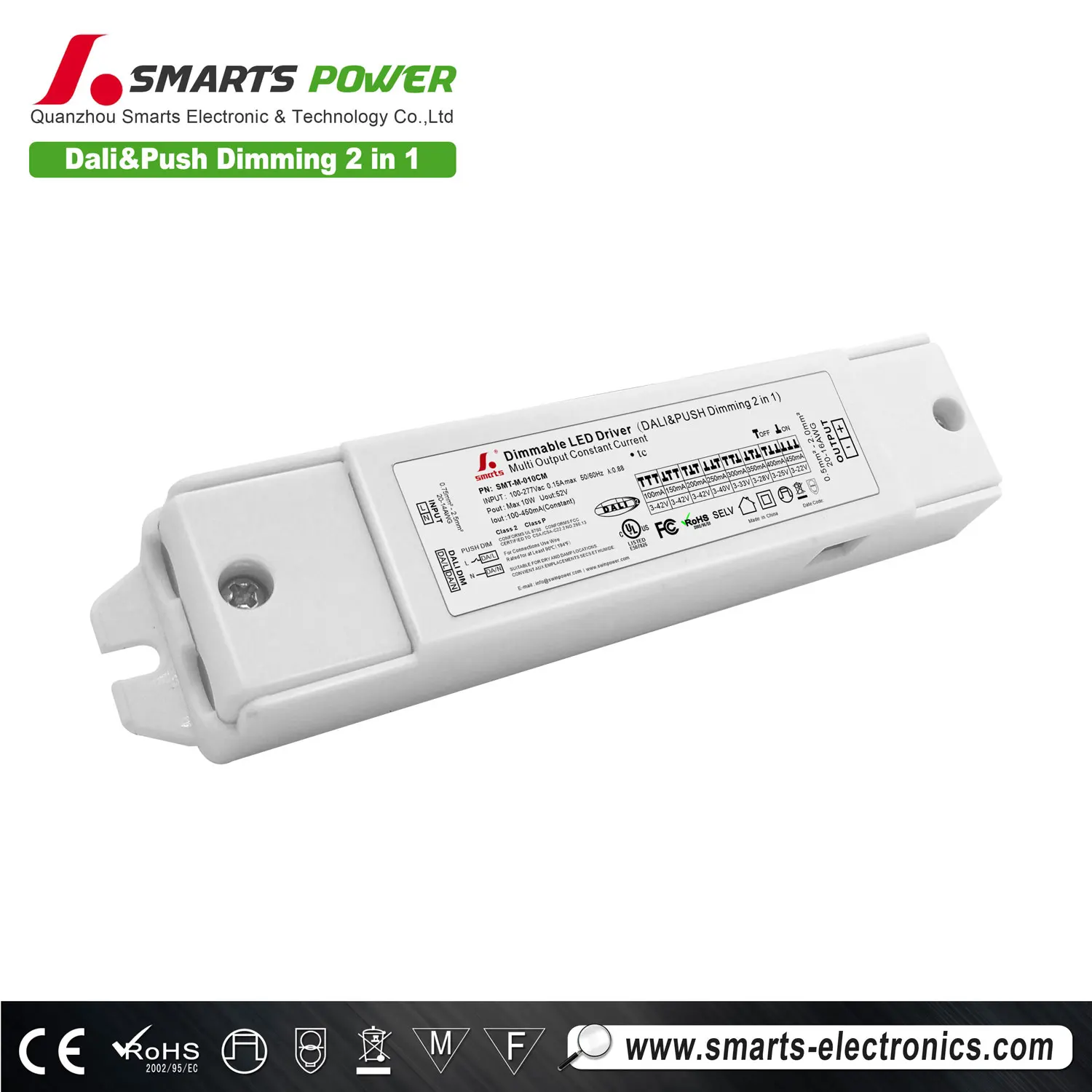

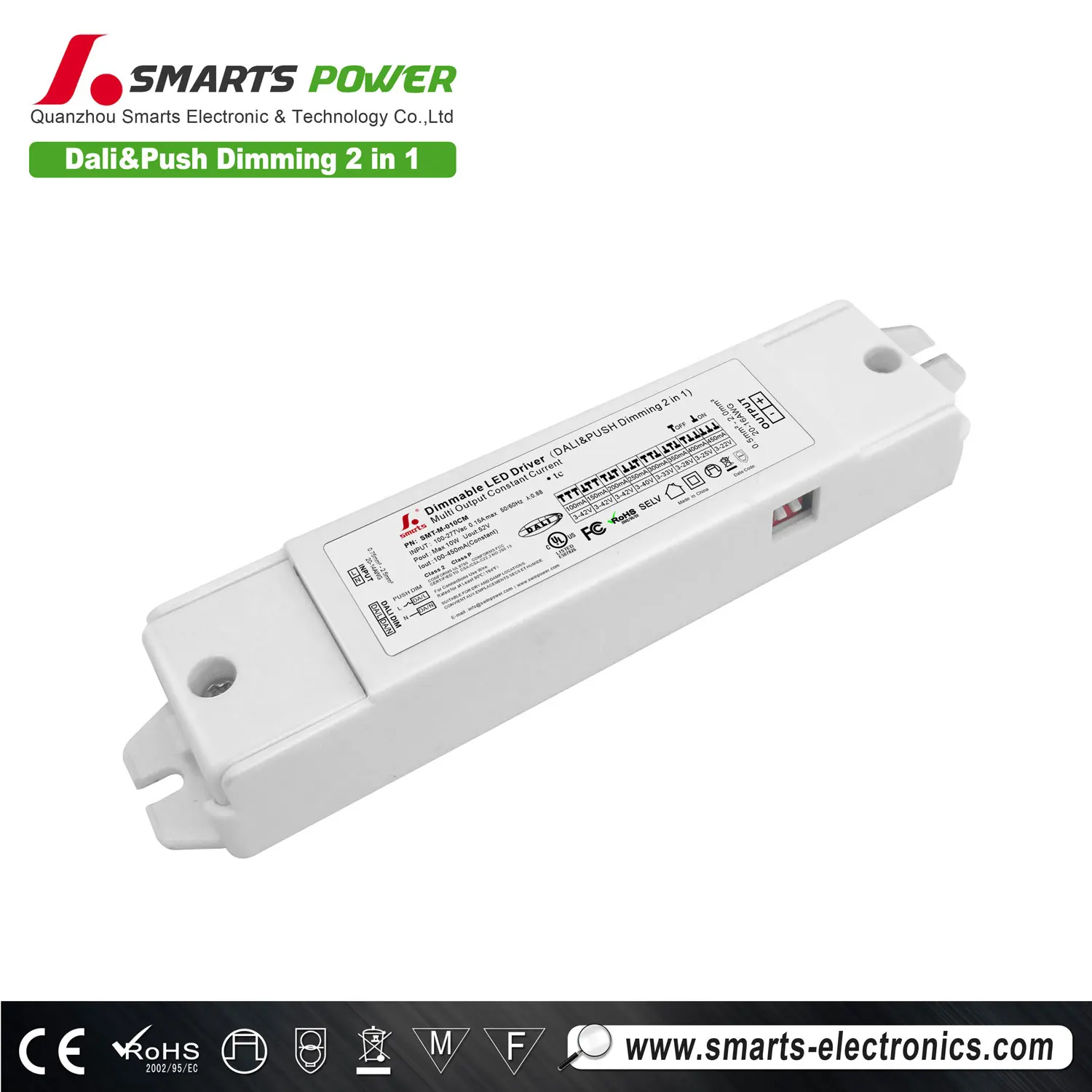

UL listed 350ma constant current led dali dimming driver 10W power supply for led floodlight

Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)

Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.

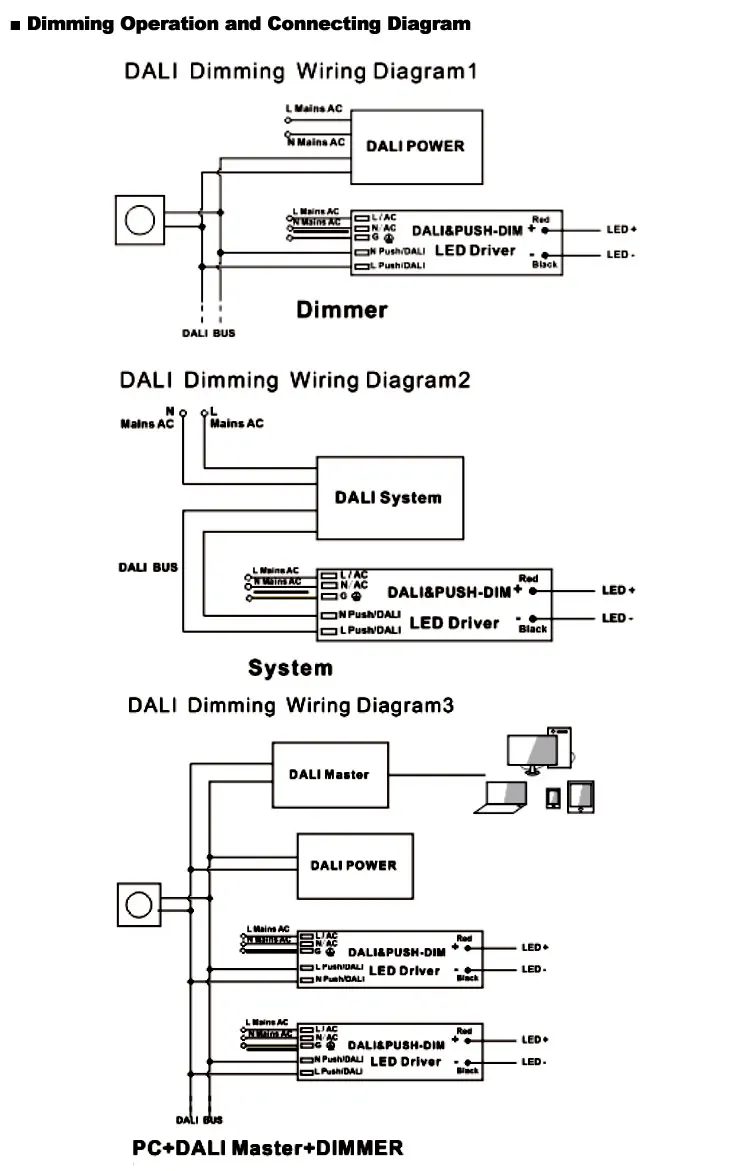

DALI or PUSH Dim. terminals with DG126 terminals 2P:

when DALI dimming, signal dimming DA1, DA2 ( No polar ) connected to the BUS of the DALI Master;

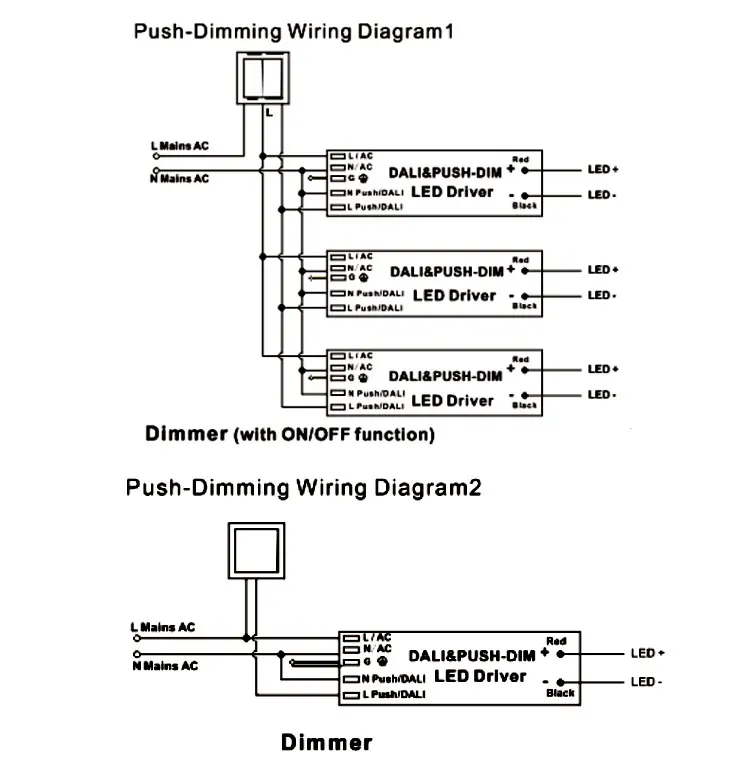

when PUSH dimming, (N) is connected to AC (N) while white (L) is connected to Push dim switch dimmer( L) ;

Suggested wire diameter: Input 0.75-2mm²; Output:0.5-2mm².

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

What kind of LED Driver/Power Supply Smarts Electronics do?

We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.

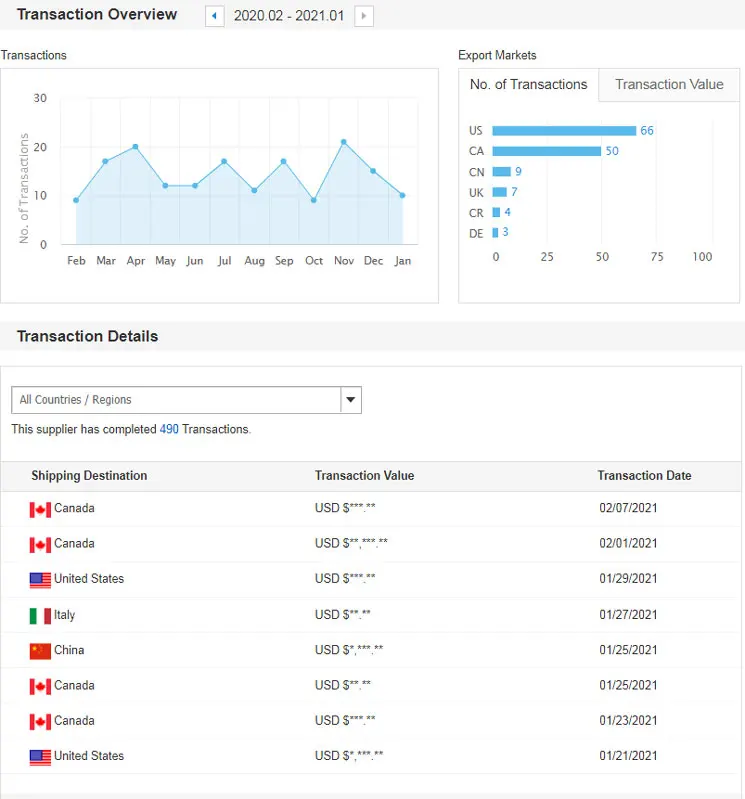

Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
