Hantek Digital Handheld Lcr Meter 1833c Portable Digital Bridge Lcr Inductance Capacitance Resistance Tester 100khz
Hantek1833C handheld LCR is a portable handheld measuring instrument to measure the parameters of the component such as
inductance、capacitance、resistance and so on.
Small volume,powered by 5V lithium battery,it can meet the requirements of desktop LCR application, and can also be applied to
flow measurement and handheld measurement.
Feature:
-100Hz、120Hz、400Hz、1kHz、4kHz、10kHz、40kHz、50kHz、75kHz、100kHz 10 typical test frequency
-2.8 inch TFT LCD，Switch between Chinese and English

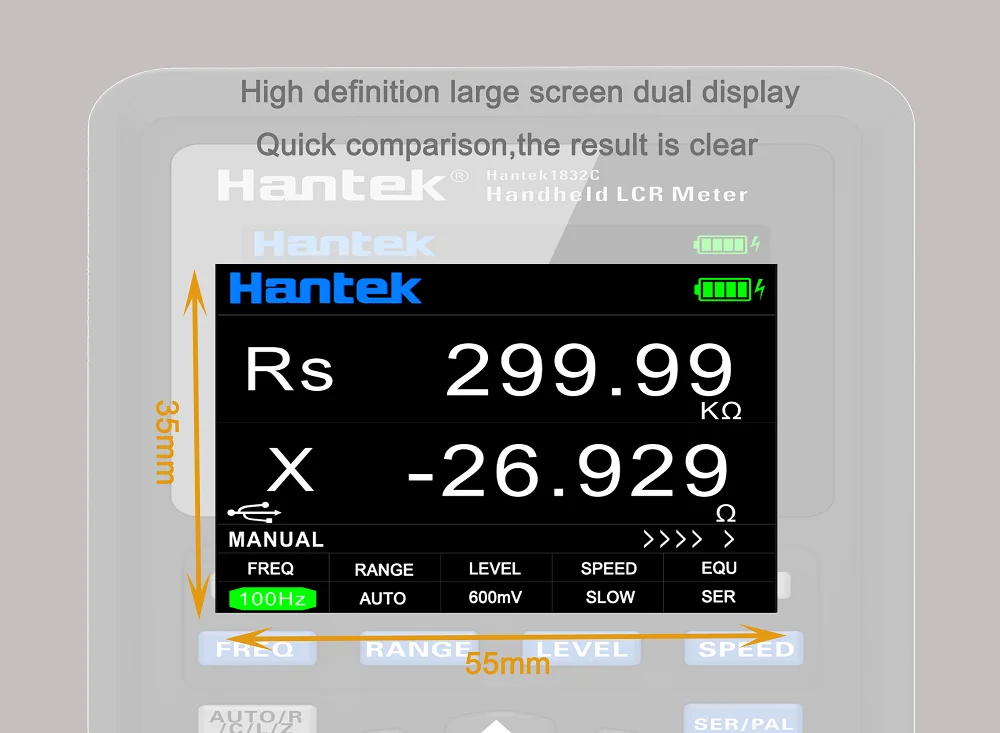

-HD display，dual display of measurement data，the result is clear
-Support data record analysis
-Support PC upper computer，easy to control and measure remotely
-Test lead：3 end/5 end switch
-Measuring speed：high speed/intermediate speed/low speed switch
-Range：support manual/auto switch，easy to do quick measurement

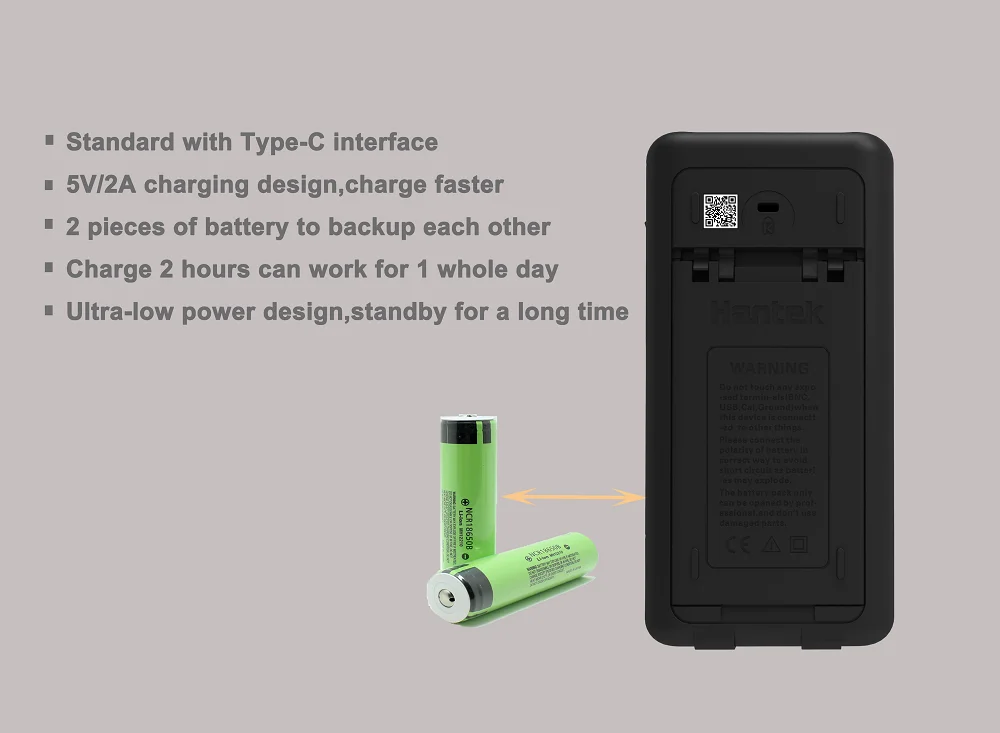

-LCR adopted rechargeable design，Large capacity lithium battery，super standby
-Double shock protection sleeve，all-round protection，shakeproof，fall-arrest，protect
-the machine from damage，longer use time, more comfortable measurement

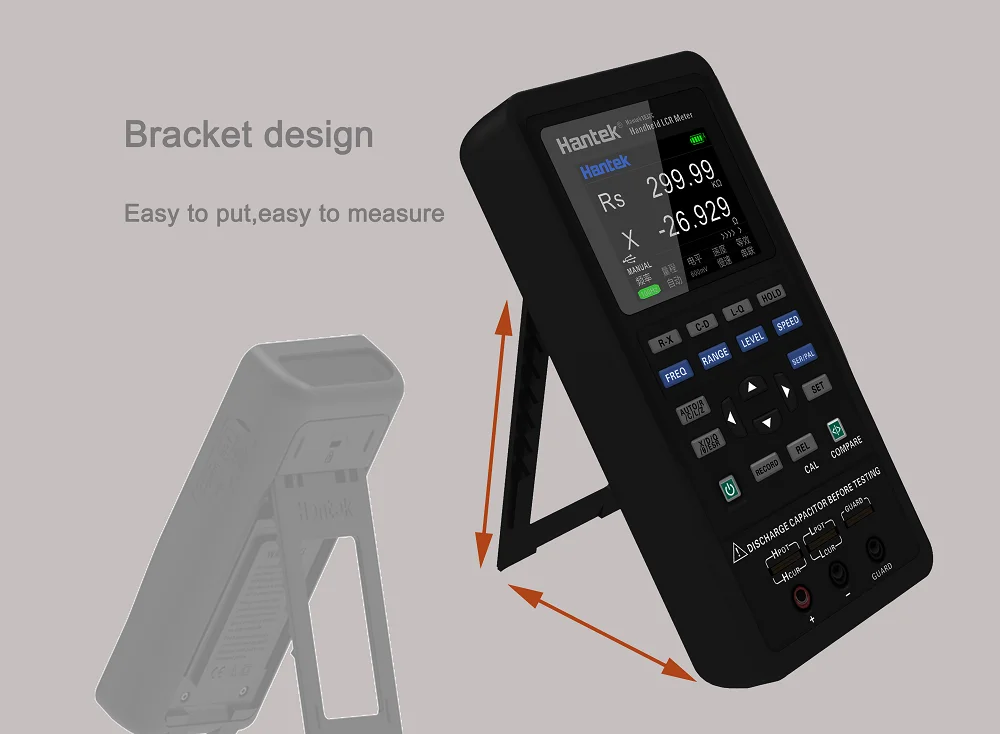

-Bracket design,easy to put and measure
-LCR high precision test instrument:
Model | Hantek1833C | ||||||
Test frequency | 100Hz、120Hz、400Hz、1kHz、4kHz、10kH z、40kHz、50kHz、75kHz、100kHz | ||||||
Accuracy | 0.30% | ||||||
Equivalent Circuit | series、parallel | ||||||
Test level | 0.6Vrms、0.3Vrms | ||||||
Measurement way | manual、auto | ||||||
Display screen | 2.8 inch TFT LCD | ||||||
Measurement parameters | principle parameter：L/C/R/Z deputy parameter：X/D/Q/θ/ESR | ||||||
Principle parameter | L/C/R/Z | ||||||
Deputy parameter | X/D/Q/θ/ESR | ||||||
Measurement range | （L)0-2000H | ||||||
Measurement range | （C)0-20mF | ||||||
Measurement range | （R)0-20MΩ | ||||||
Measurement speed | high speed（4 times/s）、intermediate speed（twice/s）、low speed（once/s） | ||||||
Reset function | open circuit calibration、short-circuit calibration | ||||||
Test end configuration | 3 end、5 end | ||||||

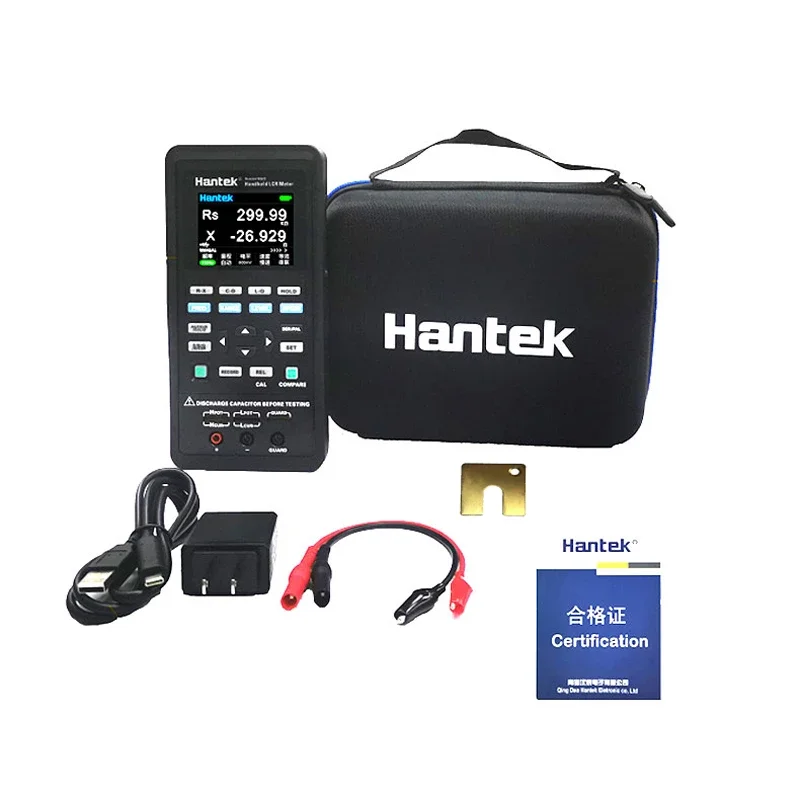

General feature | standard with 1、Type-C data cable；2、power adapte；3、short circuit card；4、red and black rubber plug；5、large capacity lithium battery | ||||||
