Adjustable Former Mold Copper Wire Winder Electric Motor Coil Winding Machine
Introduction

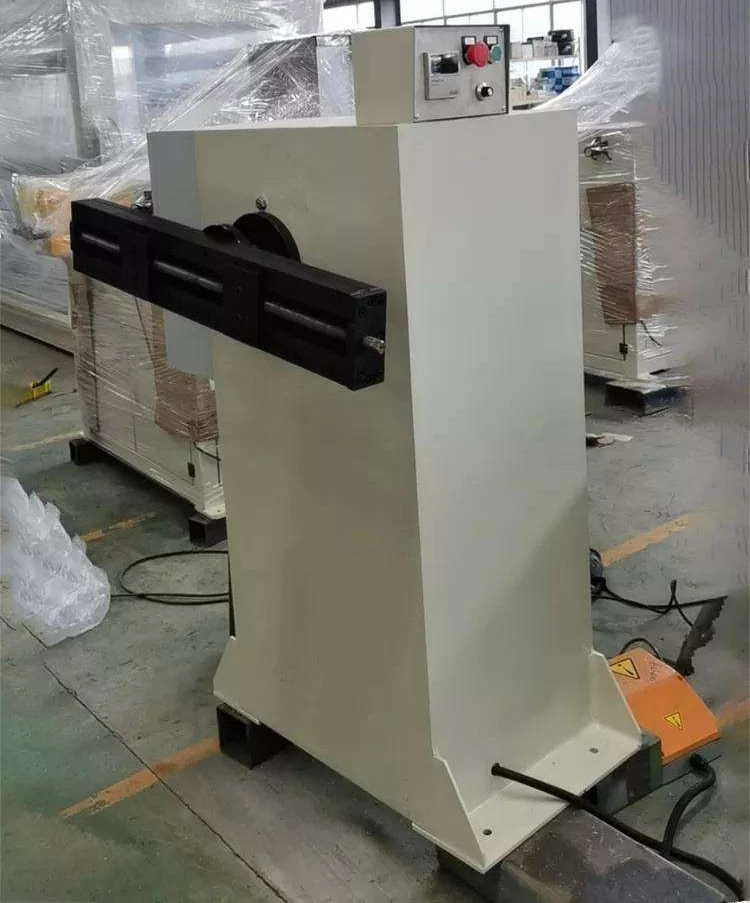

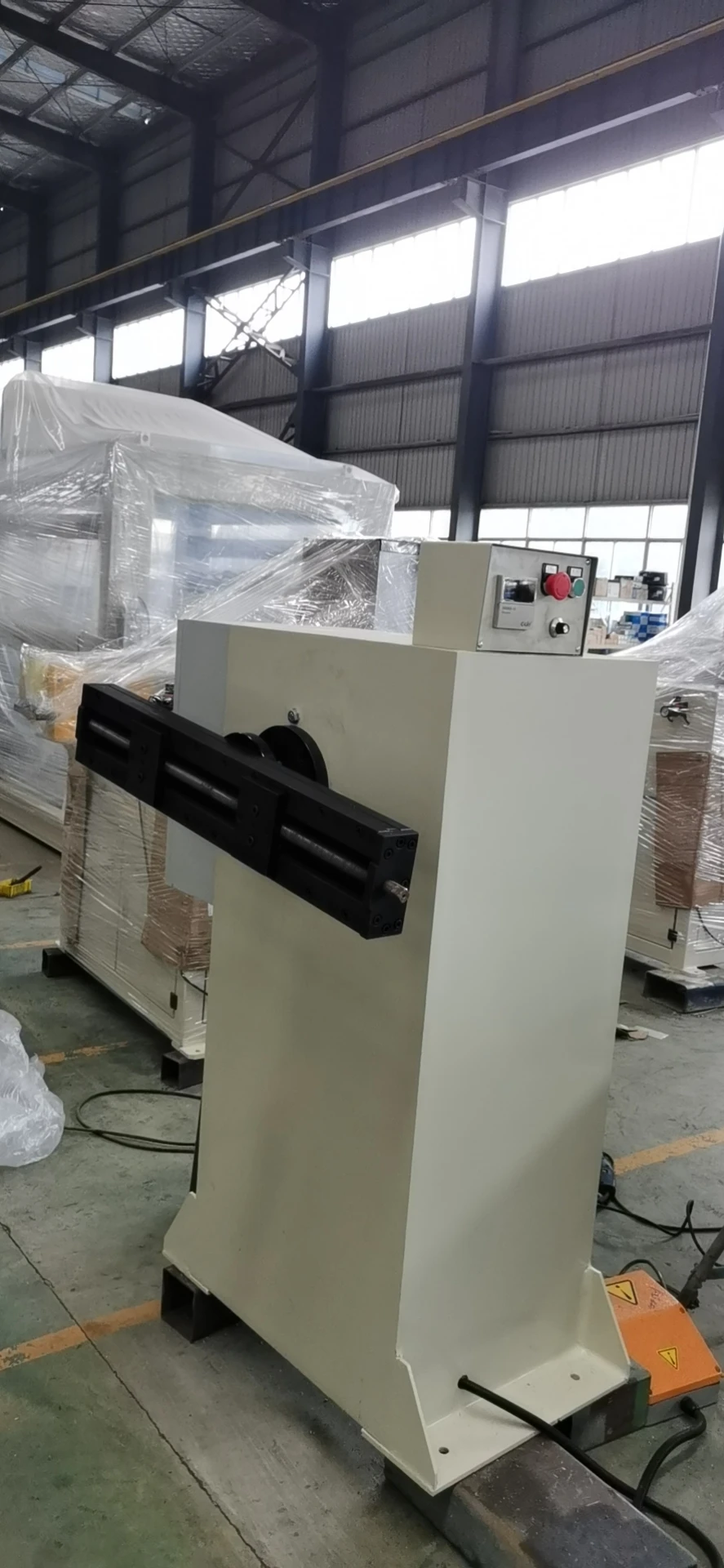

Semi automatic motor coil winding machine MW800 is suitable for winding different specifications of copper or aluminum wire coils, these coils can be used in motors and other similar products.
Main Components
1.Main frame
2.Gearbox
3.Tailstock
4.Electric control boxg

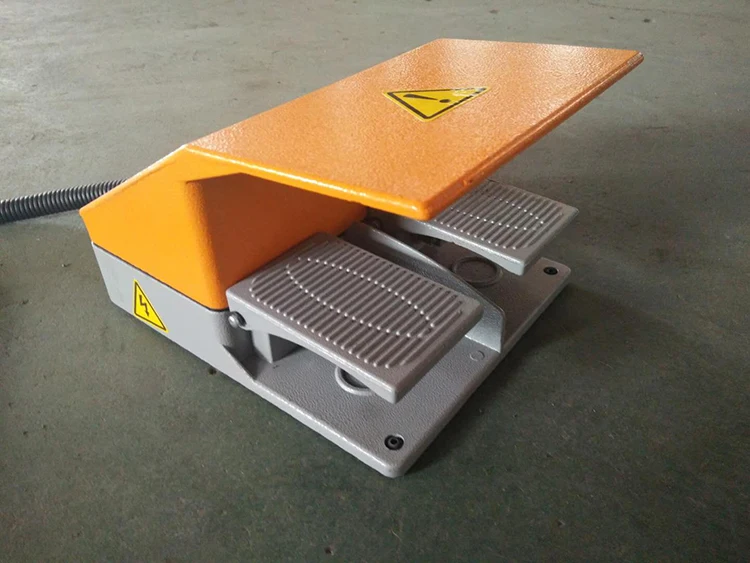

5.Foot switch
Technical Parameters
Typical standard specifications of MW500 are shown below, however the machine can also be manufacutured as requested.
| Center height | 1000mm |
| Max. winding diameter | 800mm |
| Winding power | 2.2kw |
| Winding speed | 0 ~ 160rpm |
| Speed regulation | stepless |
| Max. flat wire size | 5 x 12mm |
| Round wire diameter | 0.3 ~ 5mm |
| Counter | 5-digital |
| Max. capacity | 200kg |
| Warranty period | 12months |
Packaging & Shipping
Similar Products
Company Information
FAQ
1) Q: Are you manufacturer or trading company?
A: We are both manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service oversea?
A:We provide both technical support online and on-site services
A:We provide both technical support online and on-site services
4) Q: How does your factory control product quality?
A:Besides we strictly control each production chain, all machines have to be tested before loading.
5) Q: How can I know the machines is OK before loading?
A: We can record the testing video for your reference if you need, or you can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture customized machines as requested.
