Small Capacity Mini Mobile Concrete Batching Mix Plant 25m3 30m3 50m3 60m3 with drum mixer
- Category: >>>
- Supplier: Zhengzhou Zhenheng Construction Equipment Co. Ltd.
Share on (1600647745232):
Product Overview
Description
Product Description
Features of YHZM Mobile Concrete Batching Plant
1. Aggregate batching and transferring is automatic and precise;
2. Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
3. The whole plant chassis can be moved easily, don't need to be separated and assembled;
4. This plant is designed to work without foundation, even cooperate working with horizontal cement silo;
5. Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.
2. Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
3. The whole plant chassis can be moved easily, don't need to be separated and assembled;
4. This plant is designed to work without foundation, even cooperate working with horizontal cement silo;
5. Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.
Advantages of YHZM mobile concrete batching plant
1.Quick disassembly:Except for the connecting equipment such as screw conveyor and cement silo. All the wiring of the mixing station need not be removed.
2. High degree of automation: The control room uses the microcomputer control system to automatically feed the material. The mixing station operator can set the ratio and complete the rated mixing times.
3. Stir well :With a compulsory twin shaft concrete mixer, uniform mixing can be achieved with the shortest mixing time.
Details Images

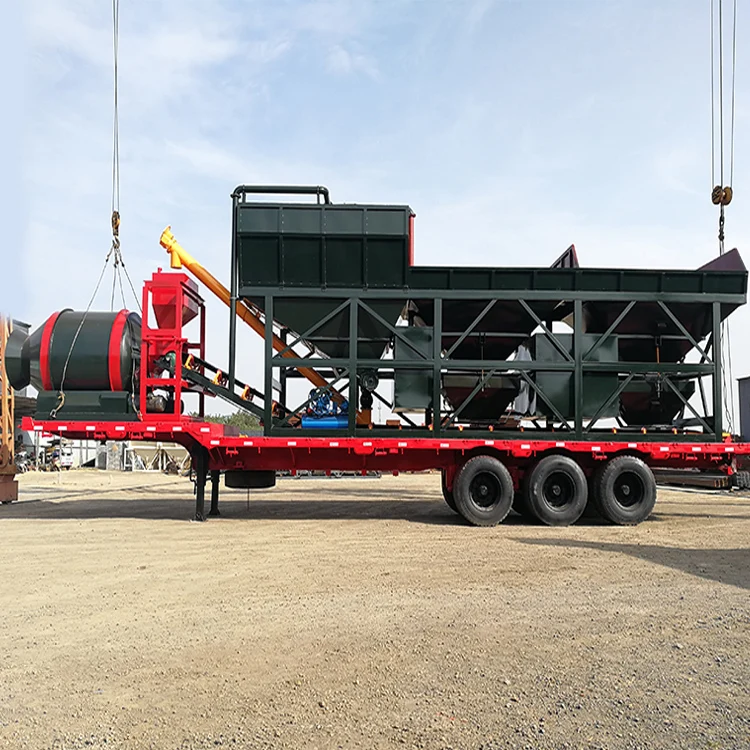

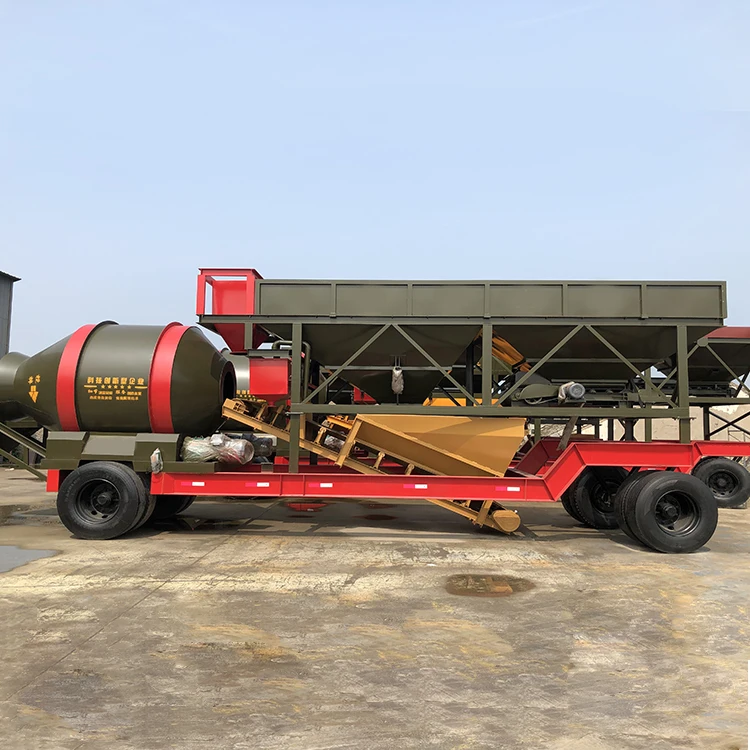

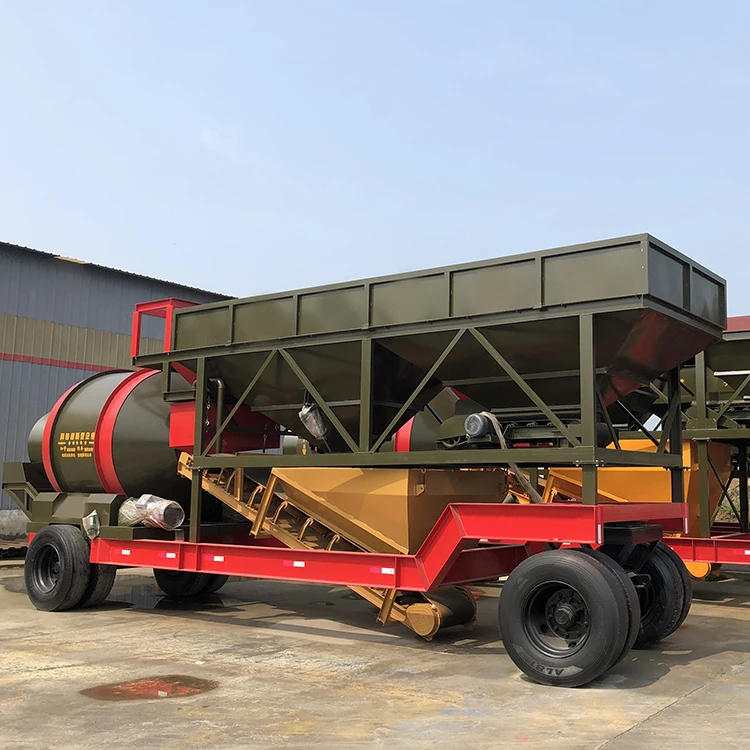

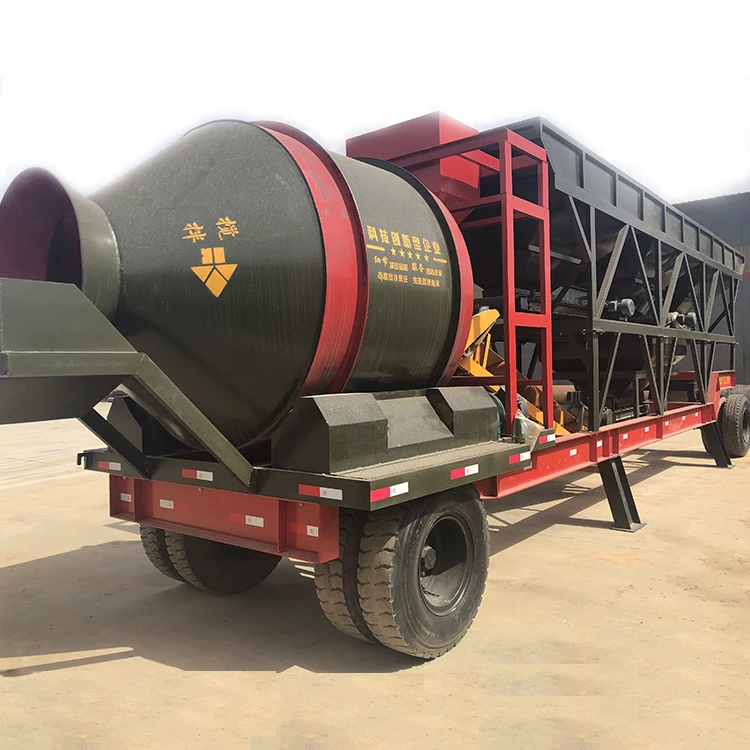

Drum Type of Mobile concrete batching plant:
Electric Power Mobile Concrete Batching Plant With Drum Type Concrete Mixer as one of the YHZM Series mobile concrete batching plant is a new type mixing plant adapt to the fast installation and movement. It is designed and manufactured by our factory based on the practical construction projects. The whole design is with convenient installation, stable and reliable operation convenient transportation. It has the advantages of flexible movement, quick and easy assembly and disassembly, and stable performance. It is the preferred choice for field construction projects such as railways, highways, ports, bridges, and hydropower projects.
The drum type mixing plant is introduced in detail:
a. Tires: Double tires, strong pressure bearing capacity, strong stability, non-slip.
b. Support leg: Quick disassemble and assembly, stabilize machine during work, protect tires, and extend service life.
c. Universal Steering wheel: can be dragged by a medium-sized forklift directly, ensure the direction changing stably.
d. Storage hopper base: moved from the middle to the front generating two advantages:
a).remaining space can be used for the generator, control cabinet, water tank, tool box, etc.;
b). shorten the length of the feeding belt and the feeding time, thereby shortening the single mixing cycle by 10s, and improving the working efficiency.
e. Support steel: Increase the bearing capacity of the chassis and extend the service life. Compact structure: Movable completely, work on the supporting legs, No foundation needed.
Specification
Model | JZM500-2 | JZM750-2 | JZM1000-2 | JZM1000-3 | JZM1500-2 | JZM1500-3 | |||||||
Theory capacity | 25m³/h | 35m³/h | 50m³/h | 50m³/h | 75m³/h | 75m³/h | |||||||
Discharging height | 1600mm | 1600mm | 1600mm | 1600mm | 1600mm | 1600mm | |||||||
Total power | 44kw | 50kw | 58.9kw | 58.9kw | 66.9kw | 66.9kw | |||||||
Dimension(L * W * H) | 8 X 2.2m X3.8m | 8m X 2.2m X3.8m | 10m X 2.3m X4.2m | 13.5m X 2.3m X 4.2m | 12m X 2.3m X 4.2m | 14.5m X 3.9m X 4.2m | |||||||
Mixing System | Model of Mixer | JZM500 | JZM750 | JZM1000 | JZM1000 | JZM1500 | JZM1500 | ||||||
Mixing motor | 2*5.5kw | 2*7.5kw | 2*11kw | 2*11kw | 2*15kw | 2*15kw | |||||||
Discharging volume | 500L | 750L | 1000L | 1000L | 1500L | 1500L | |||||||
Aggregate System | Model of Batcher | PLD800-2 | PLD1200-2 | PLD1200-2 | PLD1200-3 | PLD1600-2 | PLD1600-3 | ||||||
Aggregate bin volume | 5m³×2 | 6m³×2 | 7m³×2 | 7m³×3 | 8m³×2 | 8m³×3 | |||||||
Max. Aggregate Dia | 60/80mm | 60/80mm | 60/80mm | 60/80mm | 60/80mm | 60/80mm | |||||||
Measurement System | Cement weighing hopper | 500KG | 500KG | 560KG | 560KG | 900KG | 900KG | ||||||
Water weighing support | 220KG | 220KG | 220KG | 220KG | 330KG | 330KG | |||||||
Additive weighing support | 30KG | 30KG | 30KG | 30KG | 40KG | 40KG | |||||||
Trailer Speed | 40-60Km/h | 40-60Km/h | 40-60Km/h | 40-60Km/h | 40-60Km/h | 40-60Km/h | |||||||
Optional cement silo | 50/100/200T | 50/100T | 50/100T | 50/100T | 50/100T | 50/100T | |||||||
Packing & Delivery
Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight. (Automatic Concrete Batcher Plant)
Product Recommend
Company Profile
The factory video
our team
Exhibitions&Projects
FAQ
Q1.: Are you trading Company or Factory?
A: We are factory. We have been engaged in the production of self loading concrete mixer
for more than 40 years.
Q2: How about the quality of your products?
A: We are factory with more than 40 years of construction machinery manufacturing experience. All of our machines are manufactured
strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also
use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q3: How about the price?
A: We are factory, not dealer, so we can give you a lower price than those trade companies can.
Q4: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q5 : Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q6.: How long is your delivery time
A: Generally it is around 7 days if the goods in stock. If there is no goods in stock, it will be about 20 days, subject to the
quantity you ordered.
Q7.: What is your acceptable payment terms.
A: By T/T. 30% deposit in advance, balance to be paid before delivery.
or By irrocable LC at Sight.
