Огнеупорное теплоизоляционное покрывало из керамического волокна с высокой термостойкостью 1260c для промышленной печи
- Category: Ceramic Fiber Blankets >>>
- Supplier: Shandong,Minye,Heat-Preservation,Material,Co.,Ltd.
Share on:
Product Overview
Description
Recommend Products
Products Describtion
Ceramic fiber blanket is a kind of refractory heat insulation material that is widely used for high temperature heat insulation. Such as Industrial furnace , heating devices, high temperature pipe wall lining. It’s environment-friendly material as a replace of asbestos. Also it is with the features of excellent thermal insulation, insulation, fireproof and sound absorption.ceramic fiber blanket is completely inorganic and available in a variety of temperature grades, densities, and sizes.
Place of origin | China (mainland） | Fiber diameter | 3-5um | ||
Density (kg/m3) | 128 | Produce name | Thermal insulation ceramic fiber blanket | ||
size | Customer’s demand | Brand name | Minye | ||
Application | Thermal insulation | Color | Pure white | ||
Item | Thermal insulation ceramic fiber pipe | Working temperature | 1000/1050/1100/1200/1350 | ||
Item | Item/specifications | Common | Standard | High-purity | High aluminum | Containing zirconium | |||||
Classification temperature（℃） | 1050 | 1260 | 1260 | 1360 | 1430 | ||||||
Working temperature（℃） | 1000 | 1050 | 1100 | 1200 | 1350 | ||||||
bulk density（kg/m3） | 75 | 128 | 128 | 160 | 160 | ||||||
24H Linear Shrinkage after Heating (%） | -4 (1000℃) | -3 (1000℃) | -3 (1000℃) | -3 (1000℃) | -3 (1000℃) | ||||||
(w/m.k) Thermal Conductivity | 0.09(400℃) 0.176(800℃) | 0.09(400℃) 0.176(800℃) | 0.09(400℃) 0.176(800℃) 0.22(1000℃) | 0.132(600℃) 0.22(1000℃) | 0.76(600℃) 0.22(1000℃) | ||||||
Strength（MPA） | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | ||||||
Chemical Composition (%) | AL2O3 | 42-44 | 45-46 | 47-49 | 52-55 | 39-40 | |||||
ZRO2 | ＜1.2 | ＜1.0 | 0.2 | 0.2 | 0.2 | ||||||
FE2O3 | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | ||||||
Packaging | Woven bags / cartons | ||||||||||

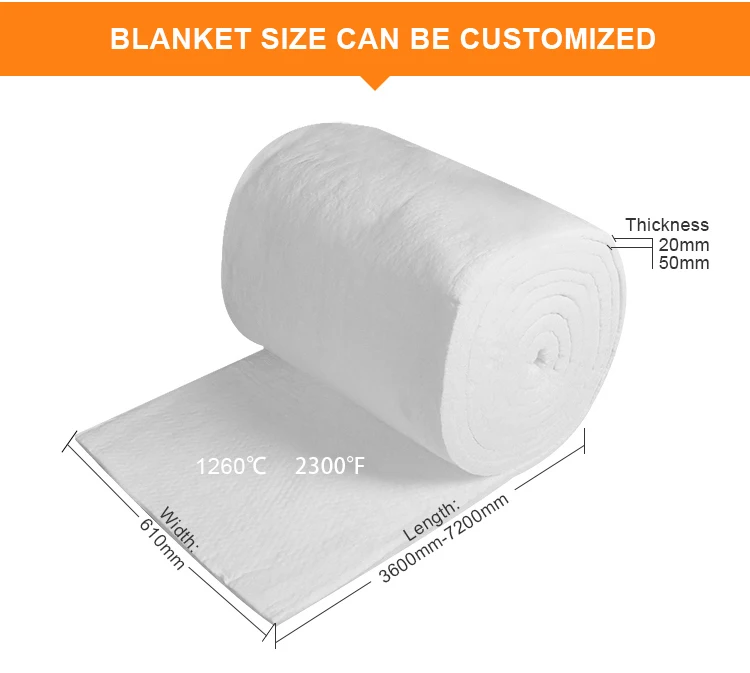

Conventional size | Common size: 7200*610*10-50mm Other specifications can be made according to customer's requiment | ||||||||||
Applications
1.Industry furnace wall lining
2.Back lining material
3.Fire prevention
4.High-temperature tube heat insulation material
5.Module/folding block processing material
6.Filling and sealing material in high temperature environment.
7.Sound-absorbing/high temperature filtration materials.
1.Industry furnace wall lining
2.Back lining material
3.Fire prevention
4.High-temperature tube heat insulation material
5.Module/folding block processing material
6.Filling and sealing material in high temperature environment.
7.Sound-absorbing/high temperature filtration materials.
Why Choose Us
Our Service
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2.Sample evaluation
Provide sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Short delivery time
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional and complete shipping documents
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents;
6.Warm and considerable after-sale service
We can supply heat insulation ceramic fiber blanket and other ceramic fiber products, such as ceramic fiber paper, ceramic fiber board, ceramic fiber blanekt, ceramic fiber gasket .They are all refractory materials used in different fields.
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2.Sample evaluation
Provide sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Short delivery time
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional and complete shipping documents
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents;
6.Warm and considerable after-sale service
We can supply heat insulation ceramic fiber blanket and other ceramic fiber products, such as ceramic fiber paper, ceramic fiber board, ceramic fiber blanekt, ceramic fiber gasket .They are all refractory materials used in different fields.
Company Profile
Shandong Minye Heat-Preservation Material Co.,Ltd is an innovative modern enterprise specializing in aluminum silicate equipment who has 12 years experience.
At the same time,we has aluminum silicate production line,specializing in the production of aluminum silicate fiber blankets, aluminum silicate fiber cotton, aluminum silicate fiber composite blocks(pieces), aluminum silicate fiberboard and so on.
The product has the advantages of good elongation,strong shock resistance,light weight, good heat insulation and no deformation at high temperature of several thousand degress Celsius.
At the same time,we has aluminum silicate production line,specializing in the production of aluminum silicate fiber blankets, aluminum silicate fiber cotton, aluminum silicate fiber composite blocks(pieces), aluminum silicate fiberboard and so on.
The product has the advantages of good elongation,strong shock resistance,light weight, good heat insulation and no deformation at high temperature of several thousand degress Celsius.
We can also invite the clients to our factory. We can show them our scale and status of production.The clients will feel relieved at our products.
Product Packaging&Shipping
Certifications
FAQ
Q1:How can I get the sample to check your quality?
A:After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
A:After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
Q2:What can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your
email so that we will regard you inquiry priority.
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your
email so that we will regard you inquiry priority.
Q3:What is your term of delivery?
A:We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choosethe one which is the most convenient or cost effective for you.
A:We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choosethe one which is the most convenient or cost effective for you.
Q4: What kind of products do you offer?
A:Our company can provide a variety of fire insulation materials. Such as: ceramic fiber blanket,ceramic fiber board,ceramic fiber paper rock wool and so on.
Q5: What is the lead time?
A:Generally 5-15 days, even less if available. Or 15-30 days, depending on the quantity.
