Product Overview

Description

Manufacturer Factory Price AC Lightening Arrester SPD Surge Protector for Solar System





The products comply with IEC61643-1, GB18802.1.



The housing is fixed on 35mm electrical guide, and with failure release device inside. As long as SPD become invalid after the breakdown caused by over-heat and overload current, the failure release device will be disengaged from power system automatically with the warning indicator turning from Green (normal) to Red (failure).



SPD is usually installed in household power distribution boards, telecom machinery center, computer equipment center, elevator control center, hospital's surgery and ICU, information equipment, electronic equipment and in front of control equipment or nearest socket box of control equipment.



Technical Parameter



Techinical parameters	Model  GZD1-D
Rated operating voltage Un(V~)	220V	380V	220V	380V
Maximum continuous operating voltage Uc	275V	385V	320V	385V
Voltage protection level up(V~) KV	≤0.7	≤1.0	≤1.2	≤1.5
Nominal discharge current In(8/20μs)KA	5		20
Maximum discharge current Imax(8/20μs)KA	10		20
Response times	<25
Test standard	GB18802.1   IEC61643-1
The cross section of L/N line	6
The cross section of PE line	16
Fuse of switch(A)	10A, 16A		16A,25A
Operating environment°C	-40°C~85°C
Relative humudity(25°C)	≤95%

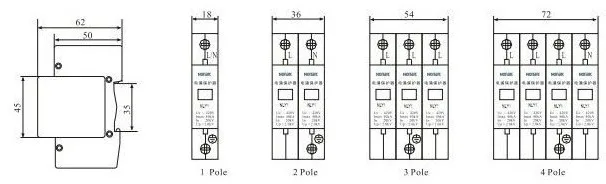

Installation	Standard rail 35mm
Material of outer covering	Fiber glass reinforced plastic



Special Tips



1.it is modularization design and can be replaced without cutting off power.



2.maximum current endurance by lightning stroke is 10KA



3. response time less than 25ns.



4.with warning indicator: Green (normal); Red (failure).



5. high-tech, powerful energy, gap discharge pole (N-PE).



6.Built-in over current and over thermal pertection,temperature control and circuit breaking technology.



7.Excellent ZnO voltage dependent resistor slice with owned intellectual property.



8.Little leakage current,rapid reponse,low residual voltage.



9.Equipped with remote signaling interface,it can realize remote control .

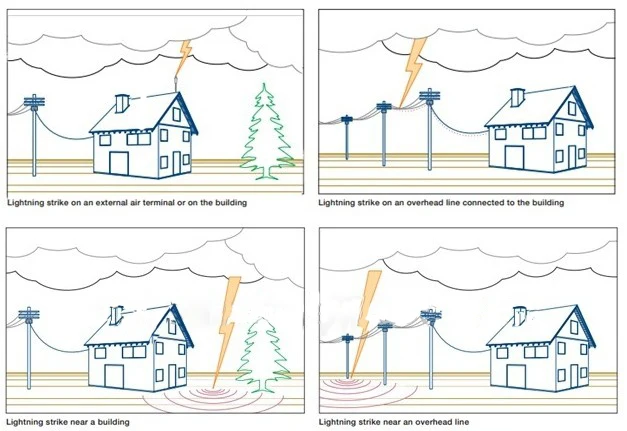

Transient over-voltages due to direct lightning effects
