Factory Direct Selling PLC Control Programmable Oil Type Transformer Coil Winding Machine
- Category: >>>
- Supplier: Hefei Zhu Tang Technology Co. Ltd.
Share on (1600648310751):
Product Overview
Description
Product Description
Factory Direct Selling PLC Control Programmable Oil Type Transformer Coil Winding Machine

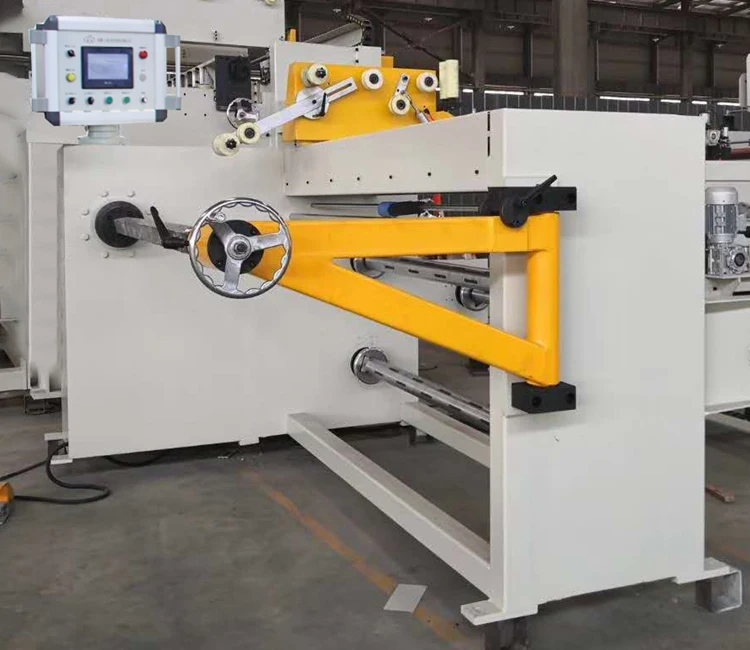

Automatic transformer coil winding machine ZPX1000, adopting automatic wire laying and tension technologies, is especially suitable for winding square and round coil. These coils can be used in small and medium-sized distribution transformers, reactors and other similar products. The winding machine is provided with main winding motor, automatic wire laying unit, layer insulation feeder unit, tension adjustable decoiler, pneumatic system, PLC control, and servo motors, etc. It features high automation, full functions, and strong driving force, etc.
Main Components
1. Main frame

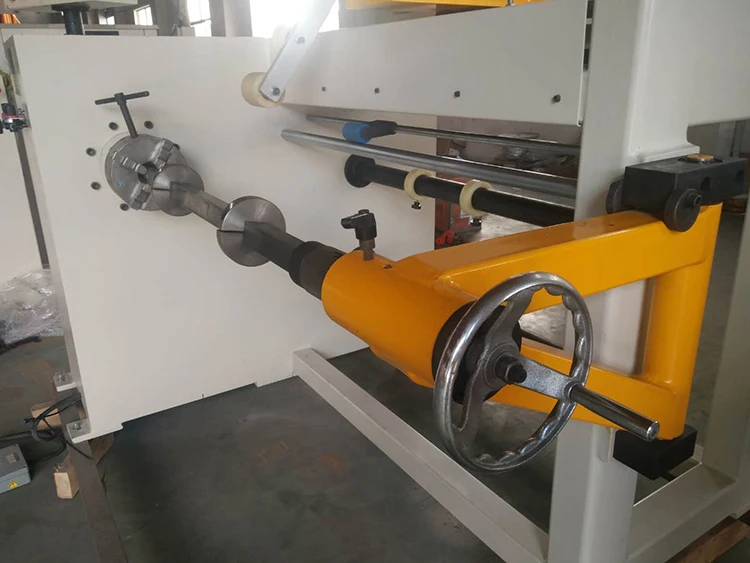

2. Winding unit

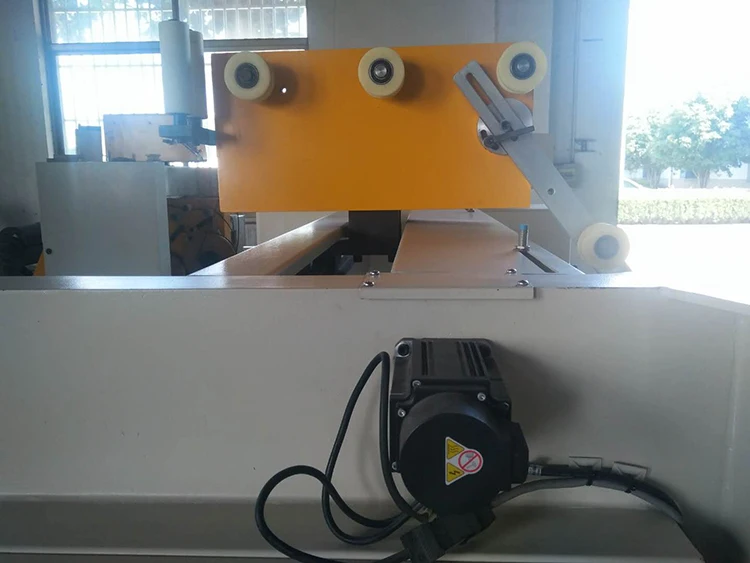

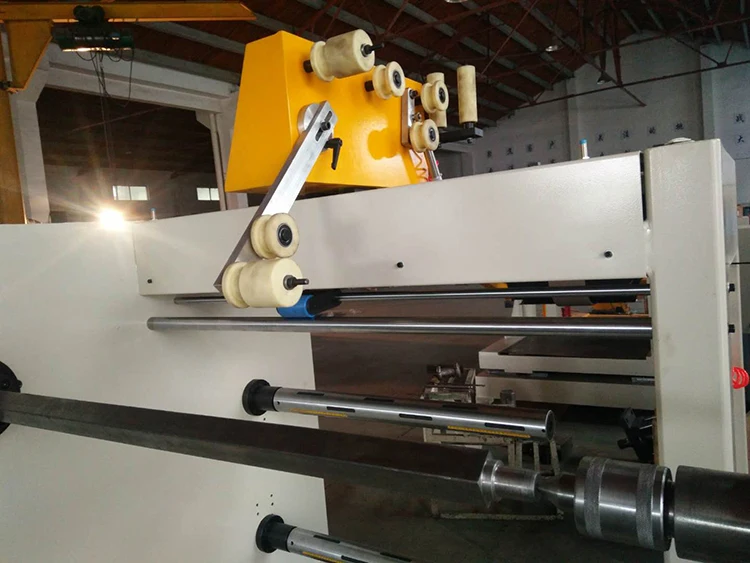

3. Automatic wire laying unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical Parameters
Typical standard specifications of ZPX series are shown below, however these can be easily modified as requested.
| Item | ZPX800 | ZPX1000 | ZPX1200 |
| Center Height: | 900mm | 900mm | 900mm |
| Finished Coil Height: | ≤800mm | ≤1000mm | ≤1200mm |
| Winding Power: | 4kw | 5.5kw | 5.5kw |
| Winding Speed: | 0-160rpm | 0-120rpm | 0-100rpm |
| Speed Regulation: | stepless regulation | stepless regulation | stepless regulation |
| Max. Flat Wire Size: | 5x12mm | 5x12mm | 5x12mm |
| Round Wire Diameter | 0.3-5.0mm | 0.3-5.0mm | 0.3-5.0mm |
| Finished Coil OD.: | ≤800mm | ≤800mm | ≤1000mm |
| Loading Capacity: | ≤700kg | ≤800kg | ≤1000kg |
| Min. Spread Pitch: | 0.01mm | 0.01mm | 0.01mm |
| Counting Range: | 0 - 9999.9 | 0 - 9999.9 | 0 - 9999.9 |
Similar Products
Packaging & Shipping

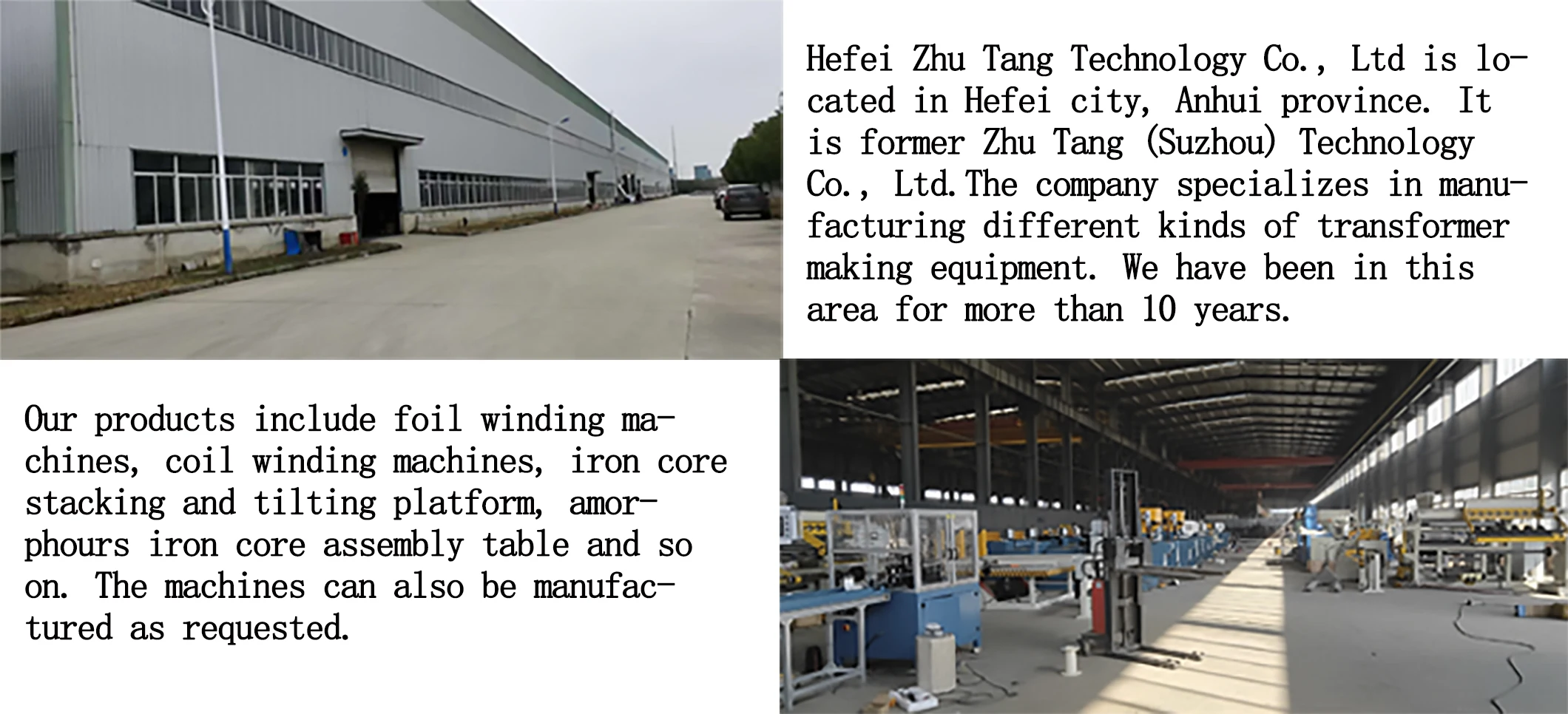

Company Information
Our Services
1. Before sales: we will provide you with professional suggestions and help you to choose suitable machines.
2. During production: we will provide you with the production progress information, such as providing photos, videos and so on to make you feel at ease.
3. After sales: We will go to your factory to train and instruct your operator to use the machine if needing. We can also instruct your operators to use the machine online.
4. Quality assurance: We provide 12-months quality assurance and all life maintance.
FAQ
1) Q: Are you manufacturer or trading company?
A: We are both manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service oversea?
A:We provide both technical support online and on-site services
A:We provide both technical support online and on-site services
4) Q: How does your factory control product quality?
A:Besides we strictly control each production chain, all machines have to be tested before loading.
5) Q: How can I know the machines is OK before loading?
A: We can record the testing video for your reference if you need, or you can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture customized machines as requested.
