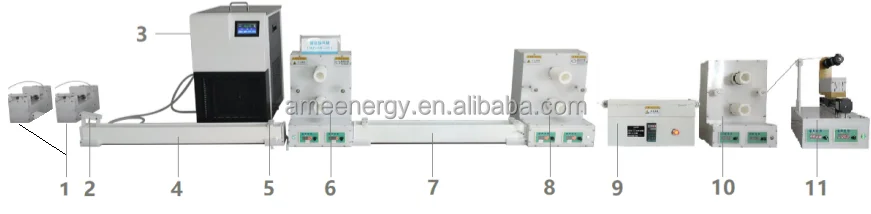

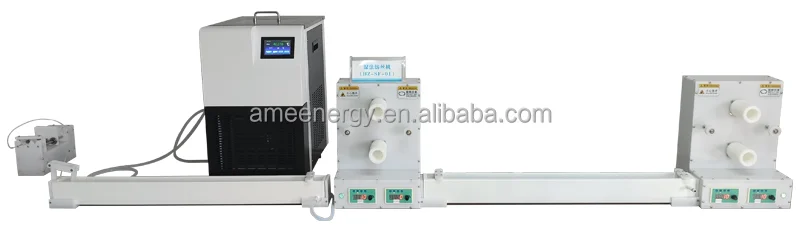

Lab Scale Small Wet Spinning Machine

1

High thrust micro pump
(dual channel)

1. 4.3 inch touch screen, flow rate 0.1-999ml/h, dynamic linear thrust ≥ 400N;
2. Double channels and six card slots, with an effective stroke of 15cm;
3. Support 5ml, 10ml, 20m, 30ml, 50ml and other standard syringes;
4. Countdown stop, corrosion resistant body;

2

Spinning nozzle support

Corrosion resistant and foldable;

3

External circulating water bath

Water bath temperature: - 5 ℃ to 100 ℃, circulation volume: 15L, 380mm × 535mm × 650mm；

4

Coagulation bath tank

316 stainless steel material+corrosion resistant coating+insulation layer, hydrophobic and oil repellent, acid and alkali resistant; With interlayer, it can be connected with external circulating water bath to adjust the temperature of coagulation bath; 80mm × 80mm × 1000mm；

5

Pressing wheel

Fiber guidance；

6

Traction stretching machine

Level II winding and stretching, the drum material is corrosion resistant, and the diameter is 65mm; 1 rpm - 300 rpm precise speed regulation, and arbitrary steering adjustment; 320 × 250× 450mm；

7

Washing tank

Same as 4;

8

Traction stretching machine

Same as 6;

9

Dryer

Narrow slot heating and drying method, heating temperature: room temperature - 160 ℃, accuracy 1 ℃; The installation position is generally in front of the final winding to dry the fiber quickly;440×250×240mm;

10

Traction stretching machine

Same as 6;

11

Fiber winder

It is used to prepare fibers in small batches. The reel can be disassembled. The reel can be moved back and forth+rotated to wind fibers, and the speed can be adjusted accurately. The module is installed in the last part,300×450×400mm；

12

Nozzles

50 each type×21-25G single nozzles; 1 ×22/17 coaxial nozzle;

13

Others

1× voltage transformer, 3 ×pressing wheels, 10m× liquid guide pipe, 10 ×pairs of connectors.
