Microsensor ATEX Certificated 4~20ma DC Oil Pressure Transducer MPM489W Water Tank Pressure Transducer
- Category: >>>
- Supplier: Micro Sensor Co. Ltd.
Share on (1600648477347):
Product Overview
Description
Products Description
Basic Information

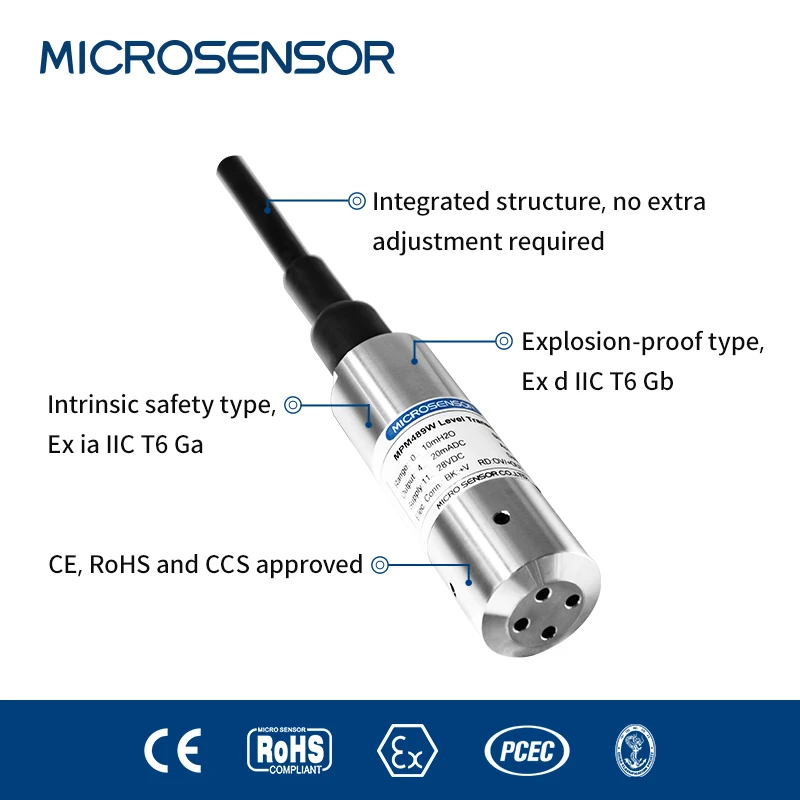

Microsensor's MPM489W is a full sealed submersible liquid level transmitter. It is made by high stable and reliable pressure sensor and high accurate circuit board into the stainless steel housing. With a integrated construction and standard signals, this item provides the user's easy and convenient application in the local working place. The special cable connecting the housing, can be immerged into the media for a long time.
This liquid level transmitter has compact size, light weight and good stability. It can be used for water or liquid measuring and controlling in medicine, metallurgy, electricity, mine, city water supply, drainage, hydrology, etc.
• Cost-efficient, high reliability and stability
• Explosion-proof product conforms to ExiaIICT6 Ga of Standard
• Custom design is available
Feature
Overpressure | 1.5 times FS |
Application temp. range | -10℃ ~70℃ ; -10℃ ~60℃ (Exia) |
Storage temp. range | -20℃ ~85℃ |
Housing | Stainless steel 304 |
Diaphragm | Stainless steel 316L |
O-ring | Viton |
Rubber casing | NBR |
Cable | φ7.5mm polyethylene cable |
Thermal Drift | Zero | Span |
Range>10mH2O | ±0.02%FS/℃ | ±0.05%FS/℃ |
Range≤10mH2O | ±0.05%FS/℃ | ±0.05%FS/℃ |
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer since 1971 on Pressure/ Level/ Temperature/ Flow transmitters with 4~20mA, Hart, Rs485 & Modbus protocols, pressure sensors with SDI, I2C, 4~20mA, 0.5~4.5V and etc, and wireless IOT measurement transmitters. We provide high-quality products with high competitive factory prices.
Q: What's your quality control system?
A: As an ISO9001:2008 certificated manufacturer, we have a strict quality control system, and each product is done with fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing is acceptable.
Q: Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM & customization are welcomed.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote
instruction by PC network is always available.
Q: What is the lead time of your product?
A: We are a factory, our lead time is always within 10~15 working days for products without customization, but lead-time will vary based on different products. You can check detailed lead-time with our sales.
Q: What international certificates do you have for your products?
A: We have CE, RoHS, UL, ATEX as well as ship-use DNV, etc.
