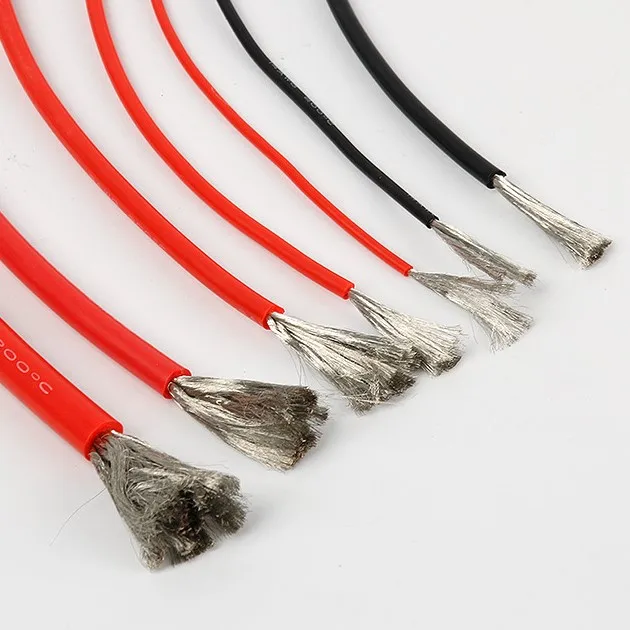

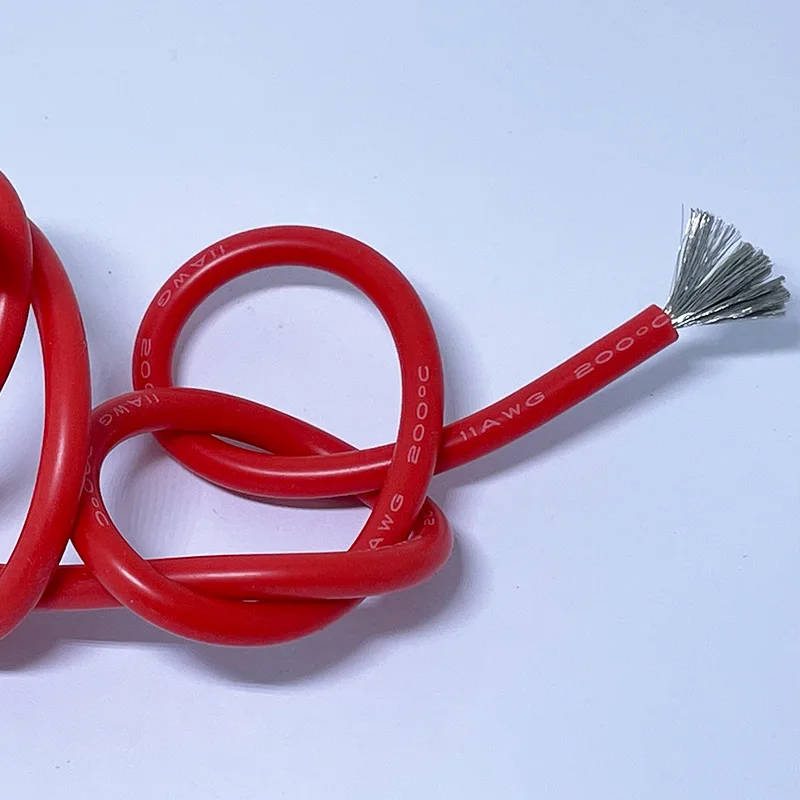

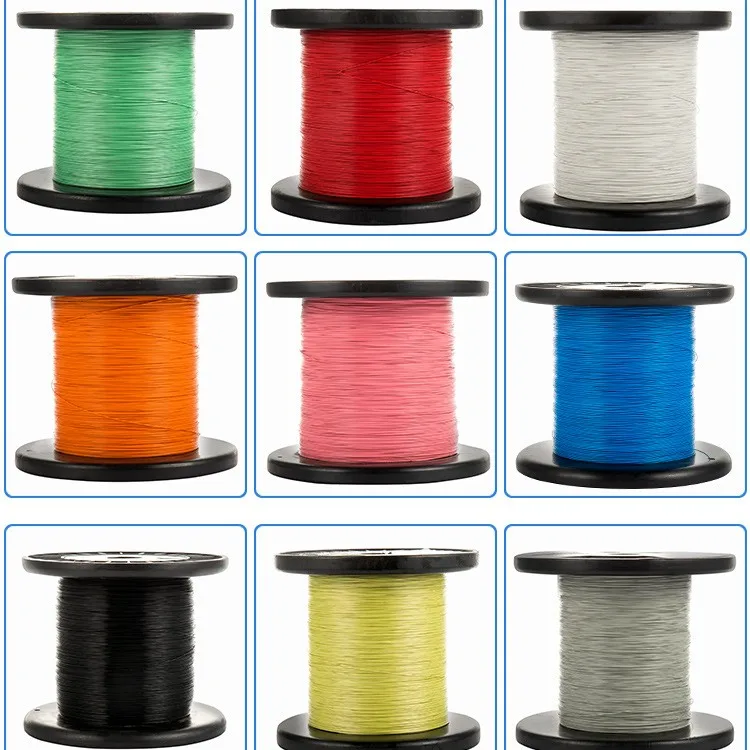

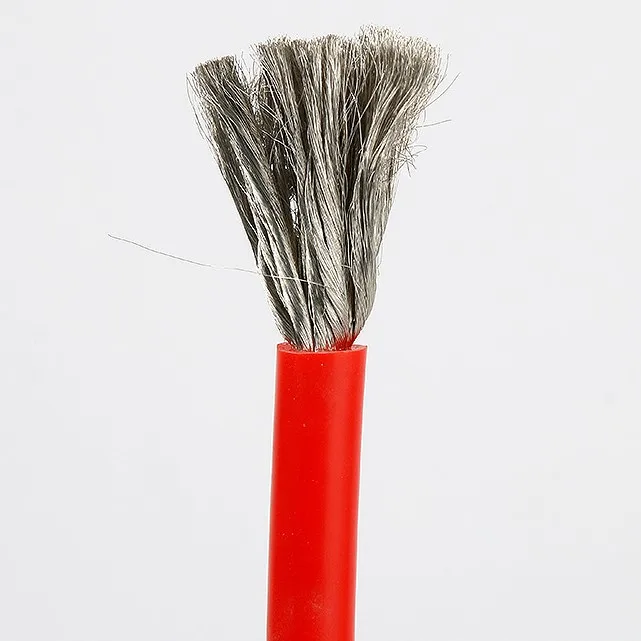

2awg 6awg 10awg 12awg 14awg 20awg 22awg Flexible Silicone Wire Red Ul3239 Silicone electric wire and cable
- Category: >>>
- Supplier: Huashuo Cable Technology (henan) Co. Ltd.
Share on (1600648484192):
Product Overview
Description
High temperature resistant silicone wire
◆ Product name
Copper core/tinned copper silicone insulated power cable.
◆ Technical parameters
1.Implementation standard: GB5013.3--2008
2.Rated voltage: 450/750V
3.Rated operating temperature: -60℃~200℃
4.Conductor: multiple twisted bare copper wires or tinned copper wires
5.Sheath: high quality silicone rubber, corrosion resistance, oil resistance, strong acid, strong alkali, high temperature resistance, low loss at high frequency, excellent flame retardant, aging resistance, long service life.
Copper core/tinned copper silicone insulated power cable.
◆ Technical parameters
1.Implementation standard: GB5013.3--2008
2.Rated voltage: 450/750V
3.Rated operating temperature: -60℃~200℃
4.Conductor: multiple twisted bare copper wires or tinned copper wires
5.Sheath: high quality silicone rubber, corrosion resistance, oil resistance, strong acid, strong alkali, high temperature resistance, low loss at high frequency, excellent flame retardant, aging resistance, long service life.
Item Spec | Nominal Section (mm²) | No./Dia.of Conductor (mm) | Insulation Thickness (mm) | Overall Diameter (mm) |
H05V-K | 0.5 | 16/0.20 | 0.6 | 2.4 |
H05V-K | 0.75 | 24/0.20 | 0.6 | 2.8 |
H05V-K | 1 | 32/0.20 | 0.6 | 3.0 |
H07V-K | 1.5 | 30/0.25 | 0.7 | 3.5 |
H07V-K | 2.5 | 50/0.25 | 0.8 | 4.2 |
H07V-K | 4 | 56/0.30 | 0.8 | 4.8 |
H07V-K | 6 | 84/0.30 | 0.8 | 6.3 |
H07V-K | 10 | 80/0.40 | 1.0 | 7.6 |
H07V-K | 16 | 128/0.40 | 1.0 | 8.8 |
H07V-K | 25 | 200/0.40 | 1.2 | 11.0 |
H07V-K | 35 | 280/0.40 | 1.2 | 12.5 |
H07V-K | 50 | 400/0.40 | 1.4 | 14.5 |
H07V-K | 70 | 356/0.50 | 1.4 | 17.0 |
H07V-K | 95 | 485/0.50 | 1.6 | 19.0 |
H07V-K | 120 | 614/0.50 | 1.6 | 21.0 |
H07V-K | 150 | 765/0.50 | 1.8 | 23.5 |
H07V-K | 185 | 944/0.50 | 2.0 | 26.0 |
H07V-K | 240 | 1225/0.50 | 2.2 | 29.5 |
Order Process
Company Profile
HUASHUO Cable has more than 18 years of experience in wire and cable production, our factory covers an area of 8360 square meters and has a professional cable manufacturing team. We produce control cables, insulated cables, power cables, special cables and other products, with a wide variety of products, complete specifications, high quality and low prices. Products are widely used in electric power, energy, transportation, engineering, communication and other fields. In recent years, the company has won unanimous praise from customers for its excellent product quality and excellent service.
Process Flow
Certifications
Honorary Certificate
Product packaging
FAQ
Q1: What are the main products of the company? Are you a manufacturer or a trader?
The company's main products are control cables,insulated cables, power cables, wiring cables, etc. We are a manufacturer with more than 20 years of experience.
Q2: What is your minimum order quantity?
Generally 100m. The cable is heavy, you'd better order a suitable quantity to avoid high shipping costs. Sea shipping is the
bestoption.
Q3: Can I get samples?
We are honored to provide you with samples, samples are provided free of charge, but need to pay for express shipping. If you have a courier account, you can send a courier to collect samples.
Q4: If we place an order, when will it be delivered?
It depends on the order quantity. Under normal circumstances, we can ship small orders within 3-5 working days, if the quantity is large, we will confirm again when you officially place the order.
Q5 Can I get a discount?
It depends on your quantity, we can discount and cover shipping. Please contact us.
Q6When can I get the price?
We usually quote within 6 hours after receiving your inquiry. If you are in a hurry to get a price, please call us or let us know
in your email so we can prioritize your inquiry.
Q7:Do you accept OEM/ODM?
We support OEM/ODM service: please don't hesitate to tell us your thoughts.
Please feel free to leave your request, we will reply you within 12 hours.
Generally 100m. The cable is heavy, you'd better order a suitable quantity to avoid high shipping costs. Sea shipping is the
bestoption.
Q3: Can I get samples?
We are honored to provide you with samples, samples are provided free of charge, but need to pay for express shipping. If you have a courier account, you can send a courier to collect samples.
Q4: If we place an order, when will it be delivered?
It depends on the order quantity. Under normal circumstances, we can ship small orders within 3-5 working days, if the quantity is large, we will confirm again when you officially place the order.
Q5 Can I get a discount?
It depends on your quantity, we can discount and cover shipping. Please contact us.
Q6When can I get the price?
We usually quote within 6 hours after receiving your inquiry. If you are in a hurry to get a price, please call us or let us know
in your email so we can prioritize your inquiry.
Q7:Do you accept OEM/ODM?
We support OEM/ODM service: please don't hesitate to tell us your thoughts.
Please feel free to leave your request, we will reply you within 12 hours.
