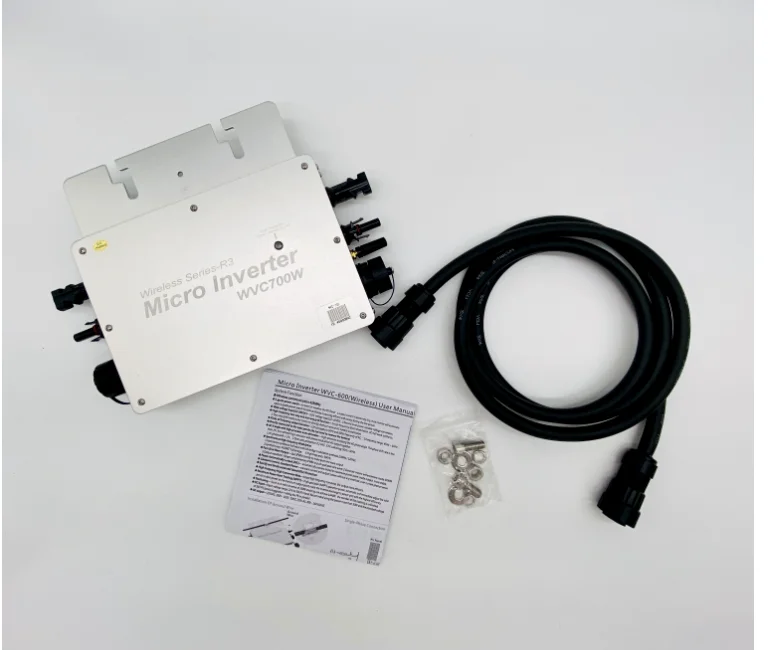

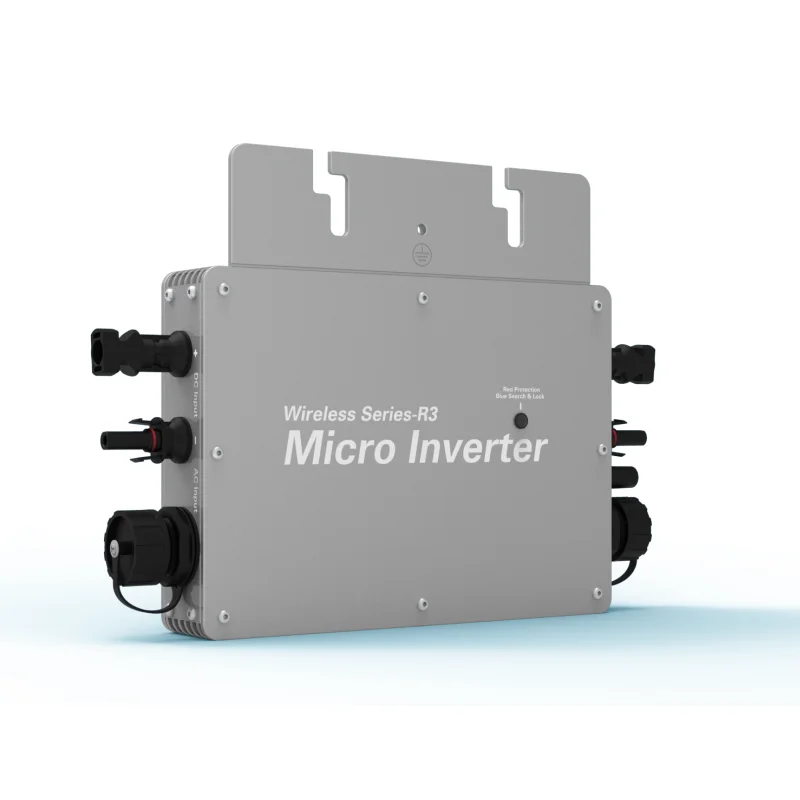

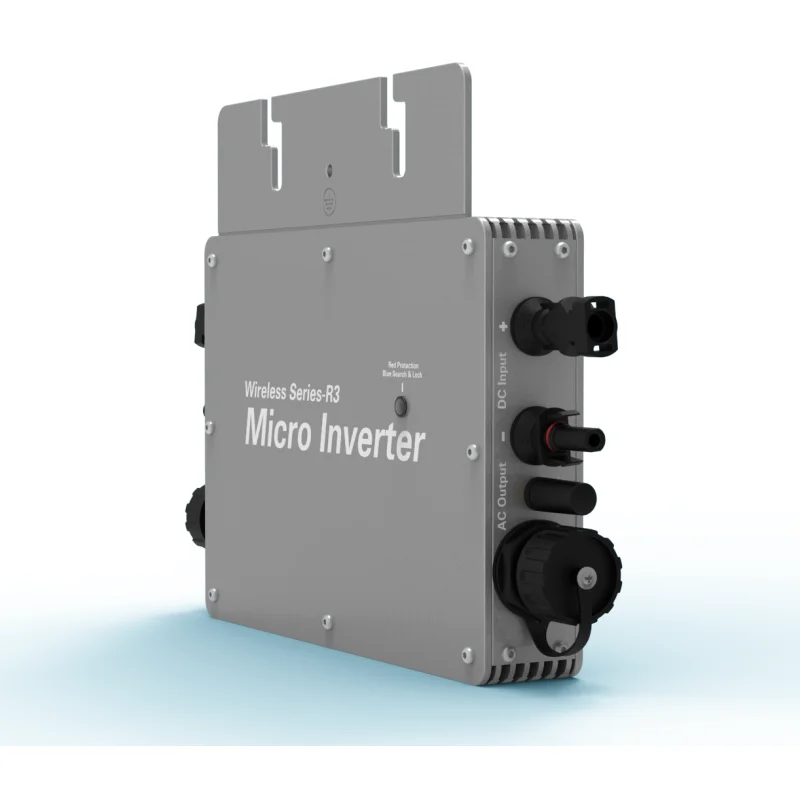

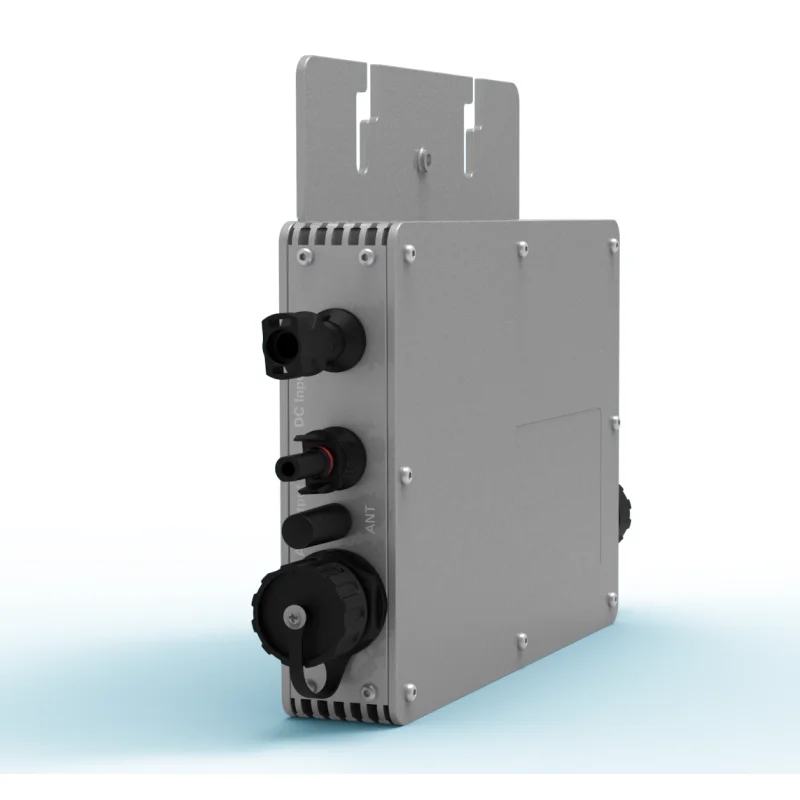

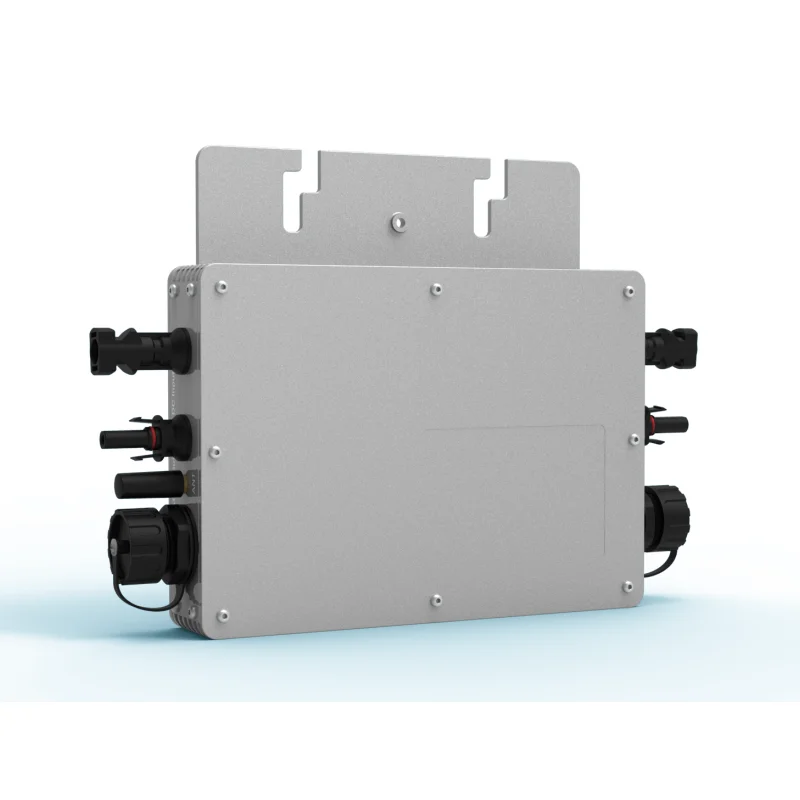

Micro Inverter WVC 700 Manufacturer Recommends Pure Sine Wave Mini Inverter Home Photovoltaic System Meter Reverse Measurement
- Category: >>>
- Supplier: Dongguan Singfo Solar Energy Sci.& Tech. Co. Ltd.
Share on (1600648493000):
Product Overview
Description
Product Description
Specification
Product name | Micro Inverter 700W |
Place of Origin | Guangdong,china |
Brand Name | Singfo solar |
Model Number | SFS700w |
Input Voltage | 110V/230V |
Output Voltage | 22-60V |
Output Current | 5A/2.6A |
Output Type | Single |
Size | 230*200*42mm |
Type | DC/AC Inverters |
Inverter Efficiency | 92% |
Certificate | CE |
Warranty | 3 |
Weight | 1.56KG |
Inverter type | Grid inverter |
Output voltage mode | 120/230V |
Max. input power | 2*400W |
Max. working current | 24A |
PV open circuit voltage | 30-60Voc |
operating voltage range | 22-60V |
Short-cricuit current | 32A |
Output parameters | @ 120v @230v |
Max. output power | 700watt 700watt |
Rated output power | 650watt 650watt |
Output current | 5.9A 3.05A |
AC voltage range | 80-160VAC 180-280VAC |
Number of branch connections | 6 units 12 units |
AC frequency range | 47.5-52/57.5-62Hz |
Power factor | >95% |
Static MPPT efficiency | 99.5% |
Max output efficiency | 95% |
Temperature range | -40°C to +65°C |
Monitoring system | Mobile phone APP |
IP grade | IP65 |
Size | 283*200*42mm |
Company Profile
FAQ
Q:Why choose us?
A:Singfo Solar is a manufacturer of solar panel for 10 years. We devote ourselves in solar power industry. We offer design, product supply,consultan and after sales service.
Q:What certificate do we have?
A:We have TUV and ISO 9001.CE and IEC.
Q:What about after sales service?
A: We offer 10 years warranty for solar panel. 1 years for off-grid solar system and 5 years for on-grid solar system.
Q:Will you offer any installation guidance?
A:Yes, we will offer documents after shipment, video if necessary, and for big project, we can send engineer to the project site.
Q:Can you ship by air/express?
A:I am afraid of. Because the product is overlong.
Q:Will you offer any installation guidance?
A:Yes, we will offer documents after shipment, video if necessary, and for big project, we can send engineer to the project site.
A:Singfo Solar is a manufacturer of solar panel for 10 years. We devote ourselves in solar power industry. We offer design, product supply,consultan and after sales service.
Q:What certificate do we have?
A:We have TUV and ISO 9001.CE and IEC.
Q:What about after sales service?
A: We offer 10 years warranty for solar panel. 1 years for off-grid solar system and 5 years for on-grid solar system.
Q:Will you offer any installation guidance?
A:Yes, we will offer documents after shipment, video if necessary, and for big project, we can send engineer to the project site.
Q:Can you ship by air/express?
A:I am afraid of. Because the product is overlong.
Q:Will you offer any installation guidance?
A:Yes, we will offer documents after shipment, video if necessary, and for big project, we can send engineer to the project site.
