Good Price list ecm/ecj/ecp/em N311Cylindrical Roller Bearing NUP213 NU311 NJ311
- Category: >>>
- Supplier: Hebei Jintaisen Bearing Co. Ltd.
Share on (1600648569880):
Product Overview
Description
Product Description
Model No. | N311ECM |
Series | NJ,NU,N,NUP,NF,NN,NNU SERIES |
Rings Material | Chrome steel-GCr15, high Carbon steel-GCR11 |
Cages Material | steel ,brass |
Quality standard | ISO9001:2015 |
Precsion | P0,P6,P5 |
Tolerance Grade | GB/T307.1-205 |
Delivery time | 3-45 days |
Services | OEM Services |
Packing | Single color box,or according to customer's requirement |
Specifition
Details Images

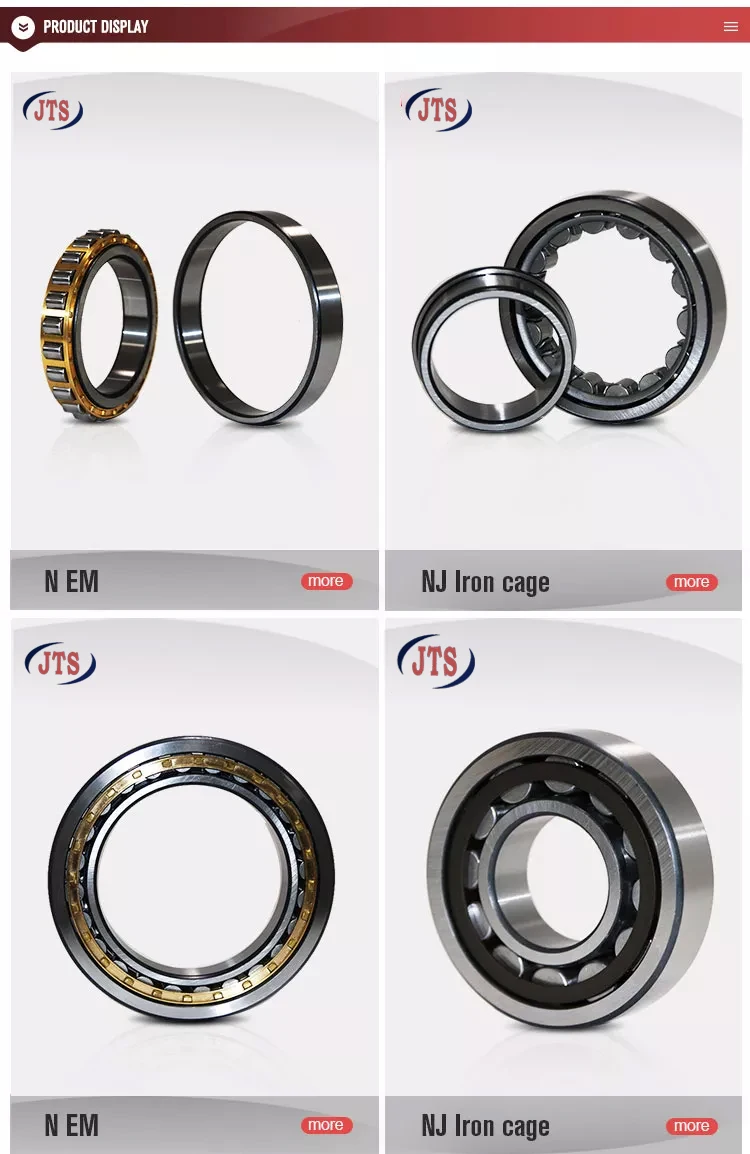

N type:
The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.

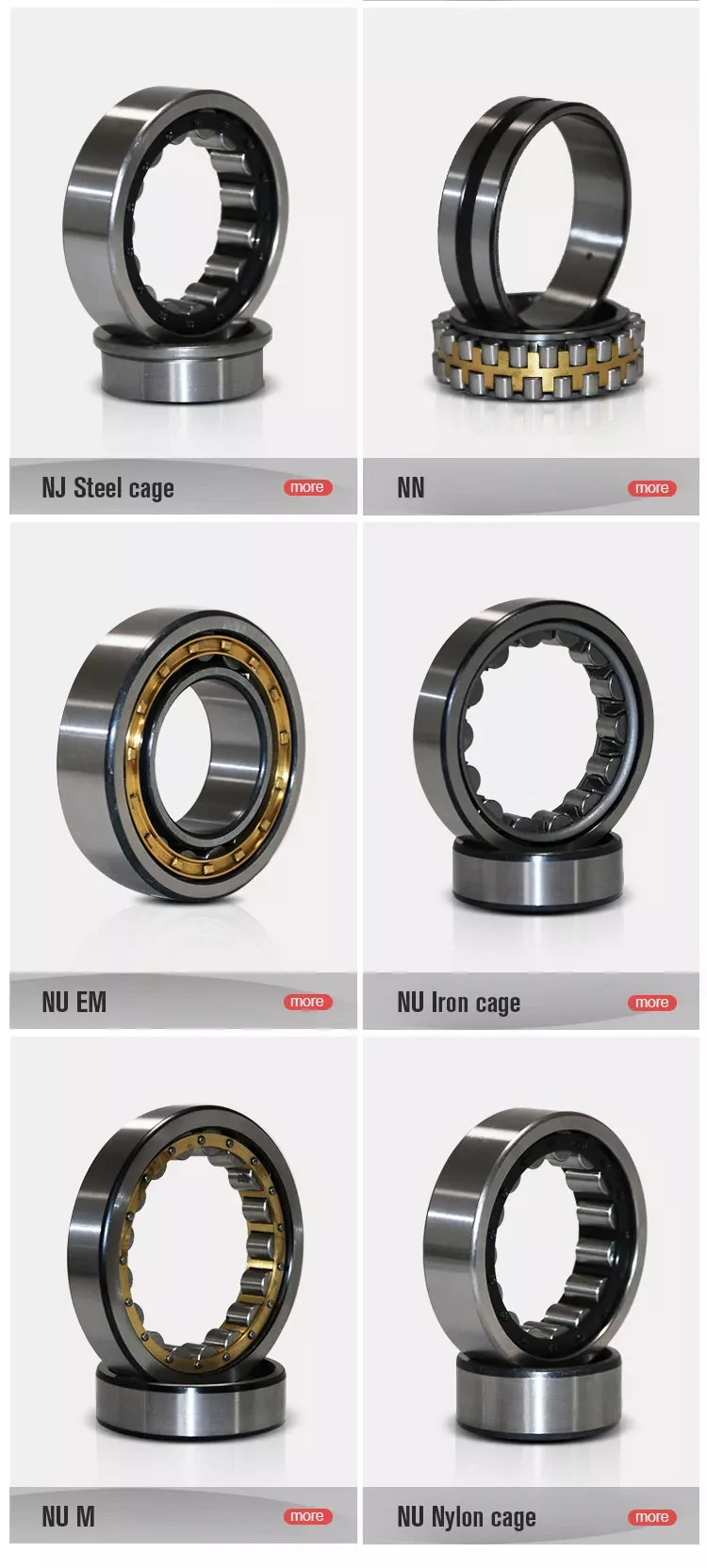

NU type:
The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.
NJ type:
The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.
NF type:
The outer ring has one integral flange and the inner ring two integral flanges.
NUP type:
The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.
RN type:
No outer ring and the inner ring two integral flanges.
NN type:
NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring. It can make shaft
relative bearing between the axial displacement generated in both directions.
Cylindrical roller bearings have rollers that provide a modified line contact with the cylindrical inner and outer ring raceways, while the rollers are guided by ground ribs on either the inner or outer ring. The cylindrical shape allows the inner ring to have axial movement relative to the outer ring. This is especially important when accommodating thermal expansion, where both rings must be press-fitted.
Cylindrical roller bearings feature high radial load capacity because the rollers and raceway are in linear contact. These bearings are suitable for applications that involve heavy radial and impact loading. They are also appropriate for high-speed applications inasmuch as they can be machined very accurately due to their structure. Having a separable inner or outer ring, these bearings can be easily mounted and dismounted.

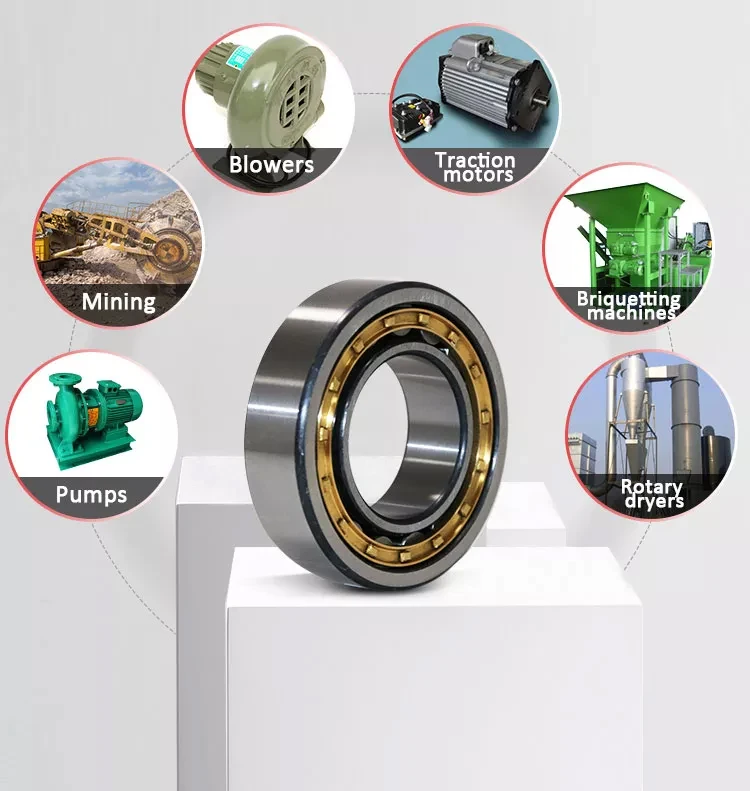

Application
Product Description
Company profile
Hebei Jintaisen Bearing Co., Ltd. was founded in 2011(originally known as Hebei Boxing Bearing Factory, established in 1996). The new Company is located in Sunshine Bearing Industrial Park, Linxi County, Xingtai City, Hebei Province. Covering an area of 20,000 square meters, it boasts of 120 staff, among which 6 are senior engineers and technicians, with a registered capital of 4000,000 and an annual production capacity of 3,000,000 units of JTS brand bearings. Following Hardness Standard from 58 to 65, JTS bearings are widely used in mining, petroleum, chemical, coal, cement, papermaking, wind power and car industries.
As a member of Hebei Provincial Bearing Association, the company has successfully passed certification by ISO9001:2015 Quality Control System and has been awarded as " Super Quality and Good Faith Unit" by Hebei Provincial Government.The company has the self-management import and export rights, mainly produces deep groove ball bearings, tapered roller bearings, spherical roller bearings, pillow block bearings and other products. Depends on the professional knowledge of bearings and foreign trading, company provide OEM service and non-standard customized solutions as well as the whole series of bearing products.
Company has its own registered trademark JTS, has been selling the products at more than 20 countries and regions all over the world, such as Middle East, Southeast Asia, Africa, South America and so on.
