Hantek Dpo6104b Digital Storage Oscilloscope 4 Channels 100mhz 1 Gsa/s Sample Rate Waveform Generator Spectrum Analyzer
- Category: >>>
- Supplier: Shenzhen Efortune Trading Company Limited
Share on (1600648571103):
Product Overview
Description
Product Description
Hantek Dpo6104b Digital Storage Oscilloscope 4 Channels 100mhz 1 Gsa/s Sample Rate Waveform Generator Spectrum Analyzer
Feature:
Six in one oscilloscope:4 channels oscilloscope+16 channels logic analyzer+2 channels waveform generator+digital voltmeter+serial
protocol analyzer+FFT spectral analysis.
60 000 wfms/s (dots display)/400,000 wfms/s (dots display quick acquisition mode)waveform capture rate.
Segmented acquisition function,support to capture up to 80,000 sections.256 grade color display.
Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers.Supply 5 serial decoding option.
1 GSa/s real-time sample rate of the analog channels; 64 Mpts standardmemory depth.
2-channe signal source,13 kinds of waveforms inside,4 sets of arbitrary waveforms,200M sample rate,8Kpts waveform length.
1 GSa/s real-time sample rate of the digital channels.
200 MHz, 100 MHz and 80 MHz analog channel bandwidth.
Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic range.
7 inch WVGA capacitive touch screen,(800*480) TFT , with ultra-wide screen, vivid picture, lowpower consumption and long service
life.
Auto measurement of 42 kinds of waveform parameters (with statistics).
Bode diagram function(the oscilloscopes with signal source function can use).
Multiple waveform math operation functions[MATH].Event search function.
Standard interfaces: USB Device, USB Host, LAN,Optional interfaces: HDMI ,UART
Conform to LXI CORE 2011 DEVICE class instrument standards; enable quick,economic and efficient creation and reconfiguration of
test system.Supports remote command control.
Six in one oscilloscope:4 channels oscilloscope+16 channels logic analyzer+2 channels waveform generator+digital voltmeter+serial
protocol analyzer+FFT spectral analysis.
60 000 wfms/s (dots display)/400,000 wfms/s (dots display quick acquisition mode)waveform capture rate.
Segmented acquisition function,support to capture up to 80,000 sections.256 grade color display.
Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers.Supply 5 serial decoding option.
1 GSa/s real-time sample rate of the analog channels; 64 Mpts standardmemory depth.
2-channe signal source,13 kinds of waveforms inside,4 sets of arbitrary waveforms,200M sample rate,8Kpts waveform length.
1 GSa/s real-time sample rate of the digital channels.
200 MHz, 100 MHz and 80 MHz analog channel bandwidth.
Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic range.
7 inch WVGA capacitive touch screen,(800*480) TFT , with ultra-wide screen, vivid picture, lowpower consumption and long service
life.
Auto measurement of 42 kinds of waveform parameters (with statistics).
Bode diagram function(the oscilloscopes with signal source function can use).
Multiple waveform math operation functions[MATH].Event search function.
Standard interfaces: USB Device, USB Host, LAN,Optional interfaces: HDMI ,UART
Conform to LXI CORE 2011 DEVICE class instrument standards; enable quick,economic and efficient creation and reconfiguration of
test system.Supports remote command control.
Oscilloscope function | ||||||||||
Acquisition | Real-time sample rate | 1 GSa/s(single channel) 500 MSa/s(two channels) | ||||||||
250 MSa/s(three/four channels); | ||||||||||
Note:digital channel 12,34 open at the same time,it is considered as one channel | ||||||||||
Peak detection | Analog channel 4ns | |||||||||
Note:digital channels don’t support | ||||||||||
Average mode | Analog channel | |||||||||
All channels reach N time samples at the same time,N can be selected from 2,4,8,16,32, 64,128,256,512 and 1024. | ||||||||||
Note:digital channels don’t support | ||||||||||
High resolution | Up to 12bit | |||||||||
Note:digital channels don’t support | ||||||||||
Minimum test pulse width | 8ns | |||||||||
Memory depth | Single channel 64M | |||||||||
Two channels 32M | ||||||||||
Three,four channels 16M | ||||||||||
Input | Channel quantity | 4 analog channels | ||||||||
Note:data channels can’t be opened | ||||||||||
3 analog channels | ||||||||||
Note:digital channel LA1/LA2/LA3/LA4/LA1LA2/LA3LA4 | ||||||||||
2 analog channels | ||||||||||
Note:digital channels infinitize | ||||||||||
1 analog channel | ||||||||||
Note:digital channels infinitize | ||||||||||
0 analog channel | ||||||||||
Note:digital channels infinitize | ||||||||||
Vertical | Bandwidth(-3db) | DPO6084 | DPO6104 | DPO6204 | ||||||
80MHz | 100MHz | 200MHz | ||||||||
Vertical resolution | Analog channel 8bit | |||||||||
Digital channel 1bit | ||||||||||
Vertical scale range | nput BNC position is 500μV/div~10V/div | |||||||||
Position range | 500μV/div to 120mV/div,±1V | |||||||||
122mV/div to 1.2V/div,±10V | ||||||||||
1.22V/div to 10V/div,±50V | ||||||||||
Optional analog bandwidth limitation | Typical 20MHz | |||||||||
Bass response(-3db) | In BNC position is≤10Hz | |||||||||
Rising time in BNC position,typical | DPO6084 | DPO6104 | DPO6204 | |||||||
≤4.4ns | ≤3.5ns | ≤1.8ns | ||||||||
Vertical gain accuracy | In “normal” or “average” acquisition mode,the accuracy o f 10V/div to 10mV/div is ±3% | |||||||||
In “normal” or “average” acquisition mode,the accuracy of 5mV/div to 500uV/div is ±4%. | ||||||||||
DC offset accuracy | ±0.1 div±2 mV±1% offset value | |||||||||
The isolation of channels | DC maximum bandwidth:>40 dB | |||||||||
Measurement | cursor | Voltage difference between cursors V | ||||||||
Time difference between cursors T | ||||||||||
Reciprocal of T,in Hertz(1/T) | ||||||||||
Auto measurement | frequency,period,mean,peak-to-peak,RMS,minimum,mixmum,rising time,falling time,+ width,- width,base,top,middle,amplitude,overshoot,preshoot,rising edge phase difference,falling edge phase difference,+ duty,- duty,period mean,PRMS,FOVshoot,ROVshoot,BWIDTH,FRF,FFR,LRR,LRF,LFR,LFF | |||||||||
DVM | Data source | CH1,CH2,CH3,CH4 | ||||||||
Measurement type | DC effective value | |||||||||
AC effective value | ||||||||||
DC | ||||||||||
Frequency meter | hardware 6 bits frequency meter | |||||||||
Arbitrary waveform generator | ||||||||||
Arbitrary waveform generator(for oscilloscopes with signal source channels) | Channel number | 2/3channels | ||||||||
Sample rate | 200MSa/s | |||||||||
Vertical resolution | 12 bits | |||||||||
Maximum frequency | 25 MHz | |||||||||
Standard waveforms | sin,square,pulse,triangular,noise,DC | |||||||||
Sinc,index,semi-distortion,lorentz,dual tone multiple frequency,gauss,ECG | ||||||||||
Arbitrary waveform | Arb1,Arb2,Arb3,Arb4 | |||||||||
Sin | Frequency range | 0.1Hz~25MHz | ||||||||
square/pulse | Frequency range | 0.1Hz~10MHz | ||||||||
triangular wave | Frequency range | 0.1Hz~1MHz | ||||||||
Sampling wave | Frequency range | 0.1Hz~1MHz | ||||||||
Index | Frequency range | 0.1Hz~5MHz | ||||||||
Semi-distortion | Frequency range | 0.1Hz~1MHz | ||||||||
lorentz | Frequency range | 0.1Hz~1MHz | ||||||||
Dual tone multiple frequency | Frequency range | 0.1Hz~1MHz | ||||||||
Gauss | Frequency range | 0.1Hz~1MHz | ||||||||
ECG | Frequency range | 0.1Hz~1MHz | ||||||||
Arbitrary wave | Frequency range | 0.1 Hz to 10 MHz | ||||||||
Waveform length | 8KSa | |||||||||
Frequency | accuracy | 100 ppm(<10 kHz) 50 ppm(>10 kHz) | ||||||||
resolution | 0.1 Hz or 4 bits,take the greater one | |||||||||
Amplitude | Output range | 10mV~7Vp-p(high impedance) | ||||||||
5mV~3.5Vp-p(50Ω) | ||||||||||
DC offset | range | ±3.5 V,high impedance | ||||||||
±1.75 V,50 Ω | ||||||||||
resolution | 100 μV or 3 bits,take the greater one | |||||||||
accuracy | 2%(1 kHz) | |||||||||
Output impedance | 50 Ω | |||||||||
General specifications | ||||||||||
Display | Display type | 7"TFT diagonal liquid crystal | ||||||||
Display resolution | 800(horizontal)*480(vertical)pixels | |||||||||
Display colour | 16 million colours(24 bits true colour) | |||||||||
Interface | Standard interface | USB Host,USB Device,LAN, EDU signal WIFI | ||||||||
Aux(trigger output/PassFail )--only EDU with this interface | ||||||||||
General specifications | Probe compensator output | |||||||||
Operating temperature | 0~50 °C (32~122 °F) | |||||||||
Storage temperature | -40~+71 °C (-40~159.8 °F) | |||||||||
Humidity | ≤+104℉(≤+40°C): ≤90% relative humidity 106℉~122℉ (+41°C ~50°C): ≤60% relative humidity | |||||||||
Mechanical | Size | 318 x 140 x 150mm(length x width x height) | ||||||||
Weight | 2900g | |||||||||

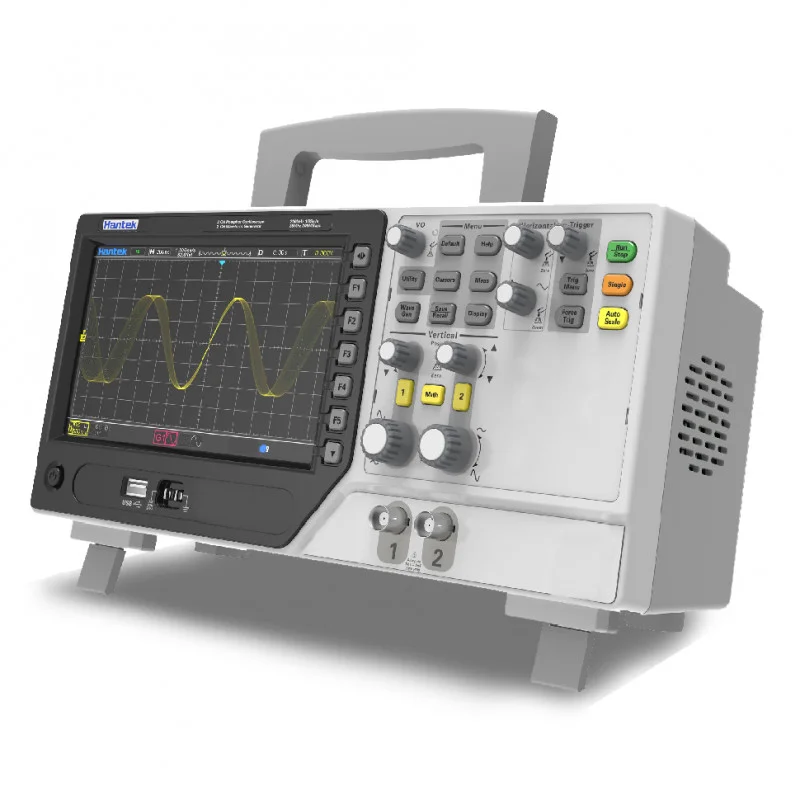

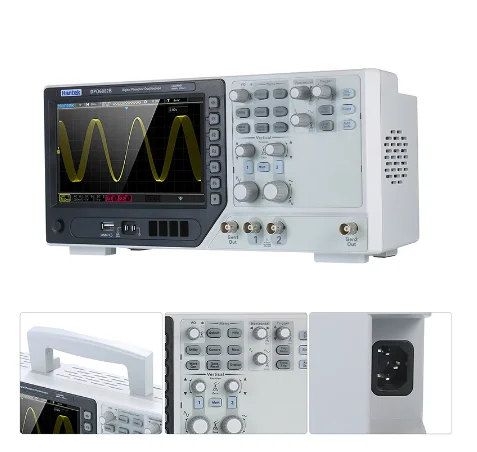

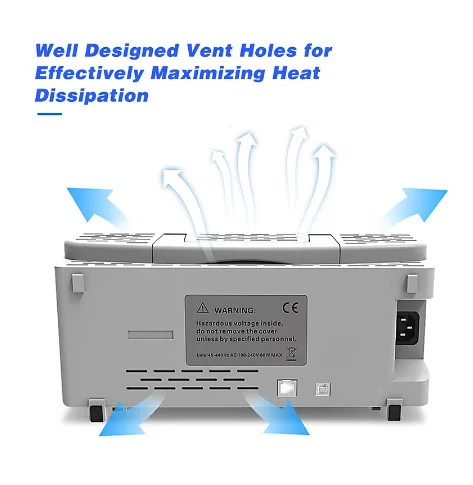

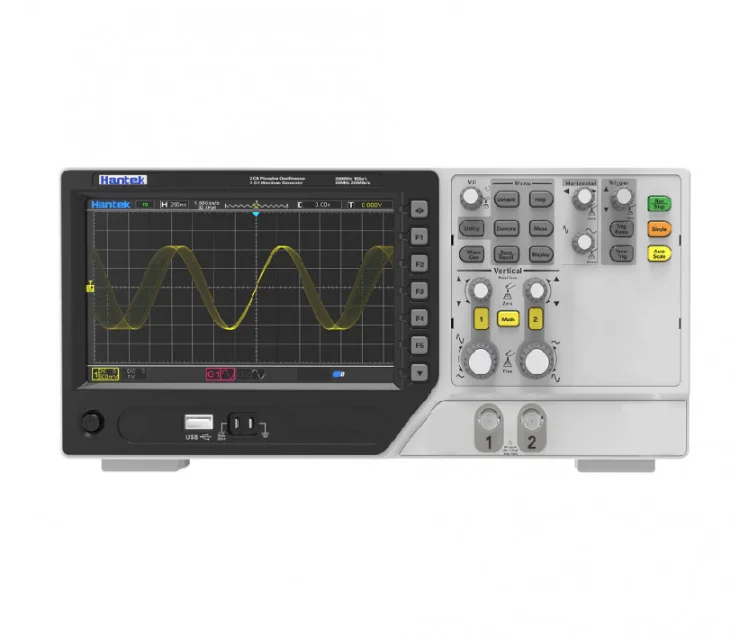

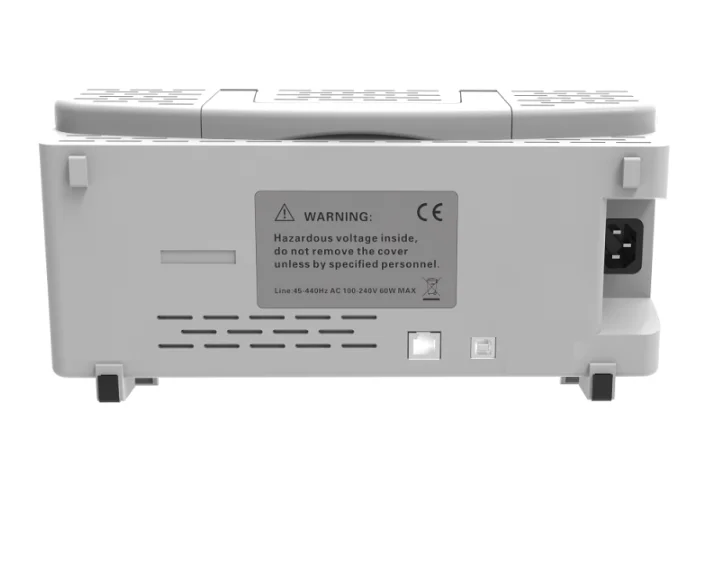

Detailed Image
