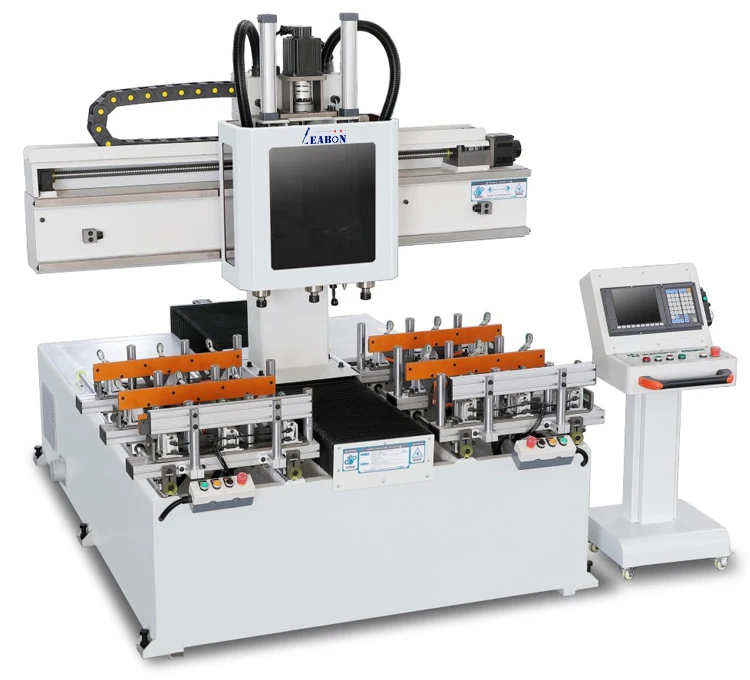

Solid Wood CNC Mortising Machine Automatic Drilling and Grooving Machine for Efficient Batch Processing of Workpieces
- Category: >>>
- Supplier: Foshan Leabon Machinery Company Limited
Share on (1600648902173):
Product Overview
Description
Product Exhibition
Product Features
1.JR1500-3A adopts 3-axis JR1500-3B adopts 6-axis multi-station high-speed continuous cutting. While a group of workpieces are being processed,other workpieces can be loaded and unloadedand non-stopproduction.Machining grooves (holes)per day (8 hours)More than 20000.
2.JR1500-4A adopts 4-axis JR1500-4B adopts 8-axis multi-station high-speed continuous cutting.Uninterrupted production, more than 28,000 tongue and groove (holes) are processed every day (8 hours).
3. It adopts advanced numerical control system and human-machine dialogue interface, which is easy to learn and can be used by ordinary workers after only 2-3 hours of training. No programming is required, the processing program is automatically generated point-to-point, and it only takes about ten minutes to adjust a workpiece.
4. It is suitable for processing workpieces with different shapes and different specifications of grooves (holes). Strong practicability, especially suitable for multiple tongue and groove, small tongue and groove spacing, tongue and groove combination, the same workpiece tongue and groove length and depth of different and complex special-shaped workpiece processing has significant advantages.
5. Classic style, economical and practical, small footprint
4. It is suitable for processing workpieces with different shapes and different specifications of grooves (holes). Strong practicability, especially suitable for multiple tongue and groove, small tongue and groove spacing, tongue and groove combination, the same workpiece tongue and groove length and depth of different and complex special-shaped workpiece processing has significant advantages.
5. Classic style, economical and practical, small footprint
Product Paramenters
Model | JR-l5l5-4A | JR-l5l5-4B | JR-1515-3A | JR-1515-3B |
Processing range | 1500*150*200mm | 1500*150*200mm | 1500*150*200mm | 1500*150*200mm |
Spindle power | 2.2kw/3.7kw*4pcs | 2.2kw*4+3.7kw*4pcs | 2.2kw/3.7kw*3pcs | 2.2kw*3+3.7kw*3pcs |
Spindle speed | 18000r/min | 18000r/min | 18000r/min | 18000r/min |
Equipment power | 13kw/19kw | 28kw | 11kw/16kw | 23kw |
Processing speed | 1-15m/min | 1-15m/min | 1-15m/min | 1-15m/min |
Return speed | 50m/min | 50m/min | 50m/min | 50m/min |
Cnc system | Taiwan billion map | Taiwan billion map | Taiwan billion map | Taiwan billion map |
Lubrication method | Automatic lubrication | Automatic lubrication | Automatic lubrication | Automatic lubrication |
Installation size | 2700*2300*2200mm | 2700*2300*2200mm | 2700*2300*2200mm | 2700*2300*2200mm |
Weight | 2.3T | 2.8T | 2.1T | 2.6T |
Scope of Application

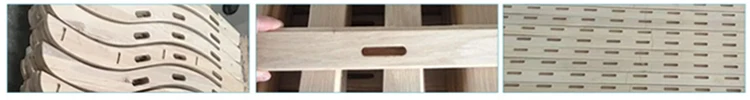

It is suitable for processing workpieces with different shapes and different specifications of tongue and groove (holes).

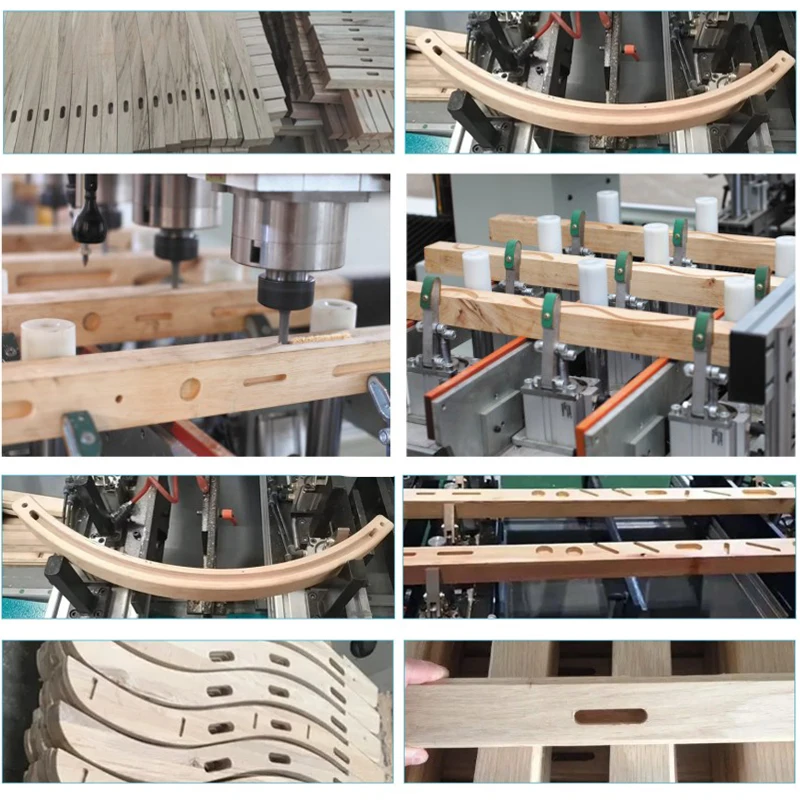

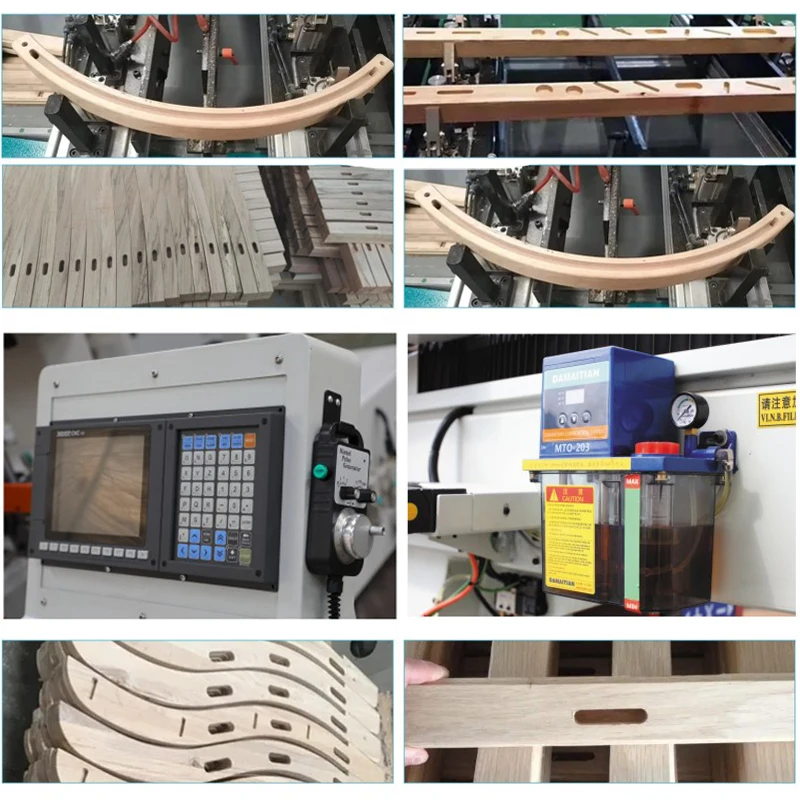

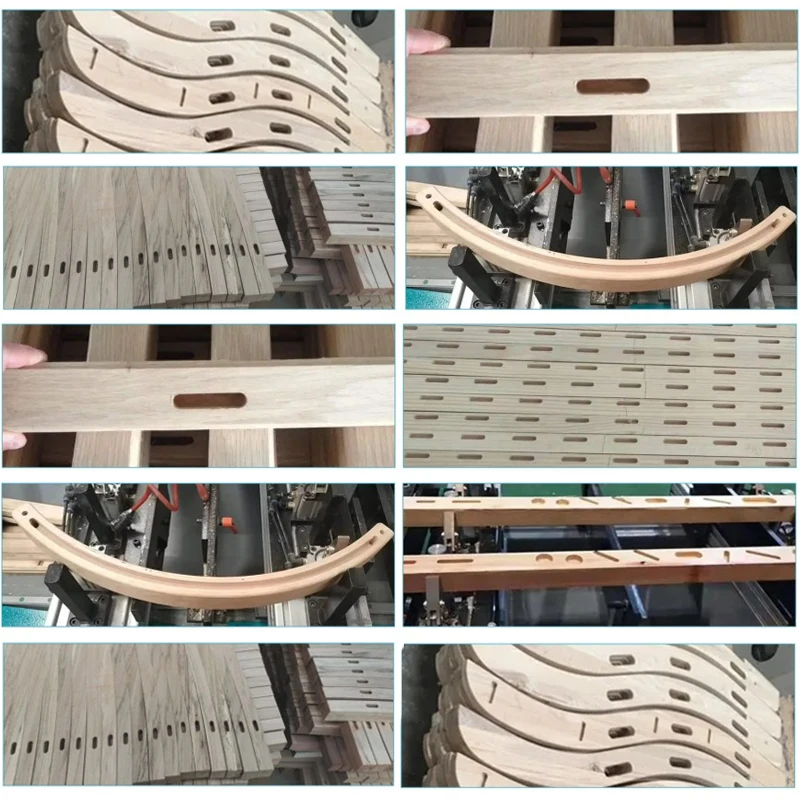

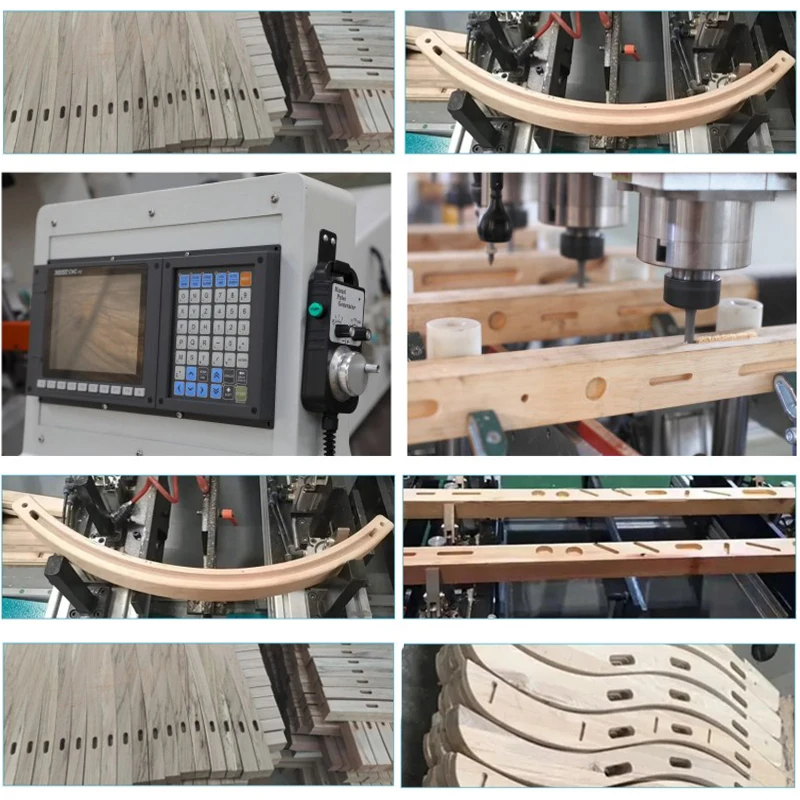

Details Images

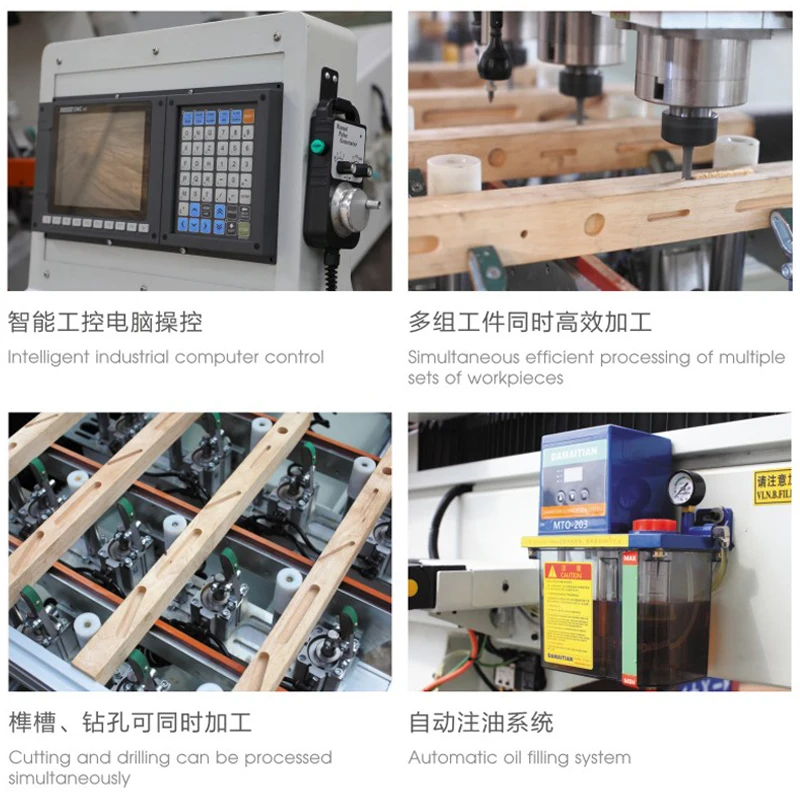

Intelligent industrial control computer control.
Mortising and drilling can be processed at the same time.
Simultaneous efficient processing of multiple sets of workpieces.
Automatic oil filling system.
