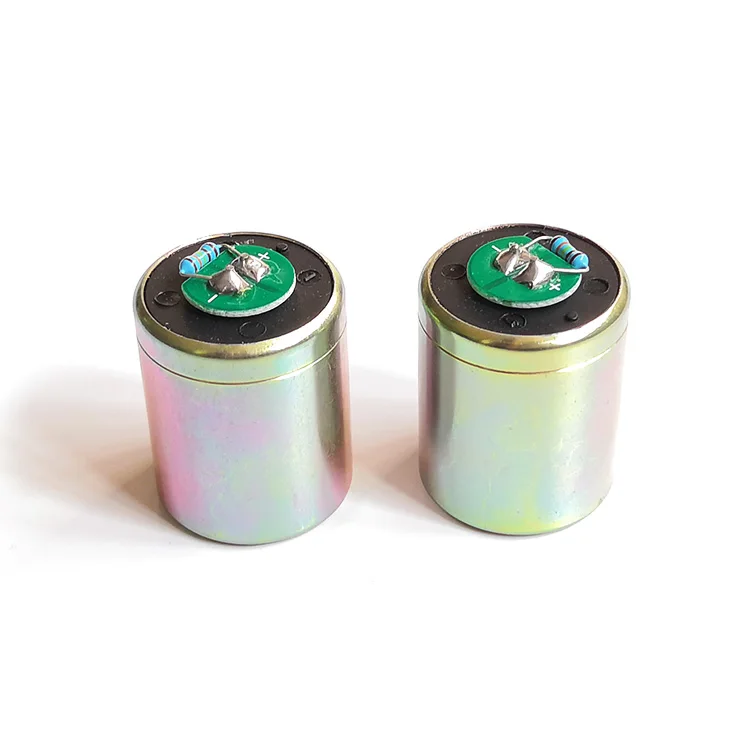

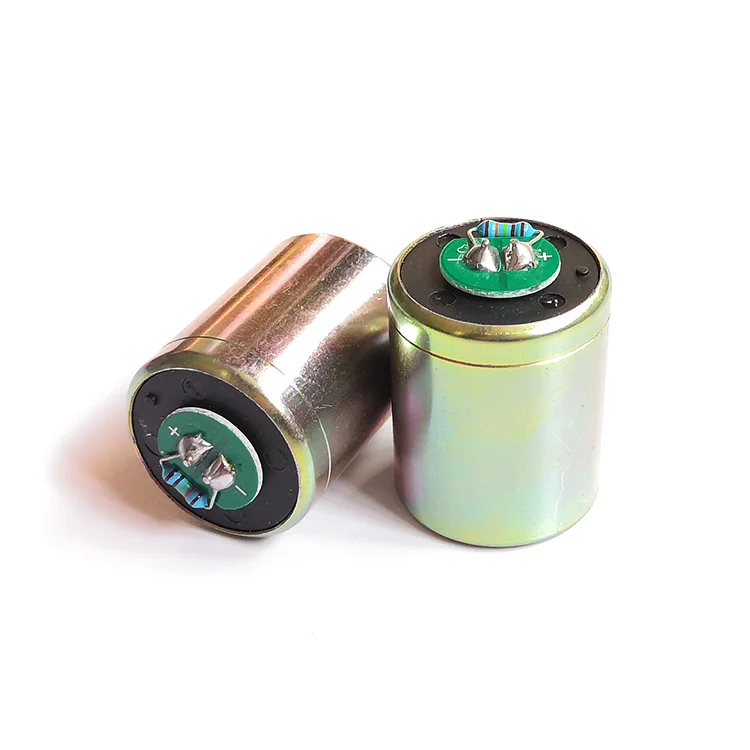

EG-15-OD-I Omni-Directional Geophone 15Hz
EG-15-OD-I geophone is a kind of geophone which can work at omni-directional.
Omnidirectional high temperature geophones are used in petroleum exploration, well logging exploration, industrial vibration monitoring and other fields.
- Any angle of 0-360° can be used;
- It has the characteristics of low damping, high sensitivity, small size and light weight;
- Sustainable use under -40°C~+80°C environment;
- Unique technology and process, the performance of the detector is more stable in high temperature environment.
Omnidirectional high temperature geophones are used in petroleum exploration, well logging exploration, industrial vibration monitoring and other fields.
- Any angle of 0-360° can be used;
- It has the characteristics of low damping, high sensitivity, small size and light weight;
- Sustainable use under -40°C~+80°C environment;
- Unique technology and process, the performance of the detector is more stable in high temperature environment.
Specification
All parameters specified here in are rated at a temperature 20℃±2℃ .
Type | EG-15-OD-I |
Natural Frequency ( Hz ) | 15Hz ±10% |
Direction | 0 ~ 360° |
Coil Resistance (Ω) | 1450 ±5% |
Sensitivity ( V/m/s ) | 65V/m/s ±10% |
Coil Resistance with 10k ohm shunt (Ω) | 1265 ±5% |
Sensitivity with 10k ohm shunt (V/m/s) | 56V/m/s ±10% |
Damping | 0.5 ±15% |
Damping with 10k ohm shunt | 0.683 ±15% |
Distortion | <0.8% |
Spurious Frequency (Hz) | ≥200Hz |
Maximum Coil Excursion P-P ( mm ) | 2 |
Moving Mass(g) | 11.3 |
Diameter ( mm ) | 25.4mm |
Height ( mm ) | 36.5mm |
Weight ( g ) | 79g |
Temperature Range(℃) | -40℃ to +80℃ |
Warranty Period | 3 years |
