Wifi Wireless Solar Power Camera 4g 3g Sim Card Slot Cctv Security Ip Camera Outdoor Support 128 Memory Card
- Category: >>>
- Supplier: Dongguan Maidian Intelligent Technology Co. Ltd.
Share on (1600648939549):
Product Overview
Description
Product Description
TuyaSmart Hisilicon Low Power Battery Solar 5X PTZ camera Mod：Q09Tuya-5X
Product features:App: TuyaSmart or SmartLife
Hardware: GK7025v200(Hi3516CEv200) + GC2053 performance hardware, HD 3MP H.265

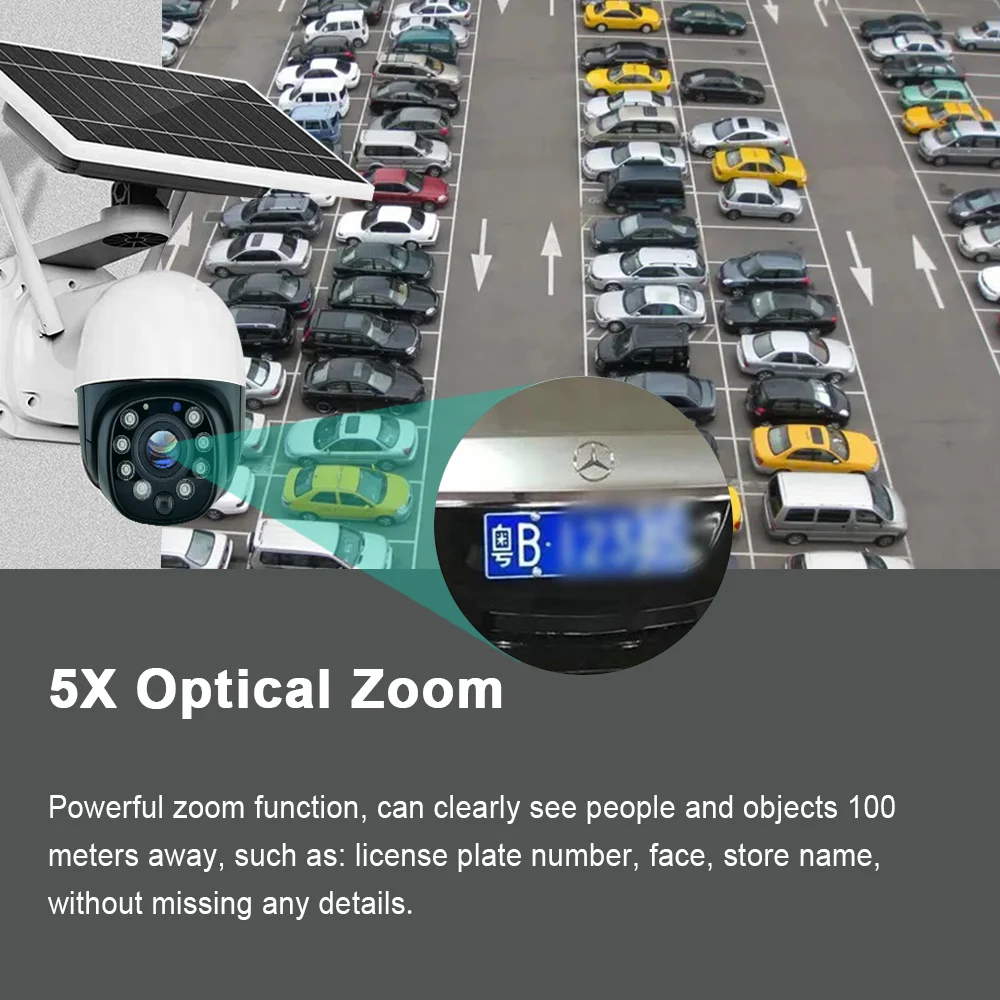

5X zoom,remote control,preset locations automatic zoom patrol view

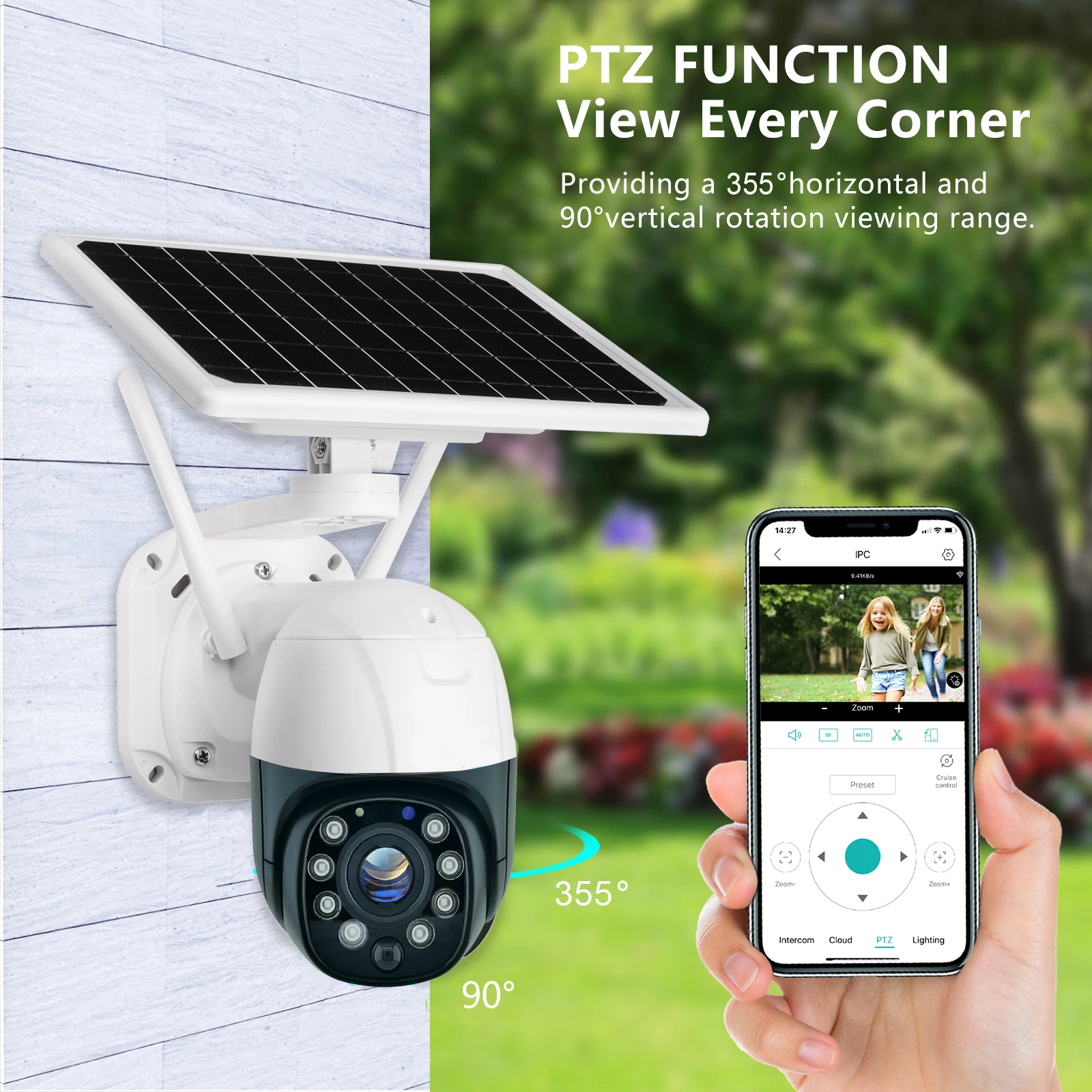

About 355 degrees, up and down 120 rotation, no dead angle monitoring
WiFi version domestic 4G all China Netcom Southeast Asia 4G version European 4G American 4G
18650 battery powered solar low power full duplex AI detection voice alarm video push motion
detection remote wake up infrared night vision
* Hisilicon ultra low power performance hardware solution, ultra long standby;

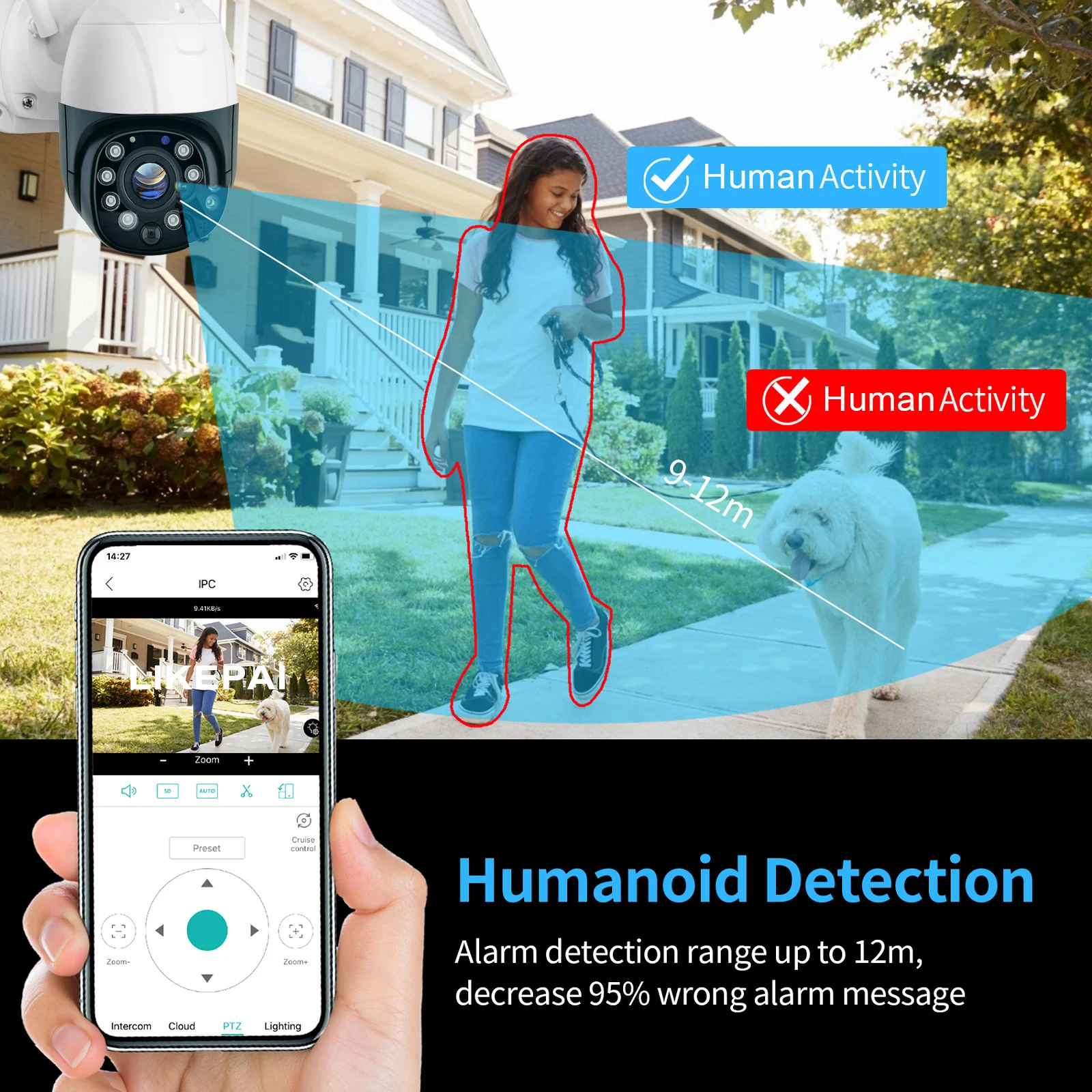

AI detection, voice alarm: you have broken into the monitoring area, please leave immediately (support warning language customization);

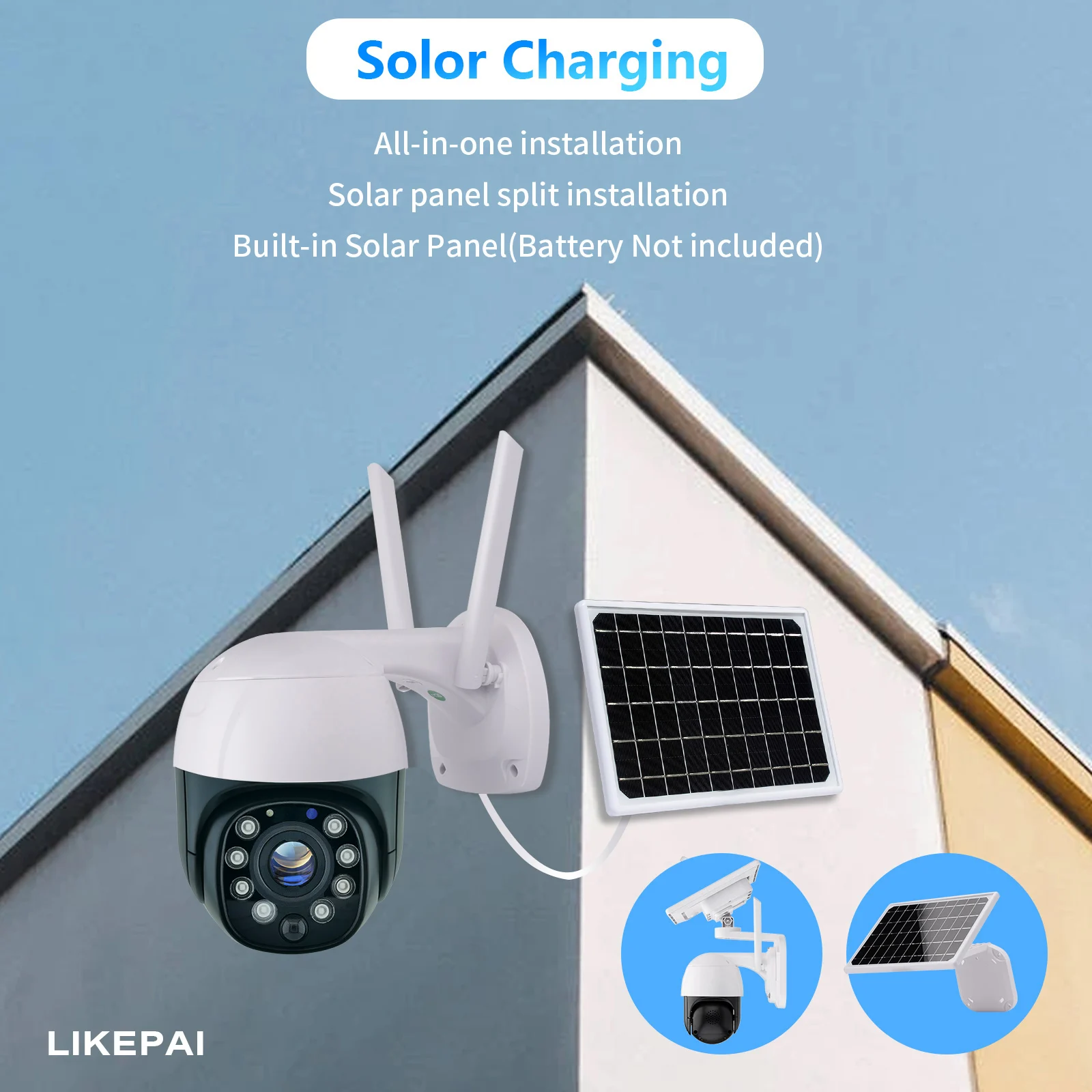

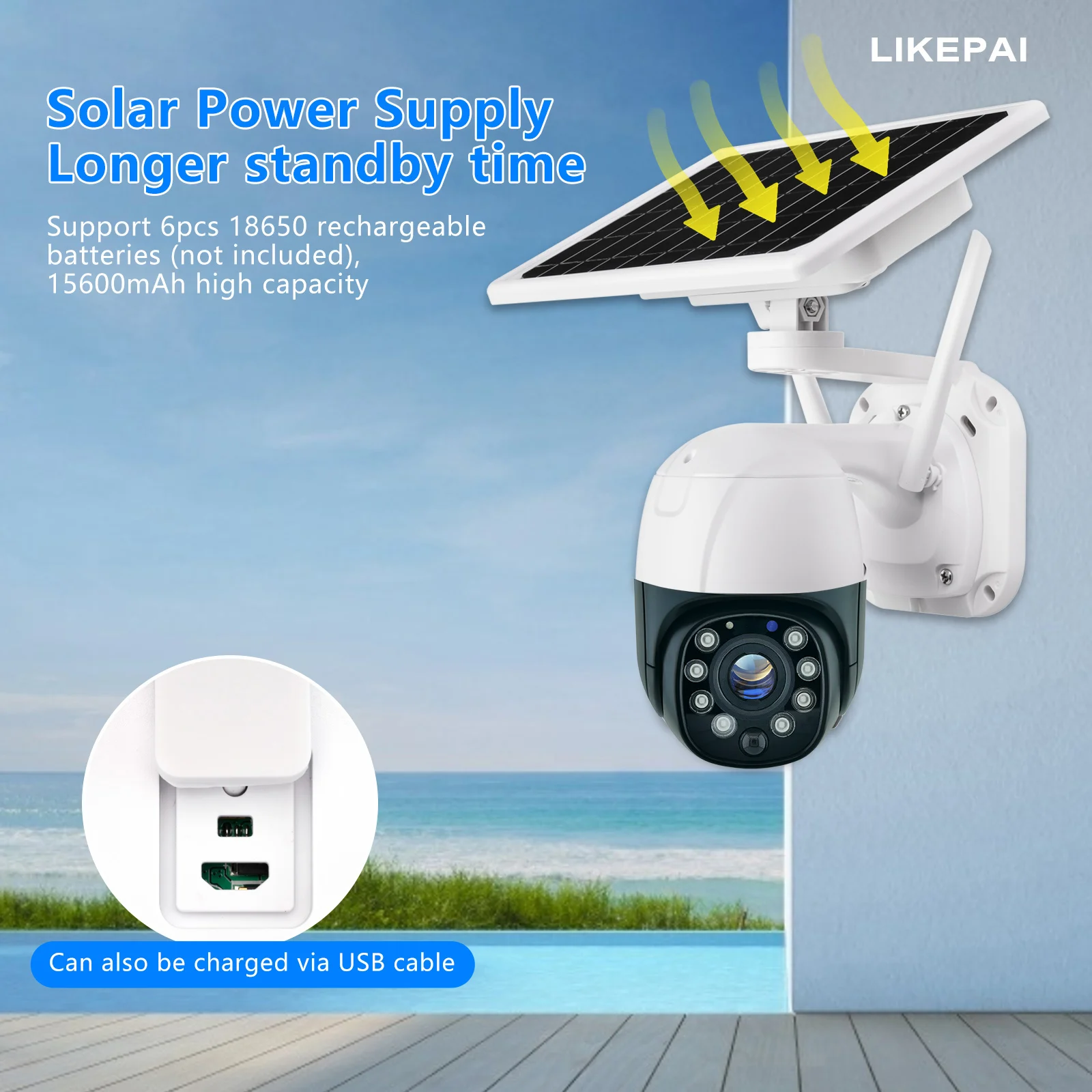

* solar power supply, 6* 18650 rechargeable lithium batteries can be installed, charging while using, intelligent sleep, ultra-low power consumption;

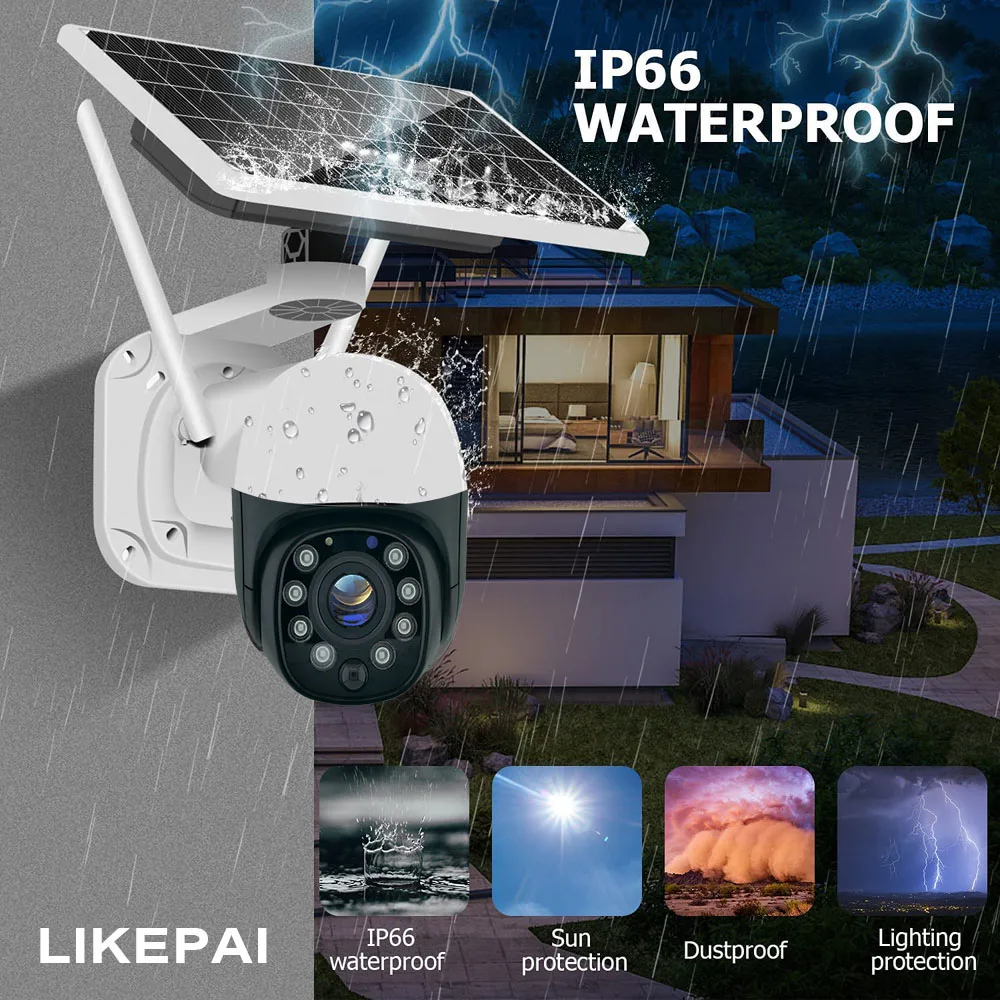

The combination of solar panel and fuselage, IP66 waterproof grade, can be used safely in the field.
Super long standby: from August to December. Based on the capacity of a single 18650 battery of 3400mah, the total capacity of six batteries is 20400mah.
High definition photosensitive chip, effective image quality: 3MP,2304x1296, clear and delicate image, good color restoration;
Customized ircut dual filter switch, automatic color to black, equipped with 8 low-power infrared lamps, can effectively improve the night vision clarity;
The built-in low-power WiFi module is specially designed for Hisilicon, which is more stable in receiving WiFi signals and does not drop the line;
Built in PIR infrared sensor alarm, after setting, it can detect the human body and immediately push the alarm information to the mobile app;
Full duplex intercom, built-in pickup and speaker, users can monitor through mobile app, and realize real-time remote video voice intercom;
Using high performance DSP codec chip, the host can deal with various complex situations and respond quickly;
Using P2P technology, through simple connection operation, the device can access the Internet, and the mobile app can set the device parameters remotely;
Multi computer and multi-user, which can realize the management of multiple computers and multi-user at the same time, and the centralized management of TUYA intelligent platform is more convenient;
Maximum support 1TB TF card storage, even 24-hour uninterrupted video recording can also be recorded for 365 days, with low-power sleep technology, no matter what video recording sleep mode, one card can record for several years.
TUYA also supports cloud storage.
Household consumer security products, industrial standard design, products can be long-term, stable work, let users worry about;
Built in user-friendly Chinese and English menu, fool like connection mode, convenient and quick to use;

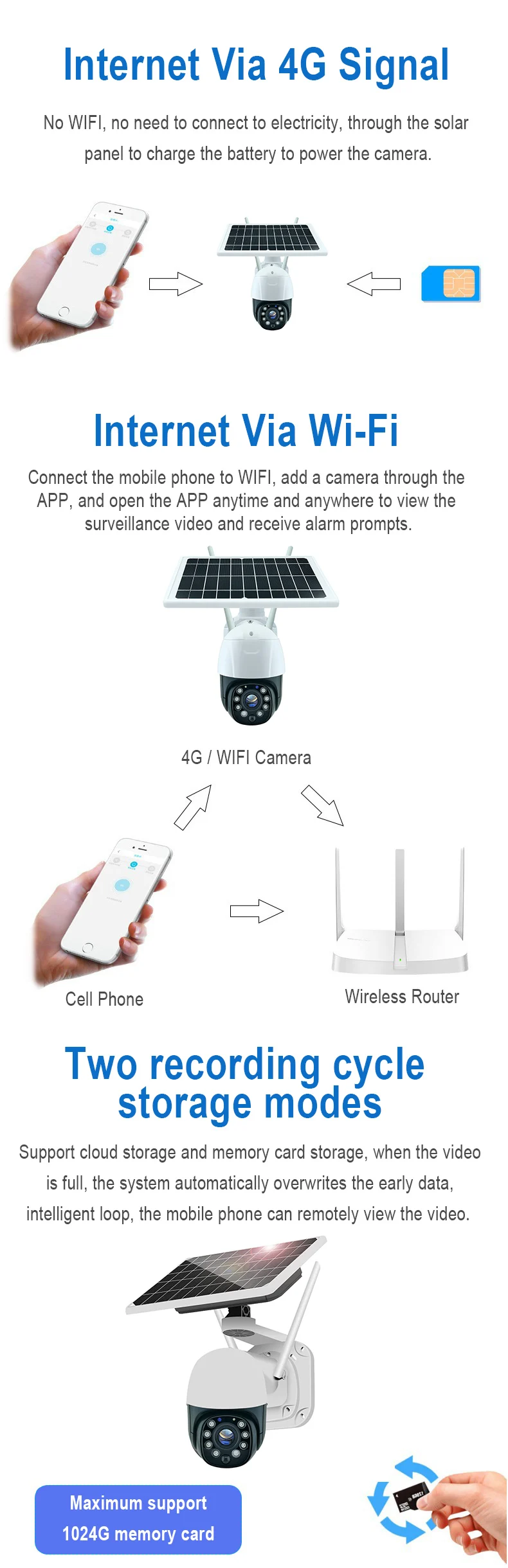

No network, no power, suitable for outdoor scenes, WiFi version, domestic 4G version, foreign 4G version for your choice;
Details Images
Product parameters:
DSP | GK7205v200(Hi3516CEv200) | ||||
Sensor | 1/2.9cmos Sensor:GC2053 | ||||
system | LiteOS real-time operating system | ||||
connect | WIFI 2.4GHz IEEE 802.11b/g/n FTP/PPPOE/DHCP/DDNS/NTP/UPnP | ||||
WIFIQuick connect | |||||
QR Code | |||||
4G/After the 4G card is inserted, the device will be connected to the Internet automatically, and the app will scan the body QR code and add it. | |||||
Smart Share | |||||
Video | 2304x1296/25fps | ||||

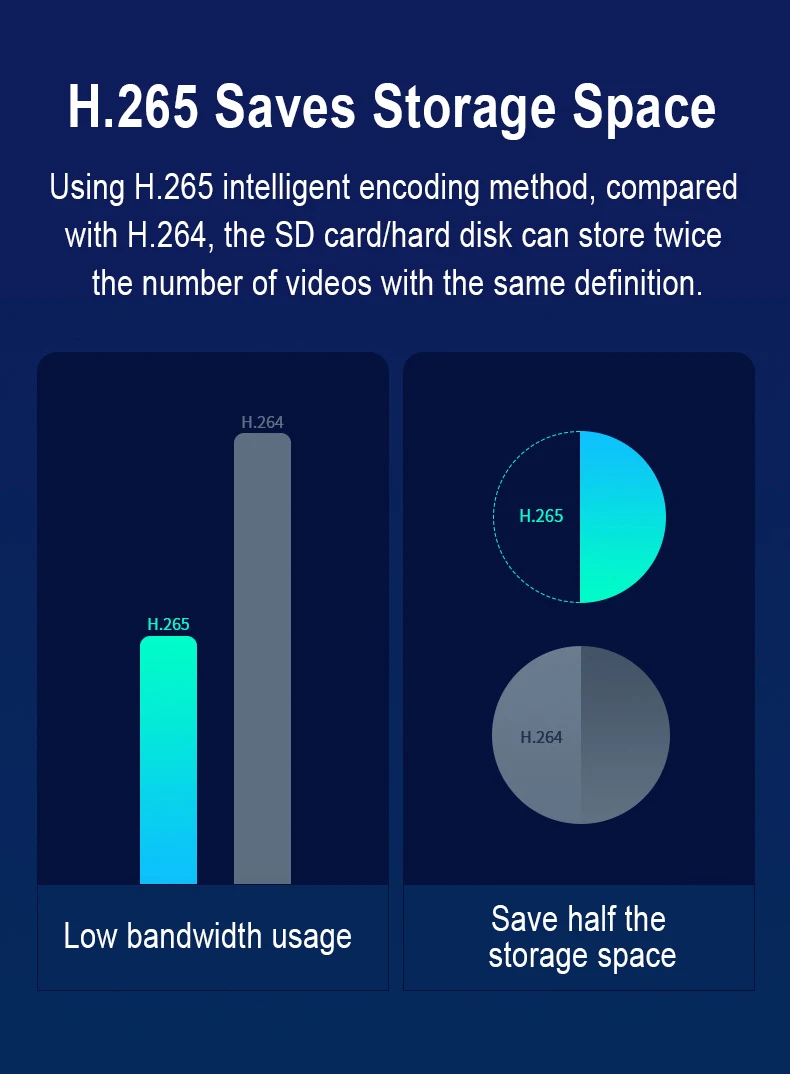

H.265 H.264 | |||||
Adaptive code stream, adapt to a variety of network environment | |||||
Zoom | Support 5X zoom | ||||
audio frequency | Audio coding standards: AAG and G.726 | ||||
Audio in / out: - 38dB microphone / built in speake | |||||
Networking Support | WIFI 2.4G | ||||
4G version available: domestic 4G all Netcom version, East Asia South 4G version, European 4G version and American 4G version, other regions need to consult | |||||

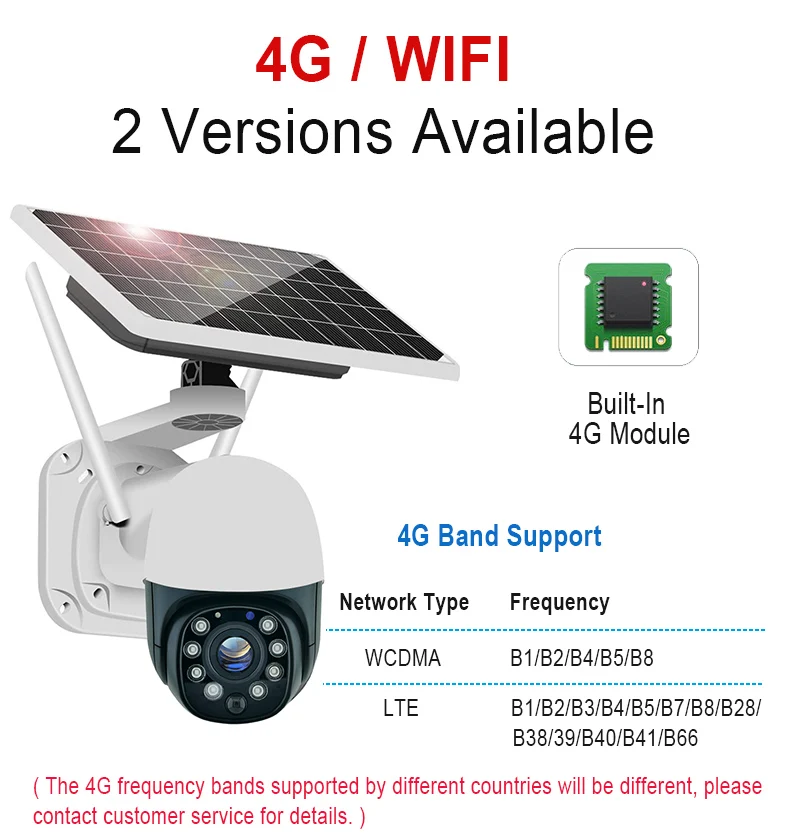

4G protocol support | FDD-LTE，TDD-LTE，TD-SCDMA、HSPA+、HSUPA、HSDPA、UMTS、EVDO、EDGE、GPRS、GSM、CDMA1x | ||||
4G band support | 4G band supports China, Southeast Asia and some African countries | WCDMA | B1、B5、B8 | ||
LTE | B1、B3、B5、B8、B38、B39、B40、B41 | ||||
Europe | WCDMA | B1、B5、B8 | |||
LTE | B1、B3、B5、B7、B8、B20、B28、B38、B40、B41 | ||||
America | WCDMA | B2、B4、B5、B8 | |||
LTE | B2、B3、B4、B5、B7、B8、B28、B66、B38、B40、B41 | ||||
night vision | 8 low power infrared lamps | ||||
Night vision distance 30m-50m | |||||
Color 0.01 Lux@F1.2 , black and white 0.08 Lux@F1.2 , 0 lux infrared on | |||||
Waterproof grade | IP66 | ||||
Day night conversion mode | Automatic switching of IR-cut dual filters | ||||
Work indicator | Green light on | ||||
The blue indicator lights up and enters the networking mode. After the networking is successful, the blue indicator flashes. | |||||
LENS | 3.0 MP HD | ||||
5X zoom lens | |||||
6mm | |||||
92 degree Perspective | |||||
Alarm mode | AI intelligent detection, motion detection, sound detection | ||||
On site voice alarm and remote app alarm | |||||
rotate | PTZ angle level 355 °， Vertical 120 ° | ||||
Speed: level 55 °/ Second; Vertical 40 °/ second | |||||
voice | Built in mic | ||||
Built in speaker | |||||
Full duplex two way intercom with echo cancellation | |||||
Storage function | Support micro SD card storage, up to 1024gb, that is 1TB TF Card | ||||
videotape | Support local video on demand playback | ||||
Support device video on demand playback | |||||
motion detection trigger recording and app recording command recording | |||||
Cloud storage video | |||||
RESET | Support one click recovery of default configuration, support app removal device recovery | ||||
power supply | Solar panel power supply | ||||
It supports 6 18650 rechargeable batteries for 3.7V power supply | |||||
Standby | Light for 4 hours a day, normal use in intelligent sleep mode, no need to charge. | ||||
dormancy | Intelligent sleep no command automatic sleep standby | ||||
Enter the sleep time logic: WiFi version wakes up 20 seconds each time, and the device automatically sleeps; 4G version will go to sleep one minute after each wake-up. | |||||
awaken | Streaming media intelligent voice wake up | ||||
AI Motion detection triggers wake up | |||||
App remote wake up | |||||
Start time | Within 600 ms of system startup | ||||
Message push time | Message push within 4 seconds | ||||
power waste | Maximum working power: daytime < 1.5W, night < 2.5W; | ||||
Standby power < 0.003w | |||||
Weight and dimension parameters | Total weight: 1.6Kg | ||||
Package size: 270*200*170mm | |||||
Packing quantity: 18 pcs | |||||
Packing weight: 30kg | |||||
Outer box size: 620*554*530mm | |||||
work environment | Working temperature - 20 ℃ ~ + 40 ℃, working humidity ≤ 65% | ||||
