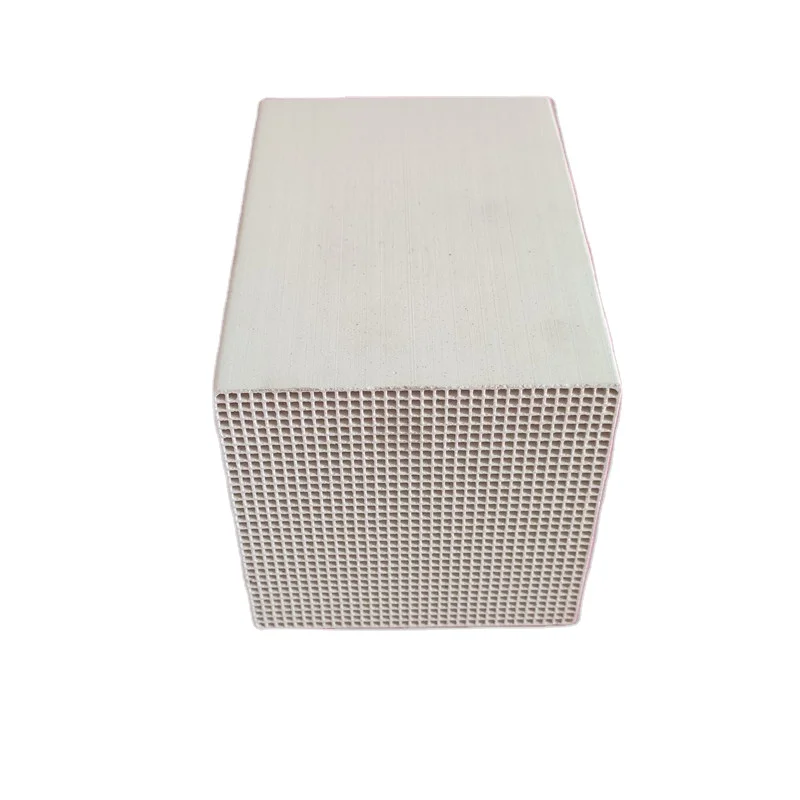

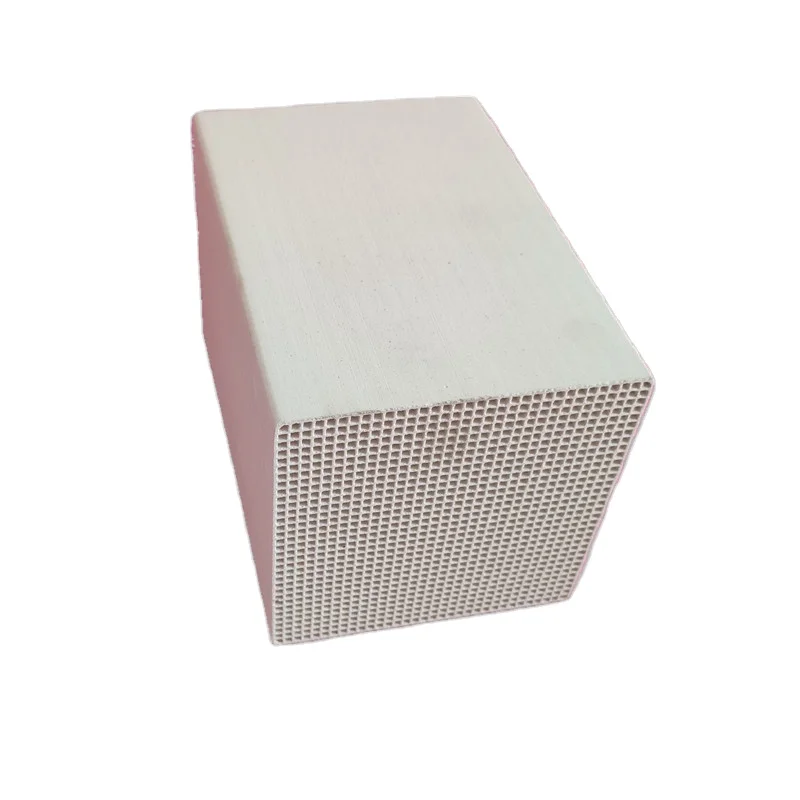

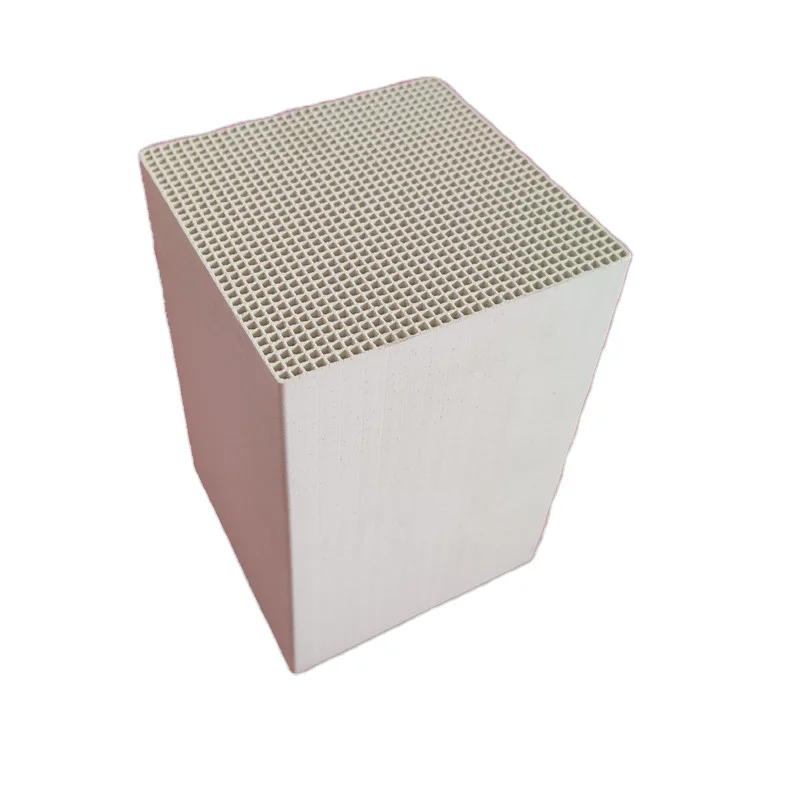

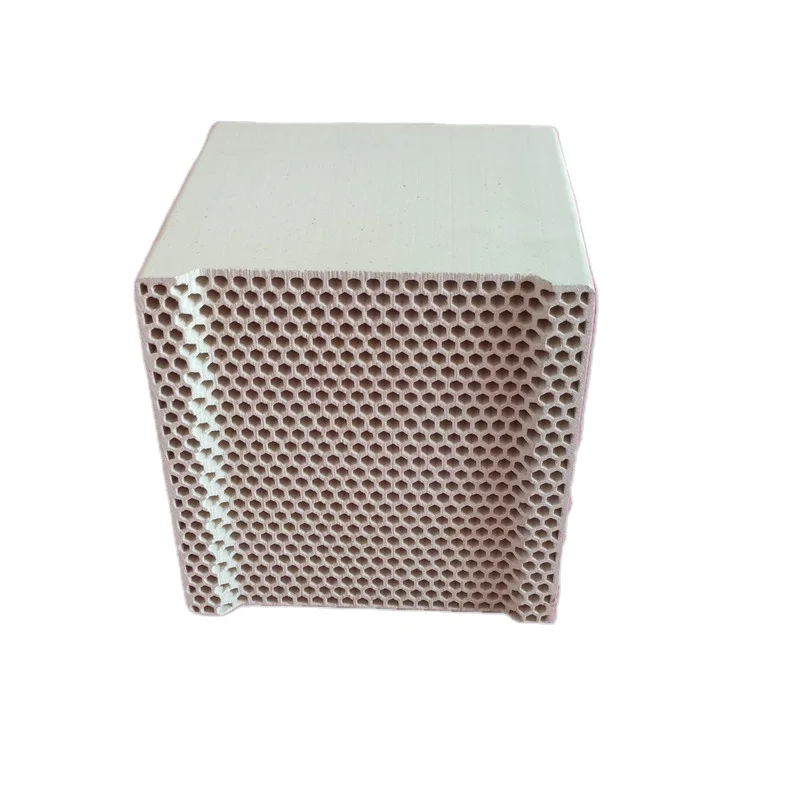

Industrial Cordierite / Mullite Honeycomb Ceramic Monolith Catalyst Support
- Category: >>>
- Supplier: Hunan Global New Material Technology Co. Ltd.
Share on (1600649693045):
Product Overview
Description
Products Description

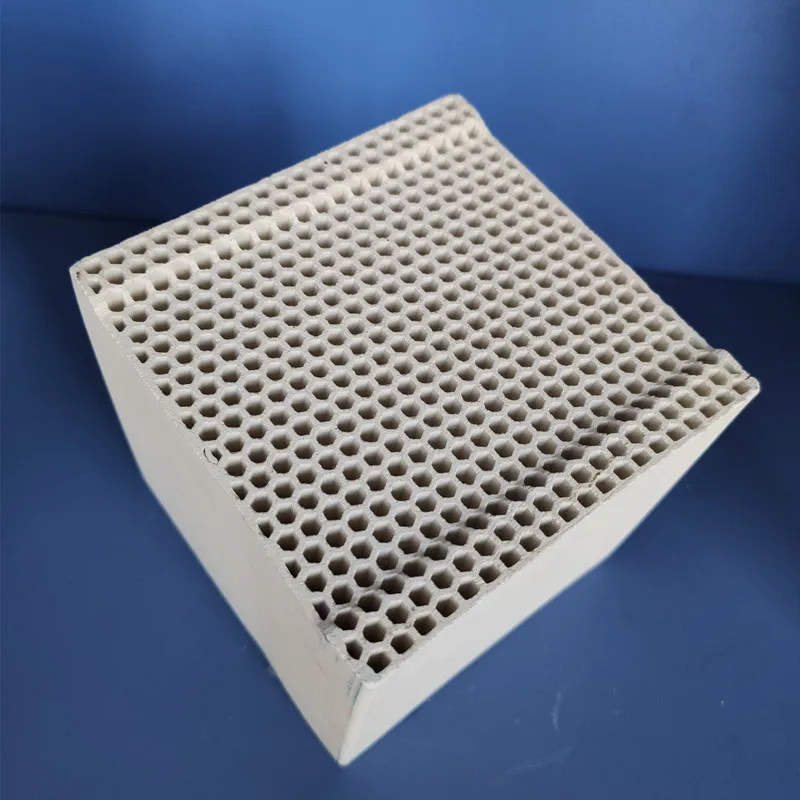

Ceramic Honeycomb Monolith
It is use for Heat Storage & Exchange,Catalyst Carrier, Gaseous Emissions Control, Chemical Packing
Material
Honeycomb ceramics can be made from a variety of materials. The main materials are: cordierite, mullite, aluminum titanate, activated carbon, silicon carbide, activated alumina, zirconia, silicon nitride and cordierite-mullite, cordierite-aluminum titanate and other composite substrates.
Properties
Environmentally friendly ceramics Ceramic materials can be widely used in various environmental protection fields due to their high strength, high temperature resistance, corrosion resistance and wear resistance, such as automobile exhaust emissions. As a filter material, honeycomb ceramic has the following advantages: good chemical stability, acid and alkali resistance and organic solvent; excellent resistance to rapid heat and rapid cooling, working temperature up to 1000 ° C; good antibacterial property, not easy to be degraded by bacteria, not easy to block and easy Regeneration; strong tructural stability, narrow pore size distribution, high permeability; non-toxic, especially suitable for food and drug treatment.
Application
Material
Honeycomb ceramics can be made from a variety of materials. The main materials are: cordierite, mullite, aluminum titanate, activated carbon, silicon carbide, activated alumina, zirconia, silicon nitride and cordierite-mullite, cordierite-aluminum titanate and other composite substrates.
Properties
Environmentally friendly ceramics Ceramic materials can be widely used in various environmental protection fields due to their high strength, high temperature resistance, corrosion resistance and wear resistance, such as automobile exhaust emissions. As a filter material, honeycomb ceramic has the following advantages: good chemical stability, acid and alkali resistance and organic solvent; excellent resistance to rapid heat and rapid cooling, working temperature up to 1000 ° C; good antibacterial property, not easy to be degraded by bacteria, not easy to block and easy Regeneration; strong tructural stability, narrow pore size distribution, high permeability; non-toxic, especially suitable for food and drug treatment.
Application
RTO & RCO, Metal Casting, Scrubber, Packing Tower
Physical Performance & Physical Performance
Physical Performance
Solid Densityg/ cm3 | Bulk Density kg/m3 | Thermal Expansion Coefficient 10-6/K (30-1000℃) | Specific Heat Capacity J/kg•K (100-1000℃) | Thermal Shock Resistance Min °C | Softening Temperatue °C | Maximum Service Temperature °C | Water Absorption | |
Alumina Porcelain | 2.05-2.35 | 630-960 | ≤5.5 | 900-1150 | 300 | 1550 | 1350 | 15-20 |
Dense Alumina | 2.45-2.70 | 754-1103 | ≤5.8 | 900-1150 | 300 | 1550 | 1350 | <5 |
High Per- formance Alumina | 2.55-2.82 | 784-1152 | ≤6.0 | 900-1150 | 300 | 1550 | 1350 | <1 |
Cordierite | 1.85-2.16 | 580-778 | ≤3.5 | 900-1150 | 350 | 1400 | 1200 | 15-20 |
Dense Cordierite | 2.16-2.48 | 669-882 | ≤3.8 | 900-1150 | 350 | 1400 | 1200 | <5 |
High Per- formance Cordierite | 2.25-2.59 | 765-1013 | ≤4.0 | 900-1150 | 350 | 1400 | 1200 | <1 |
Mullite | 2.1-2.41 | 692-1158 | ≤6 | 900-1160 | 300 | 1550 | 1350 | 15-20 |
Mullite - Cordierite | 2.0-2.2 | 615-899 | ≤3.5 | 900-1150 | 350 | 1400 | 1200 | 15-20 |
Zirconia Corundum | 2.5-2.8 | 800-1100 | ≤6.5 | 950-1400 | 350 | 1650 | 1450 | 15-20 |
85 Corundum | 2.4-2.7 | 738-1103 | ≤7.5 | 950-1400 | 300 | 1700 | 1500 | 15-20 |
95 Corundum | 2.6-2.9 | 800-1185 | ≤8.5 | 1050-1500 | 300 | 1780 | 1580 | 15-20 |
Water absorption could be adjusted between 0-30%
Chemical Composition
SiO2 (%) | Al2O3 (%) | MgO (%) | Fe2O3(%) | K2O+Na2O+CaO +TiO+Other(%) | |
Alumina Porcelain | 25-35 | 60-70 | ≤3.5 | <1 | ≤3 |
Dense Alumina | 20-30 | 60-70 | <1 | <1 | <5 |
High Performance Alumina | 20-30 | 60-70 | <1 | <1 | <7 |
Cordierite | 50-55 | 30-35 | 8-14 | <1 | ≤1.5 |
Dense Cordierite | 50-55 | 30-35 | 8-14 | <1 | <5 |
High Performance Cordierite | 50-55 | 30-35 | 8-14 | <1 | <7 |
Mullite - Cordierite | 40-50 | 40-50 | 6-9 | <1 | <1.2 |
Mullite | 25-30 | 65-70 | <0.5 | <1 | <1.5 |
Zirconia Corundum | 20-30 | 60-70 | <1 | <1 | 6-10 |
85 Corundum | 6-12 | 85-90 | <0.5 | <0.5 | <1.5 |
95 Corundum | 2-4 | 90-95 | <0.5 | <0.5 | <1 |
Specification
Overall Dimesion | Cell Number | Cell Width (mm) | Inner Wall (mm) | Outer Wall (mm) | Specific Surface Area m2/m3 | Void Fraction |
150 x 150 x 300 | 5 x 5 = 25 | 26.0 | 3.05 | 3.5 | 146 | 76% |
150 x 150 x 300 | 13 x 13 = 169 | 9.3 | 2.05 | 2.5 | 310 | 65% |
150 x 150 x 300 | 25 x 25 = 625 | 5 | 0.95 | 1.5 | 582 | 69% |
150 x 150 x 300 | 32 x 32 = 1024 | 3.9 | 0.8 | 1.3 | 736 | 67% |
150 x 150 x 300 | 40 x40 = 1600 | 3.0 | 0.67 | 1.3 | 892 | 66% |
150 x 150 x 300 | 43 x 43 = 1849 | 2.8 | 0.65 | 1.3 | 964 | 64% |
150 x 150 x 300 | 50 x 50 = 2500 | 2.4 | 0.6 | 1.1 | 1104 | 62% |
150 x 150 x 300 | 60 x 60 = 3600 | 2.0 | 0.5 | 1.1 | 1291 | 62% |

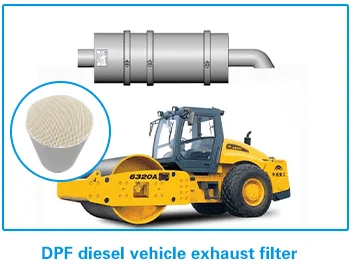

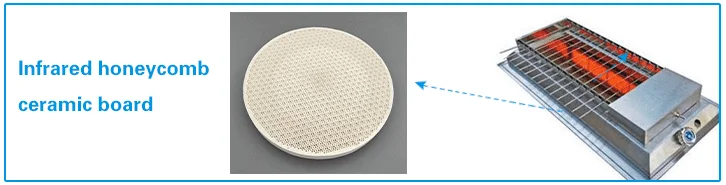

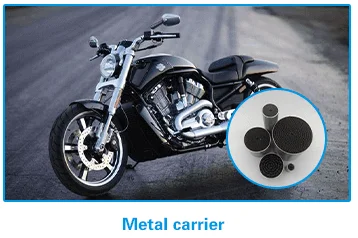

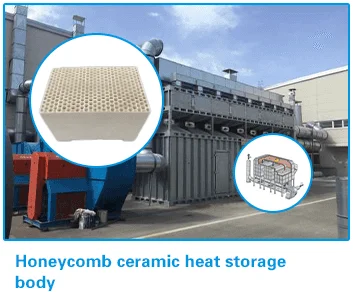

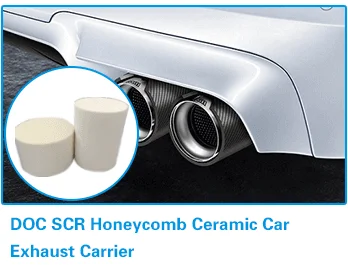

Application

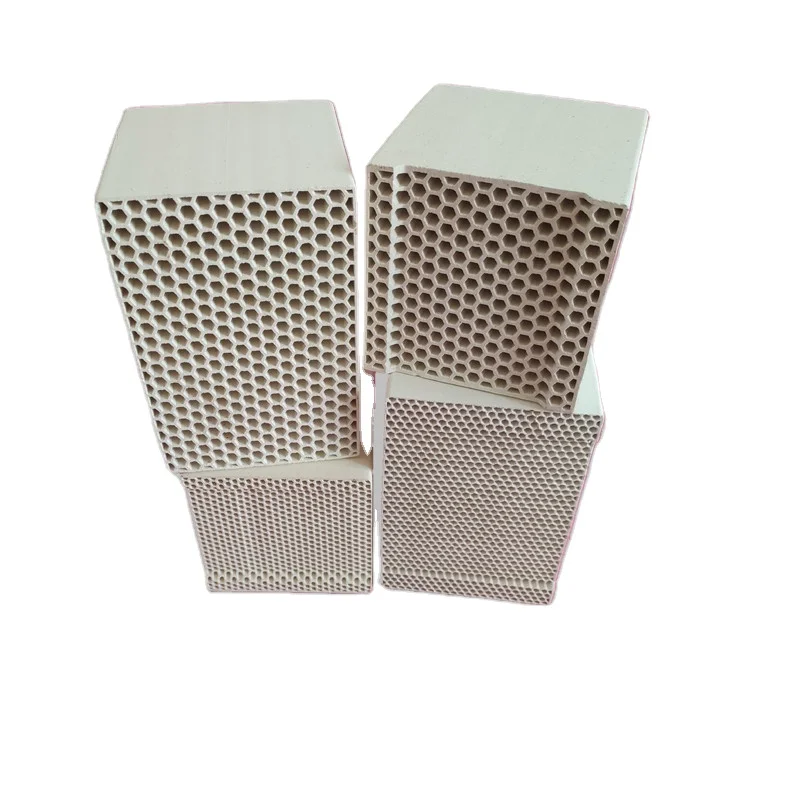

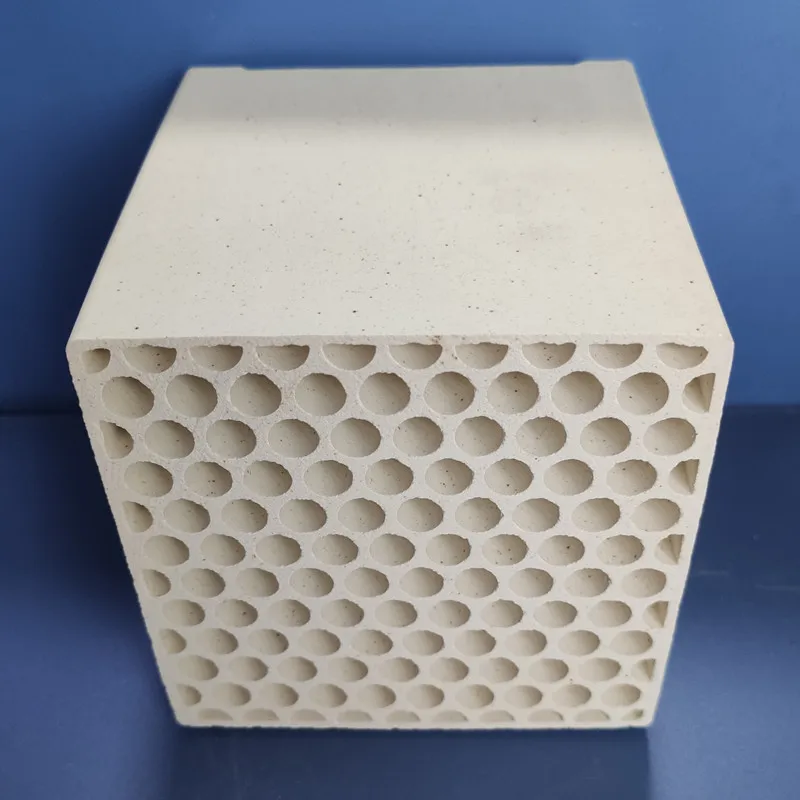

Products exhibition
Company Profile
Located in Hunan province, Global New Material Technology Co.,Ltd is specialized in the manufacturing of advanced ceramic components based on customer specification. We cover an area of 6000 square meters and are staffed with about 100 workers. The
main products include high purity alumina ceramic and zirconia ceramic, etc. such as ceramic tubes, ceramic discs, ceramic crucibles, ceramic balls, ceramic plungers, etc. We focus on providing cost effective solutions to wear and corrosion problems in a wide range of applications and industries such as textile, machinery, electric ppliances, communications, etc.
With strict quality control and our best service, the products have been sold well on the domestic market and exported to many countries in North America, Europe, Middle East, South East Asia, etc.
Our mission is “Quality, Value and Innovation”. We look forward to a long-term business relationship with you.
main products include high purity alumina ceramic and zirconia ceramic, etc. such as ceramic tubes, ceramic discs, ceramic crucibles, ceramic balls, ceramic plungers, etc. We focus on providing cost effective solutions to wear and corrosion problems in a wide range of applications and industries such as textile, machinery, electric ppliances, communications, etc.
With strict quality control and our best service, the products have been sold well on the domestic market and exported to many countries in North America, Europe, Middle East, South East Asia, etc.
Our mission is “Quality, Value and Innovation”. We look forward to a long-term business relationship with you.
Certifications
FAQ
Why us?
Professional manufacturer since 2010.
Strict quality control on production process and tolerance.
Free samples available
Customized production based on your drawing or specification
On-time delivery and reliable support and service
Inventory available for quick shipment
We keep confidentiality of all the drawings and business information between us.
Are you a trading company or a manufacturer?
We are a trading company and a manufaturer.
Can you provide the free samples?
Yes,we can offer free sample if we have it in stock,but the courier fee is to be collected.
Do you accept customized production based our specification?
Yes,we offer OEM and ODM service. Just send us your drawing if you have it. If you don’t have a drawing, just tell us your idea,
we will work out the drawing for you.
What's the delivery time?
7 working days for standard products 30 days for customized products.
What is the MOQ?
No limit to the quantity. We can offer the best proposal and solutions according to your condition.
What is the payment terms you accept?
T/T,LC,Western Union,moneygram are acceptable.
How to deal with the faulty?
Firstly, Our product are produced in strict quality control system and the defective rate will be less than 2%.
If there are problems with the product, we will provide free replacement.
Professional manufacturer since 2010.
Strict quality control on production process and tolerance.
Free samples available
Customized production based on your drawing or specification
On-time delivery and reliable support and service
Inventory available for quick shipment
We keep confidentiality of all the drawings and business information between us.
Are you a trading company or a manufacturer?
We are a trading company and a manufaturer.
Can you provide the free samples?
Yes,we can offer free sample if we have it in stock,but the courier fee is to be collected.
Do you accept customized production based our specification?
Yes,we offer OEM and ODM service. Just send us your drawing if you have it. If you don’t have a drawing, just tell us your idea,
we will work out the drawing for you.
What's the delivery time?
7 working days for standard products 30 days for customized products.
What is the MOQ?
No limit to the quantity. We can offer the best proposal and solutions according to your condition.
What is the payment terms you accept?
T/T,LC,Western Union,moneygram are acceptable.
How to deal with the faulty?
Firstly, Our product are produced in strict quality control system and the defective rate will be less than 2%.
If there are problems with the product, we will provide free replacement.
