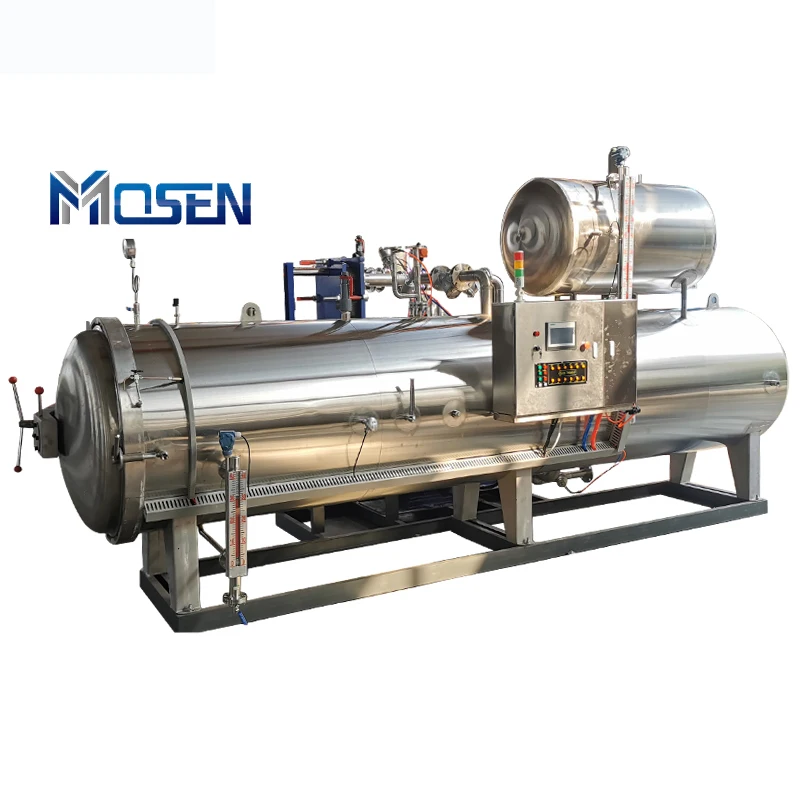

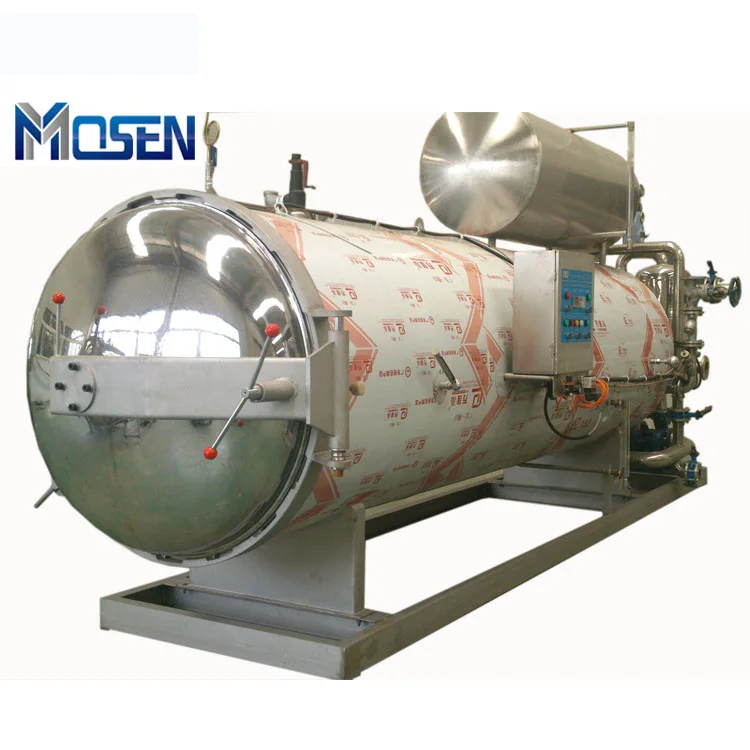

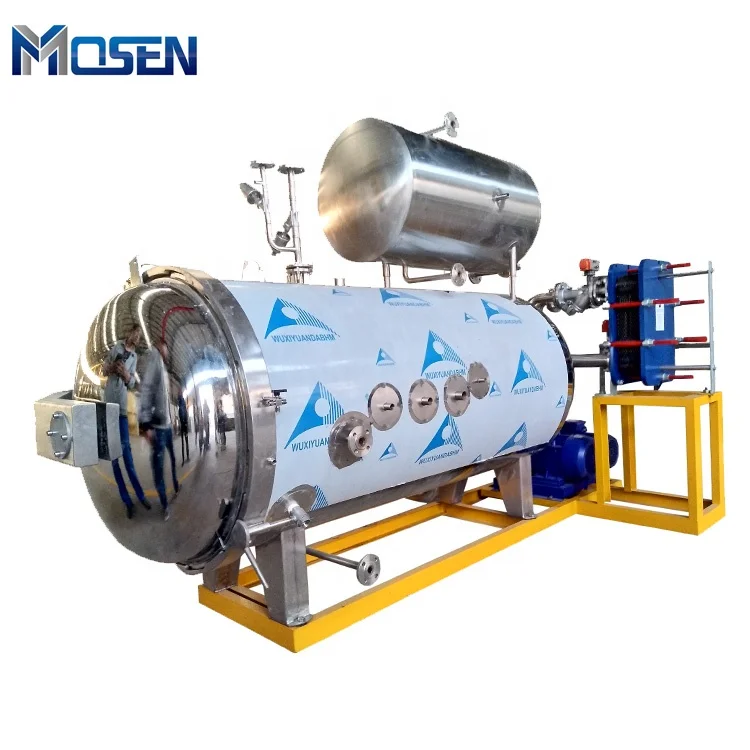

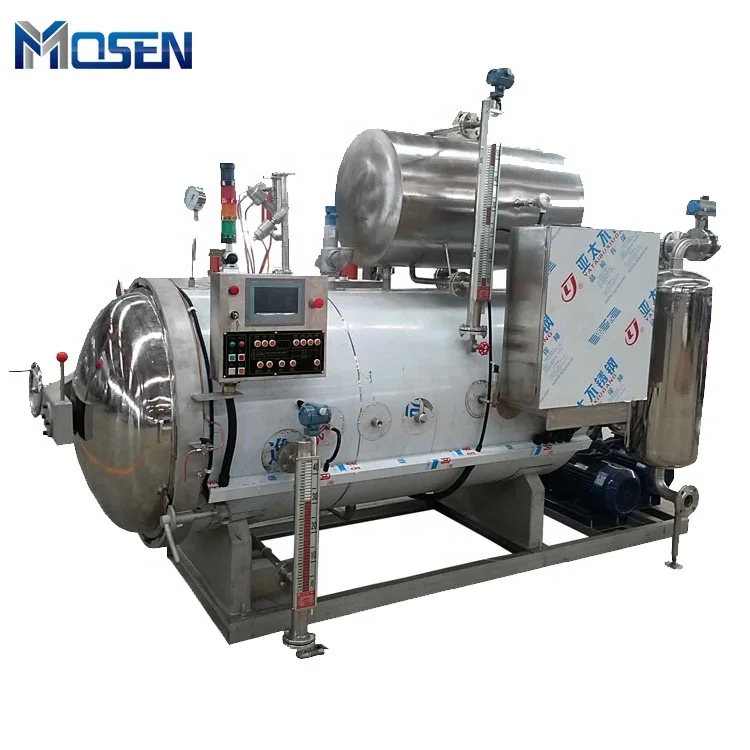

Automatic Retort Water Spray Types Of High Packing Materials Food Sterilizer Retort China Manufacture


Equipment introduction

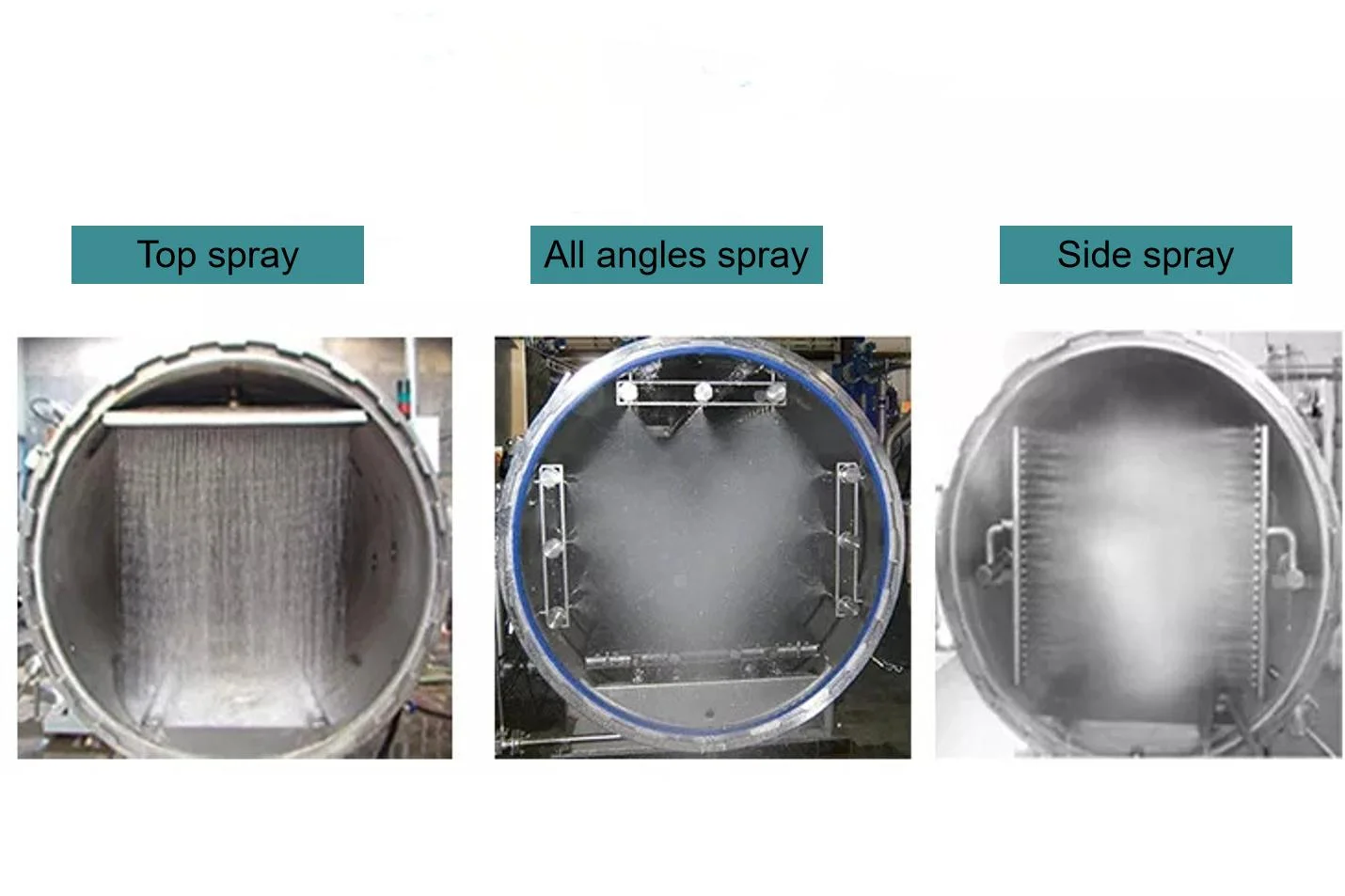

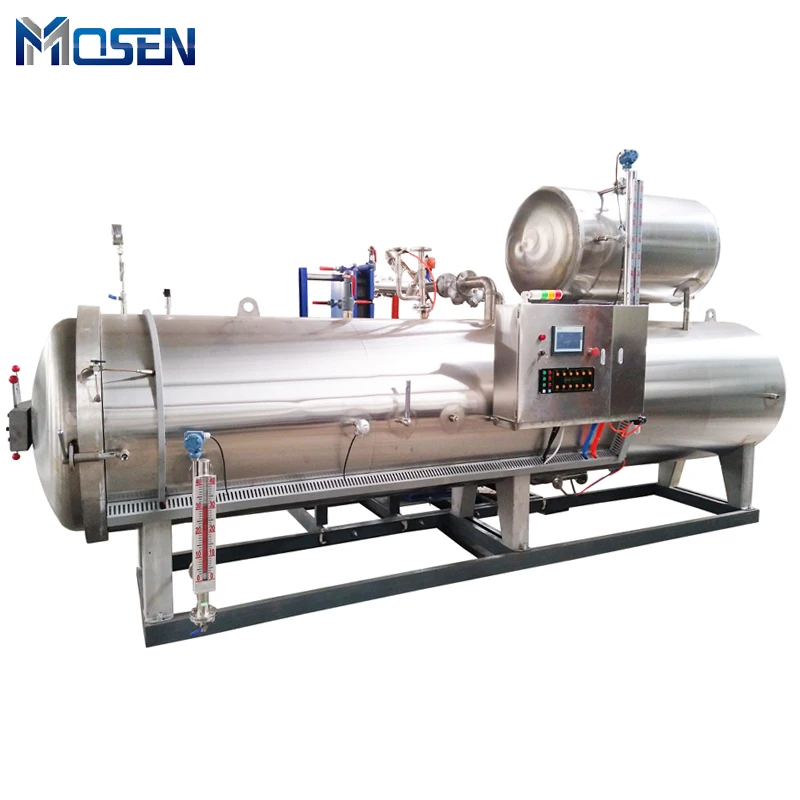

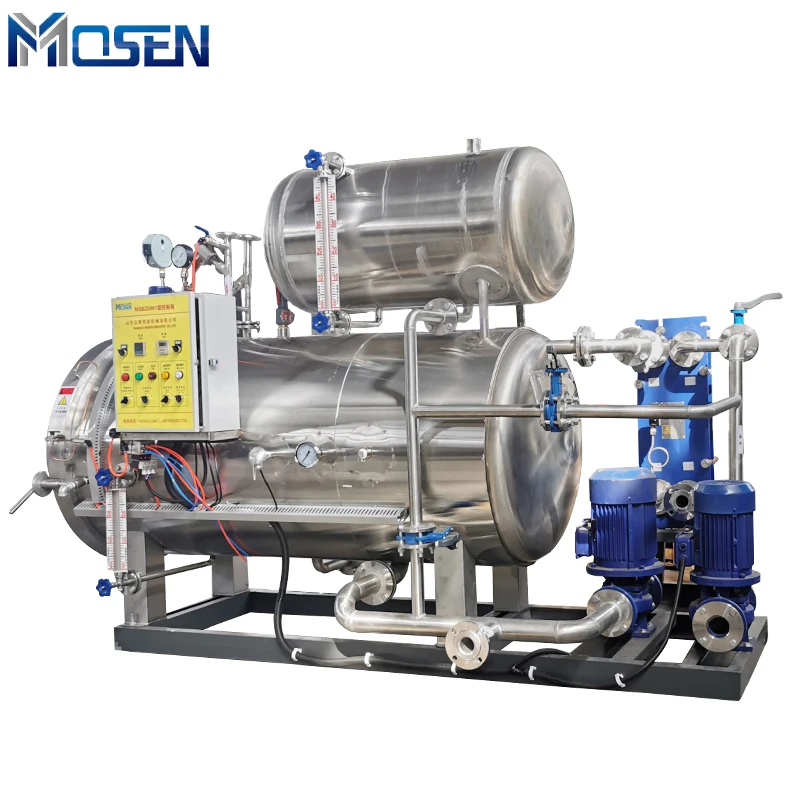

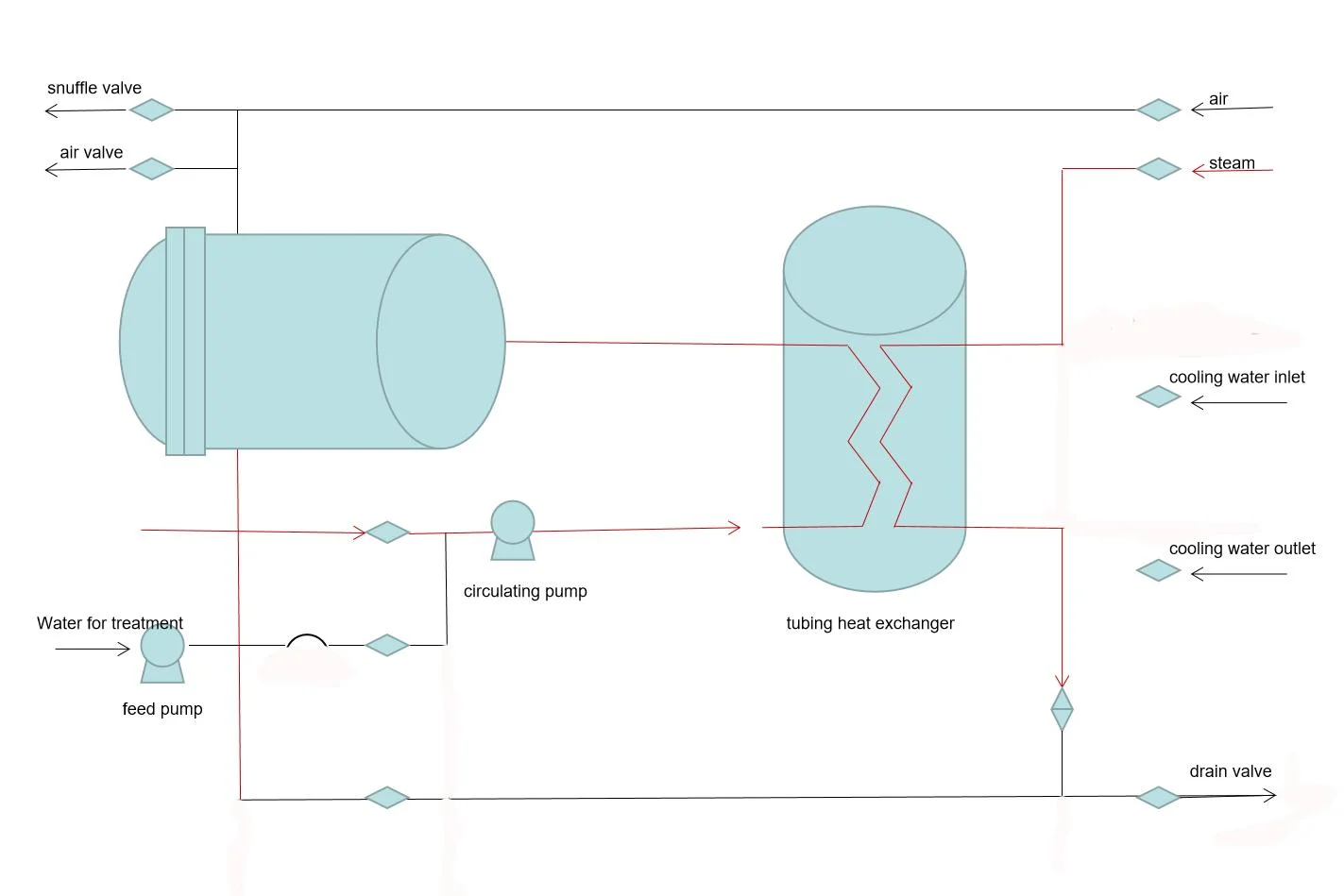

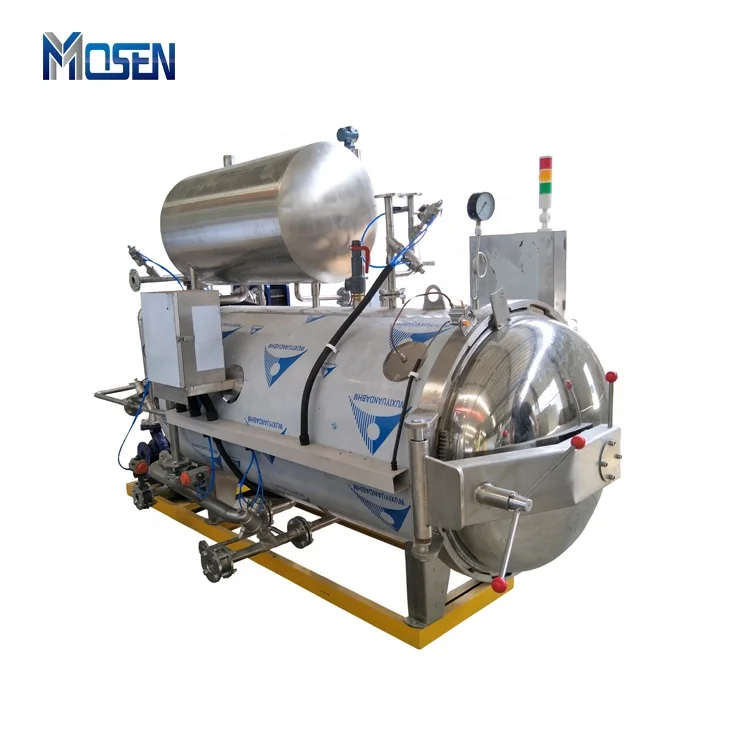

1.Spary retort consists of horizontal tank, heat exchanger, circulating water pump, cooling water pump, pipeline and various and automatic control system. There is water showering, side spray, top spray and all angles spary. Softened water recycle and saving.
2. Hot water downwards from tank and inject onto food surface. Disperse cold air cloud inside of tank to ensure the temperture uniform with on cold air cloud and free of dead angle.

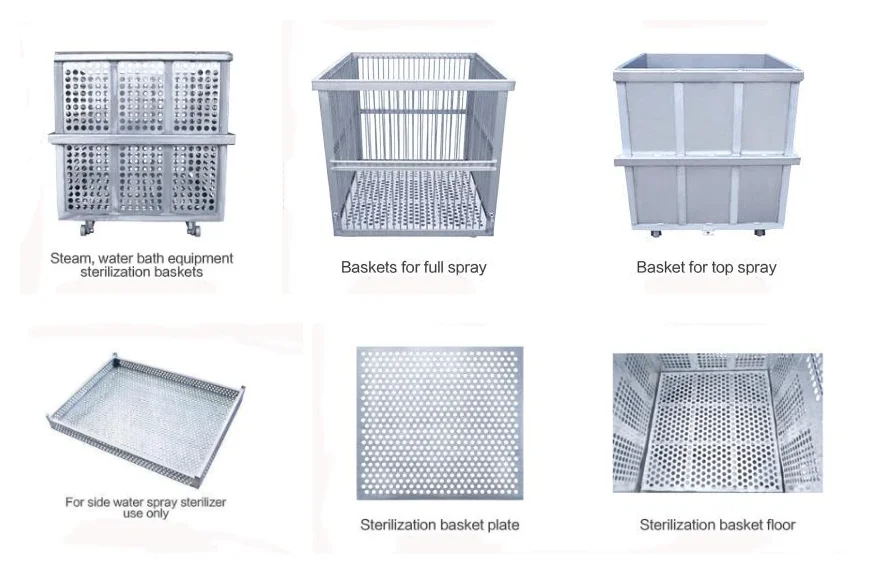

3.Temperture rising and cooling process curve divided into several steps under plate or tube heat exchangers work,Temperture evenly uniformed among basket center and surface.
4.Entirely automatic interface system with visual moniroring control PCL+HMI enhance better effect of automated operation.
5. Adapted to food and beverage in glass bottles, tin cans, soft package, plastic bottles ect.




Specification


Model
   Inner diameter
（mm）
Length（mm）
Capacity（mm）
Temperature（℃）
Pressure（Mpa）
Voltage（V）
Power（kw）
PLJ.10-1.B.3
1000
950
1.00
147
0.3
380
3.5
PLJ.10-2.B.3
1000
1900
1.80
147
0.3
380
6
PLJ.12-2.B.3
1200
1900
2.60
147
0.3
380
6
PLJ.12-3.B.3
1200
2870
3.70
147
0.3
380
11.5
PLJ.12-3.6B.3
1200
3820
4.06
147
0.3
380
11.5
PLJ.14-3.B.3
1300
4000
5.62
147
0.3
380
23








Water Spray Retort

In the process of food high-temperature sterilization, the main object of sterilization is Bacillus botulinum, which can produce toxin that can cause fatal injury to human body. It belongs to thermophilic anaerobic bacteria. It will lose biological activity in three minutes at 121 ℃ and six hours at 100 ℃. Of course, the higher the temperature, the shorter the survival time. Through scientific detection, it is more suitable to sterilize at 121 ℃, at this time, the package has good heat resistance, and the taste of food is also better. When the F value of the food center reaches 4 at 121 ℃, the Bacillus botulinum will not be detected in the food, which meets the requirements of commercial sterility.










Product features
1.Very Safety,in accordance with the national standard gb150-2011 pressure vessel, ISO9001:2008 quality certification system, HACCP food safety certification design and manufacturing.
3. Reliable,select parts of world famous brands.
4. Energy saving,temperature loss, power, compressed air and time consumption are reasonable and optimized.
5. Beautiful appearance, novel, compact structure, simple.








Application


Application
1.Glass containers:glass jars.2.Metal containers:tin cans.
3.Aluminum can plastic container:PP bottles,HDPE bottle.
4.Soft bag packaging:aluminum foil bag,transparent bag,vacuum bag,high temperature cooking bag and so on.


Why Choose Us


SHANDONG MOSEN MACHINERY CO.,LTD.
Shandong Mosen Machinery Co.,Ltd.It is a manufacturer of pressure vessels for food sterilization retort, food jacket cooker,
vacuum cooker etc.Our company intrgrates scientific research,production,sales and service.Our company has ISO/ASME/CE/DOSH quality
system certification, and has built a team of comprehensive services to contribute perfect service.


Packaging and Delivery






Customer Photos









All our products are guaranteed for one year and maintained for life.

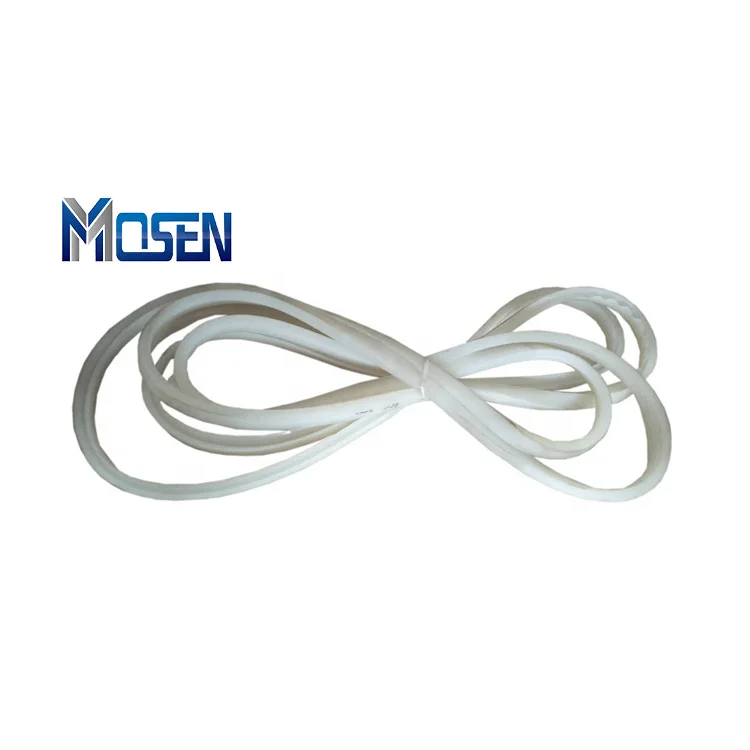

A set of wearing parts will come with the machine for free.
For more information,pls contact our sales stuff.




FAQ


Q: Are you manufacturer or trading company?
A: We are a professional manufacturer.
Q: What is your business scope?
A: There are three categories, such as food sterilization machine, jacket cooker, rubber vulcanization autoclave.
Q: How about the installation? And what if the machine goes down?
A: We will do that. There are two options.
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa,
accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still is under guarantee period, the necessary accessories and parts will be provided
free, but the transportation cost of it shall be on your side.
Q: Do you take L/C?
A: Yes, we accept L/C, T/T and irrevocable L/C payable.
