Er 4047 Flux Core Aluminum Weld Wire 4047
US $6.00-$7.00
P80 cutting nozzle for Air Plasma cutting torch/P80 plasma cutting nozzle/cutting tip
- Category: Welding & Soldering Supplies >>>
- Supplier: Changzhou,Tonyweld,Co.,Ltd.
Share on:
Product Overview
Description

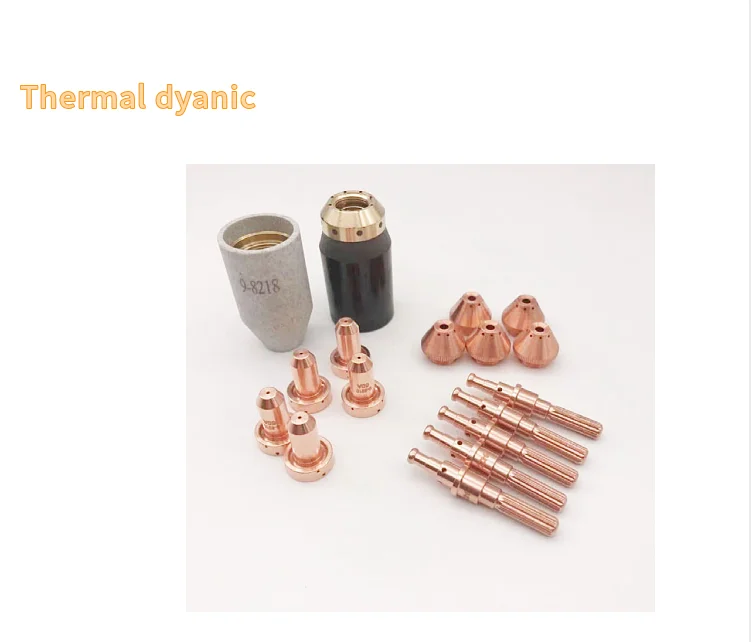

Tonyweld plasma cutting torch and consumables: P80, AG60,PT31,Trafimet serise, Hyperther serise, Thermal dyanimc parts and so on |
Changzhou Tonyweld Co.,Ltd.is a professionl manufacturer MIG/MAG welding torch,TIG welding torch and air plasma cutting gun.We have tens years exprience to export many countries,and our products is very competitive in the world.
Our company produces :

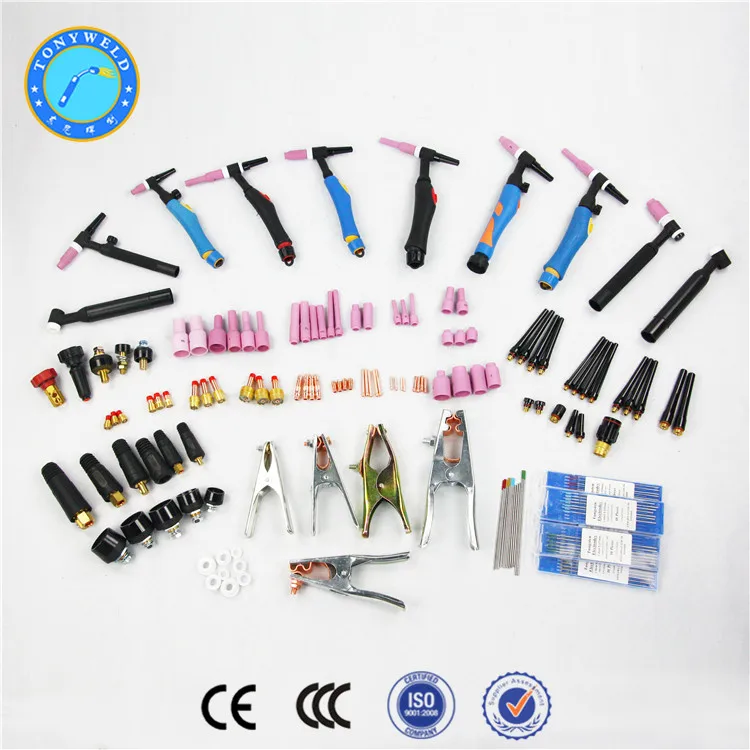

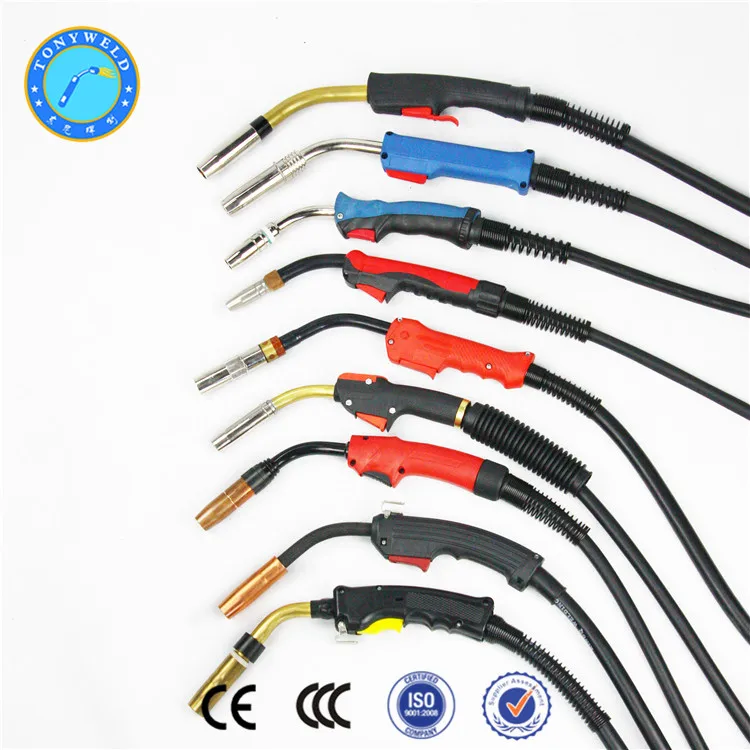

1.MIG/MAG,CO2 welding torch and welding parts such as nozzle,contact tip,swan neck,diffuser etc.
2.Tig torches and tig welding accessories such as collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,torch body etc.
3.Air plasma cutting torch such as P80,PT31,S45,S75,S105,A101,A141,CB150,Hyperther,electrodes,tips,shields,swirl ring etc.
4.Cable joint ,earth clamp,cutting nozzle.
5.Welding helmet,electorde holder
6.Tungsten electrode
P80 cutting torch view, torch hand type: black, red, CNC, and new one |
| p80 plasma cutting nozzle technical Data: |
| Technical | Rating | Duty cycle | Air pressure | Standard Length | N.w | Packing size |
| P80(40A) Plasma cutting torch | 40A | 60% | 4.5~5.5 bar | 5M | 4.5KG | 34*34*6cm |
| P80(60A) Plasma cutting torch | 60A | 60% | 4.5~5.5 bar | 5M | 4.5KG | 34*34*6cm |
| P80(80A) Plasma cutting torch | 80A | 60% | 4.5~5.5 bar | 5M | 4.5KG | 34*34*6cm |
| P80(100A) Plasma cutting torch | 100A | 100% | 4.5~5.5 bar | 5M | 4.5KG | 34*34*7cm |
| p80 plasma cutting nozzle |
| Description | Standard No. |
| P80 Plasma cutting torch Hand torch head | YT-10PD |
| Electrode | TET02033 |
| Electrode imported Haf | |
| Nozzle 1.3mm | TET01310 |
| Nozzle 1.5mm | TET01512 |
| Nozzle 1.7mm | |
| Nozzle 1.3mm | TET01305 |
| Nozzle 1.5mm | TET01305 |
| Nozzle 1.7mm | |

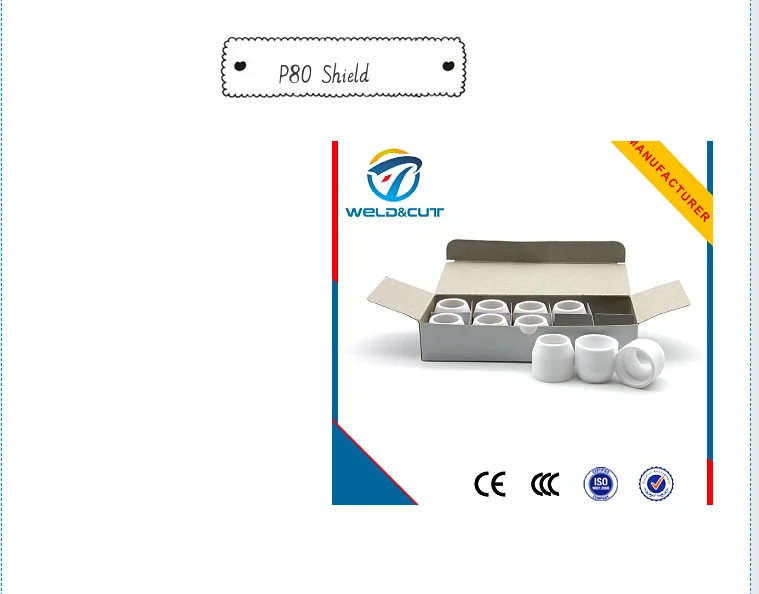

| Shield | TGN02004 |
| Shield(Argentine ring) | |
| Site wheel | |
| Machine torch head | YT-10PE |
| p80 plasma cutting nozzle Packing Size: |
. 10 piece plasma cuttinh accerssories p80 packed in a plastic box
. then packed in carton
| Our Services of plasma cutting parts p80 |
. supply the qualified plasma cutting parts p80 products
. samples plasma cutting partys p80 are available
. trial order plasma cutting accessories p80 are available
. processing with customer's plasma cutting parts p80 samples
| Others plasma cutting torch and parts |
| Our buisness line: |
| About Us: |
| FAQ: |
Q1:Can I get a free p80 spare parts samples to check the quality?
A:Sure,we can supply the free p80 spare parts samples which price is low than US$5.
Q2:Will I afford the carrier charge of panasonic spare parts?
A:Yes,you will afford the express p80 spare parts charge or your account is OK.
Q3:Can I add my trademark on my products?
A:Yes,we need your certificate of authorization.
Q4.Welding torch payment terms:
A:T/T,L/C,Western union all support.
Q5:welding torh Delivery time:Sample order p80 spare parts 2 working days, 500pcs p80 spare parts order 10 working days.
Q6:Min order: 1 pc p80 spare parts
