  • 58KW 5900m3/h Industrial Horizontal Hot Water Unit Heaters Fan Heater Air Heater for factory workshop, warehouse

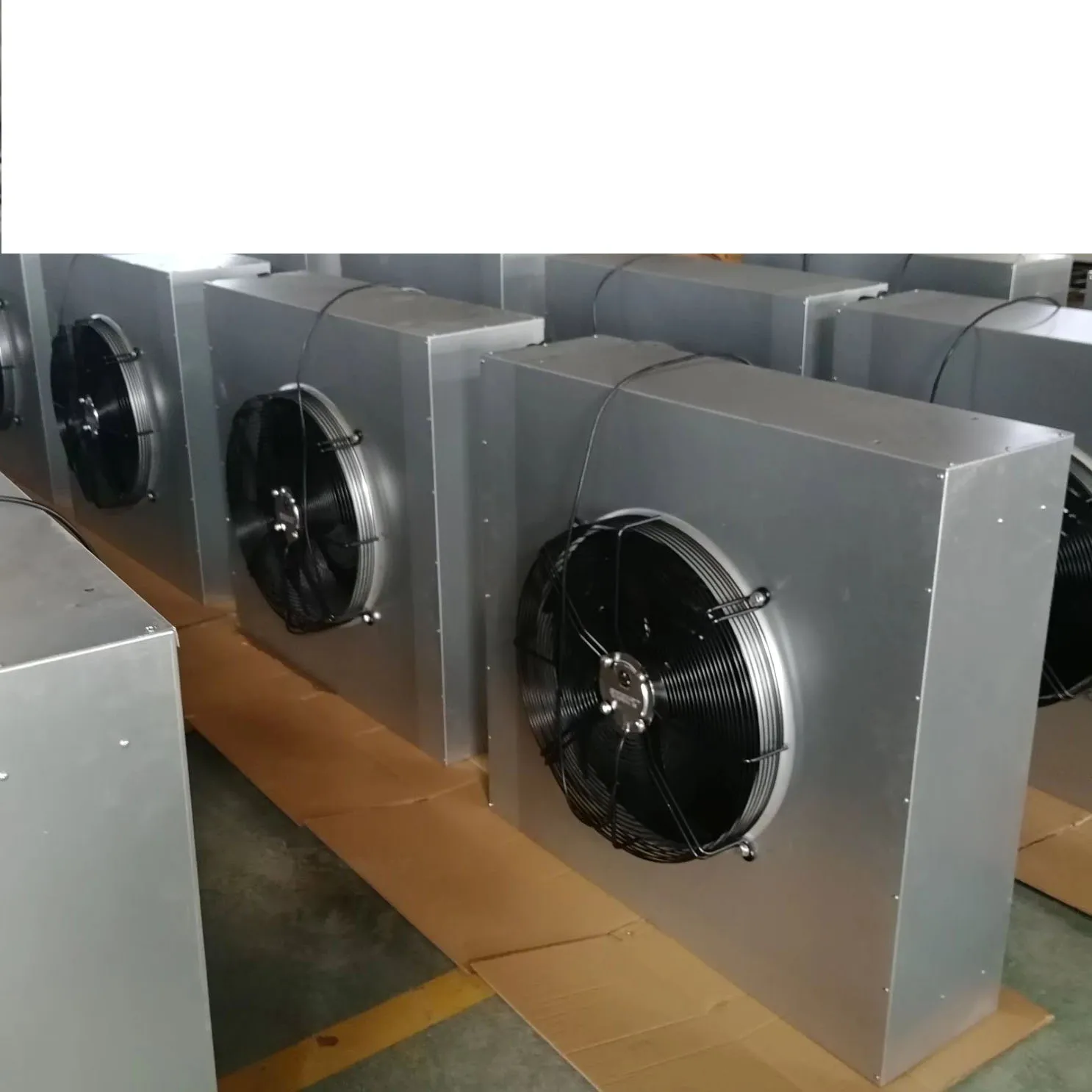

58KW 5900m3/h Industrial Horizontal Hot Water Unit Heaters Fan Heater Air Heater for factory workshop, warehouse
58KW 5900m3/h Industrial Horizontal Hot Water Unit Heaters Fan Heater Air Heater for factory workshop, warehouse
58KW 5900m3/h Industrial Horizontal Hot Water Unit Heaters Fan Heater Air Heater for factory workshop, warehouse
58KW 5900m3/h Industrial Horizontal Hot Water Unit Heaters Fan Heater Air Heater for factory workshop, warehouse
58KW 5900m3/h Industrial Horizontal Hot Water Unit Heaters Fan Heater Air Heater for factory workshop, warehouse
58KW 5900m3/h Industrial Horizontal Hot Water Unit Heaters Fan Heater Air Heater for factory workshop, warehouse
58KW 5900m3/h Industrial Horizontal Hot Water Unit Heaters Fan Heater Air Heater for factory workshop, warehouse

58KW 5900m3/h Industrial Horizontal Hot Water Unit Heaters Fan Heater Air Heater for factory workshop, warehouse

Share on (1600649852374):


Price:$470.00 - $480.00

Quantity:


Product Overview

Description



Products Description




Product Features

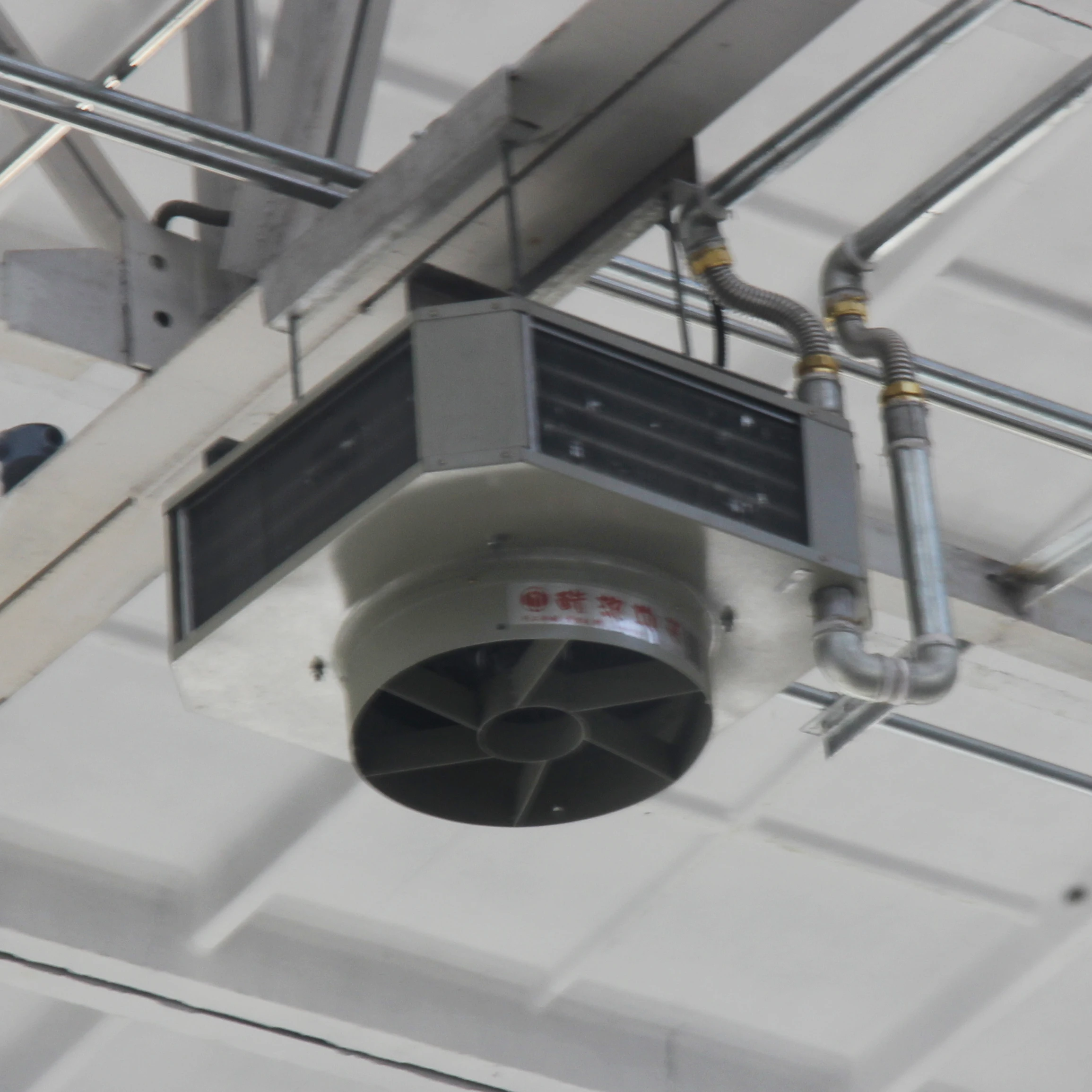

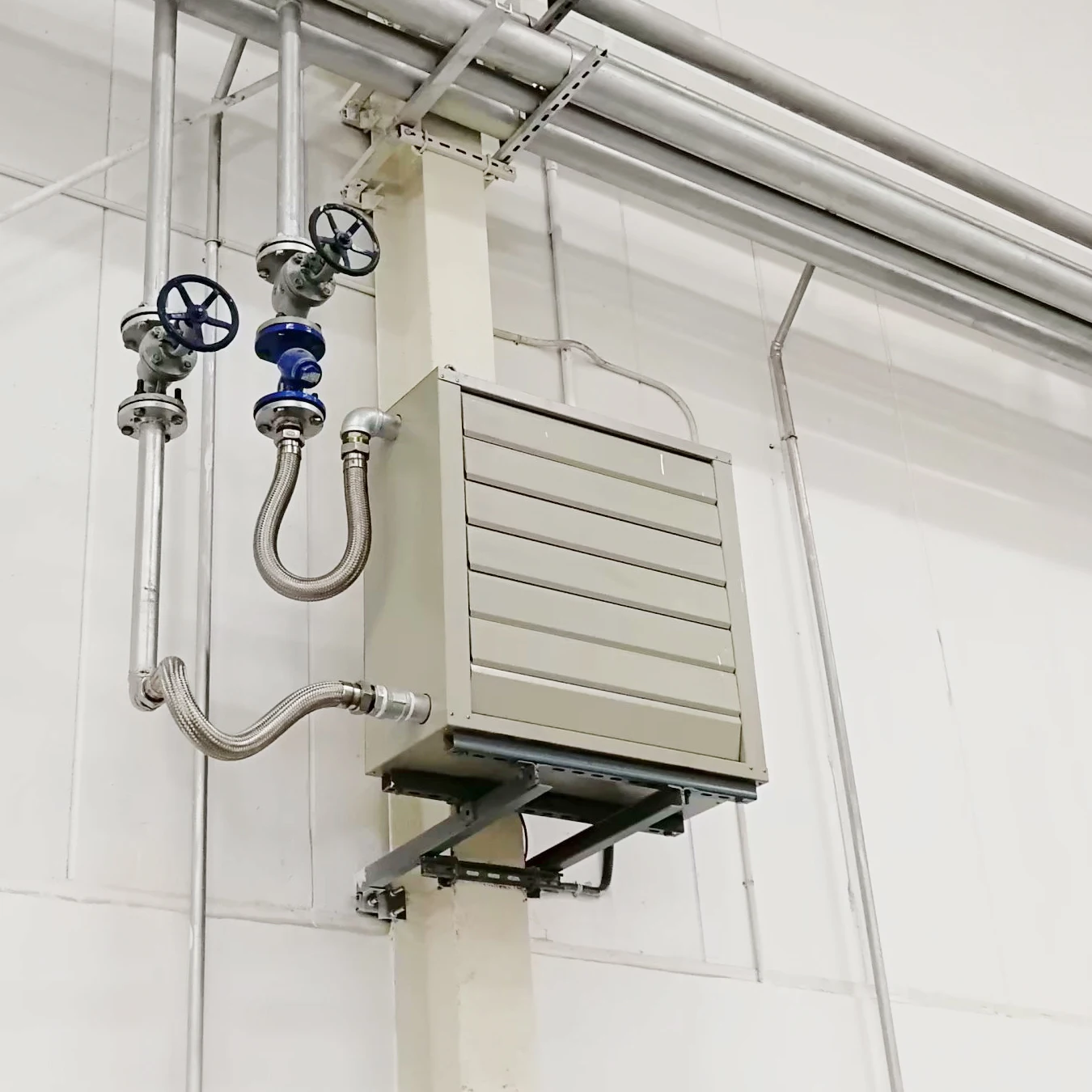

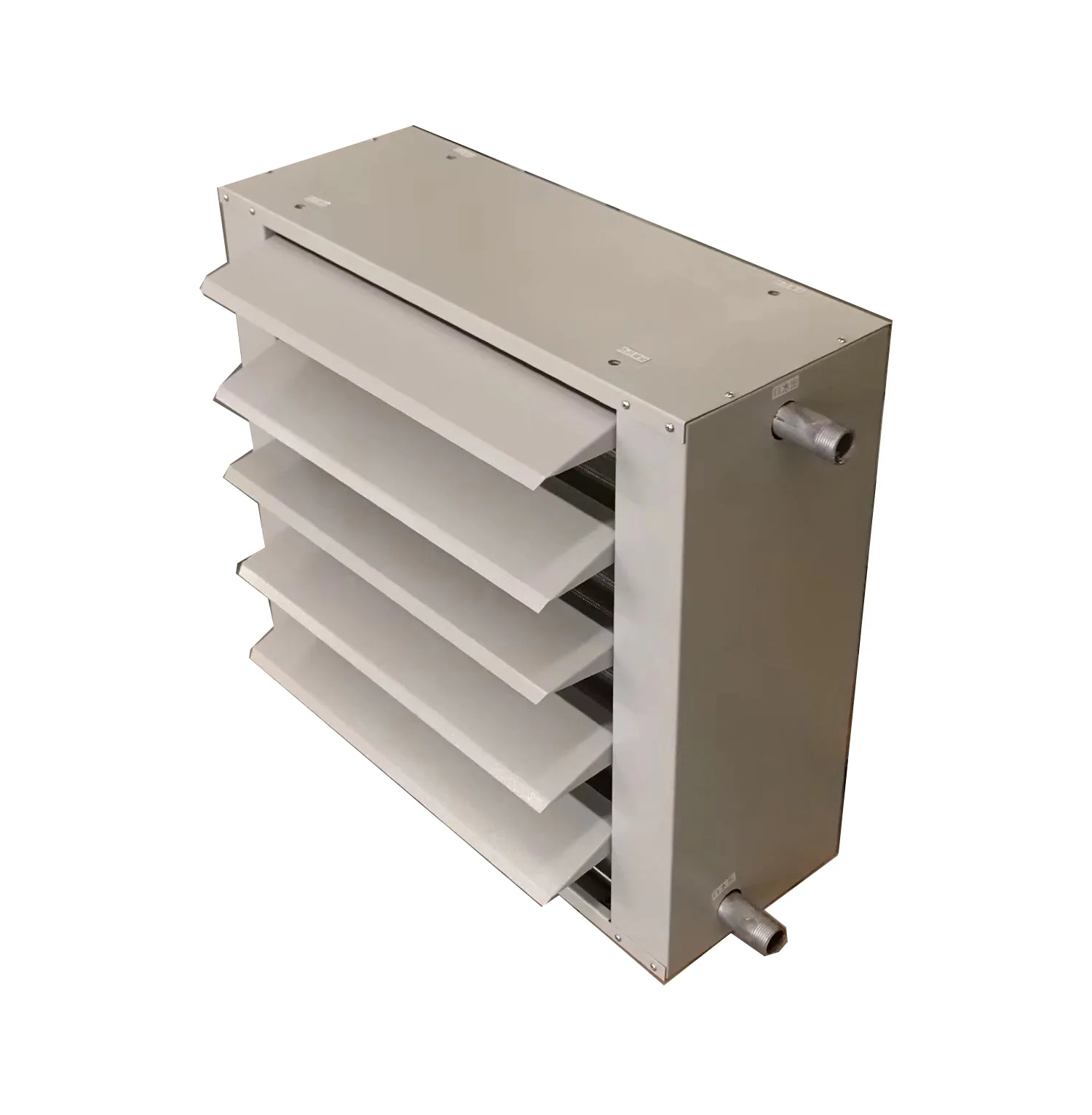

It is a heating equipment that adopts hot water as the heating medium. The unit needs to be mounted on the wall or column. The air is heated by the hot water heat exchanger and then sent out through the adjustable louver air outlet. The color of the unit can be specially customized, and the voltage of the motor can be customized 220V, 440V, 660V, etc. The common voltage is 380V～/50HZ. Explosion-proof models can also be customized.

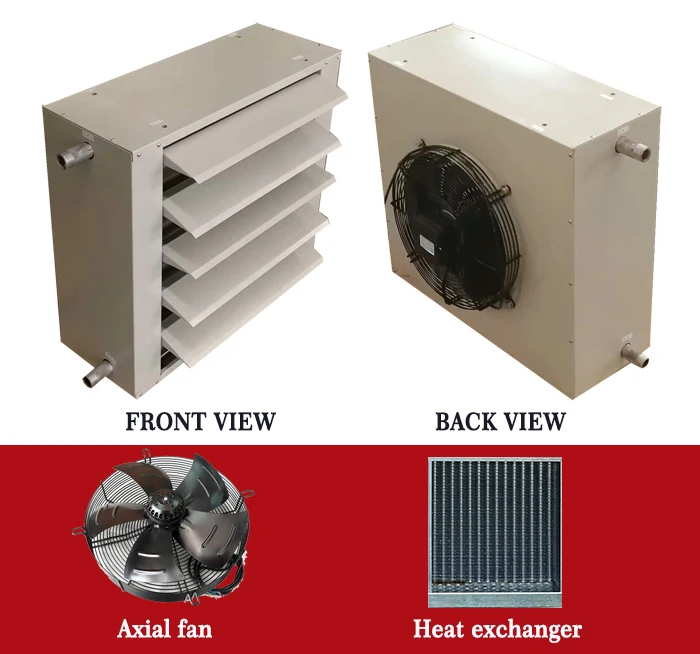

The series of hot water unit heaters adopt copper tube and aluminum fin high-efficiency heat exchanger. The copper tube of the heat exchanger is an international standard copper tube with a diameter of 12.7mm, and the standard fin spacing is 12 fins per inch.
The housing is made of galvanized steel plate, and the surface is electrostatic sprayed, which is corrosion-resistant and beautiful. The heat exchanger can be customized steel tube, copper tube copper fin (second photo) or stainless steel tube.


Product Applications
It is suitable for energy-saving heating in factories, shopping malls, stadiums, large entertainment venues, agricultural greenhouses, animal husbandry and other places.


Model
NF-6.1
NF-6.9
NF-9.6
NF-11.16
NF-17.1
NF-20.5
NF-23.7
NF-27.1
NF-38.2
Heating capacity(kW)
3.8
5.1
7.2
9.9
13.6
18.1
23.7
26.4
39
Water flow rate(m3/h)
0.29
0.4
0.56
0.77
1.05
1.4
1.84
2.05
3.02
Interface pipe diameter(DN)
20
20
20
20
20
20
25
25
40
Water pressure drop(kPa)
1.49
2.39
2.99
5.68
9.56
17.04
10.76
12.85
26.6
Noise level
II
II
II
III
III
III
III
III
IV
Max. Mounting Height(m)
2.7
2.7
3
3.7
4.3
4.6
4.6
4.9
5.2
Throw(m)
5.2
5.5
6.1
7.6
8.8
9.4
9.8
10.1
10.4
Airflow rate(m3/h)
612
688
963
1116
1712
2049
2370
2714
3823
Outlet air velocity(m/s)
2.33
26.5
2.33
2.74
2.77
3.34
3.91
4.46
3.43
Supply air temp.(℃)
36
39
40
44
41
44
47
46
48
Power(W)
20
20
45
45
75
75
100
100
200
RPM
1400
1400
1400
1400
1400
1400
900
900
900


Model
NF-44.3
NF-59.6
NF-65.7
NF-78.4
NF-100
NF-120
NF-150
Heating capacity(kW)
45.7
58
65.6
80
100
120
165
Water flow rate(m3/h)
3.54
4.49
5.08
6.2
7.75
9.3
12.78
Interface pipe diameter(DN)
40
40
40
40
50
50
50
Water pressure drop(kPa)
34.67
30.79
37.66
38.56
38.55
37.65
41.25
Noise level
IV
V
V
V
IV
V
V
Max. Mounting Height(m)
5.5
5.8
6.1
6.1
5.5
5.8
6.1
Throw(m)
11.3
12.2
13.4
14
11.3
12.2
14
Airflow rate(m3/h)
4434
5963
6575
7844
10200
12600
15600
Outlet air velocity(m/s)
3.98
2.95
3.25
3.89
3.98
2.95
3.89
Supply air temp.(℃)
48
46
47
48
48
46
48
Power(W)
200
260
310
310
2*200
2*260
2*310
RPM
900
900
900
900
900
900
900
