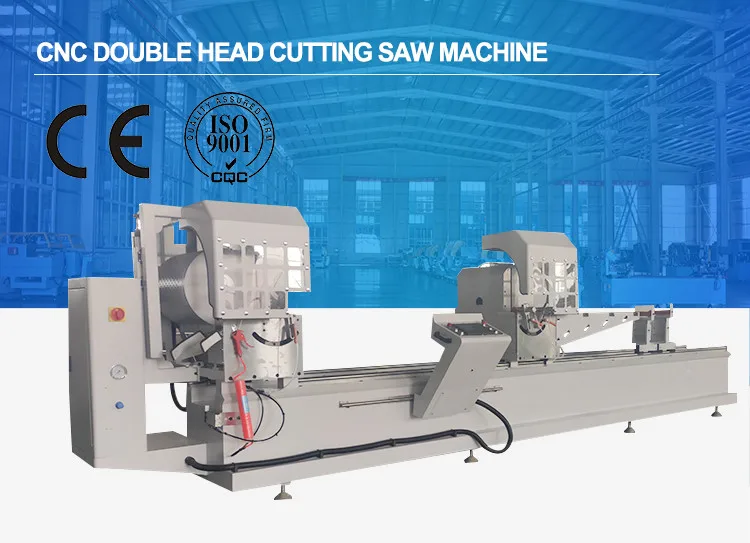

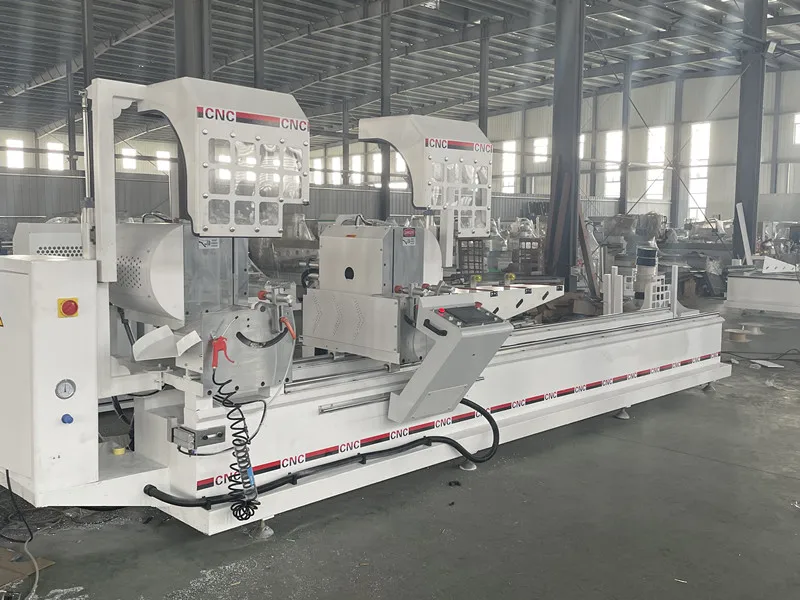

Well selling CNC Double Head Automatic Cutting Saw Machine for PVC and Aluminum Profile Window
- Category: >>>
- Supplier: Jinan Ever View Machinery Technology Co. Ltd.
Share on (1600649890331):
Product Overview
Description
CNC double head miter saw angle cutting machine for aluminum and pvc
Products Description
Double-head CNC automatic cutting saw is used for cutting of aluminum and PVC/UPVC profile. The cutting saw could cut 45°and 90° edge, and common type and digital display type available. And different cutting scales could be customized as per requirements.
Product Paramenters
Voltage | 380V/50HZ | ||||||
Power | 4.4KW | ||||||
Saw size | D=500mm d=30mm | ||||||
Rotation rate | 2800r/min | ||||||
Air consumption | 60L/min | ||||||
Air pressure | 0.5-0.8MPa | ||||||
Width | max 170mm | ||||||
Height | max 300mm | ||||||
Length | 0-8000mm | ||||||
Angle | 45° 90° 135° | ||||||
Dimonsion | 5800×1250×1700mm | ||||||
Weight | 1800kg | ||||||
Details Images

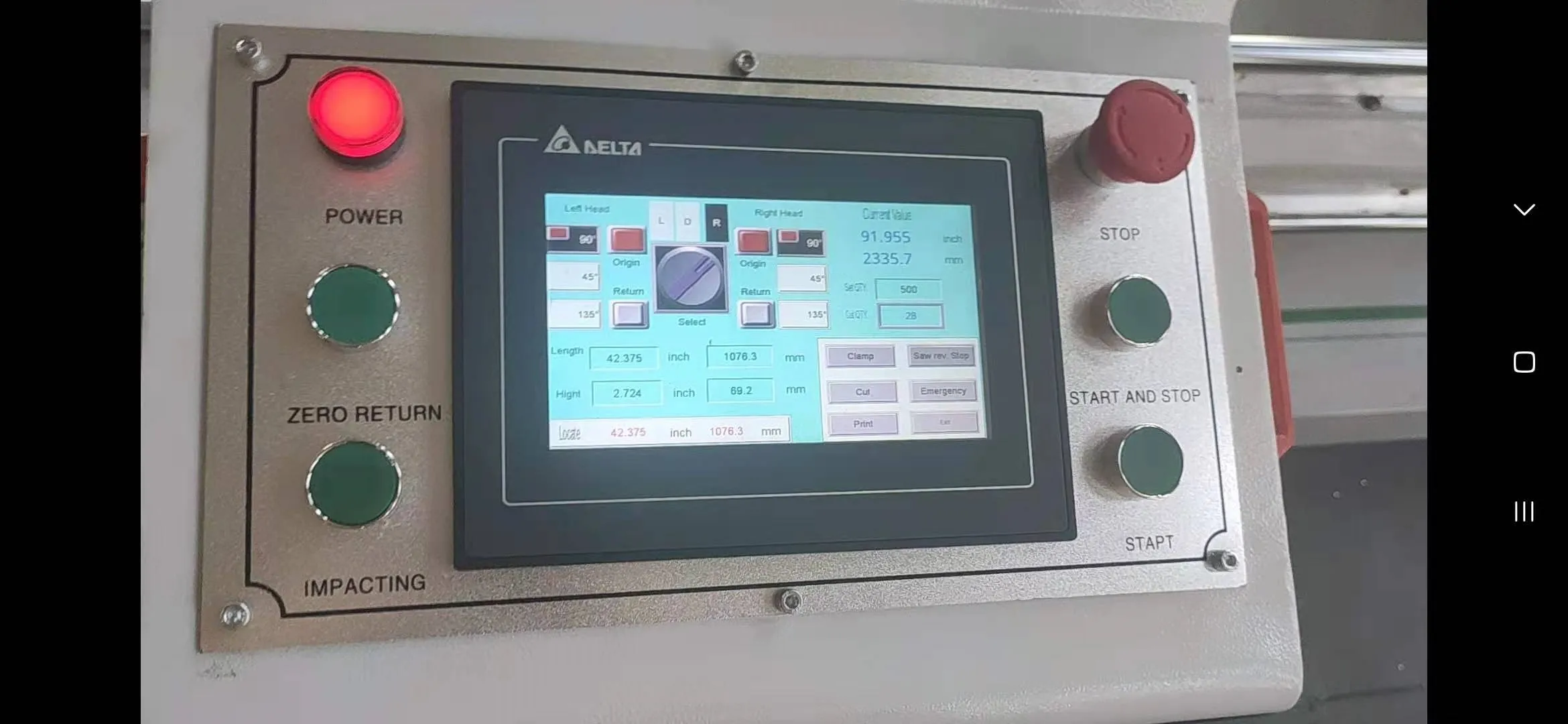

CNC control system
Achieve various profiles automatic cutting off

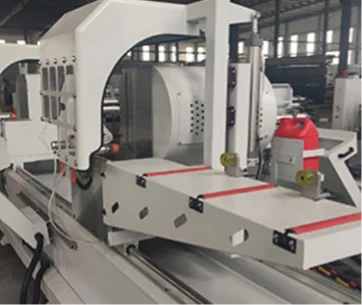

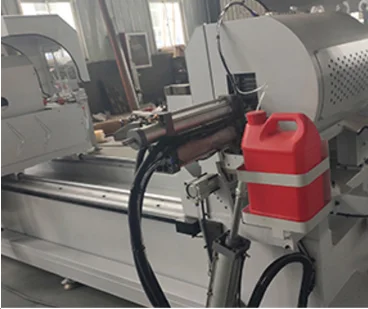

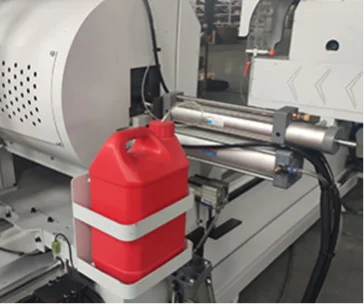

AIRDRAULIC DAMPING CYLINDER
Ensure uniform speed feeding and smooth operation
Functions of 45degree /90 degree ultra short and ultra long profile cutting
Feeding system adopts imported linear guide pair,with high accuracy and stability
Product featues
1, Used for cutting of aluminum and PVC profiles;
2, CNC controlling system, achieve various profiles automatic cutting off;
3, Adopt airdraulic damping cylinder, ensure uniform speed feeding and smooth operation;
4, High accuracy main spindle and saw blade rotate smoothly;
5, Color touching display interface;
6, Feeding system adopts imported linear guide pair, with high accuracy and stability;
7, Optional 45°, 90°and 135°cutting;
8, Functions of 45°/90° ultra short and ultra long profile cutting;
2, CNC controlling system, achieve various profiles automatic cutting off;
3, Adopt airdraulic damping cylinder, ensure uniform speed feeding and smooth operation;
4, High accuracy main spindle and saw blade rotate smoothly;
5, Color touching display interface;
6, Feeding system adopts imported linear guide pair, with high accuracy and stability;
7, Optional 45°, 90°and 135°cutting;
8, Functions of 45°/90° ultra short and ultra long profile cutting;
