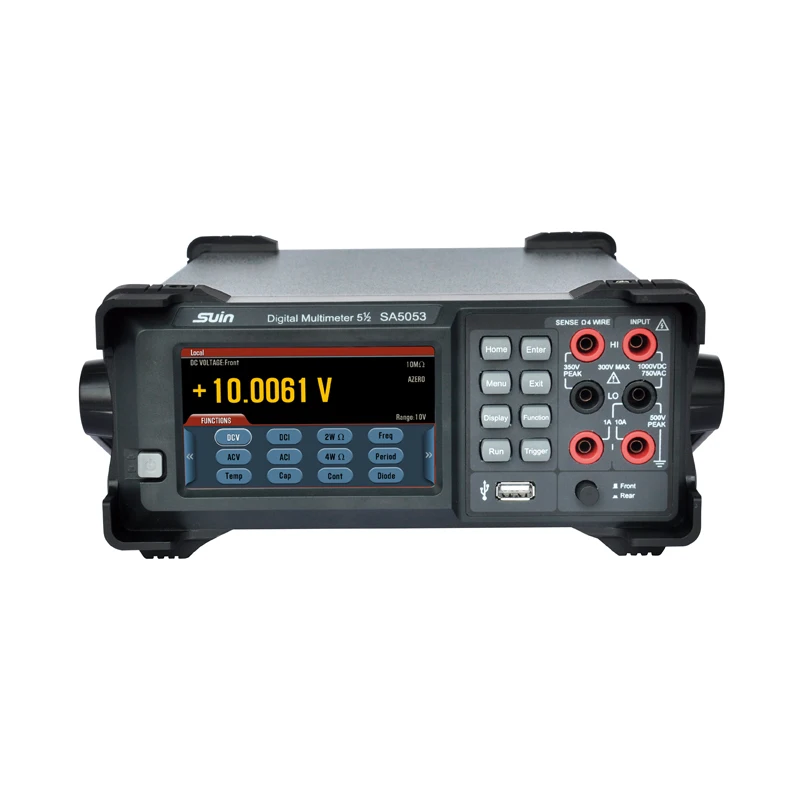

factory price Suin SA5053 benchtop lcd digital multimeter with auto range
- Category: >>>
- Supplier: Shijiazhuang Suin Instruments Co. Ltd.
Share on (1600649936025):
Product Overview
Description
Product Description
Features
* Real 5½ digits readings resolution (119999 counts).
* 1 μV resolution
* True-RMS AC Voltage and AC Current measuring.
* 4.3-inch color LCD touch screen with double display for easy viewing.
* Two sets of input interfaces front and rear, which provides convenience to arrange wires.

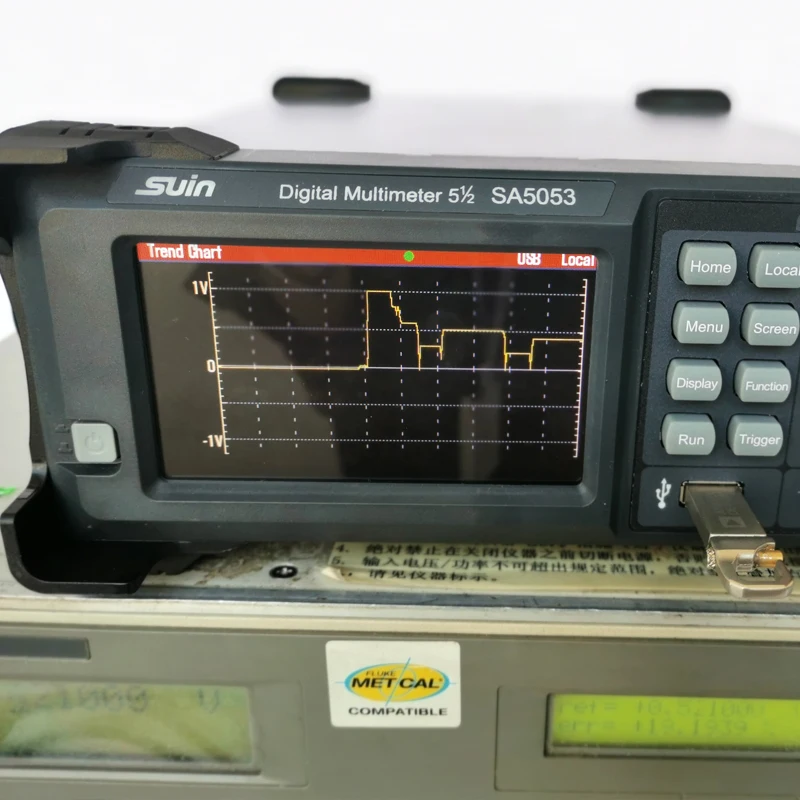

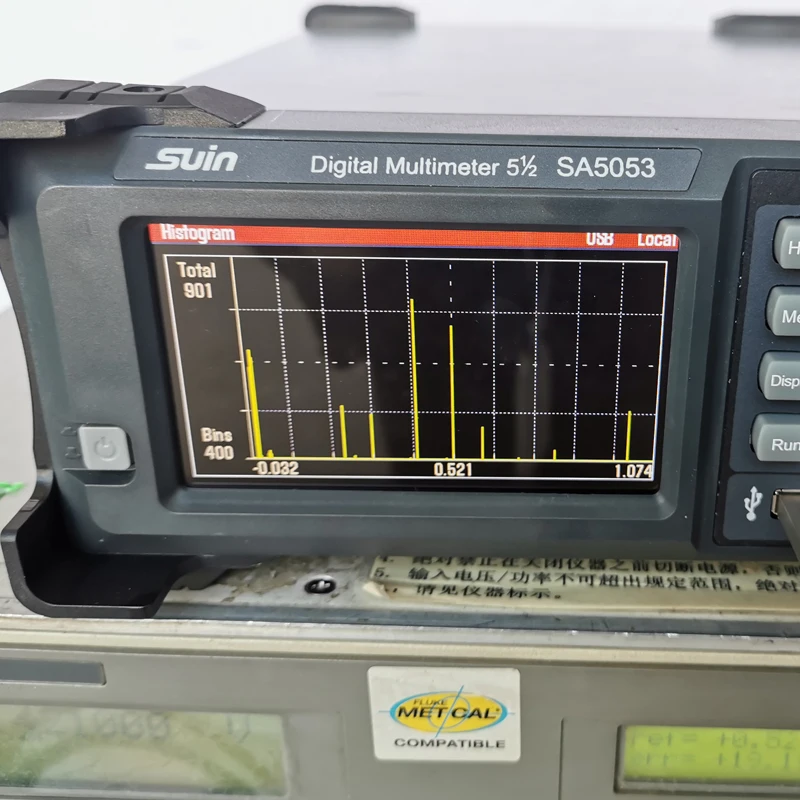

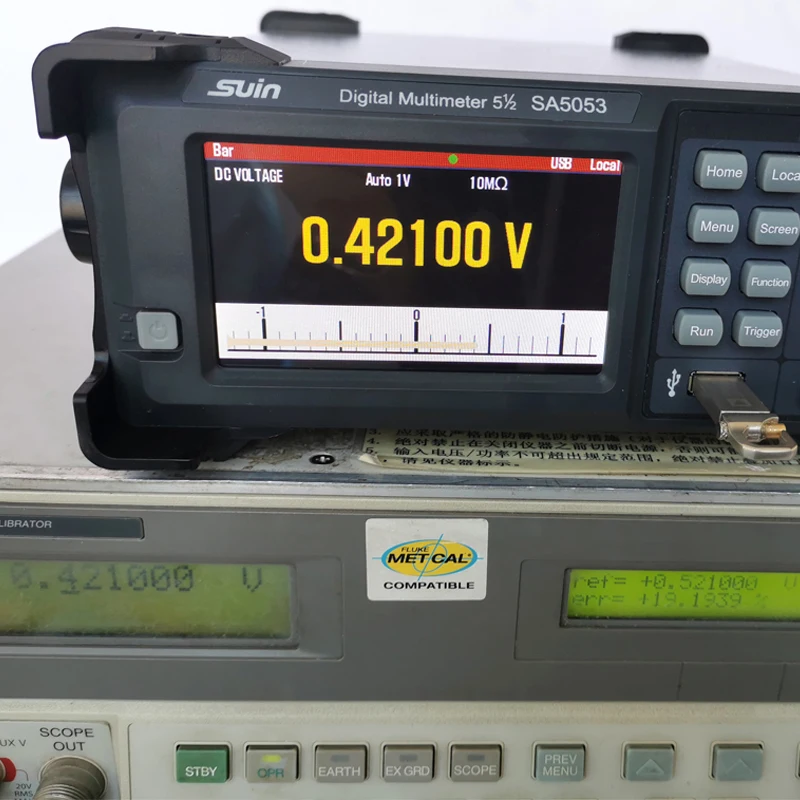

* In addition to numerical data display, it also features histograms, trend charts, bar charts, and statistics functions.
* 1 μV resolution
* True-RMS AC Voltage and AC Current measuring.
* 4.3-inch color LCD touch screen with double display for easy viewing.
* Two sets of input interfaces front and rear, which provides convenience to arrange wires.
* In addition to numerical data display, it also features histograms, trend charts, bar charts, and statistics functions.
Specification
5 1/2 digits | ||||
Basic Function | Range | Best Accuracy ± (% reading + % range) | ||
DC Voltage | 100mV/1V/10V/100V/1000V | ± (0.012 +0.005) | ||
AC Voltage | 100mV/1V/10V/100V/750V | ± (0.2 + 0.1) | ||
DC Current | 100µA/1mA/10mA/100mA/1A/10A | ± (0.05+0.007) | ||
AC Current | 100µA/1mA/10mA/100mA/1A/10A | ± (0.5+0.1) | ||
Resistance | 100Ω/1KΩ/10KΩ/100KΩ/ | ± (0.03+0.005) | ||
1MΩ/10MΩ/100MΩ | ||||
Capacitance | 1nF/ 10nF/ 100nF/1µF/10µF/100µF | ± (0.2+0.5) | ||
Frequency | 5Hz-1MHz | ± 0.02 | ||
Temperature | - 200℃~ 800℃ | ± 0.2℃(without accuracy of probe) | ||
Features | ||||
Reading Rate | 500 reading/s | |||
Auto Range | ● | |||
Diode | ● | |||
Continuity | ● | |||
Trigger | ● | |||
Save/Read | ● | |||
Math | MAX/MIN,Rel,dB, dBm,Limit,Statistic | |||
General Characteristics | ||||
Safety | IEC61010-1: 2001, CAT Ⅰ 1000V/CAT Ⅱ 600V, Class of pollution: 2 | |||

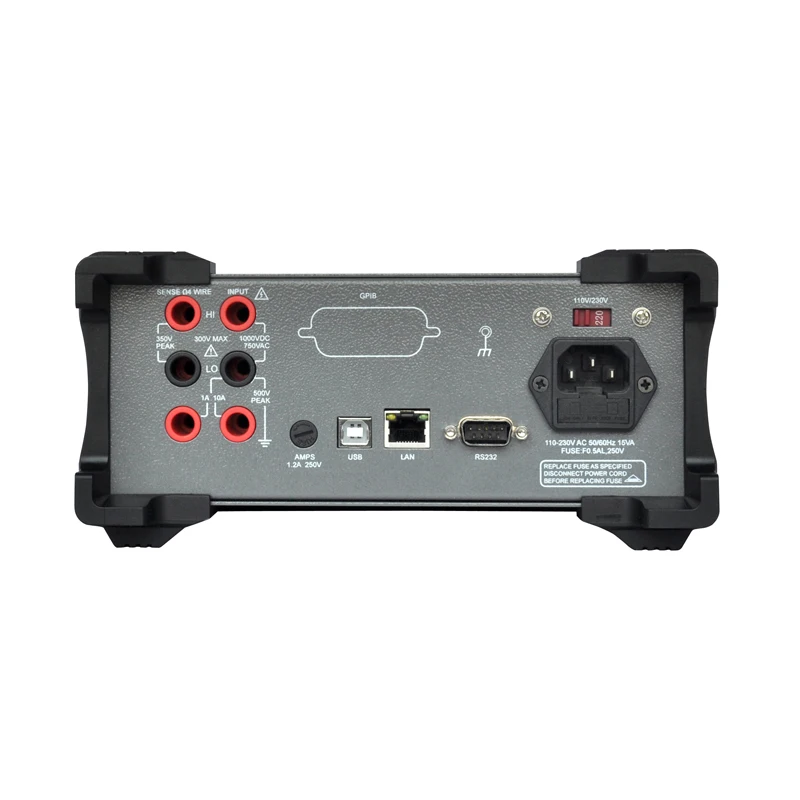

Interface | USB Host, USB Device,RS-232,LAN, GBIP (optional) | |||
Power | 115 V/230 V (1±10%), 50 Hz/60 Hz, 15 VA | |||
Dimension & Weight | 256х106х322 mm, 3.5 kg | |||

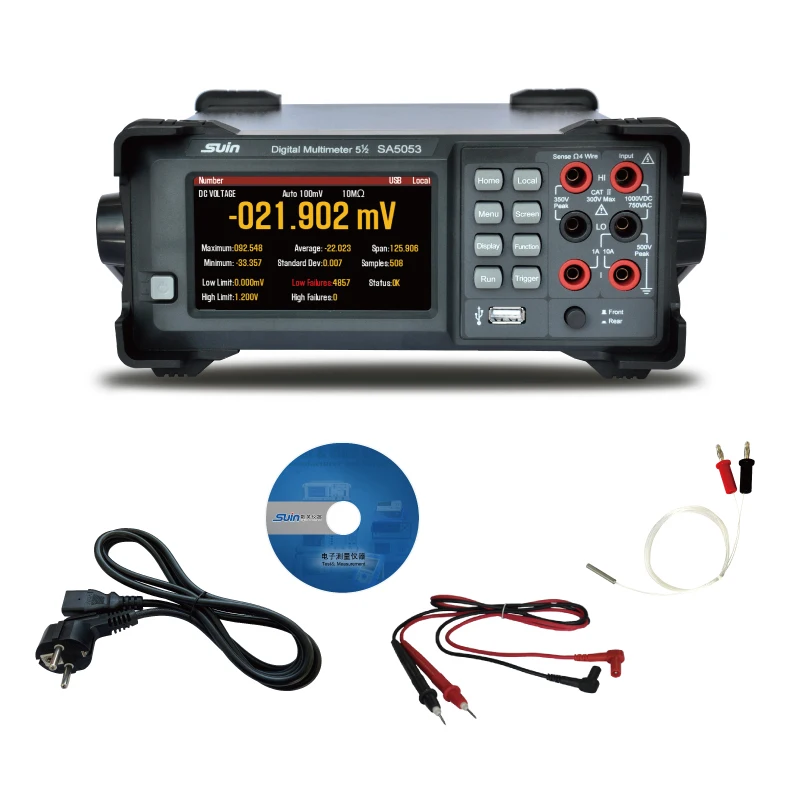

Standard Accessories | Power Cord | 1 piece | ||
Test Lead Kit | 1 piece | |||
Temperature Probe | 1 piece | |||
CD(User's Guide+PC software) | 1 piece | |||
Packing & Delivery
Company Profile
SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.
Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.
Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.
FAQ
1. who are we?
We are based in Hebei, China, start from 1990,sell to Eastern Europe(50.00%),Western Europe(22.00%),South America(12.00%),Southeast Asia(6.00%),South Asia(5.00%),Eastern Asia(3.00%),North America(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
power quality analyzer,signal generator,frequency counter,DC power supply,millivolt meter
4. why should you buy from us not from other suppliers?
Suin is a high-tech company who has passed the ISO9001:2015 international quality management system certification and get many practical new type innovations, appearance design patent and software copyright. Strong R&D team and professional production line
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,German,French
We are based in Hebei, China, start from 1990,sell to Eastern Europe(50.00%),Western Europe(22.00%),South America(12.00%),Southeast Asia(6.00%),South Asia(5.00%),Eastern Asia(3.00%),North America(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
power quality analyzer,signal generator,frequency counter,DC power supply,millivolt meter
4. why should you buy from us not from other suppliers?
Suin is a high-tech company who has passed the ISO9001:2015 international quality management system certification and get many practical new type innovations, appearance design patent and software copyright. Strong R&D team and professional production line
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,German,French
