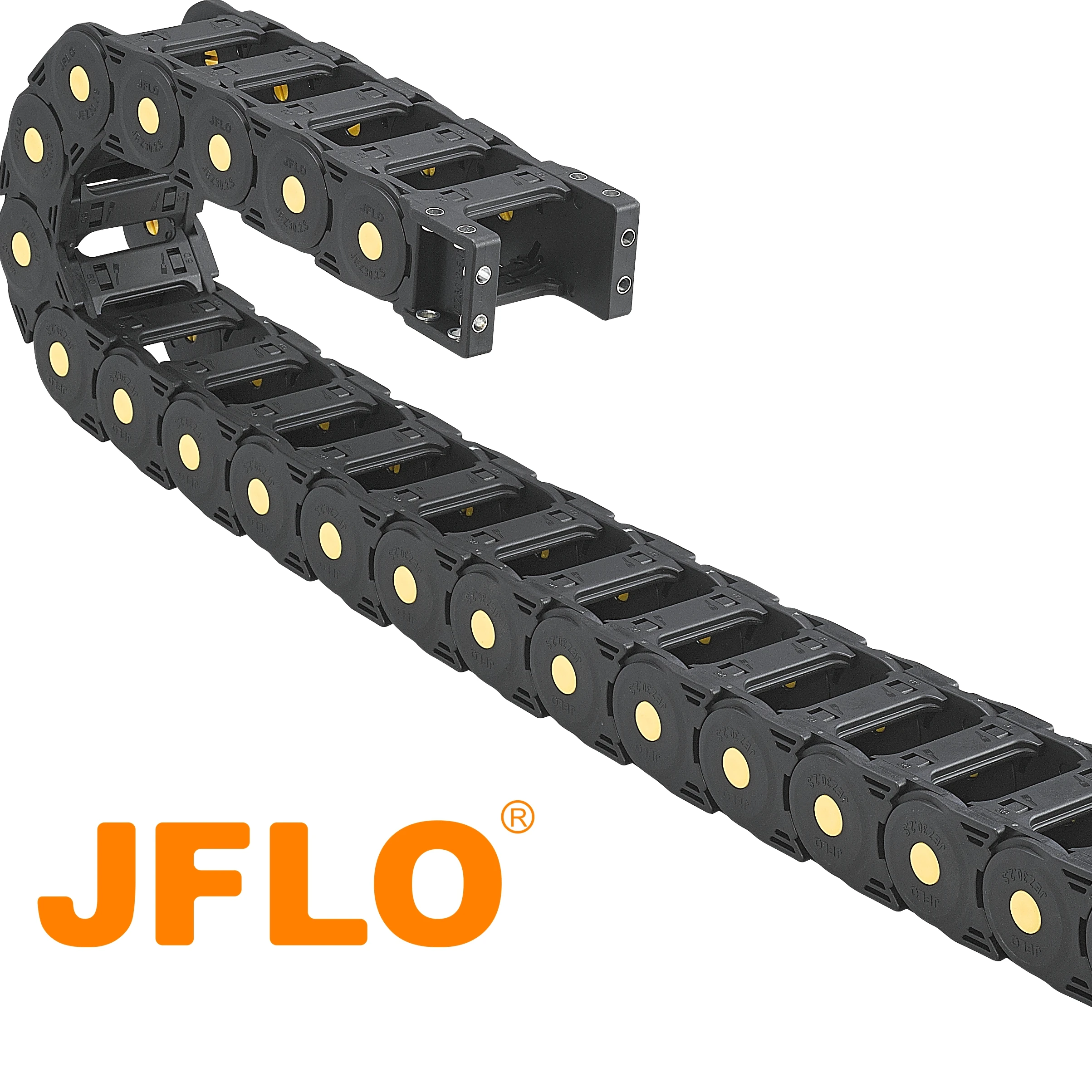

Цепь JFLO для перетаскивания моста, кабельная носитель серии JEZ30Q.2, защита кабеля лотка высотой 30 мм
Цепь JFLO для перетаскивания моста, кабельная носитель серии JEZ30Q.2, защита кабеля лотка высотой 30 мм
Цепь JFLO для перетаскивания моста, кабельная носитель серии JEZ30Q.2, защита кабеля лотка высотой 30 мм

Цепь JFLO для перетаскивания моста, кабельная носитель серии JEZ30Q.2, защита кабеля лотка высотой 30 мм

Share on (1600649968427):


Price:

Quantity:


Product Overview

Description









P/N#
Hi
Bi
Ha
Ba
Bending Radius
Bracket P/N #
JEZ30Q.2.25S
30
25
45
44.2





R55
R75
R100
R125
R150
JEZ30Q.2.25S-FJT
JEZ30Q.2.38S
30
38
45
57.2

JEZ30Q.2.25S-FJT
JEZ30Q.2.50S
30
50
45
69.2

JEZ30Q.2.25S-FJT
JEZ30Q.2.57S
30
57
45
76.2

JEZ30Q.2.25S-FJT
JEZ30Q.2.60S
30
60
45
79.2

JEZ30Q.2.25S-FJT
JEZ30Q.2.75S
30
75
45
94.2

JEZ30Q.2.25S-FJT
JEZ30Q.2.77S
30
77
45
96.2

JEZ30Q.2.25S-FJT
JEZ30Q.2.100S
30
100
45
119.2

JEZ30Q.2.25S-FJT
JEZ30Q.2.103S
30
103
45
122.2

JEZ30Q.2.25S-FJT
JEZ30Q.2.125S
30
125
45
144.2

JEZ30Q.2.25S-FJT
BASIC TECHNICAL DATA
PITCH=46MM, PER METER=22 LINKS, LENGTH OF CHAIN=S/2+K, S=Stroke

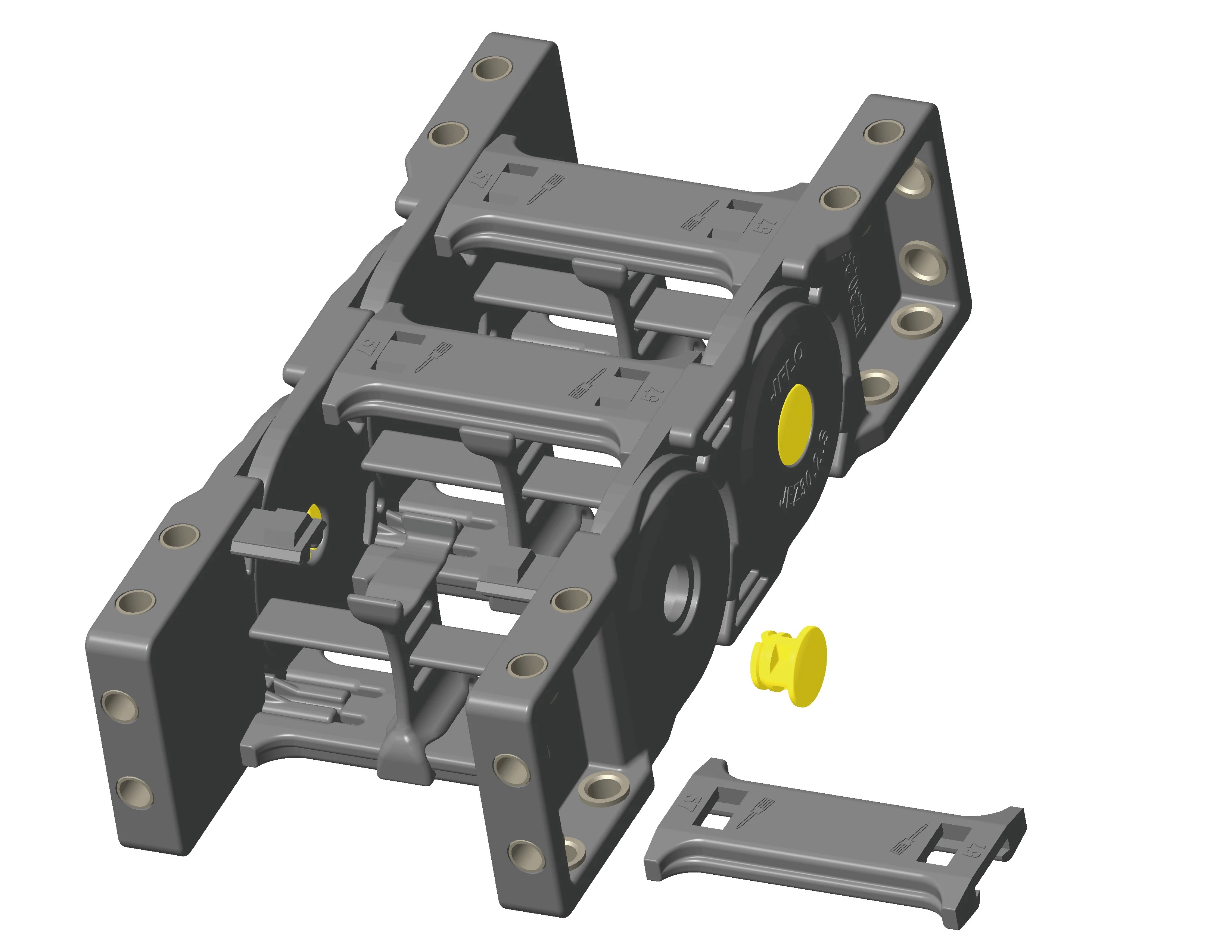

Main Body details and Separate Shim( Vertical Shim) Pictures are as below.
The unit price shown are not including bracket or any shims.
If you need further more information about Horizon Shim or others, please feel free to contact with us by mail.








Company Profile












Packing & Warehouse




Recommend Products




FAQ




1. How to select the size of the products?
For the cable drag chain, please inform us the Hi(inner height)*Bi(inner width) and bending radius, and also length is required. Also if possible, please inform us the objects(machines) you are used for, so that we will suggest the most suitable for you.

2. What is the main material of the products?
Our cable drag chain is made by PA66,coolant hose is made by POM( Dupont), and for bellows cover can be made by many different material functionally.

3. How long is your delivery?
Our mainly products are on stock, we can provide 3-7days fast delivery.
