Transparente Ecran Rouleau Pantalla Foldeable Led Film Indoor Ultra Thin Lcd Video Wall Screen Transparent 2.5mm 6mm 10000 Hours
- Category: >>>
- Supplier: Shanghai Values Glass Co. Ltd.
Share on (1600649998237):
Product Overview
Description
Product Parameters

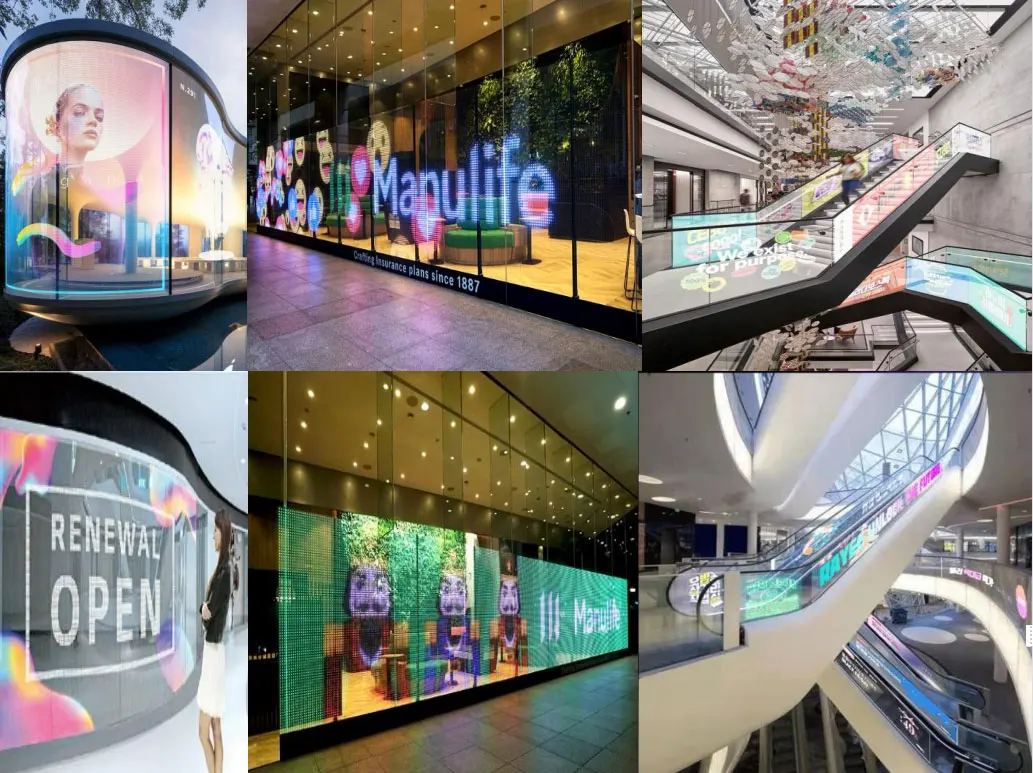

Application
Specification
Model | P6 | P6.25 | P8 | P10 | P15 | P20 |

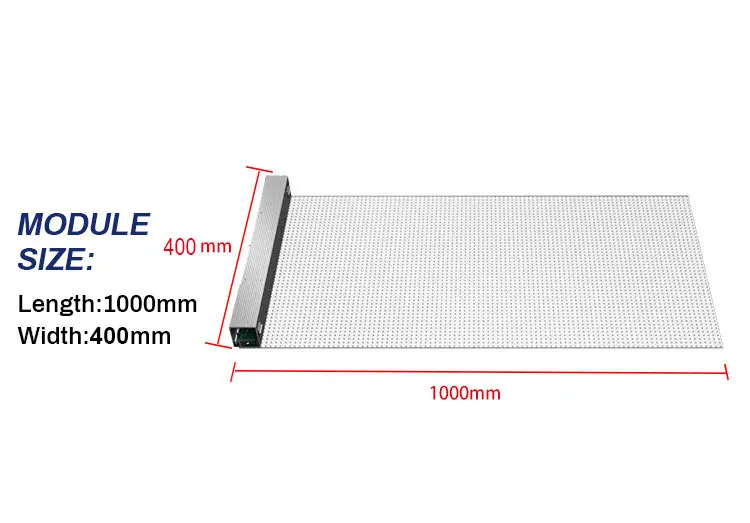

Module size (mm) | 816*384 | 1000*400 | 1000*400 | 1000*400 | 990*390 | 1000*400 |
LED light | REE1515 | REE1515 | REE1515 | REE1515 | REE2022 | REE2022 |
Pixel composition | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 |
Pixel spacing (mm) | 6*6 | 6.25*6.25 | 8*8 | 10*10 | 15*15 | 20*20 |
Module pixel | 136*64=8704 | 160*40=6400 | 125*50=6250 | 100*40=4000 | 66*26=1716 | 50*20=1000 |
Pixel/m2 | 27777 | 25600 | 16500 | 10000 | 6625 | 2500 |
Brightness | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 |
Permeability | 90% | 90% | 92% | 94% | 94% | 95% |
Angle of view ° | 160 | 160 | 160 | 160 | 160 | 160 |
Input voltage | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz |
Peak power | 400w/㎡ | 600w/㎡ | 400w/㎡ | 400w/㎡ | 400w/㎡ | 400w/㎡ |
Average power | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ |
Work environment | Temperature - 20~55 Humidity 10-90% | Temperature - 20~55 Humidity 10-90% | Temperature - 20~55 Humidity 10-90% | Temperature - 20~55 Humidity 10-90% | Temperature - 20~55 Humidity 10-90% | Temperature - 20~55 Humidity 10-90% |
Weight | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
Thickness | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm |
Drive mode | static state | static state | static state | static state | static state | static state |

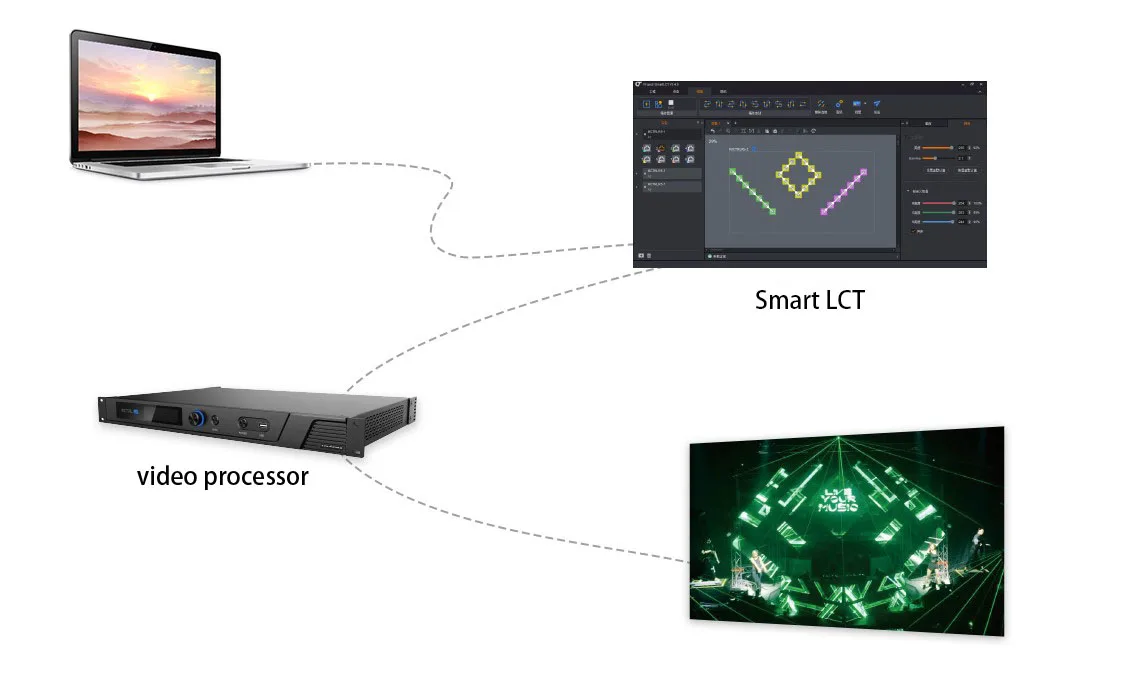

Control system | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight |
Typical value of life | 100000H | 100000H | 100000H | 100000H | 100000H | 100000H |
Grayscale level | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
Refresh rate | 3840Hz | 3840 Hz | 3840 Hz | 3840Hz | 3840 Hz | 3840 Hz |
Company Profile
About us
FAQ
1. who are we?
We are based in Shanghai, China, start from 2014,sell to North America(40.00%),Eastern Europe(15.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Southern Europe(5.00%),Central America(5.00%),Mid East(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),South Asia(2.00%). There are total about 5-10 people in our office.
2. How to install？

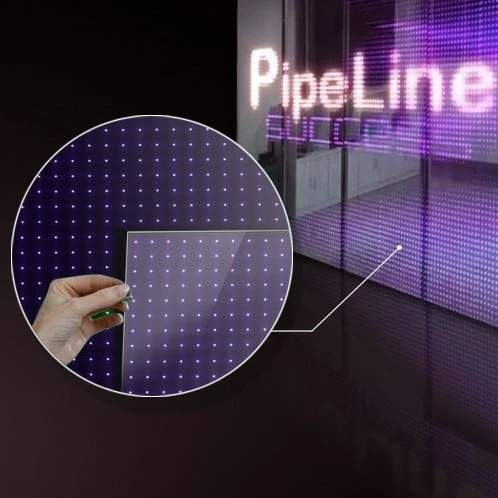

Without steel structure, just stick the thin screen slightly and connect the power signal.

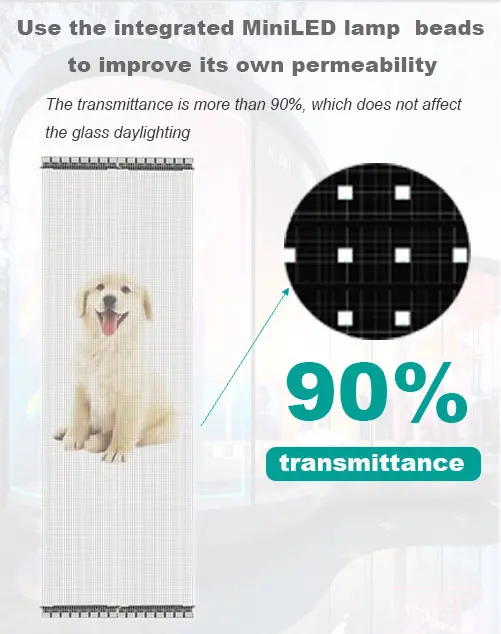

3.What about product transparency？
The transmittance is more than 90%, which does not affect the glass daylighting.
4. why should you buy from us not from other suppliers?
The combination of light and drive, independent research and development, high reliability, industry leading.
Flame retardant and UV resistant.
5. How long is the warranty period？
If the product is broken due to non-human factors, it can be guaranteed within 1 year
We are based in Shanghai, China, start from 2014,sell to North America(40.00%),Eastern Europe(15.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Southern Europe(5.00%),Central America(5.00%),Mid East(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),South Asia(2.00%). There are total about 5-10 people in our office.
2. How to install？
Without steel structure, just stick the thin screen slightly and connect the power signal.
3.What about product transparency？
The transmittance is more than 90%, which does not affect the glass daylighting.
4. why should you buy from us not from other suppliers?
The combination of light and drive, independent research and development, high reliability, industry leading.
Flame retardant and UV resistant.
5. How long is the warranty period？
If the product is broken due to non-human factors, it can be guaranteed within 1 year
