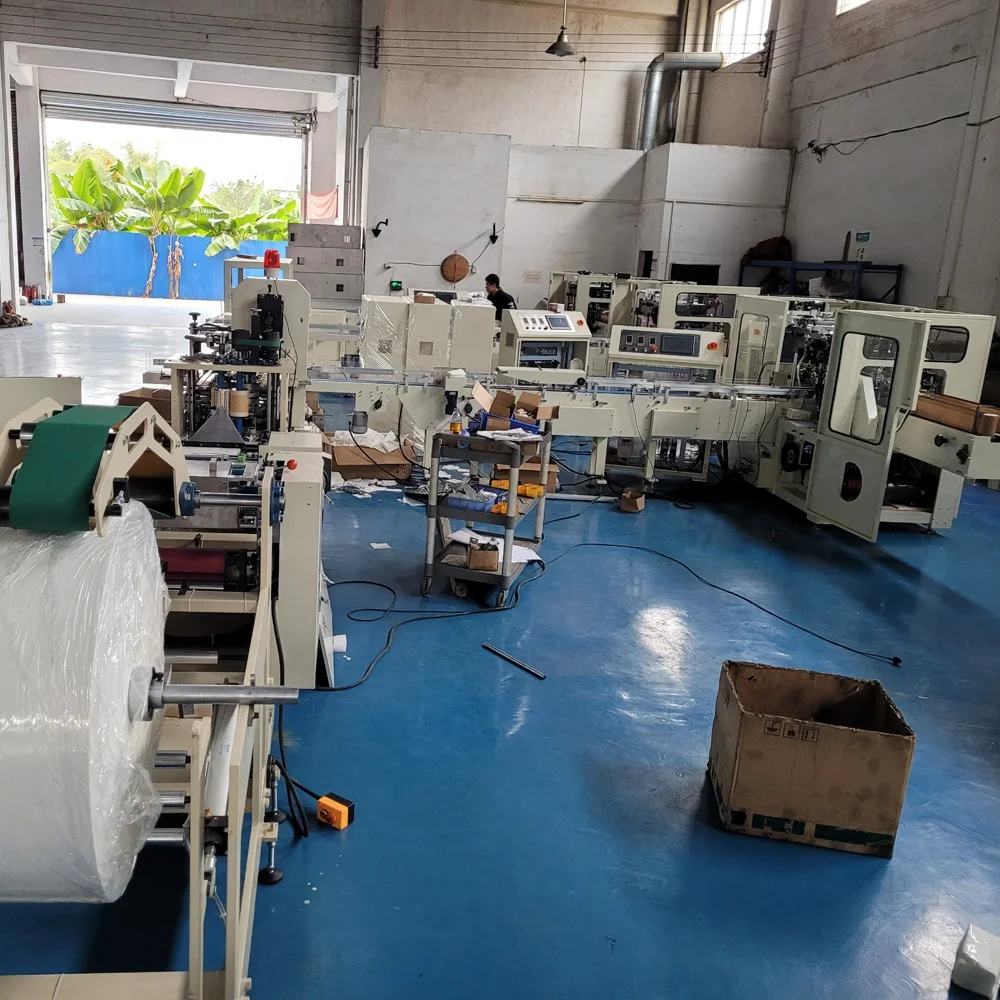

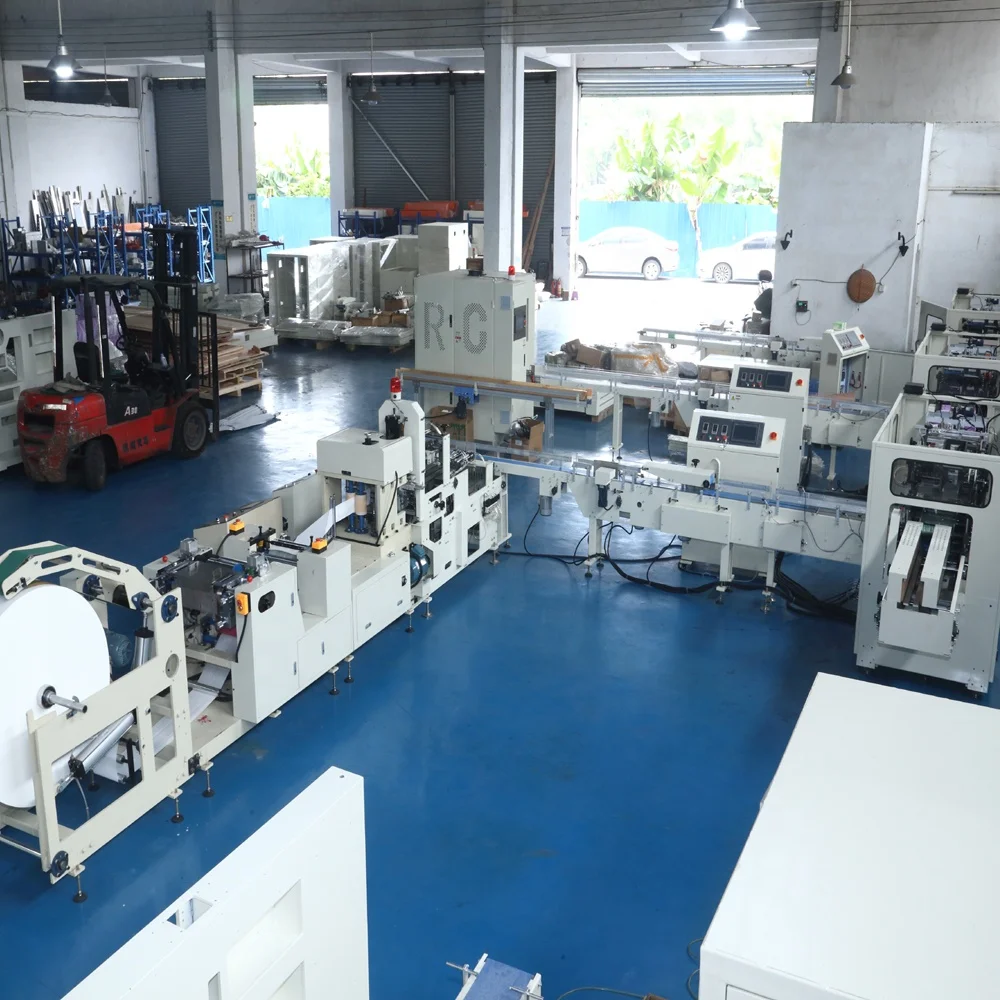

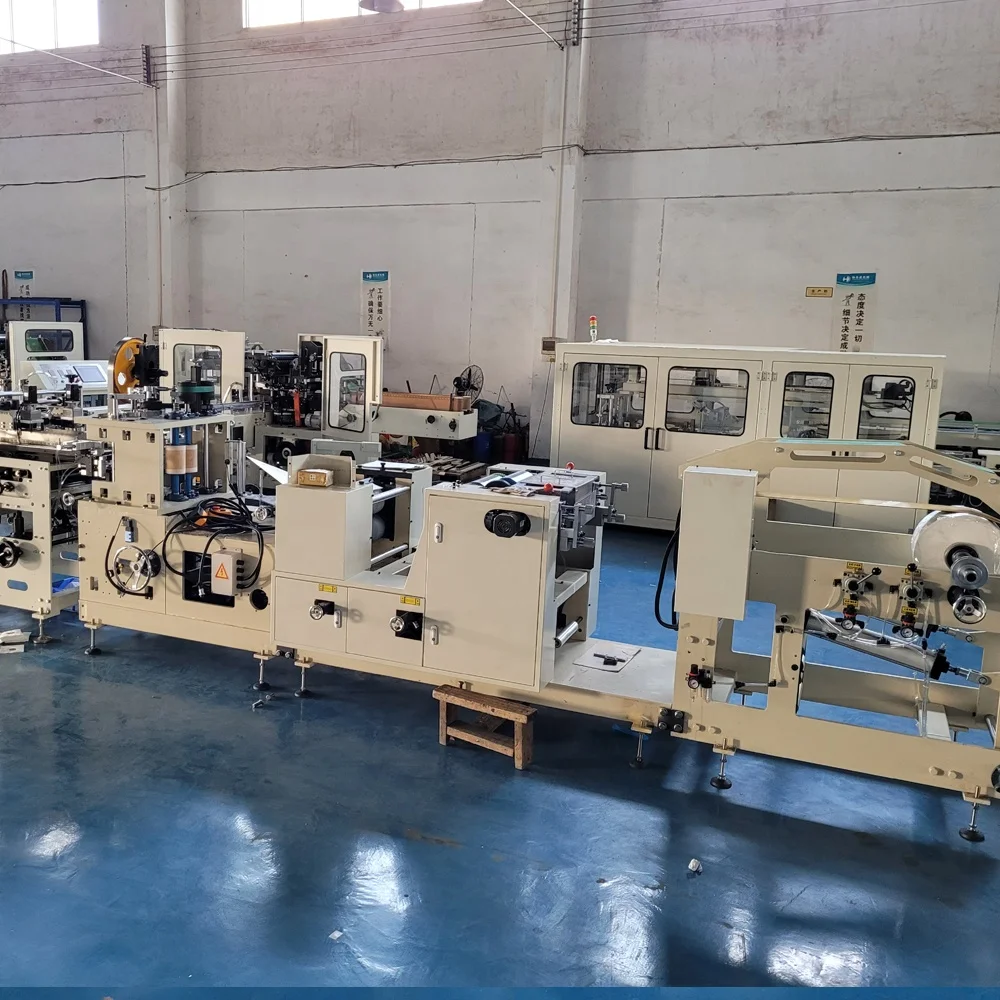

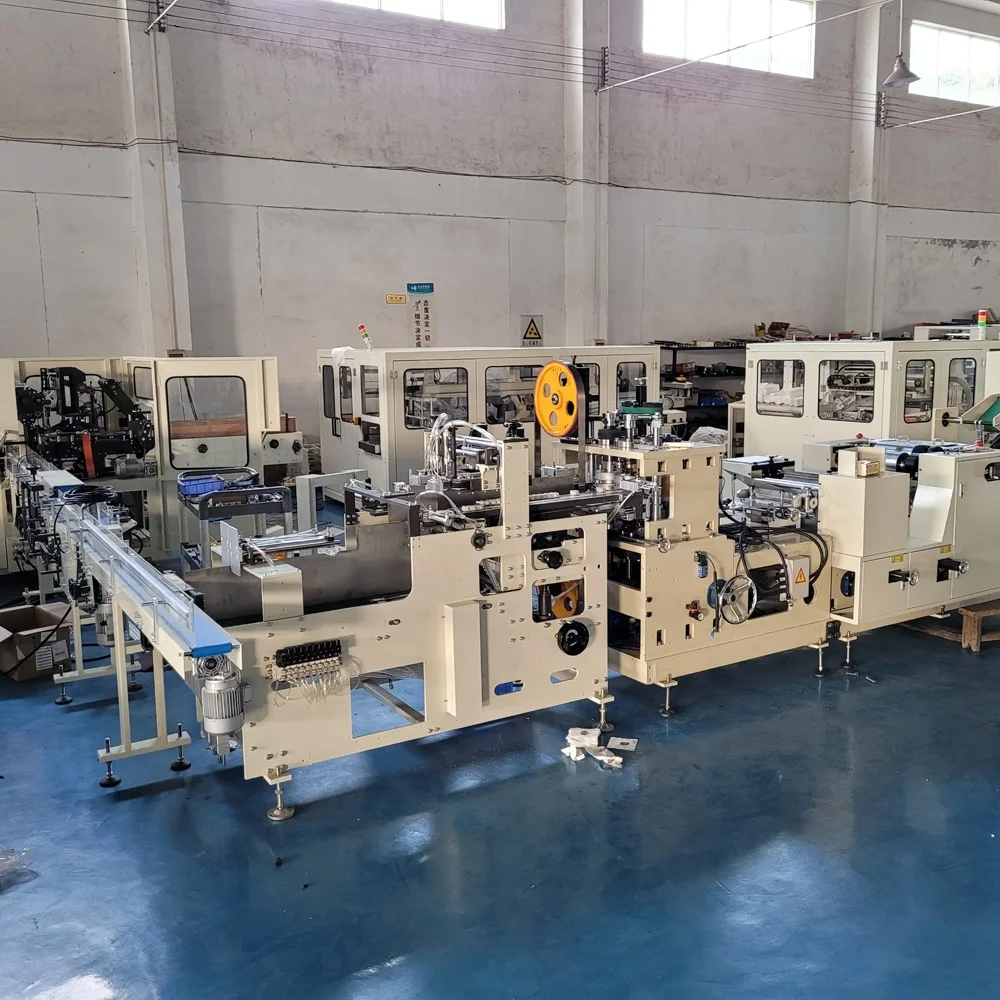

33x33 Fully Automatic Napkin Tissue Paper Machine Production Line
33x33 Fully Automatic Napkin Tissue Paper Machine Production Line
33x33 Fully Automatic Napkin Tissue Paper Machine Production Line
33x33 Fully Automatic Napkin Tissue Paper Machine Production Line
33x33 Fully Automatic Napkin Tissue Paper Machine Production Line
33x33 Fully Automatic Napkin Tissue Paper Machine Production Line
33x33 Fully Automatic Napkin Tissue Paper Machine Production Line

33x33 Fully Automatic Napkin Tissue Paper Machine Production Line

Share on (1600650021920):


Price:$61,750.00 - $66,500.00

Quantity:


Product Overview

Description



Products Description

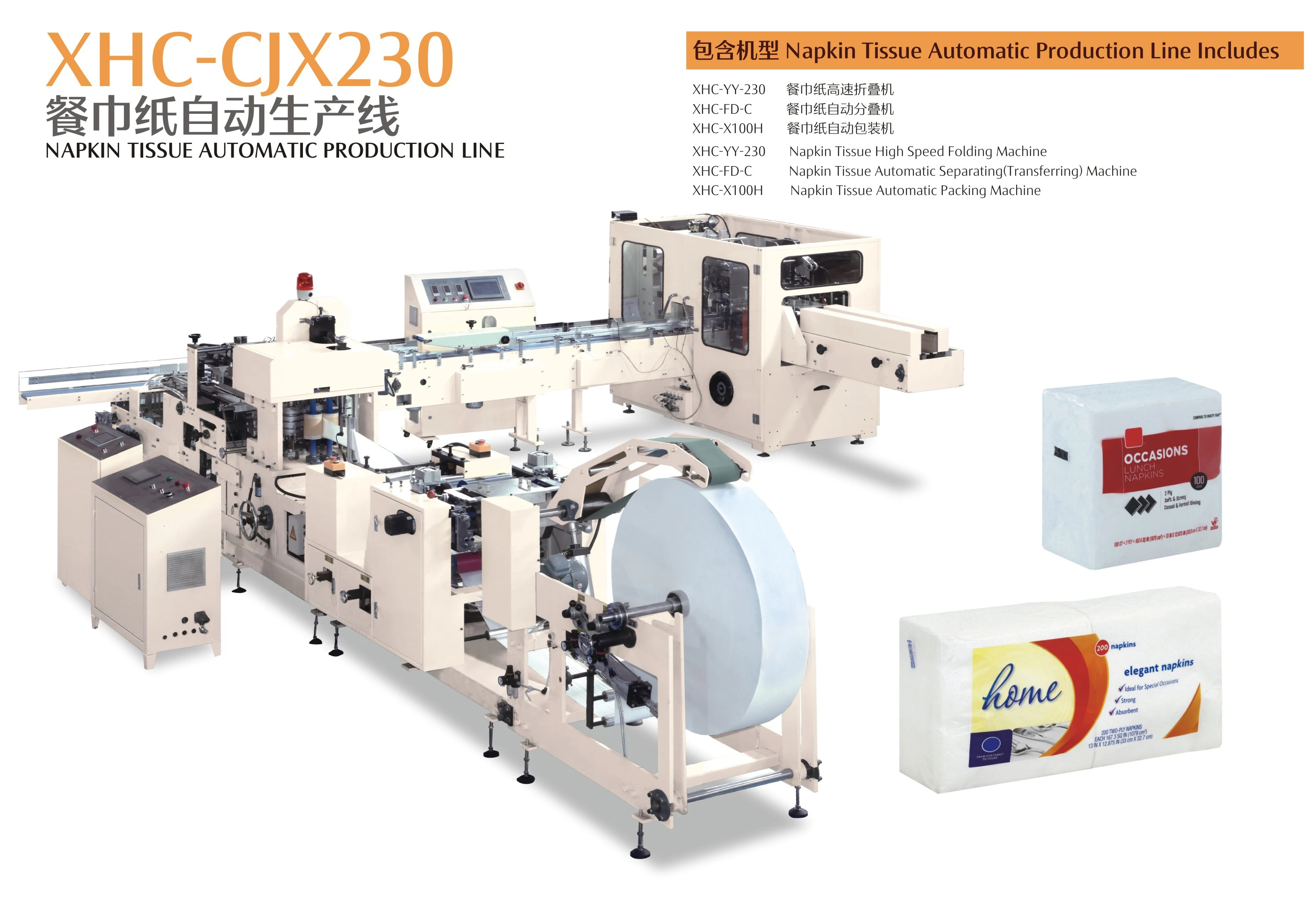

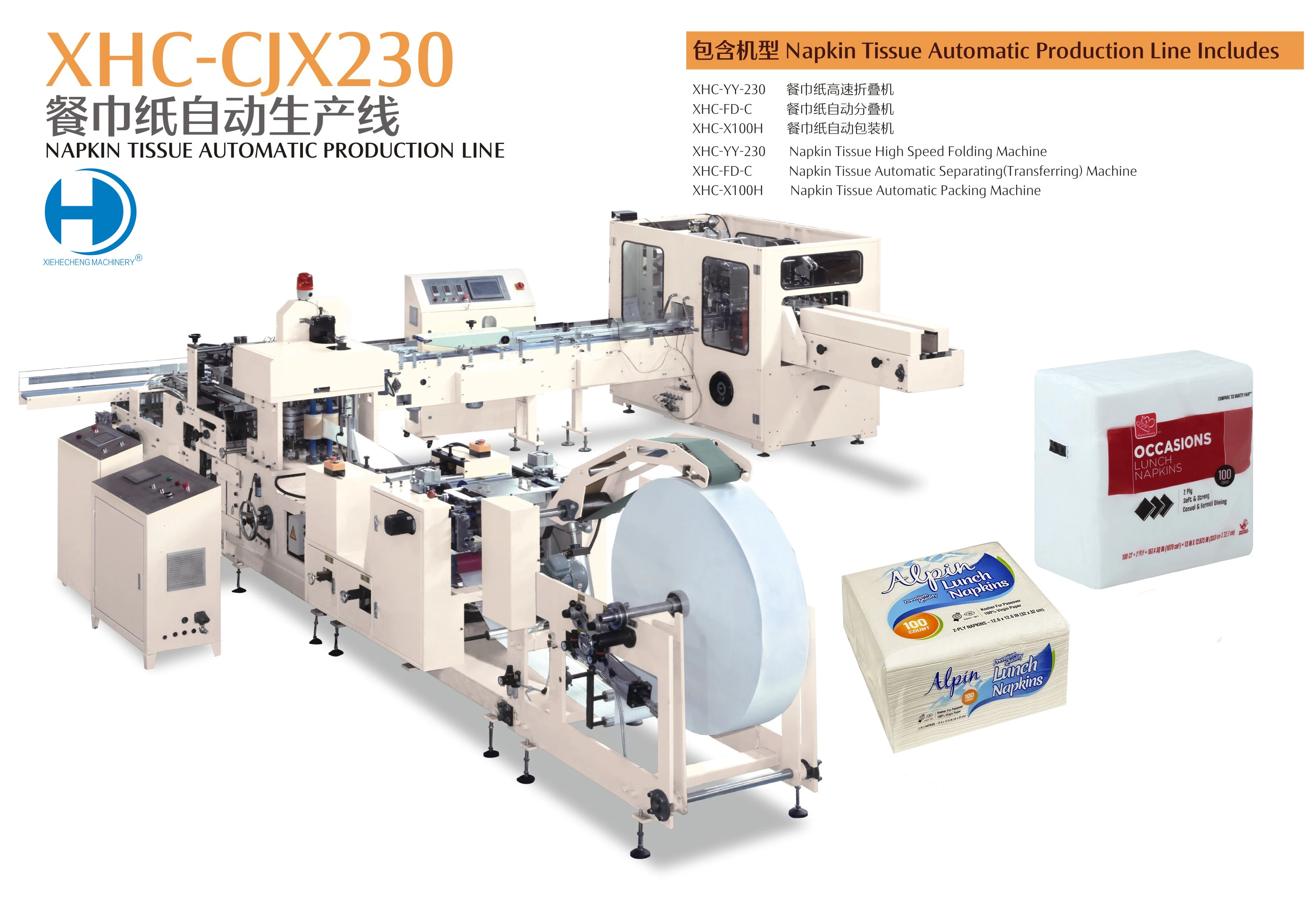

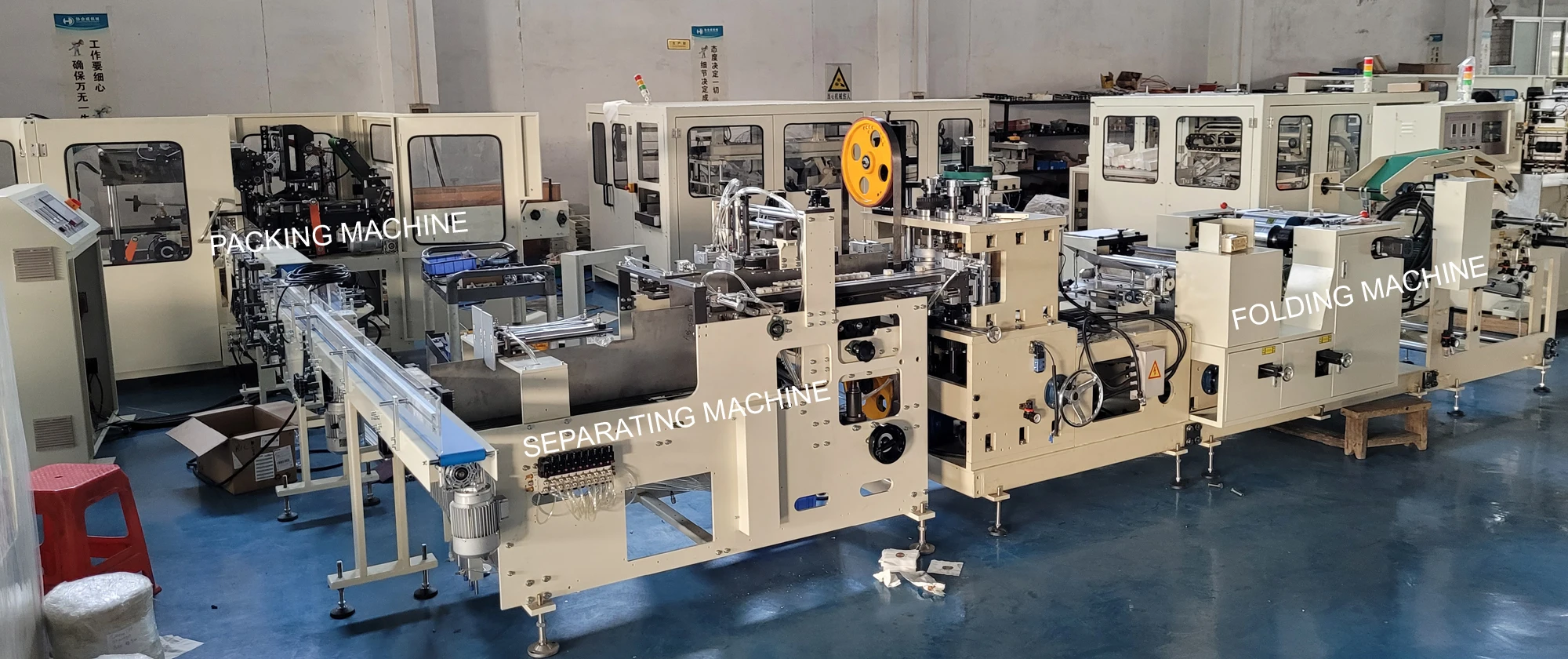

Automatic Serviette Napkin Tissue Paper Production Line Introduction
1: Automatic production process to improve production efficiency and reduce labor cost.
2: Imported photoelectric sensor to make the action is more precise and smooth.
3: PLC programmable controller to realize adjustment control of frequency conversion and multi touch screen operation system.
4: Europe design automatic separating(transferring) machine, it counts the napkin tissue quantity precisely.
5: Tissue paper feeding and film feeding are tracked by photoelectric sensor, no tissue paper feeding, then no film feeding, it avoids material waste.
6: The stop function of tissue paper jam can protect the equipment well and reduce the loss of material.
7: The packaging module can be adjusted in automatic packing machine, it's easy for the changes of product specifications.






Specification

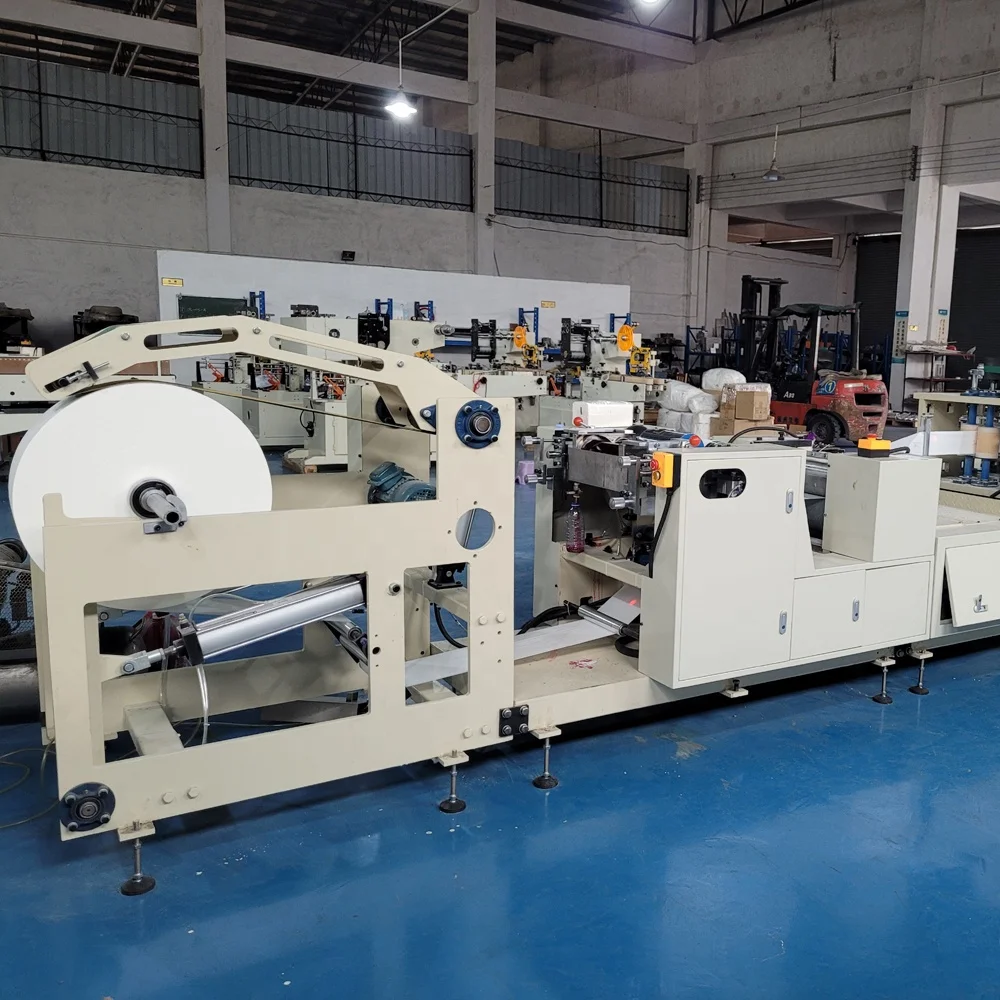

Napkin Tissue High Speed Folding Making Machine
Width of Jumbo Roll Paper
Dia. Of Jumbo Roll Paper
Folding Way
Embossing
Making Speed
 Total Power
230mm
240mm/260mm/280mm
300mm/330mm/400mm
≤ 1200mm
1/4 , 1/6, 1/8 Fold
Steel to Rubber/Wool
800~1500 sheets/min
7 kw
1/4 Folding Size
Counting Way
Machine Size
Machine Weight
Power Source
Air Pressure
115*115mm
120*120mm/130*130mm/
140*140mm/150*150mm/
165*165mm/200*200mm
50~100 sheets/time
L4479*W1250*1690mm
About 2500 KGS
380V 50~60Hz
0.5~0.8Mpa


Napkin Tissue Automatic Separating(Transferring) Machine
Machine Size
Tissue Cutting Length
Separating(Transferring) Speed
Tissue Cutting Height
Total Power
Total Power
L2178*W1340*1368mm
30~230mm
0~30 bags/min; 800~1500 sheets/min
30~120mm
(Other heights can be customized)
9.92 kw
6.4 kw
Machine Weight
Trimming size
Air Pressure
Machine Weight
Power Source
Air pressure
About 3500 KGS
20~50mm
0.5~0.8Mpa
About 2000 KGS
380V 50~60Hz
0.5~0.8Mpa


Napkin Tissue Automatic Packing Machine
 Machine Size
Tissue Package Size
Packing Speed
Total Power
L3695*W6312*H1581mm
L(110~230)*W(90~150)*H(35~100)mm
(Other sizes can be customized)
10~30 bags/min;
50or100sheets/bag
9.2 kw
 Machine Weight
Package Film
Power Source
Air Pressure
About 3000 KGS
CPP, PE...etc Double-sided Heat Sealing Film
380V 50~60Hz
0.5~0.8Mpa


Packing & Delivery




Recommend Products






Company Profile












Foshan Xiehecheng Machinery Equipment Co., Ltd was found in 2005, We are specialized in manufacturing all kinds of tissue paper making & Packing machines in Foshan city of Guangdong province of China, such as pocket tissue(handkerchief tissue) making & Packing machine and production line, napkin tissue folding & Packing machine and production line, facial tissue folding & Packing machine and production line, kitechen / toilet tissue rewinding & Packing machine and production line.

We're the member of the China National Household Paper Industry Association (CPIA) and we are granted "high-tech enterprise" by the government. We have been cooperating with many big enterprises in China, such as Vinda, Xingya and huayi...etc, and we also export to North America, South America, Middle East, Asia, Africa...etc over 30 countries and regions. To meet the oversea markets requirement, we continue to upgrade ourselves and we have obtained ISO & CE certificate.

Welcome all customers around the world to visit us or contact us in any time, we are expecting to seeing you in our factory or in the international exhibitions for tissue paper, let's work together to create a brilliant future for the tissue paper industry.


Certifications




Exhibition




FAQ


1. Are you manufacturer or trading company ?
We are tissue machines manufacturer located in Foshan city of Guangdong province of China .
2. When did your factory establish ?
Our factory established in Foshan city since 2005.
3. Before where did you export your tissue machines to ?
All around the world , such as North America, South America, Europe, Asia, Middle East, Africa...etc about 30 countries.
4. What is the warranty of your tissue machines ?
One year's warranty.
5. Do you offer installation service ?
We offer on-site installation & video installation service.
6. How long is the delivery time ?
 It depends on the quantity and model, some are 15 days, some are 30 days, some are 60~100 days.
