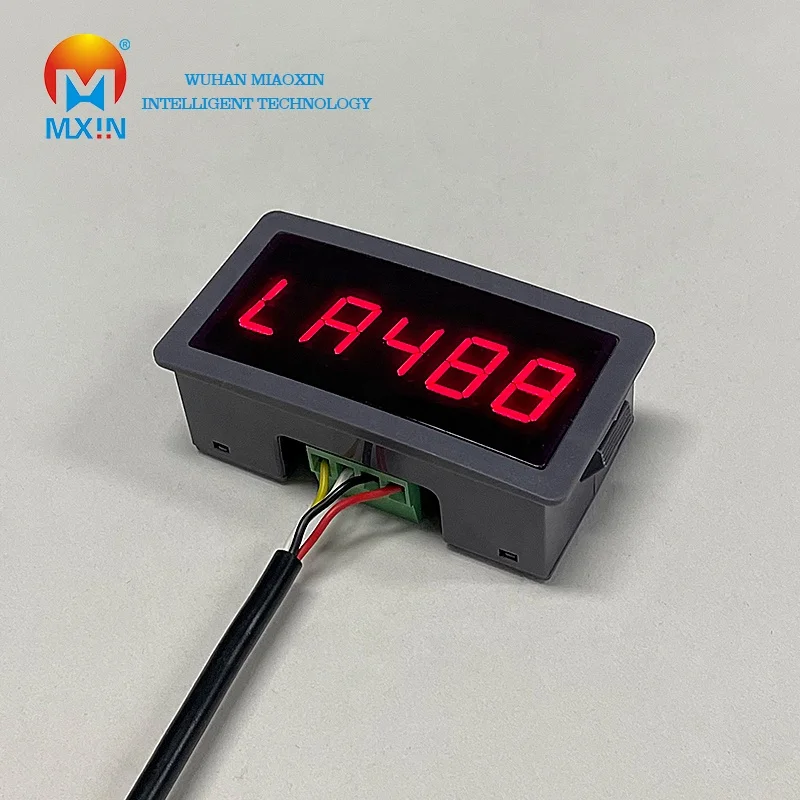

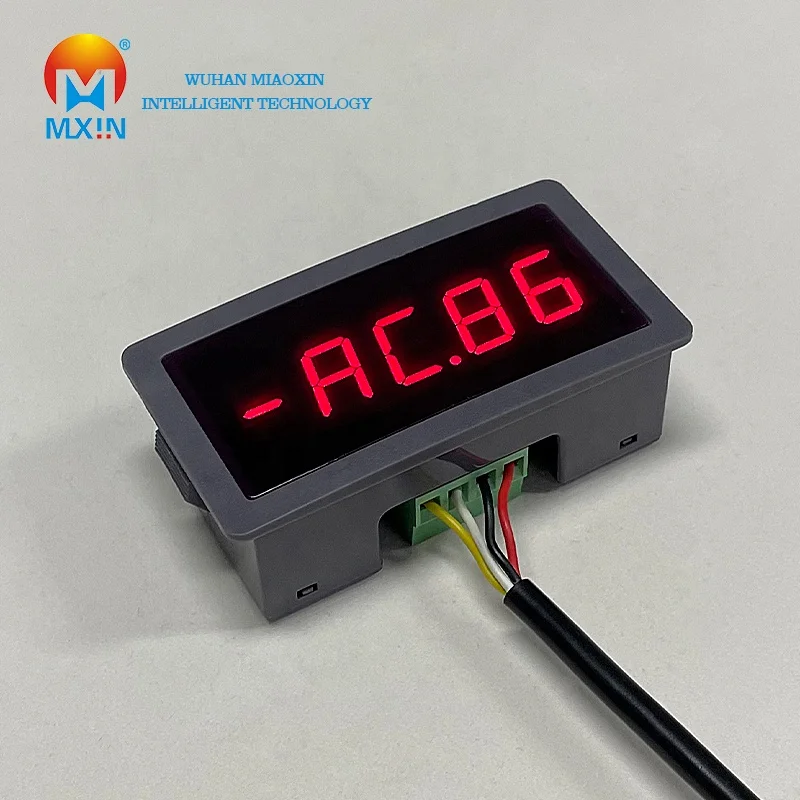

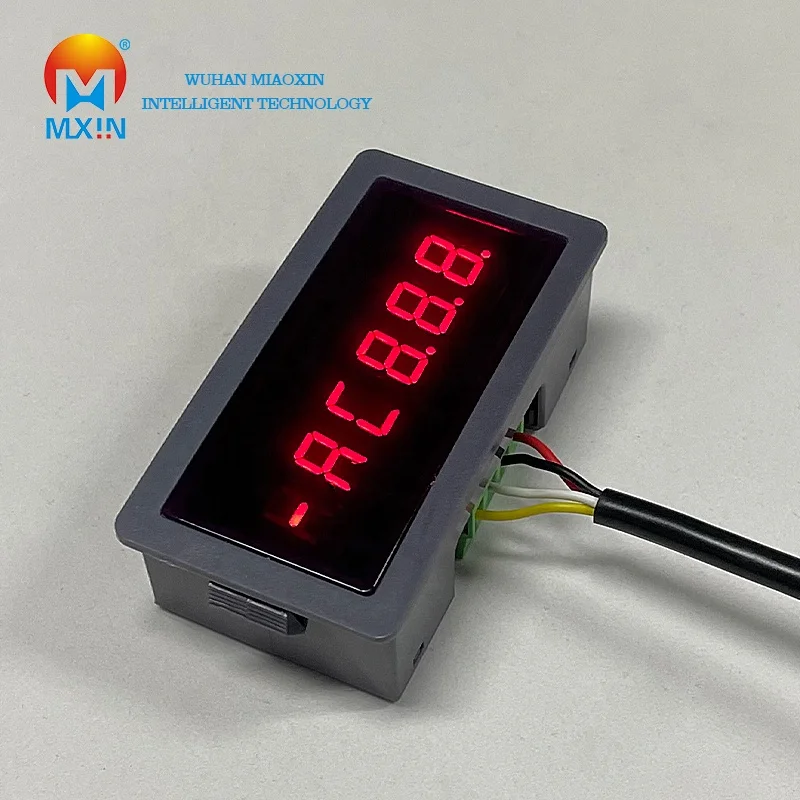

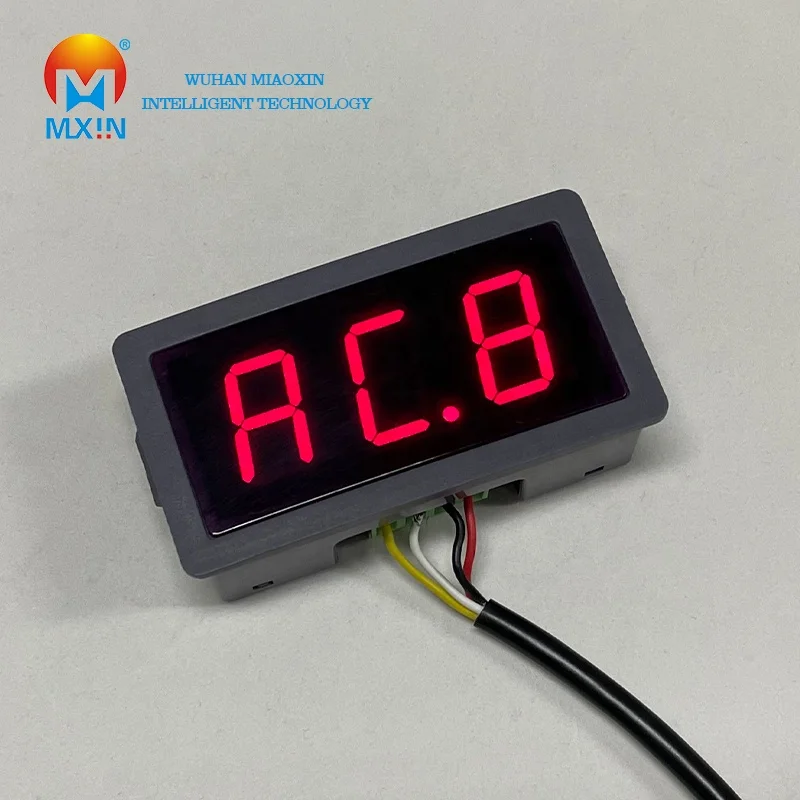

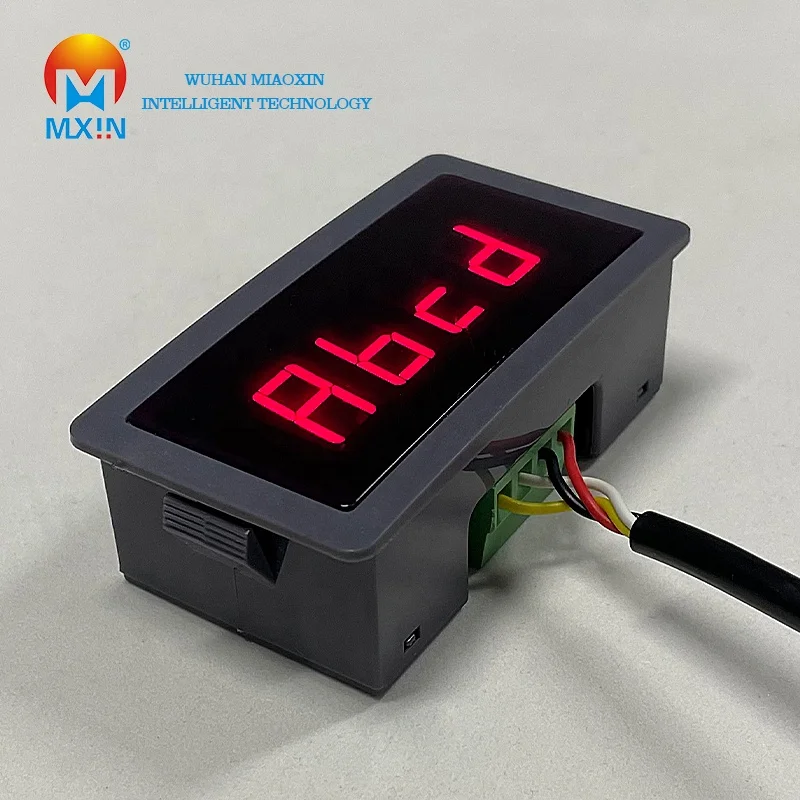

Industrial 3/4/5/6 bit Red waterproof RS485 serial port meter led digital tube display MODBUS RTU
- Category: >>>
- Supplier: Wuhan Miaoxin Intelligent Technology Co. Ltd.Wuhan Ltd.
Share on (1600650061883):
Product Overview
Description
Item | Value |
Type | TN |
Input voltage | 7-36V DC power supply, 12V or 24v recommended |
Power Supply Current | Current 50ma @24 v |
Communication protocol | Modbus/Ascll （ Do not need to switch） |
Display Size | 81.5*42*27MM |
Hole-cutting Size | Recommended opening width 78 *height 40mm |
Place of Origin | China |
Hubei | |
Brand Name | wuhanmiaoxin |
Color | High red,Light Blue |
Number of digits | 3 digits, 4 digits, 5 digits, 6 digits |

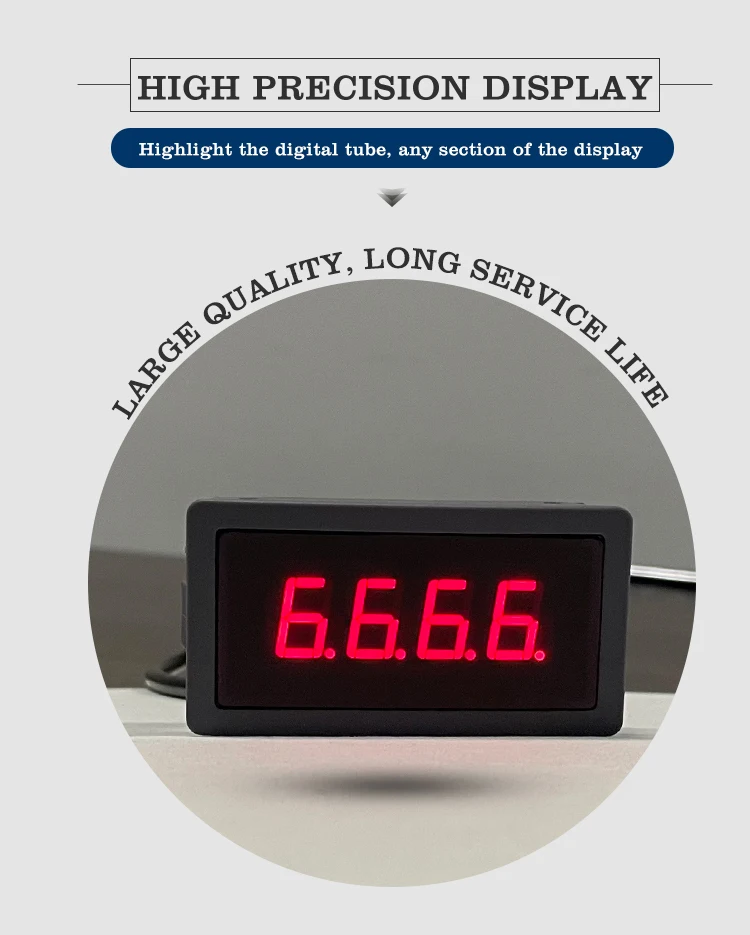

Display mode | Digital tube display |

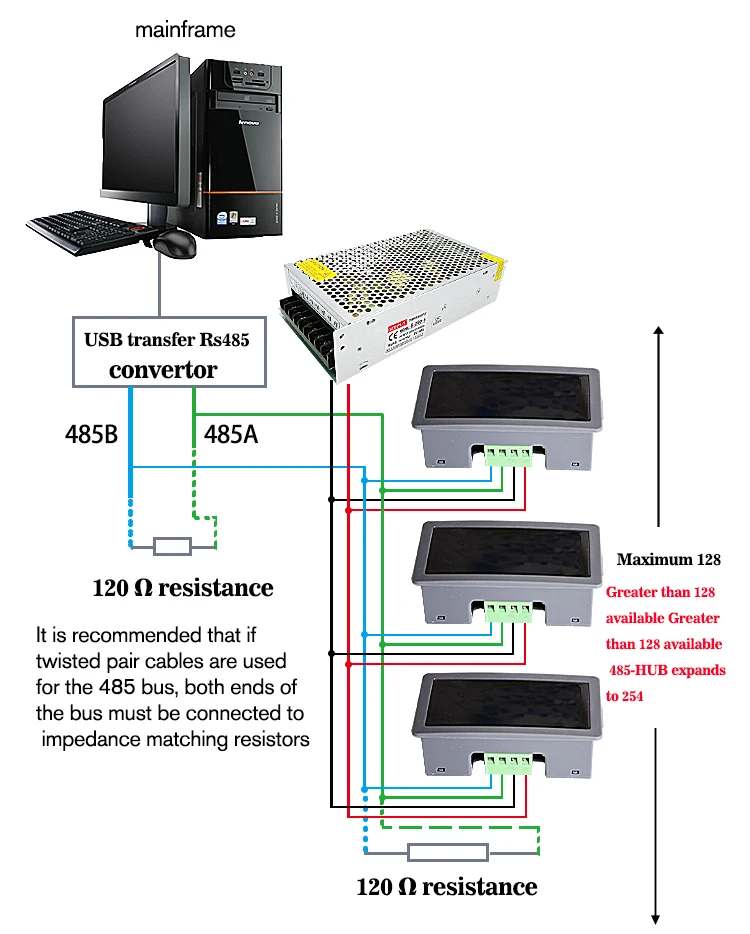

Enter the interface | RS485/RS232/ttl |
Packing specification | Cartons/plastic bags |
Baud rate | 1200,2400,4800,9600,19200,38400,57600,115200 |
Application | Industrial applications, indoor and outdoor |
Average service life | ≥One hundred thousand hours |
Product Information
Product size
measurement unit:MM !Manual measurement, ±0.5mm error, in kind prevail! The dimensions can be based on
The customer requested customization.
The customer requested customization.
Display precision | A | B | C | D | E | F | Digital tube word width | The digital tube word is high |
083（three digits） | 81.5 | 42 | 27 | 72 | 23.5 | 12.0 | 11.0 | 20.10 |
054（four digits） | 81.5 | 42 | 27 | 72 | 23.5 | 12.0 | 7.30 | 12.70 |
055（five digits） | 81.5 | 42 | 27 | 72 | 23.5 | 12.0 | 7.30 | 12.70 |
046（six digits） | 81.5 | 42 | 27 | 72 | 23.5 | 12.0 | 6.30 | 10.16 |

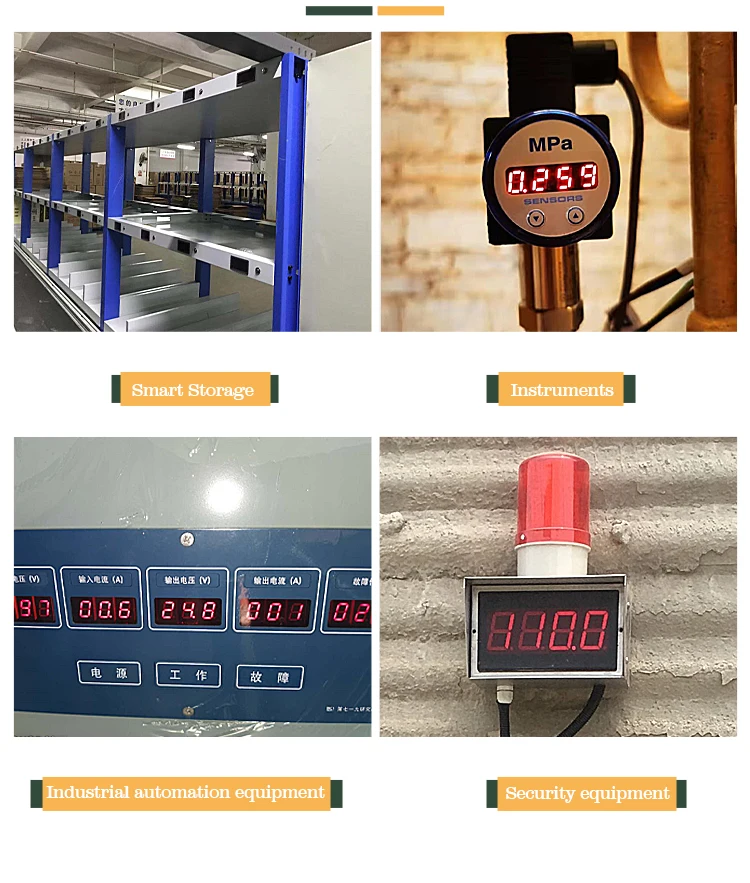

Apply the following scenario
Intelligent storage, instrumentation, artificial intelligence, home appliances, intelligent home, industrial automation
equipment,hand-held equipment, medical equipment, security equipment and other industries
equipment,hand-held equipment, medical equipment, security equipment and other industries
48 hours high and low temperature test, is in the case of indoor constant temperature of 20℃, respectively with 90℃ vacuum drying oven and -45℃ freezer closed test!
Minimum operating temperature is -40°C
maximum working temperature is 85°C

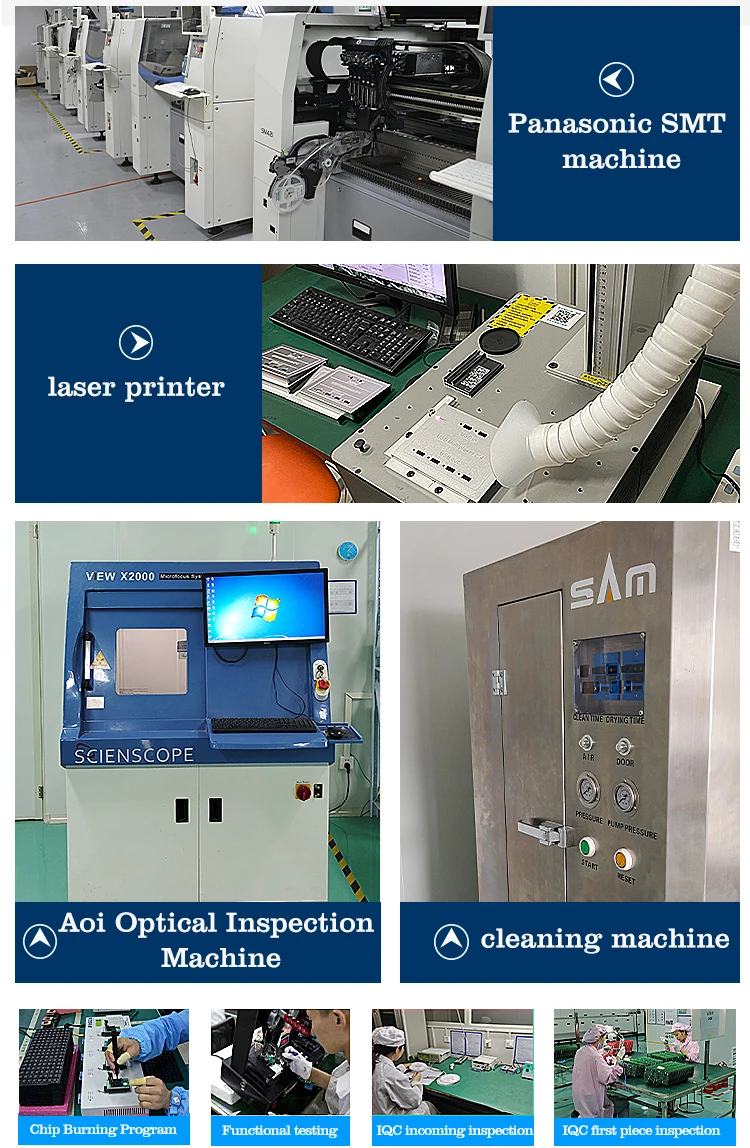

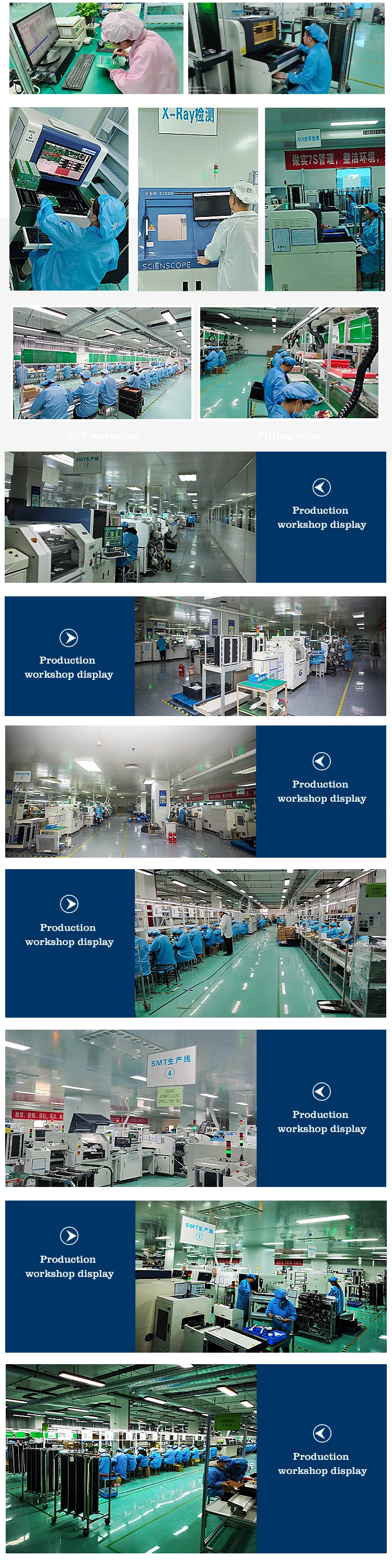

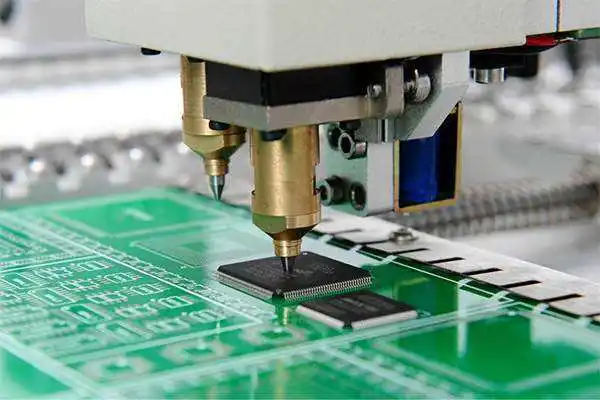

There are 9 SMT SMT production lines in WuhanMiaoxin Intelligent Company ,including many high-speed SMT production lines of
PANASOINC CM series in Japan, and many J idong plug-in production lines. The processing capacity can
reach 10 million SMT per day, can undertake a variety of high-precision components of the mounting. The products cover high-speed
railway, intelligent storage, national power grid equipment,instrumentation, artificial intelligence, network and many other
fields.equipment,intelligent home, industrial automationequipment, security equipment, medical equipmentand many other fields.
PANASOINC CM series in Japan, and many J idong plug-in production lines. The processing capacity can
reach 10 million SMT per day, can undertake a variety of high-precision components of the mounting. The products cover high-speed
railway, intelligent storage, national power grid equipment,instrumentation, artificial intelligence, network and many other
fields.equipment,intelligent home, industrial automationequipment, security equipment, medical equipmentand many other fields.
Wuhan Smart Core Intelligence has passed IATF 16949, ISO 9001 quality system certification, to build a professional and rigorous quality management system, equipped with experienced technical and quality management personnel,standardized management in strict accordance with quality system requirements.
