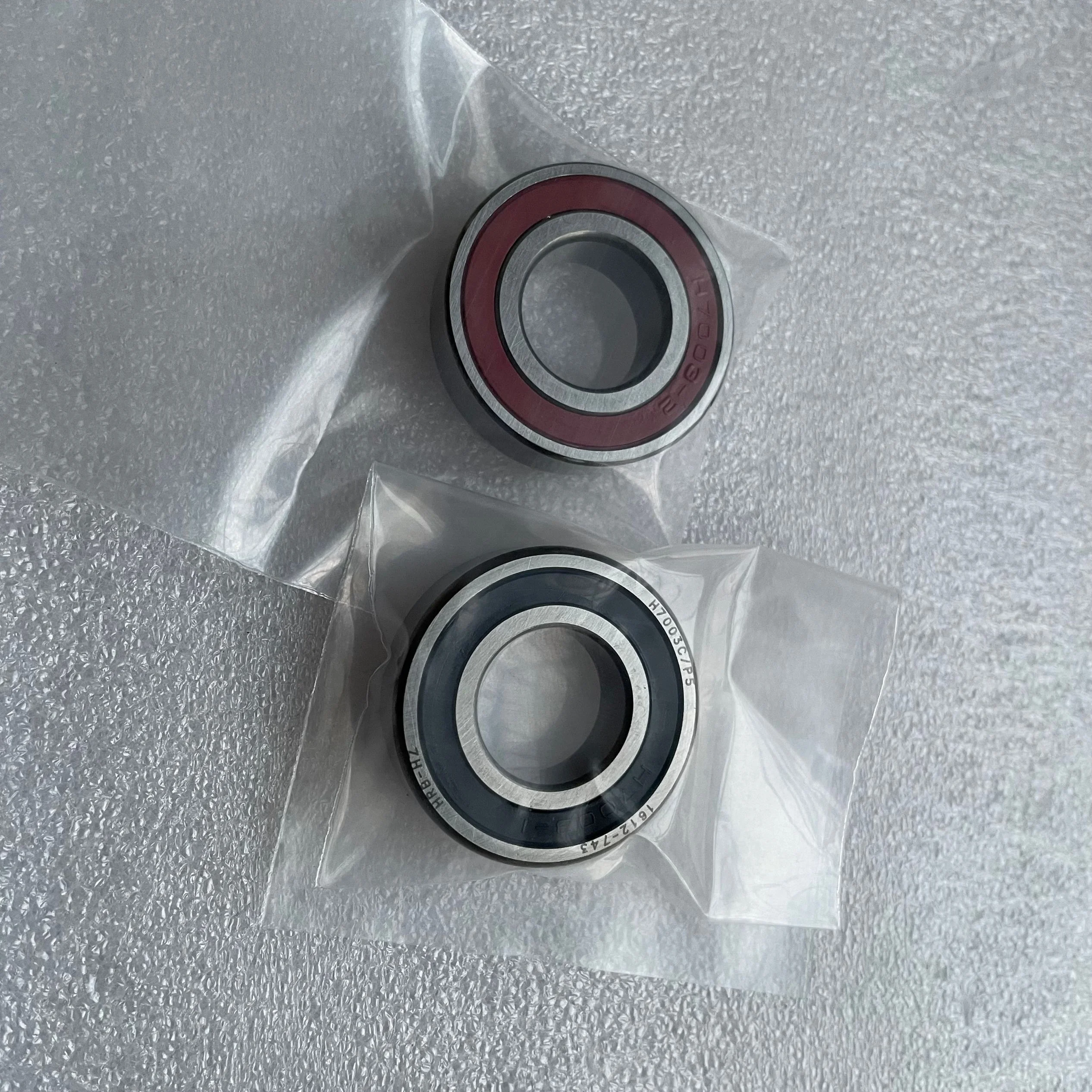

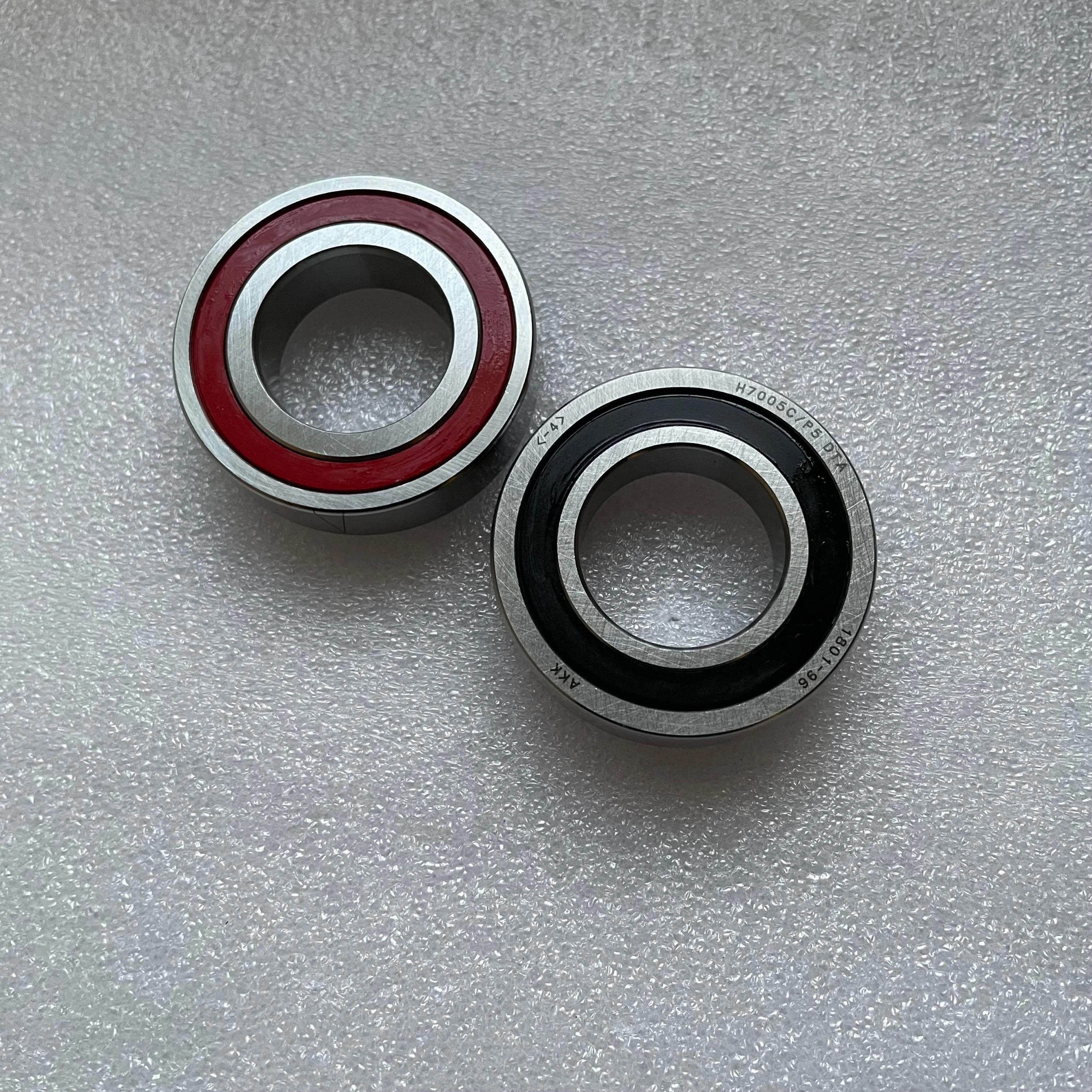

CNC screw spindle bearing angular contact ball bearing

Product Description

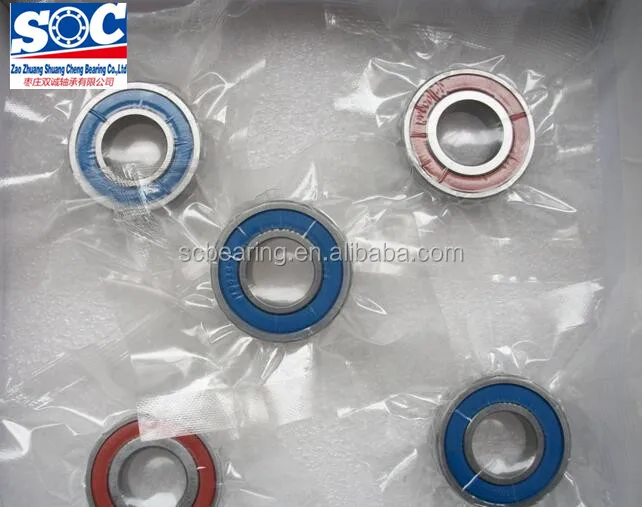

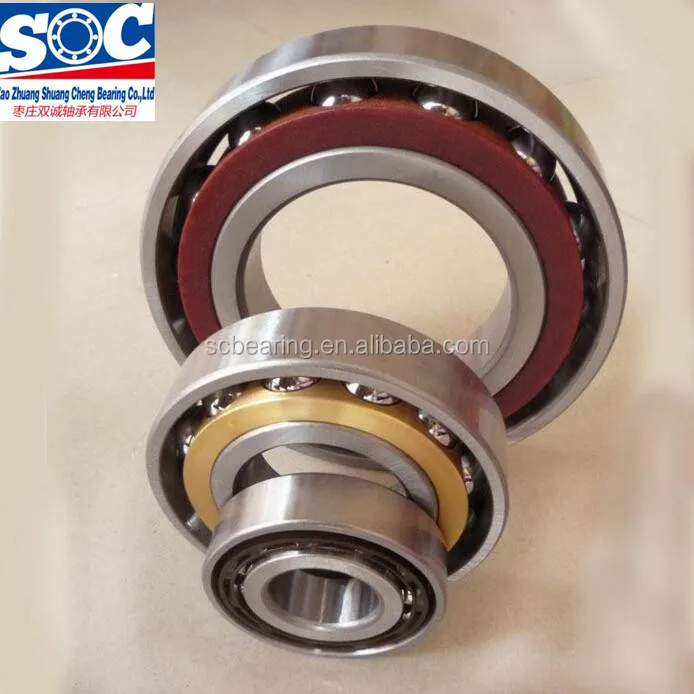

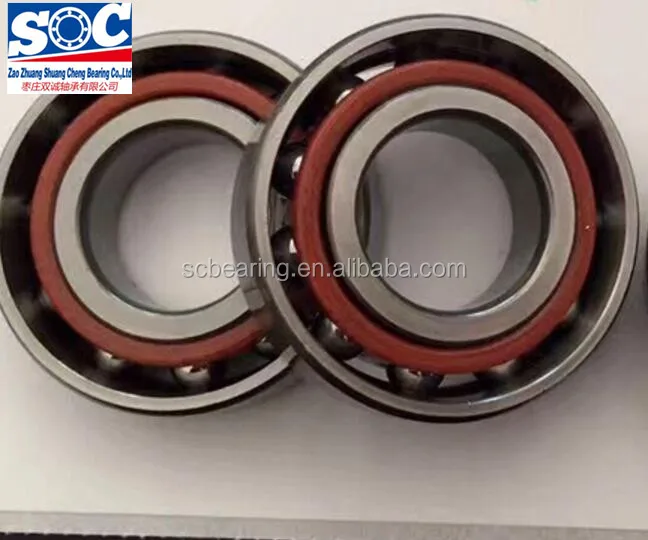

Angular contact ball bearing

1.Anglular contact ball bearing steel balls and inside and outside the points of contact with the circle attachment radial into a point of view. Contact Angle generally divided into 15 °, 30 °, 40 °, respectively for the letter C, A, B says, Brand special production contact Angle for 25 ° of these bearings, with the A5 said. Angle contact ball bearing main bear big one-way axial load, the greater the contact Angle, the greater the ability to bear a heavy load. Maintains a material with a steel, brass or engineering plastic, forming a way to have a press or turning, depending on the bearings form or conditions of use different and choose. There are other combined angular contact ball bearing, double row angular contact ball bearing and four-point contact ball bearing.

2.Angle contact ball bearings are widely used in mechanical industry,like in various machinery such as metallurgic machinery,mining machinery,paper making machinery,exile machinery,etc.

Specification

Angular contact thrust ball bearing for ball screw support(machine tool applications)

Brand ball screw Angle contact ball bearing Brand 25TAC62BSBC10PN7A bearing
25---the size of the inner diameter (mm)
TAC---thrust Angle contact ball bearing, the contact Angle is 60 °
62---the size of the outer diameter (mm)
B---internal style
DF---a combination
SU---free combination (single)
DU---free combination (2 column)

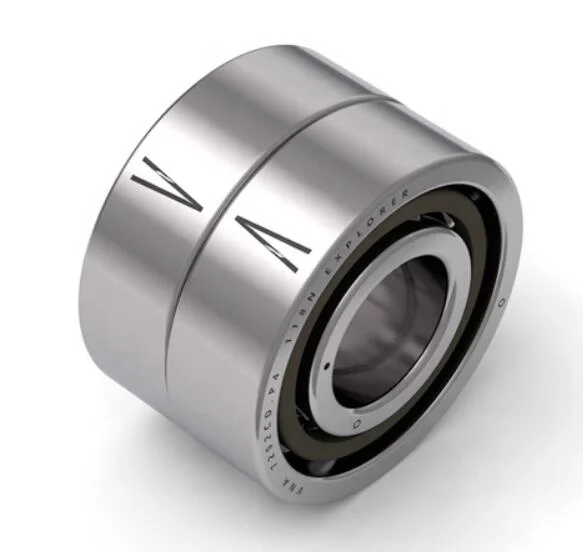

DB---back-to-back combination
DF---face to face combination
DT---tied for combination
DBD DFD DTD---3 columns combination
DBB DFF DBT DFT DTT---4 columns combination
C10---standard preloaded
C9---light preloaded | low torque style
PN7A---standard precision (equivalent to ISO4 class)
PN7B---inside outside diameter size difference special control precision (equivalent to ISO4 grade, SU combination special).

Angular contact ball bearing include:
1) Single row angular contact ball bearing
2) Matched angular contact ball bearing
3) Double row angular contact ball bearing
4) Four-point contact ball bearing

Angular contact ball bearings features :
1) Load capacities are higher than deep groove ball bearings of same dimensions;
2) Used for bearing radial-axial combined loads or pure thrust loads;
3) Low operating friction and high limiting speed.

Product Overviews

2222

ball bearing (13)

angular contact

7002 ball bearing

Technology

Model Number	Dimension (mm)							Load		Speed		KG
	d		D	B	rsmin	r1smin	a	Cr	Cor			Kg
	mm						≈	KN		r/min		≈
7004C	20	42		12	0.60	0.15	10	9.6	6.3	38000	56000	0.06
7004AC	20	42		12	0.60	0.15	13	9.2	6.0	34000	50000	0.06
7005C	25	47		12	0.60	0.15	11	12.9	8.7	34000	50000	0.07
7005AC	25	47		12	0.60	0.15	14	12.3	8.3	30000	45000	0.07
7006C	30	55		13	1.00	0.30	12	15.7	11.6	28000	43000	0.11
7006AC	30	55		13	1.00	0.30	17	14.9	10.9	24000	38000	0.11
7007C	35	62		14	1.00	0.30	13	19.3	17.5	20000	34000	0.15
7007AC	35	62		14	1.00	0.30	18	18.3	16.6	19000	32000	0.15
7008C	40	68		15	1.00	0.30	15	19.9	19.1	19000	32000	0.19
7008AC	40	68		15	1.00	0.30	20	18.9	18.2	17000	28000	0.19
7009C	45	75		16	1.00	0.30	16	26.7	25.3	17000	28000	0.23
7009AC	45	75		16	1.00	0.30	22	25.4	24.1	16000	26000	0.23
7010C	50	80		16	1.00	0.30	17	27.6	27.5	16000	26000	0.25
7010AC	50	80		16	1.00	0.30	23	26.2	26.2	15000	24000	0.25
7011C	55	90		18	1.10	0.60	19	36.7	37.1	14000	22000	0.37
7011AC	55	90		18	1.10	0.60	26	34.8	35.3	13000	20000	0.37
7012C	60	95		18	1.10	0.60	19	37.8	40.0	14000	22000	0.39
7012AC	60	95		18	1.10	0.60	27	35.8	38.0	12000	19000	0.39
7013C	65	100		18	1.10	0.60	20	38.9	42.9	13000	20000	0.42
7013AC	65	100		18	1.10	0.60	28	36.8	40.7	11000	18000	0.42
7014C	70	110		20	1.10	0.60	22	49.9	55.5	12000	19000	0.59
7014AC	70	110		20	1.10	0.60	31	47.2	52.7	10000	17000	0.59
7015C	75	115		20	1.10	0.60	23	51.3	59.2	11000	18000	0.62
7015AC	75	115		20	1.10	0.60	32	48.5	56.2	9500	16000	0.62
7016C	80	125		22	1.10	0.60	25	61.6	70.4	10000	17000	0.83
7016AC	80	125		22	1.10	0.60	35	58.3	66.9	9000	15000	0.83
7017C	85	130		22	1.10	0.60	25	63.3	75.0	9500	16000	0.87
7017AC	85	130		22	1.10	0.60	36	59.9	71.3	8500	14000	0.87
7018C	90	140		24	1.50	0.60	27	66.9	84.0	9000	15000	1.18
7018AC	90	140		24	1.50	0.60	39	63.2	79.7	8000	13000	1.18
7019C	95	145		24	1.50	0.60	28	79.1	97.6	8500	14000	1.2
7019AC	95	145		24	1.50	0.60	40	74.8	92.7	7500	12000	1.2
7020C	100	150		24	1.50	0.60	29	81.2	103.3	8000	13000	1.25
7020AC	100	150		24	1.50	0.60	41	76.7	98.0	7000	11000	1.25
7021C	105	160		26	2.00	1.00	31	93.9	118.2	7500	12000	1.58
7021AC	105	160		26	2.00	1.00	44	88.8	112.2	7000	11000	1.58
7022C	110	170		28	2.00	1.00	33	110.4	139.8	7000	11000	1.97
7022AC	110	170		28	2.00	1.00	47	104.4	132.8	6700	10000	1.97
7024C	120	180		28	2.00	1.00	34	112.7	148.7	7000	11000	2.11
7024AC	120	180		28	2.00	1.00	49	106.5	141.1	6700	10000	2.11
7026C	130	200		33	2.00	1.00	39	144.8	190.8	6700	10000	3.18
7026AC	130	200		33	2.00	1.00	55	136.8	181.0	6000	9000	3.18
7028C	140	210		33	2.00	1.00	40	148.7	202.6	6000	9000	3.37
7028AC	140	210		33	2.00	1.00	57	140.4	192.2	5600	8500	3.37
7030C	150	225		35	2.10	1.10	43	168.4	232.5	5600	8500	4.1
7030AC	150	225		35	2.10	1.10	61	159.1	220.6	5000	7500	4.1
7032C	160	240		38	2.10	1.10	46	189.1	264.5	5000	7500	5.07
7032AC	160	240		38	2.10	1.10	66	178.6	251.0	4800	7000	5.07
7034C	170	260		42	2.10	1.10	50	205.6	299.3	4800	7000	6.9
7034AC	170	260		42	2.10	1.10	71	194.2	284.0	4300	6300	6.9
