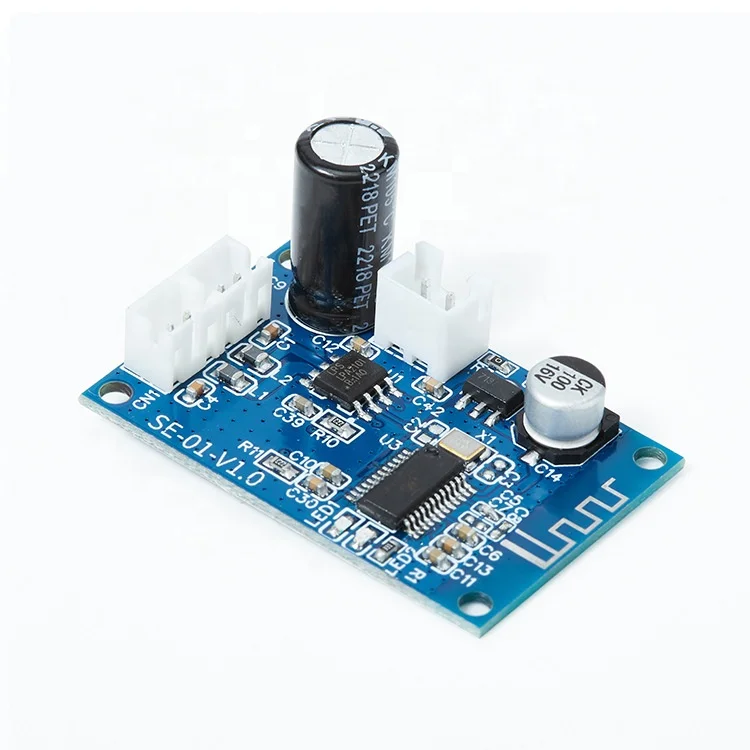

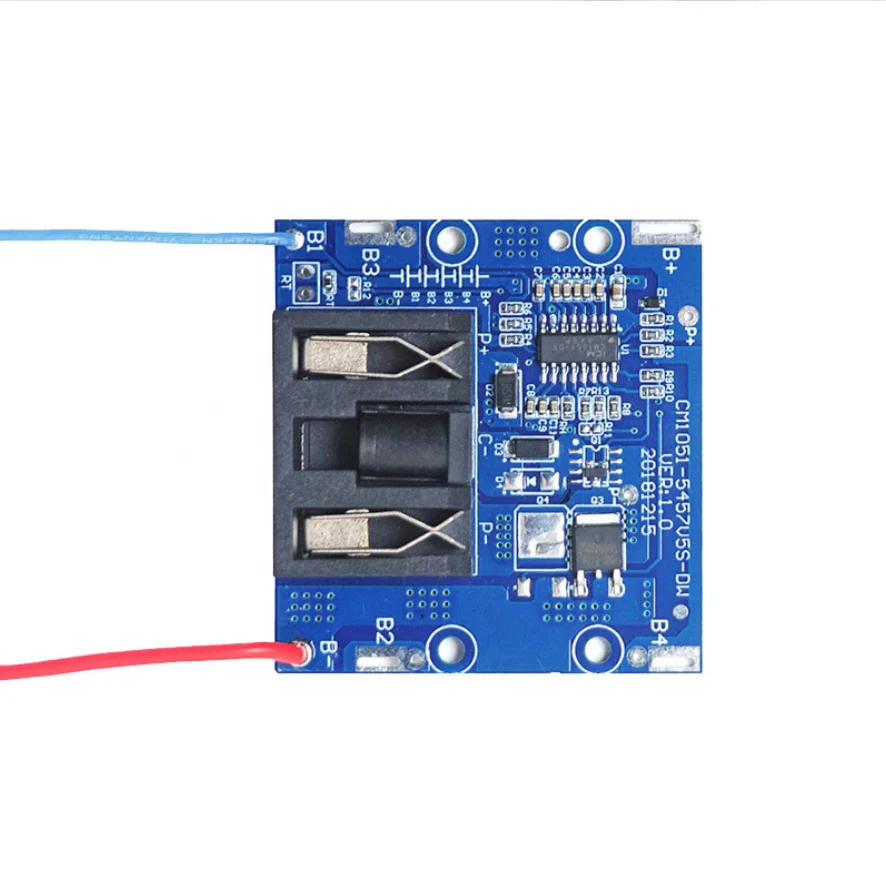

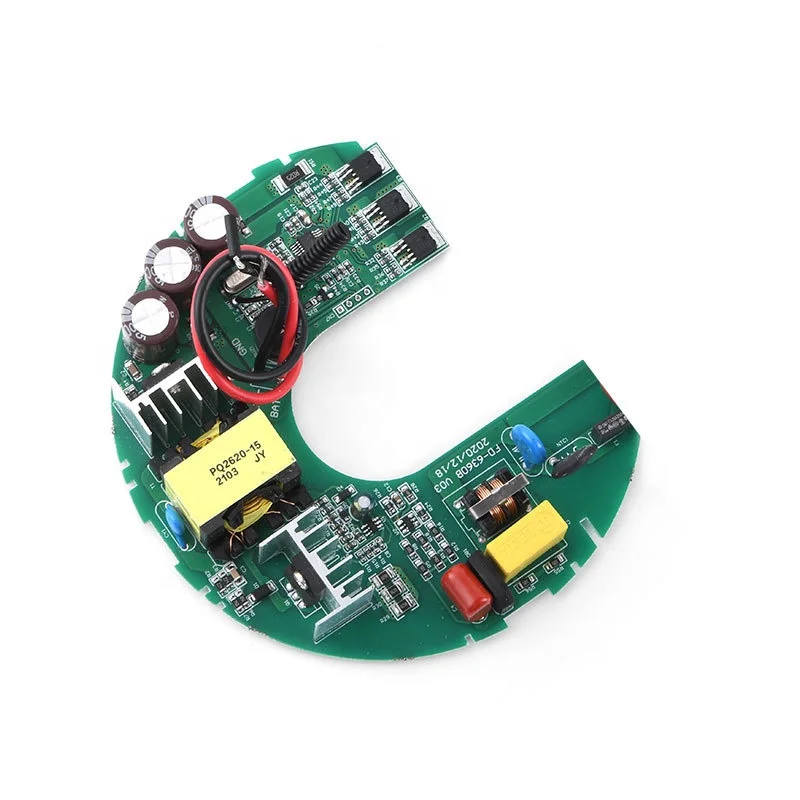

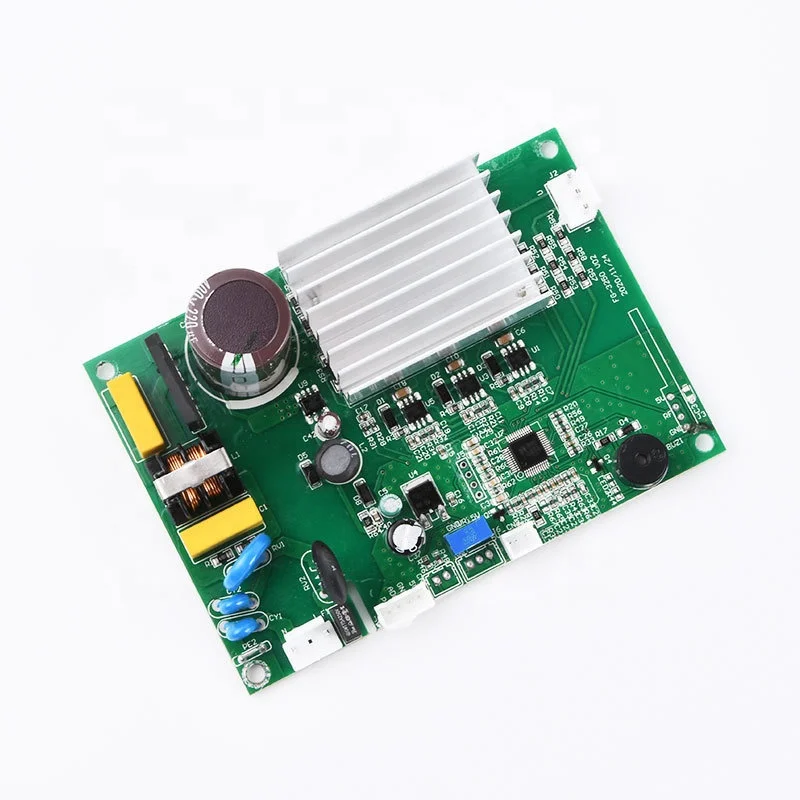

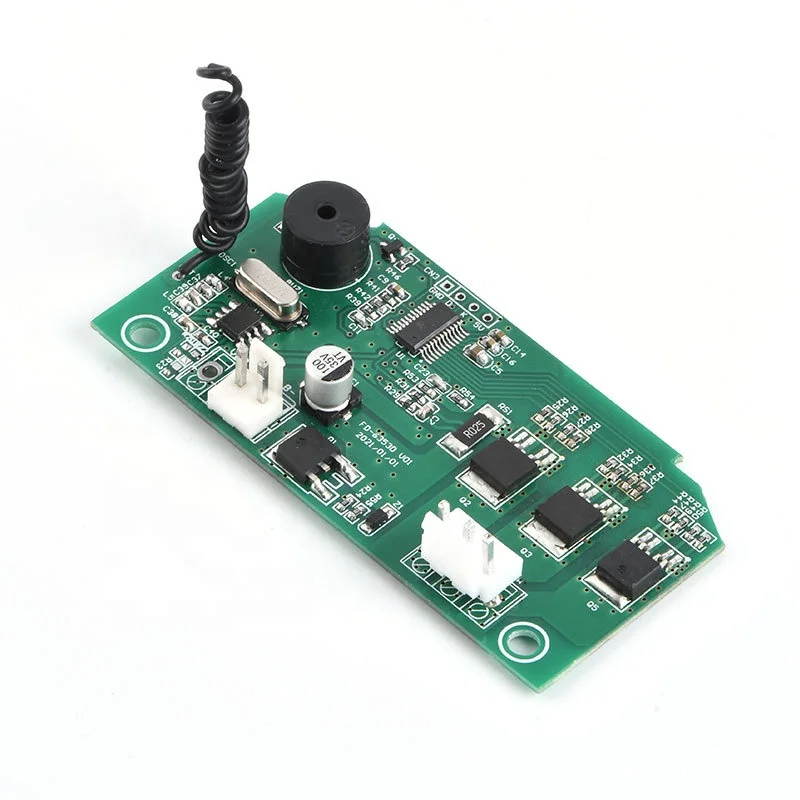

pcb pcba design pcb printed circuit board assembly pcba prototype blender pcb board
- Category: >>>
- Supplier: Shenzhen Inch Stars Electronic Technology Co. Ltd
Share on (1600650112464):
Product Overview
Description
Product Description
PCB Assembly Capabilities | PCB Assembly Capabilities | |
ltem | Technical Parameter | |
SMT Jointing Min. Space | 0201mm | |
QFP Space | Pitch 0.3mm | |
Min. Package | 0201 | |
Min. Size | 0.25*0.25 inch(6*6mm) | |
Max. Size | 14*22 inch(350*550mm) | |
Placement Precision | ±0.01mm | |
Placement Package | QFP, SOP, PLCC, BGA | |
Placement Capability | 0805, 0603. 0402, 0201 | |
PCB Lead Time (Working days) | ||||||||||
2 layer | 4 layer | 6 layer | Over 8 layer | HDI | ||||||
Sample Lead time (Normal) | 5-6 | 6-7 | 7-8 | 10-12 | 10-12 | |||||
Sample Lead time (Faster) | 48-72 hours | 5 | 6 | 6-7 | 12 | |||||
Mass production lead time | 7-9 | 10-12 | 13-15 | 16 | 20 | |||||
PCB Assembly Lead time | ||
Sample Lead time | PCB Fab+Components Sourcing+PCBA=15 Working days | |
Mass production lead time | PCB Fab+Components Sourcing+PCBA=20 Working days | |
