bafang bbs02b 48v 750w bafang 8fun ebike kit conversion kit with DPC18 display ship from Poland Germany warehouse
- Category: >>>
- Supplier: Changzhou Fieldebikes Co. Ltd.
Share on (1600650159552):
Product Overview
Description
Product Description
Bafang bbs02b 48v 750w mid drive motor kit
Powerful, cost effective, maintenance-friendly and easy to install. With its 750W rated power and 120Nm of max. torque, it delivers a more than welcome support to your ride. Compatible with frames with 68/100/120 bottom bracket width.
Designed for upgrading standard bicycles to convenient mountain and snow bikes.
With a maximum torque of 120Nm and 750W rated power output.
Max speed is about 45km/h. You can also change the speed via display.
Designed for upgrading standard bicycles to convenient mountain and snow bikes.
With a maximum torque of 120Nm and 750W rated power output.
Max speed is about 45km/h. You can also change the speed via display.

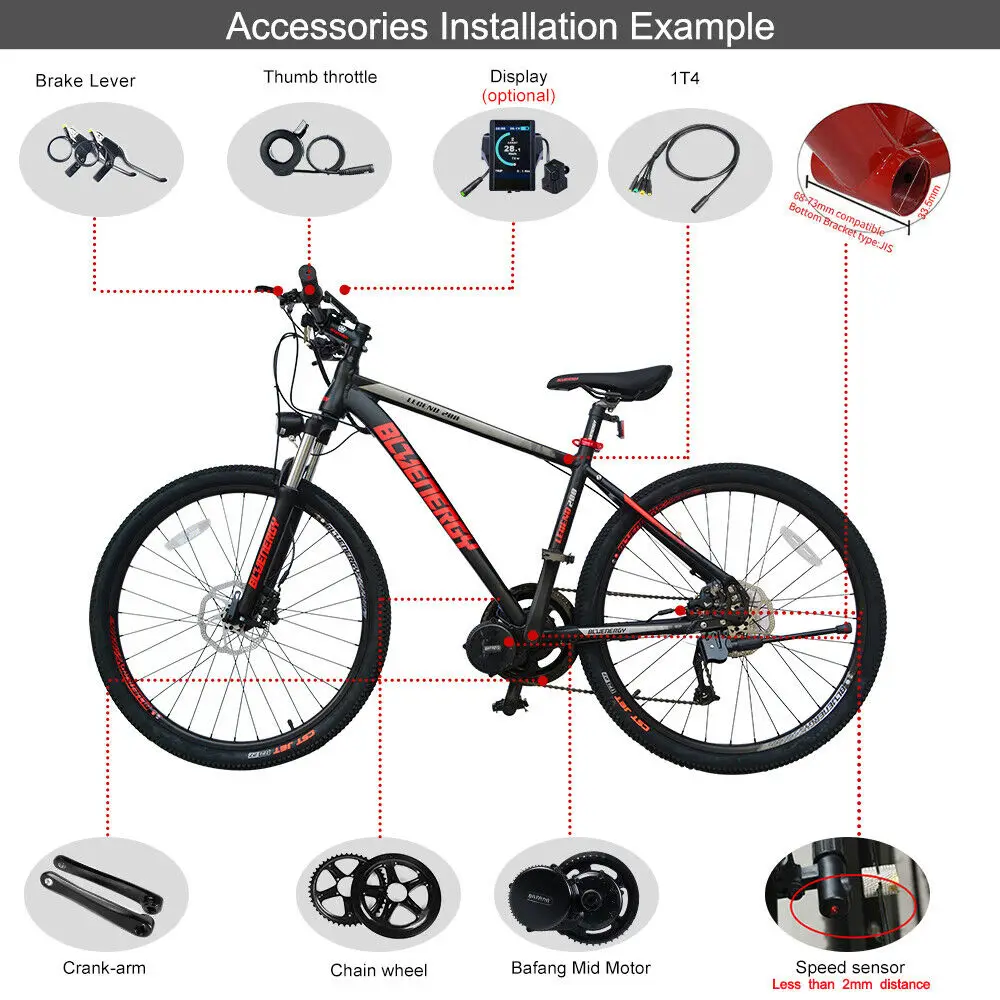

Specific parts of the bafang mid motor kits
48v 750W bbshdMid-Drive Motor
44/46/48/52T chain wheel and chain cover
1T4 Waterproof Quick Release Wires(EB-Bus cable)
cranks
thumb throttle
brake levers
screws
speed sensor
controller
brake sensor :Power on at short distance, power off at long distance
programme cable
gear sensor :It attaches to your shifting cable and momentarily cuts off power to your motor while shifting. It helps reduce wear and tear on your drivetrain components and chain.
Specification

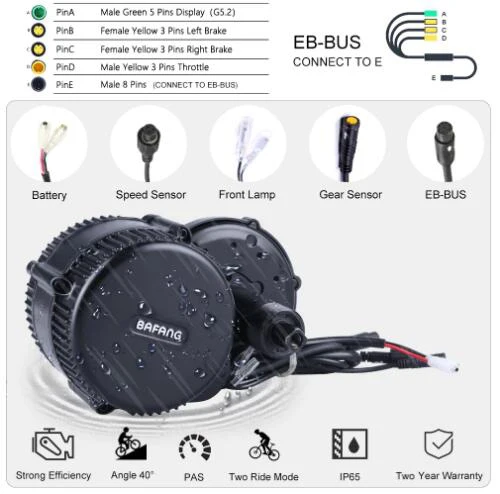

motor | 48v 750w 68/100/120mm Mid drive DC motor ( 68mm-73mm are available ) 1. Brushless direct mid motor 2. Rated speed=45 KM/h. 3. Integrated 48V 25A sine wave controller and speed sensor 4. Load≤120KG 5. With waterproof cable for throttle,PAS and 1 to 4 cables 7. Available for light cable(rear or front light) |
Display | DPC-18 |
Controller | 48v sine wave integrated controller |
Sensor | Integrated speed sensor |
Throttle | 130X throttle throttle/20X twist throttle |
Ebrake levers | Bafang Brake levers with cut-off power function |

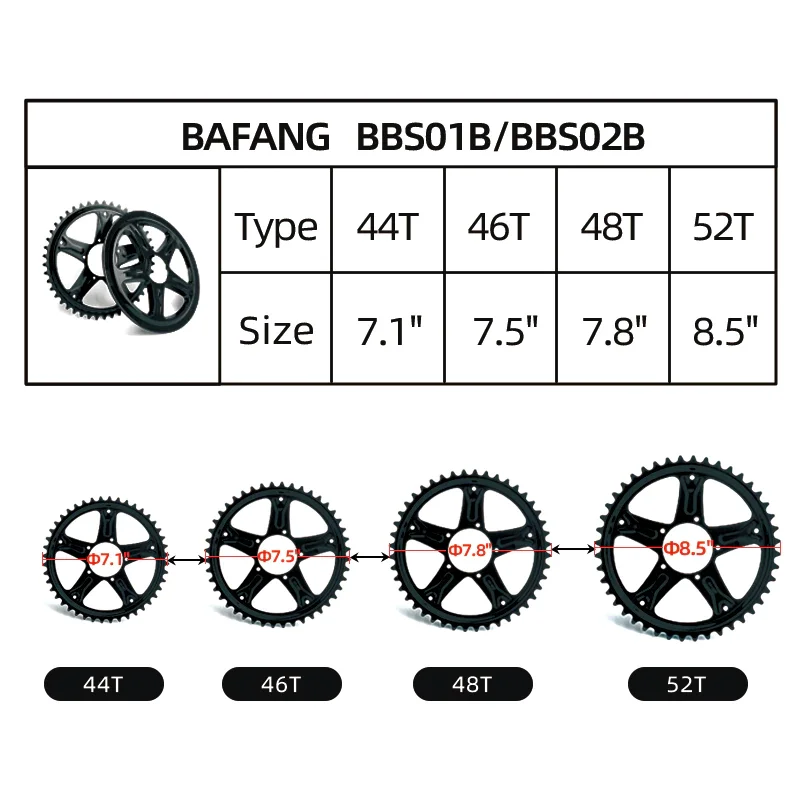

Chain wheel | 44T chain wheel ( 46T /48T /52T are all available ) |
Cranks | 170mm cranks as standard |
Main Cable | 1-4 Main cale |
Accessories | bafang standard sets |
Product packaging
Service
1.If your brake lever is Hydraulic Brake .We can upgrade the ebrake to brake sensor.Please leave a message when you place the order.
2.We supply 44T 46T 48T 52T chainwheel.If you need replace.Please also leave a message.Thanks.
3.About the battery connector.We supply 3 versions.Bullet.PP30.XT60.Please also leave a message.Thanks.
4.If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.
5.This is for 68mm bottom branket.(JIS)If your bottom branket is 73mm.Please contact us.
6.This kit is not for Carbon fiber bicycle.
7. If you need shift sensor, please contact us to get updated quotation.
8.Standard axle size is 68mm, but we also support 68/73/100/120mm. If you need special axle size, please contact us to get updated quotation.
9. Standard set doesn't include LED light function. But,we support LED light function. If you have this demand, please contact us to get updated quotation.
10.The price includes customized tool. If you don't need this, please contact me to get the updated quotation.
1.If your brake lever is Hydraulic Brake .We can upgrade the ebrake to brake sensor.Please leave a message when you place the order.
2.We supply 44T 46T 48T 52T chainwheel.If you need replace.Please also leave a message.Thanks.
3.About the battery connector.We supply 3 versions.Bullet.PP30.XT60.Please also leave a message.Thanks.
4.If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.
5.This is for 68mm bottom branket.(JIS)If your bottom branket is 73mm.Please contact us.
6.This kit is not for Carbon fiber bicycle.
7. If you need shift sensor, please contact us to get updated quotation.
8.Standard axle size is 68mm, but we also support 68/73/100/120mm. If you need special axle size, please contact us to get updated quotation.
9. Standard set doesn't include LED light function. But,we support LED light function. If you have this demand, please contact us to get updated quotation.
10.The price includes customized tool. If you don't need this, please contact me to get the updated quotation.
Details Images

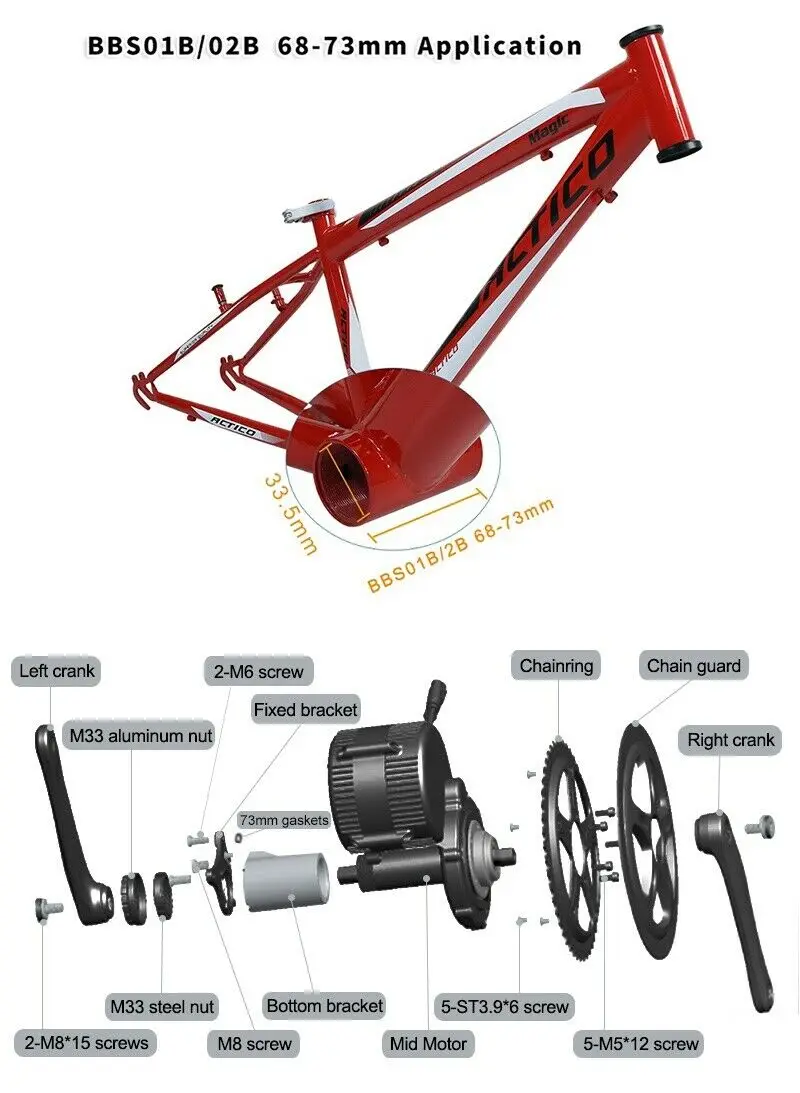

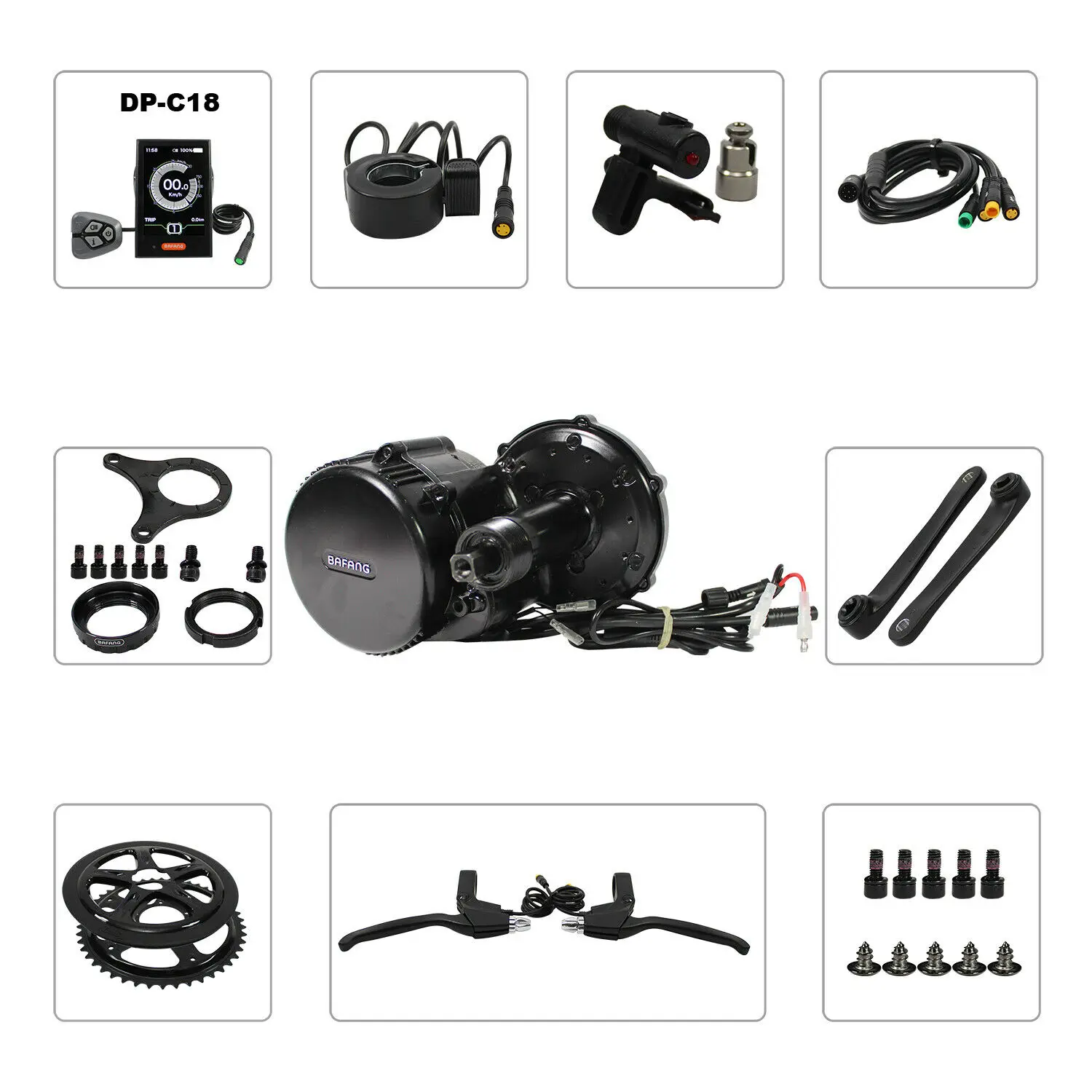

The packing list include:
1. 48V 750W Mid-Drive Motor: 1 pc
2. DPC-18/C961/C965/SW102/850C/P860C/750C/750C Display + Operation Button: 1 pc
3. Brake Levers: 2 pcs
4. Thumb Throttle: 1 pc
5. Waterproof Quick Release Wires(EB-Bus waterproof cable): 1 pc
6. Speed Detecting Sensor + Magnet: 1 pc
7. 44T/ 46T /48T /52TChain wheel + Chain Cover: 1 pc
8. Left Crank + Right Crank: each 1 pc
9. Fixing Plate: 1 pc
10. M5*10 Nuts: 5 pcs
11. M6*12 Nuts: 2 pcs
12. M33 Nuts: 2 pcs
13. ST 3.9 Nuts: 5 pcs
14. special installation wrenches, installation tools, white gloves, manuals, stickers, zip cable in below picture(these are shipped with the kits from oversea warehouse )
1. 48V 750W Mid-Drive Motor: 1 pc
2. DPC-18/C961/C965/SW102/850C/P860C/750C/750C Display + Operation Button: 1 pc
3. Brake Levers: 2 pcs
4. Thumb Throttle: 1 pc
5. Waterproof Quick Release Wires(EB-Bus waterproof cable): 1 pc
6. Speed Detecting Sensor + Magnet: 1 pc
7. 44T/ 46T /48T /52TChain wheel + Chain Cover: 1 pc
8. Left Crank + Right Crank: each 1 pc
9. Fixing Plate: 1 pc
10. M5*10 Nuts: 5 pcs
11. M6*12 Nuts: 2 pcs
12. M33 Nuts: 2 pcs
13. ST 3.9 Nuts: 5 pcs
14. special installation wrenches, installation tools, white gloves, manuals, stickers, zip cable in below picture(these are shipped with the kits from oversea warehouse )
Company Profile
Changzhou Fieldebikes Co., Ltd.is a company committed to providing customers with personalized transportation and comfortable riding experience. We hope to become your loyal supplier. We provide OEM and ODM services for ebikes and our products meet international quality standards.
We have an experienced professional team to provide customers with high-quality products, reasonable prices and the best service. We promise to conduct 100% strict quality inspection before shipment. Our company can develop at any time according to customers' requirements to ensure customer satisfaction.
It is our pleasure to find a way to cooperate with you ,if possible.We warmly welcome friends from all walks of life to establish friendly business relations with us to create a win-win situation
We have an experienced professional team to provide customers with high-quality products, reasonable prices and the best service. We promise to conduct 100% strict quality inspection before shipment. Our company can develop at any time according to customers' requirements to ensure customer satisfaction.
It is our pleasure to find a way to cooperate with you ,if possible.We warmly welcome friends from all walks of life to establish friendly business relations with us to create a win-win situation
Certifications
FAQ
Q: do you have oversea warehouse stock?
A. yes ,we have bafang mid drive motor kits stock in UK/DE/PL/US/CA warehouse ,can ship to u within five days
Q: What should i do when an error code is displayed?
A: Please check the code list in first, some errors can be solved simply. Please contact us if the user cannot remove the error.
Q:What is your warranty period and after-sales maintenance method ?
A: One year warranty will start when customer receives the goods.
If Parts are not working because of its own quality ,we will send replacements for free.
If motor has problem , please send it back or send it to the European Bafang Service Center. The repairs are free of charge after one year , the maintenance will not be free .
Q: what is the setting password for C965 /850C display ?
A: Please try 1919 or 0512 .
Q: do you sell battery for bafang kit?
A: yes , we provide all different batteries , mostly are Samsung cells . please contact us for more details .
Q: can you offer twist throttle for bafang mid motors ?
A: yes , we can make twist / half twist throttle if you want .
Q: What should i do when an error code is displayed?
A: Please check the code list in first, some errors can be solved simply. Please contact us if the user cannot remove the error.
Q:What is your warranty period and after-sales maintenance method ?
A: One year warranty will start when customer receives the goods.
If Parts are not working because of its own quality ,we will send replacements for free.
If motor has problem , please send it back or send it to the European Bafang Service Center. The repairs are free of charge after one year , the maintenance will not be free .
Q: what is the setting password for C965 /850C display ?
A: Please try 1919 or 0512 .
Q: do you sell battery for bafang kit?
A: yes , we provide all different batteries , mostly are Samsung cells . please contact us for more details .
Q: can you offer twist throttle for bafang mid motors ?
A: yes , we can make twist / half twist throttle if you want .
