50KW 100KW 150KW ESS On Grid Solar Hybrid Inverter with MPPT Function for Solar Energy Storage System
50KW 100KW 150KW ESS On Grid Solar Hybrid Inverter with MPPT Function for Solar Energy Storage System
50KW 100KW 150KW ESS On Grid Solar Hybrid Inverter with MPPT Function for Solar Energy Storage System
50KW 100KW 150KW ESS On Grid Solar Hybrid Inverter with MPPT Function for Solar Energy Storage System
50KW 100KW 150KW ESS On Grid Solar Hybrid Inverter with MPPT Function for Solar Energy Storage System
50KW 100KW 150KW ESS On Grid Solar Hybrid Inverter with MPPT Function for Solar Energy Storage System
50KW 100KW 150KW ESS On Grid Solar Hybrid Inverter with MPPT Function for Solar Energy Storage System

50KW 100KW 150KW ESS On Grid Solar Hybrid Inverter with MPPT Function for Solar Energy Storage System

Share on (1600650170353):


Price:$11,200.00

Quantity:


Product Overview

Description



Products Description

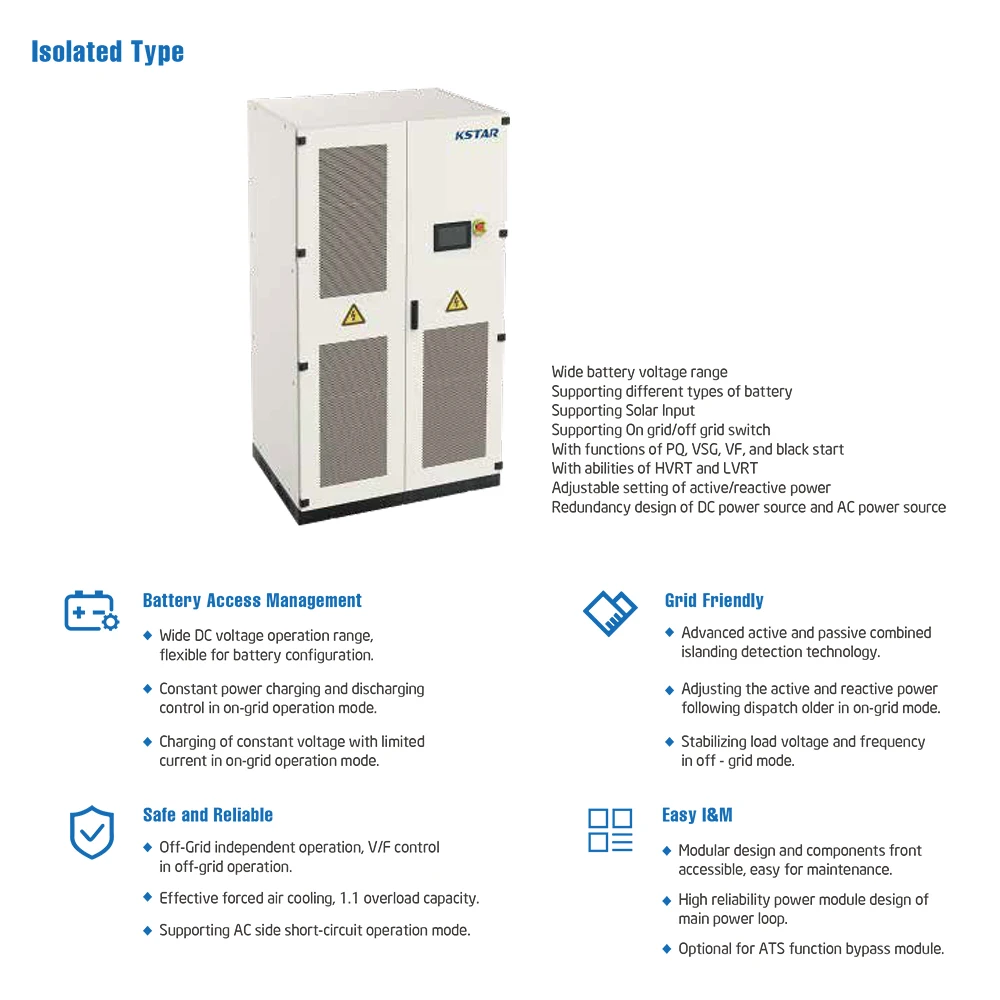

Battery Access Management
Wide DC voltage operation range, flexible for battery configuration. Charging of constant voltage with limited current in on-grid
operation mode. Constant power charging and discharging control in on-grid operation mode.

Grid Friendly
Advanced active and passive combined islanding detection technology. Stabilizing load voltage and frequency in off - grid mode.
Adjusting the active and reactive power following dispatch older in on-grid mode.



Safe and Reliable
Off-Grid independent operation, V/F control in off-grid operation.
Effective forced air cooling, 1.1 overload capacity.
Supporting multi-unit parallel connection function, expandable to MW power level.

Easy I&M
Modular design and components front accessible, easy for maintenance.
High reliability power module design of main power loop.




Products Specification


Model
GSE0050-PV
GSE0100-PV
GSE0150-PV
PV side
Max. DC voltage
1000V
1000V
1000V
Max.DC power
55kW
110kW
165kW
MPP votage range
250~850Vdc
250~850Vdc
250~850Vdc
Number of PV input
1
2
3
Max. PV input current
110A
110A*2
110A*3
* The input PV MPP voltage must higher than the battery charging voltage
Battery side
DC voltage range
400~850Vdc
400~850Vdc
400~850Vdc
Max.charge/discharge power
55kW
110kW
165kW
AC side(Grid)
Nominal AC power
50kW
100kW
150kW
Max.AC power
55kVA
110kVA
165kVA
Max.AC current
80A
160A
240A
Nominal AC voltage
400Vac(-20%~+15%),3W+N+PE
Nominal grid frequency
50/60Hz(±5Hz)
THDi
<3%
Power factor
>0.99
Power factor adjustage range
1 Leading~1 Lagging
AC side(Off-Grid)
Nominal AC voltage
400Vac, 3W+N+PE
AC voltage range
<3%(Linear load)
THDv
50 / 60Hz
Nominal AC frequency
1
Unbalance load capacity
110%~normal operation, 120%~1min
Protection
Surge Protection
DC Type II / AC Type II
Island Protection
Yes
Over temperature Protection
Yes
Noise
<80dB
General Data
Dimensions (W * D * H)mm
1200x750x2000
1600x750x2150
Weight(kg)
900
950
1350
lsolation Type
None
Ingress protection rating
IP21
Operating ambient temperature
-30~60℃(>50℃derating)
Relative humidity range
0~95%(no condensation)
Cooling method
Forced Air Cooling
Max. operating altitude with full load
3000m
Display
7 inch touch screen
Communication
RS485/CAN20/Ethemet
Certification
CEIEC61000IEC62477-1:2012.EC61727IEC62116GB/T 34120GB/T 34133

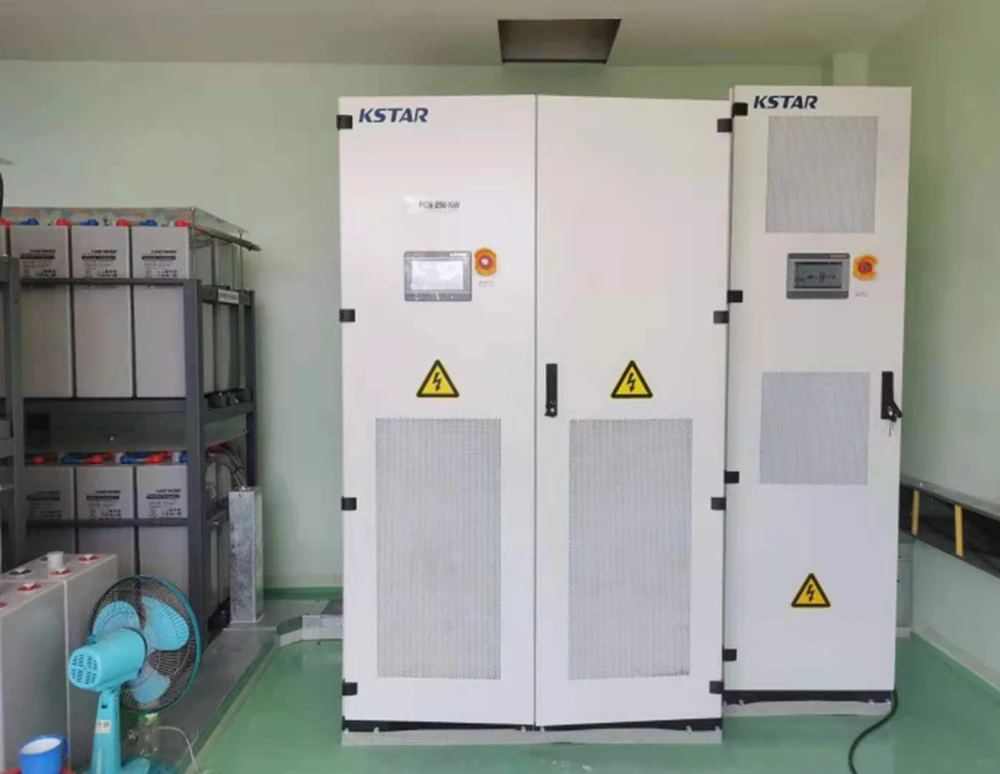

Cooperation Case




Certifications


Certification & Standard
CE IEC61000, IEC62477-1:2012, IEC61727, IEC62116, GB/T 34120, GB/T 34133
