ISO 13320 Dry Test Method Laser Nano Particle Size Analyzer Price
- Category: >>>
- Supplier: Dongguan Right Instrument Co. Ltd.
Share on (1600650176898):
Product Overview
Description
Product Description

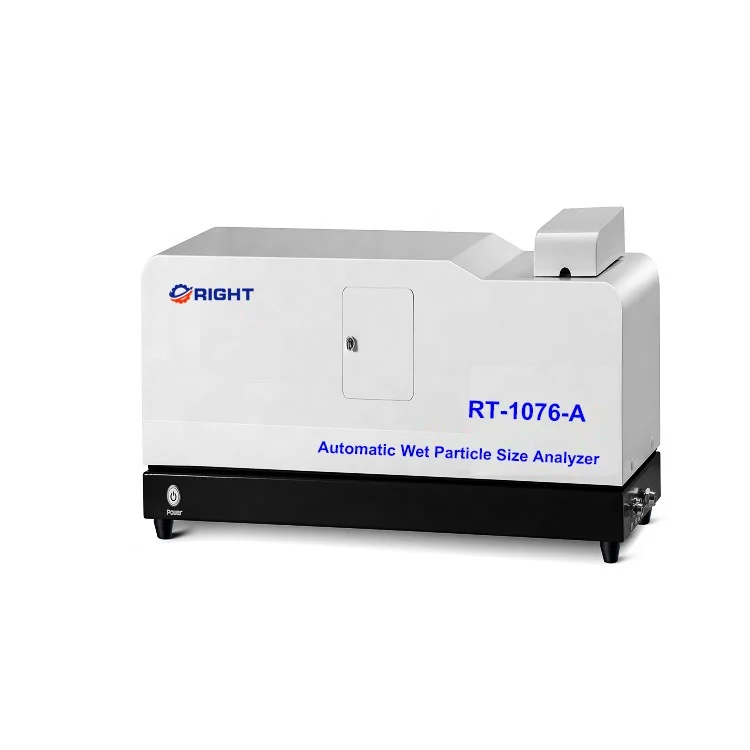

RT-1076 Laser Particle Size Analyzer
This series Laser Particle Size Analyzer is widely used for cement, ceramic, medicine, dope, dye, padding, chemical products, catalyst, braize, dust, additive,pesticide, explosive, graphite, photosensitive material, fuel, metal and nonmetal powder, calcium carbonate, kaolin and other powder materials.

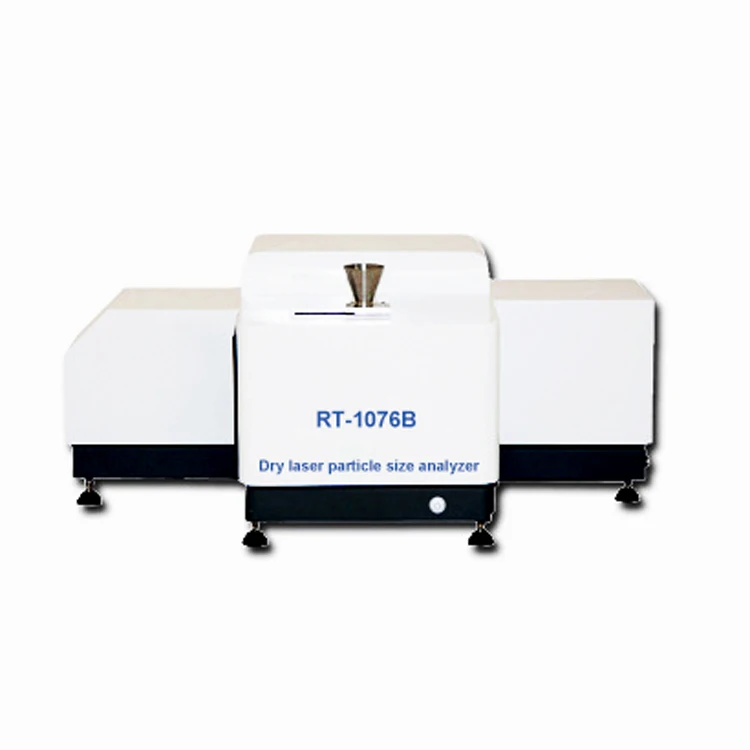

RT-1076B Automatic dry laser particle size analyzer
RT-1076 series is the latest product researched and developed by our company. Based on RT-1076, a large number of upgrades have been carried out, and it has won unanimous praise from customers since its launch. RT-1076B is a dry and wet automatic laser particle size analyzer, which adopts the most advanced Mie scattering principle and the concentrating Fourier transform light path. High-density probe and full range seamless test method ensure the accuracy and repeatability of test results.

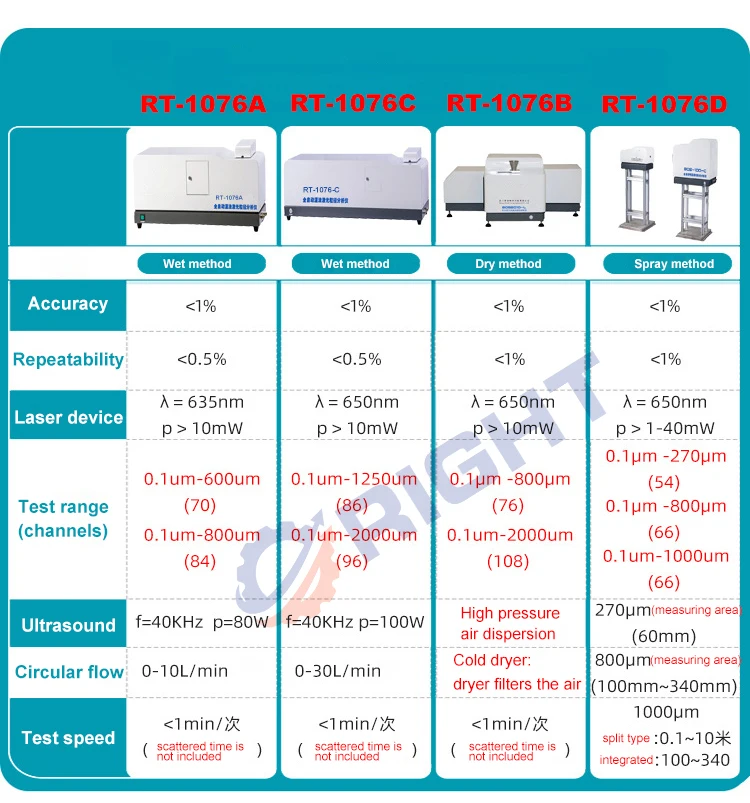

Model | RT-1076B | ||||
Execution standard | GB/T 19077-2016/ISO 13320:2009 | ||||
Test range | 0.1~2000μm | dry method (0.1μm -2000μm) | |||
Number of detector channels | dry method (117) | ||||
Accuracy error | < 1% (National standard sample D50 value) | ||||
Repeatability error | < 0.5% (National standard sample D50 value) | ||||
Free bubble | With no exhaust bubble design, no bubble interference data more accurate | ||||
Misoperation protection | The instrument has self-protection function for misoperation and does not respond to misoperation | ||||
Laser parameter | Imported fiber output high power laser λ= 635nm, P> 10mW | ||||
Lens | Import the Canon camera | ||||
Operating mode | Dry and wet method software operation with one button | ||||
The light path calibration | Automatic optical path calibration | ||||
Dry dispersion method | Dispersion method | High pressure air dispersion | |||
Feeding way | Mechanical stepless speed vibration feeding, software control | ||||
Oil free and quiet air compressor | With functions of dust filter, ensure accuracy test | ||||
Cold dryers | Freeze drying machine can filter the air moisture, guarantee dispersion effect | ||||
Software functions | Analysis patterns | Including free distribution, R-R distribution and log-normal distribution, classification by order statistical mode, etc., to meet the different requirements of different industries for sample size statistical methods | |||
Statistical methods | Volume distribution and quantity distribution, in order to meet the different statistical methods of granularity distribution in different industries | ||||
Statistical comparison | It can make statistical comparison and analysis for multiple test results, and can obviously compare the difference of test results of different batches of samples, samples before and after processing and different time, which has strong practical significance for the quality control of industrial raw materials | ||||
To DIY | User-defined data to display, according to the percentage of particle size, according to the percentage of particle size or according to | ||||
According to the template | The percentage of particle size interval is calculated to meet the characterization of particle size test in different industries. Diameter distance, consistency, interval accumulation, etc | ||||
The test report | The test report can be exported to Word, Excel, Bmp, and Text files, enabling you to view test reports and reference test results in scientific research articles on any occasion | ||||
Multilingual support | Chinese and English language interface support, can also be embedded in other languages according to user requirements | ||||
Intelligent operation mode | Truly automatic unmanned intervention operation, no human interference, you only need to add the sample to be tested as prompted, the test results of better repeatability. | ||||
Operating mode | One-click automatic software operation mode | ||||
The test speed | < 1min/ time (excluding sample dispersion time) | ||||
volume | 850mm*410mm*450mm | ||||
weight | 30Kg | ||||
Our Advantages
Advanced optical path design: RT-1076-B uses concentrating Fourier transform testing technology to ensure the shortest focal length to obtain the maximum range, effectively improve the resolution of the instrument; The unique high-density detection unit enables RT-1076-B to have super small particle testing capability. The high-density detection unit enables the RT-1076-B to have super seamless full-range testing capability.
Enable new software: three generations of software officially commercial, new software optimization algorithm, more accurate test results, higher stability, real-time storage of test data will never be lost; Third generation software support fuzzy search function, all tested samples can be easily found no matter how long; Human-computer interaction is more reasonable.
Four generation detector: RT-1076-B particle size instrument at the same time enabled the fourth generation detector, all using German imported materials processing, strong oxidation resistance, photoelectric conversion efficiency more than ten years almost zero attenuation.
RT-1076-B1 fully sealed fiber semiconductor laser uses the high stability, long life Of Japan Opnext fully sealed fiber semiconductor laser, excellent stability so that RT-1076-D has a strong test repeatability, on the basis of RT-1076-B do laser power adjustable, the maximum laser power is also achieved 20MW.
Enable new software: three generations of software officially commercial, new software optimization algorithm, more accurate test results, higher stability, real-time storage of test data will never be lost; Third generation software support fuzzy search function, all tested samples can be easily found no matter how long; Human-computer interaction is more reasonable.
Four generation detector: RT-1076-B particle size instrument at the same time enabled the fourth generation detector, all using German imported materials processing, strong oxidation resistance, photoelectric conversion efficiency more than ten years almost zero attenuation.
RT-1076-B1 fully sealed fiber semiconductor laser uses the high stability, long life Of Japan Opnext fully sealed fiber semiconductor laser, excellent stability so that RT-1076-D has a strong test repeatability, on the basis of RT-1076-B do laser power adjustable, the maximum laser power is also achieved 20MW.
Product Details
Feature:
Automatic test: truly automatic test, what you do is just put in the sample, no interference data without manual selection of data.
Ultrasonic anti-dry burning function: after painstaking research and development, RT-1076 can realize ultrasonic anti-dry burning function, to avoid damage to ultrasonic in the case of no water.
New SOP self-editing function: In order to meet the test needs of different samples, RT-1076 realizes the SOP self-editing function, edit different test procedures according to different samples, edit and save once and then directly use next time.
Dustproof and shockproof design: the whole instrument is sealed to greatly improve the service life of the internal components. The unique shockproof structure can effectively avoid the interference of external vibration to the instrument, so that the test results are more stable and reliable.
Strong anti-corrosion design (optional): according to the actual needs of customers can be equipped with acid resistance, alkali resistance, oil resistance (including all solvent oil), resistance to organic solvents (such as acetone, phenol, n-hexane and other organic solvents).

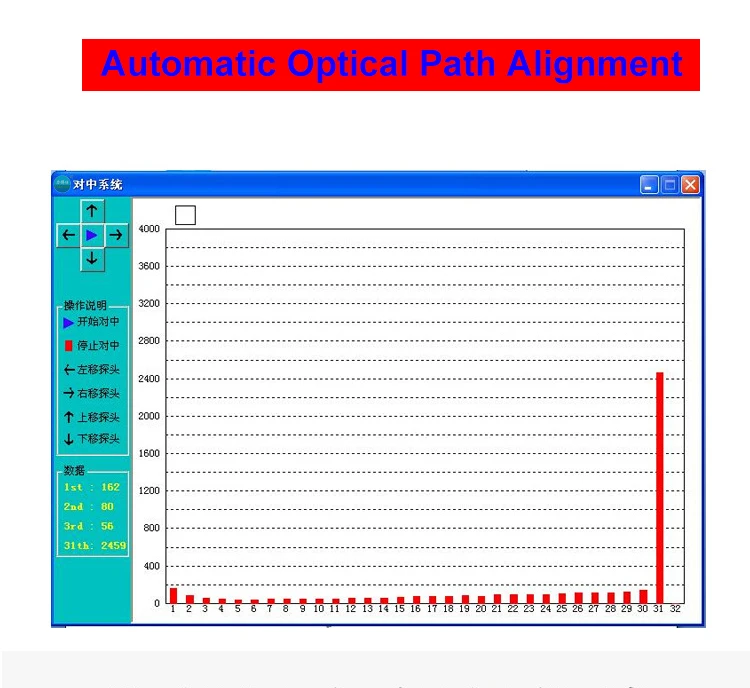

Optical path automatic calibration: self-developed new automatic alignment system including stepper motor, precision guide rail, precision controller and software system, minimum step distance of 1 micron, to ensure that the laser beam focus from the center point through the detector, improve the accuracy of test results and repeatability. Automatic centering system is the standard configuration of all types of Laser particle size meter.
Unique microcirculation system: the whole dispersion circulation system has been optimized design, the dispersion medium is greater than 80 ml can cycle test, really achieve the microcirculation test; The optimized design ensures no waste residue after drainage and the accuracy of the next test result. (Optional for microtest)
Free exhaust bubble design: the new design makes the whole test will not have bubble into the test sample window, avoid bubble interference.
Dew point measurement function: the system is equipped with dew point measurement function, the software can provide sample window fog reminder according to the change of the environment; The instrument also has the function of internal temperature, humidity and test medium temperature display.
organic solvents (such as acetone, phenol, n-hexane and other organic solvents).

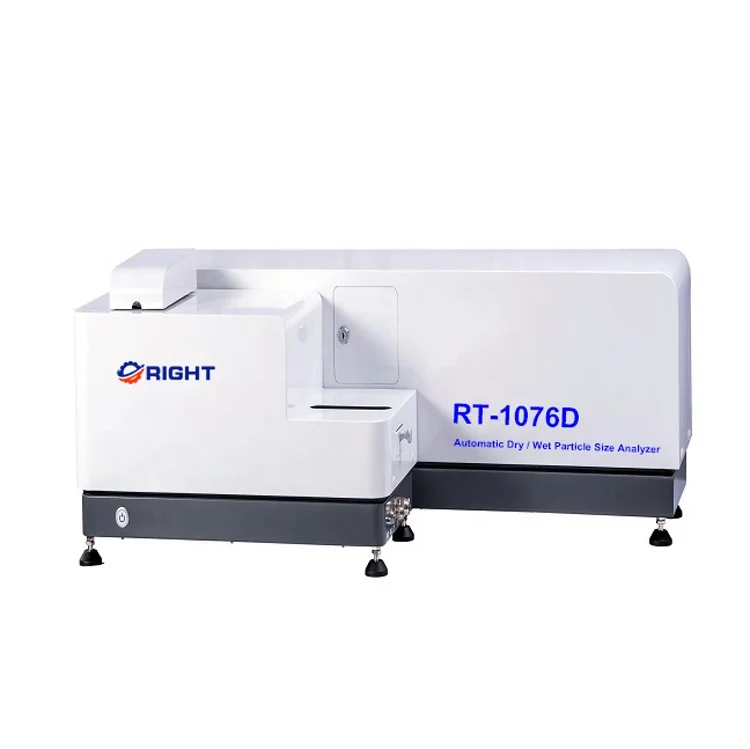

Dispersant automatic filling system: the new RT-1076-D increased the dispersant automatic filling system, greatly improving the stability of the instrument dispersion; It not only avoids the tedious artificial addition but also greatly prolongs the cleaning cycle of the sample window (if there is no lack of dispersant calcium carbonate industry can basically not clean the sample window).
Channel steel guide: the new RT-1076 light path guide is uniformly upgraded from aluminum alloy to thickened channel steel, the light path system is more stable and reliable, and greatly reduces the influence of temperature and humidity on the light path.
Sample no residue design: the instrument pipeline and drainage structure are optimized design, the instrument pipeline, circulation pump no liquid residue, to avoid the impact on the next test data.
Sample window quick change device: newly designed sample window quick change device, make sample window more convenient and fast change.
Sample window quick change device: newly designed sample window quick change device, make sample window more convenient and fast change.
