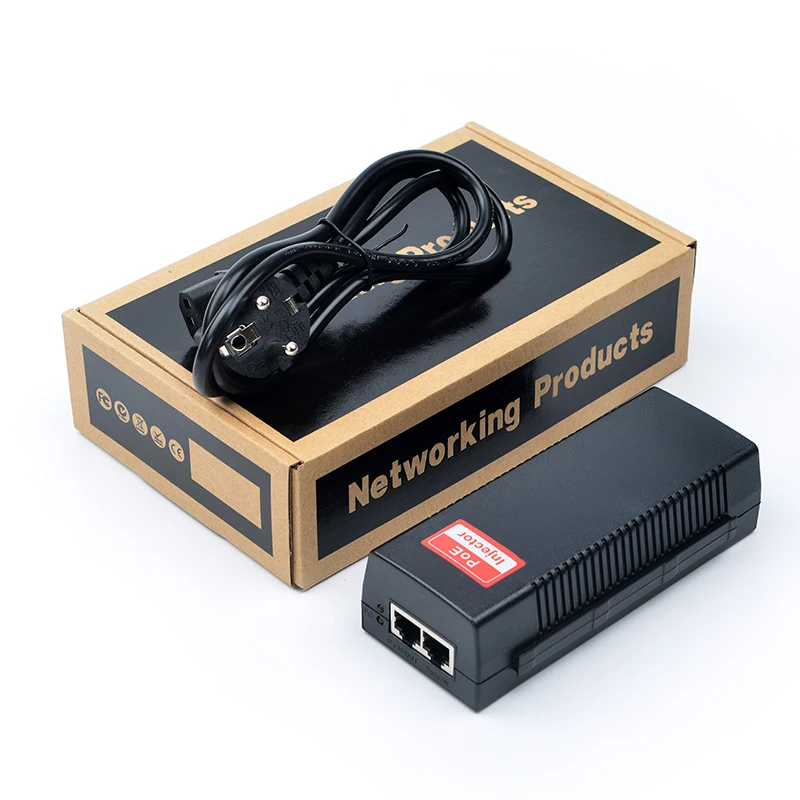

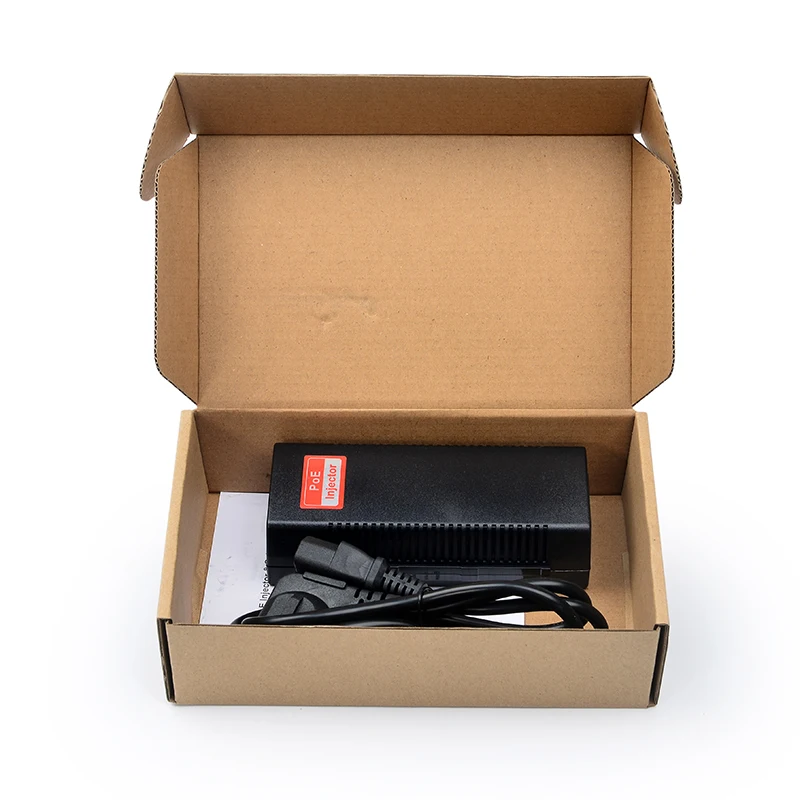

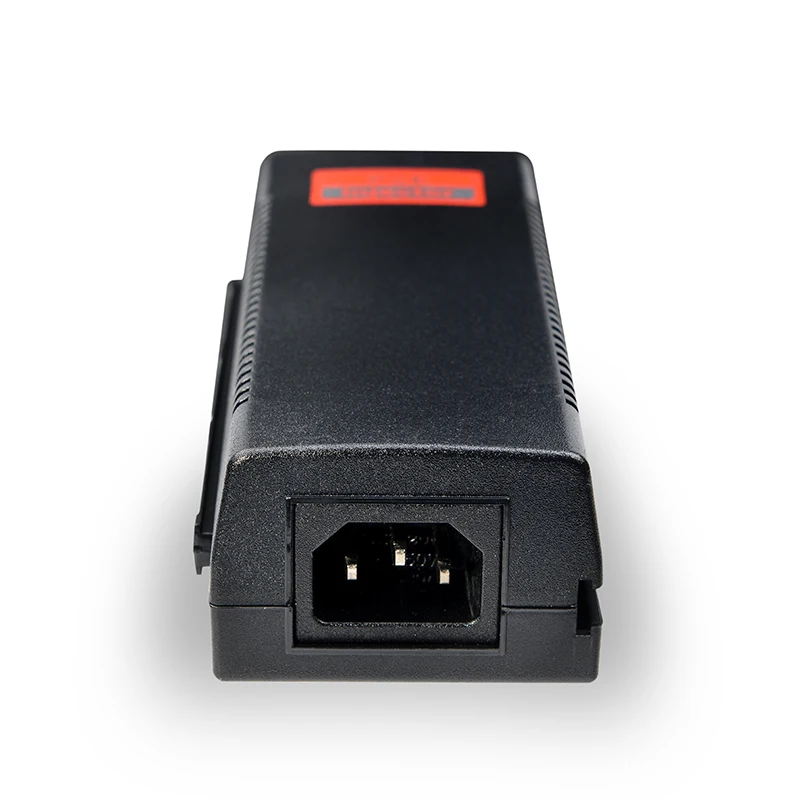

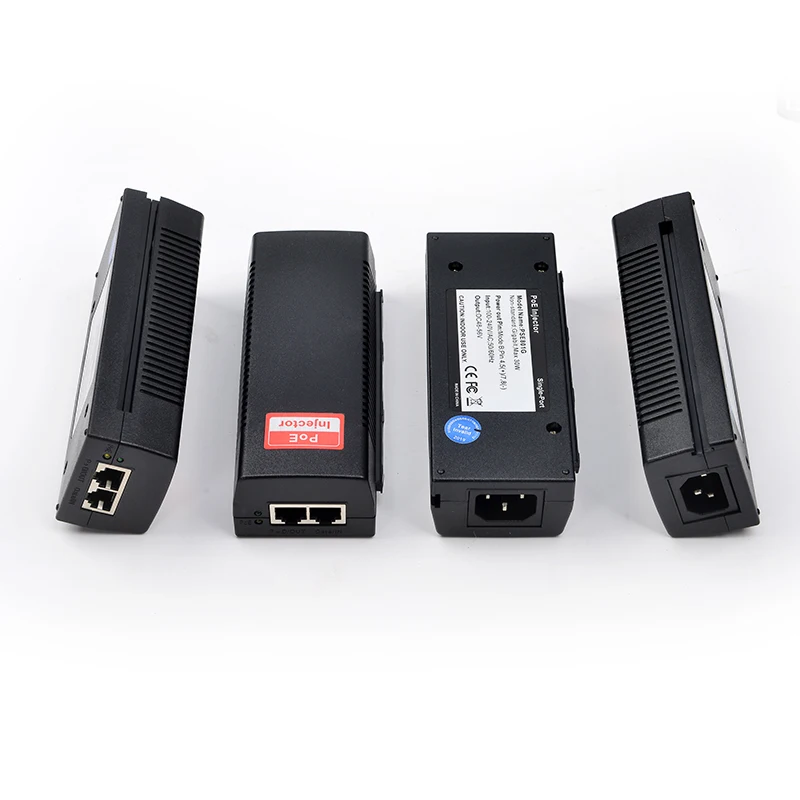

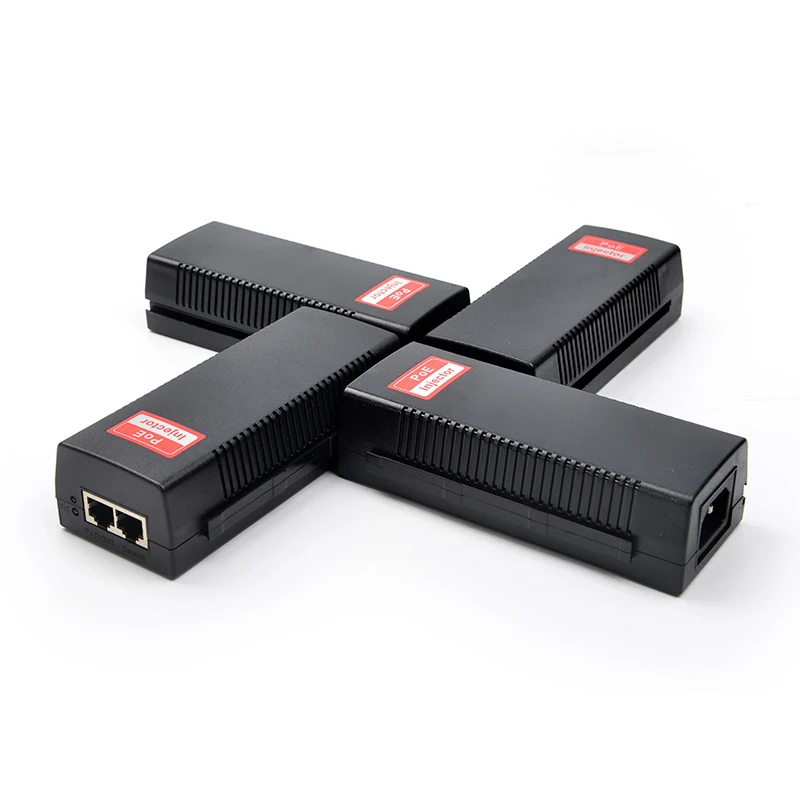

SDaPo PSE60G/PSE156G 4 пары, активный PoE Power over Ethernet адаптер 1000 Мбит/с PSE гигабитный 60 Вт PoE инжектор
- Category: >>>
- Supplier: Shenzhen Dapo Communication Co. Ltd.
Share on (1600650189586):
Product Overview
Description
Products Description
Advanced PoE Solution
The PSE156G is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) portthat is designed for small or medium network environments. The PSE156G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with 802.3at 4-pairs Poe standart. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore. For all the function featured in PSE156G, people can get the benefit of flexiblenetwork installation at lower cost, less downtime.
Key Features
* Up to 60W of Power on4-pairs
* Safe on Low Power Devices Receive Only the Power TheyNeed
* Safe and Reliable Power to WLAN Access Points
* Automatic Detection and Protection of Non–standard EthernetTerminals
* Supports 10/100/1000Base-T LANenvironment
* Unique interlocking feature for easyinstallation
* Up to 60W of Power on4-pairs
* Safe on Low Power Devices Receive Only the Power TheyNeed
* Safe and Reliable Power to WLAN Access Points
* Automatic Detection and Protection of Non–standard EthernetTerminals
* Supports 10/100/1000Base-T LANenvironment
* Unique interlocking feature for easyinstallation
Technical Specifications Standards Compliance | Dimensions (L x W x H) / Weight 39*62.7*145mm |
IEEE 802.3 10Base-T Ethernet | 490g |
IEEE 802.3u 100Base-Tx Fast Ethernet | Indicators |
IEEE 802.3bt Power over Ethernet | AC Power (Green) |
Connector: RJ-45 10/100/1000 Mbps | PoE (Orange) |
PoE Power Output | Environmental Conditions |
Pin Assignment and Polarity: | Operating Temperature: -20 ~ 60°C |
Data+Power Pairs 1/2 (+), 3/6 (-); | Storage Temperature: -10 ~ 70°C |
Power Pairs 4/5 (+), 7/8 (-) | Storage Humidity: |
Output Power Voltage: 54-56 VDC | Maximum 95%, Non-condensing |
Power: Mode-A+Mode-B 60 Watts Max. | |
Input Power AC Input Voltage: 100~240VAC | |
Requirements AC Input Current: ≤1.5A @ 100~240 VAC |
