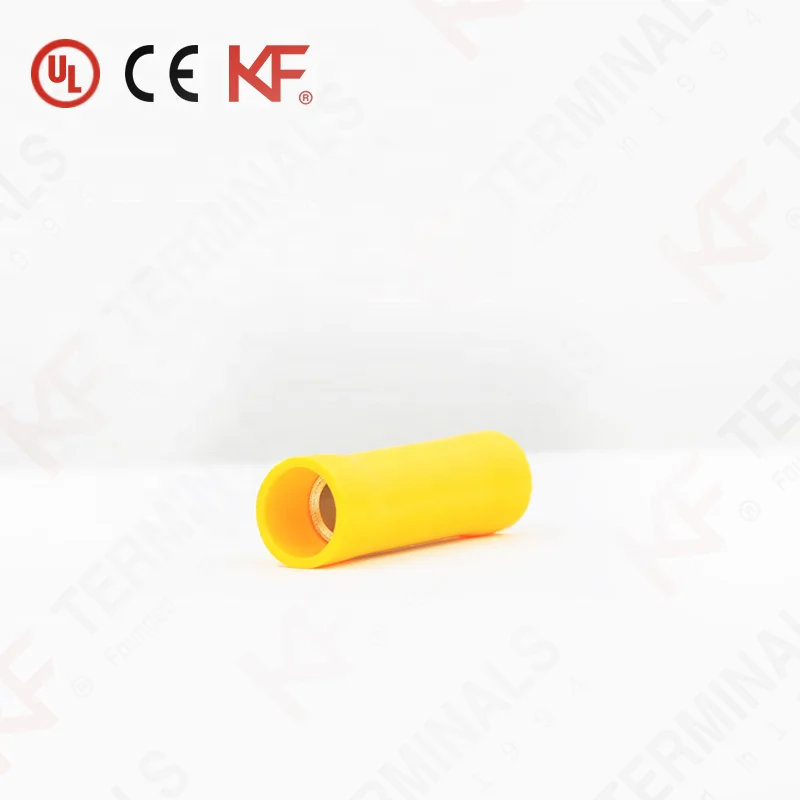

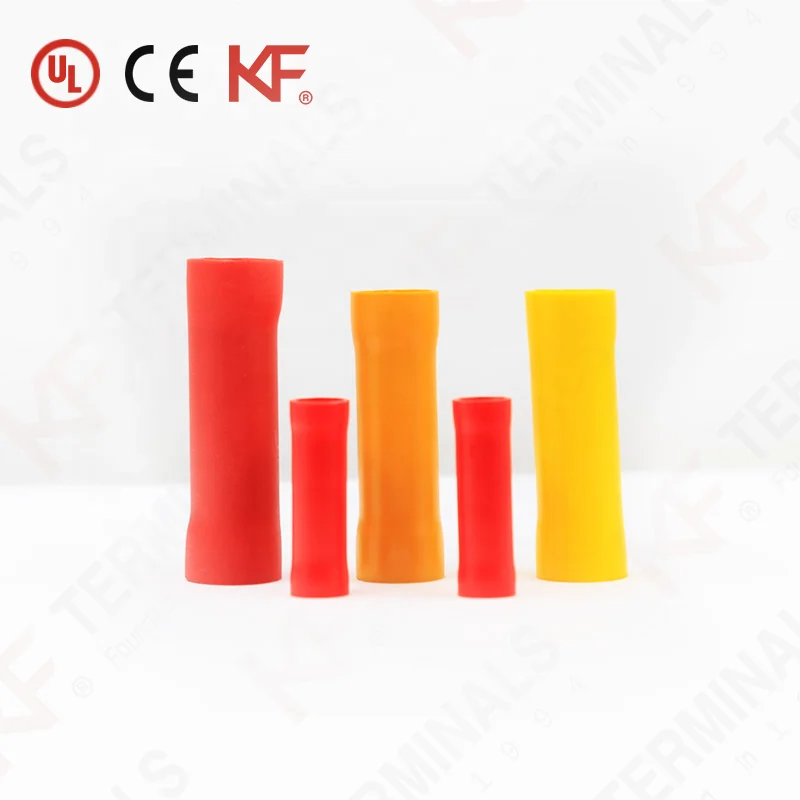

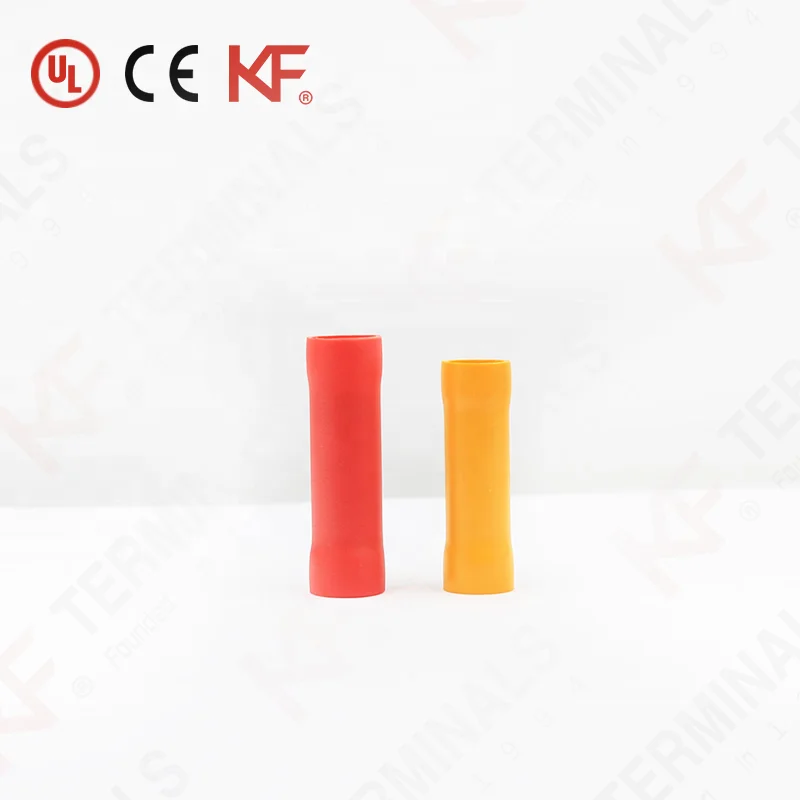

High quality copper insulated butt wire connector terminal
- Category: >>>
- Supplier: Zhejiang Kise Terminal Co. Ltd.
Share on (1600650330334):
Product Overview
Description

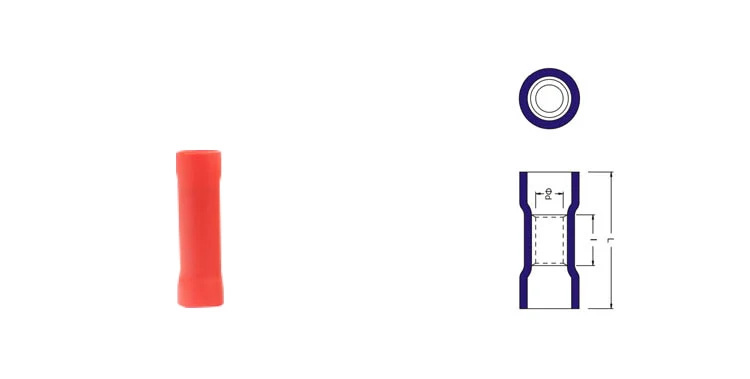

Wire Range | SKU# | Description | Dimensions Inch (mm) | ||
I | d | L | |||
0.2~0.5mm² | KFBVS10 | 26-22 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT0.5 | 8.0 | 1.5 | 13.5 |
0.5~1.5mm² | KFBVS20 | 22-16 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT1.25 | 8 | 1.7 | 16.5 |
1.5~2.5mm² | KFBVS30 | 16-14 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT2 | 8.0 | 2.5 | 16.5 |
4~6mm² | KFBVS40 | 12-10 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT5.5 | 8.5 | 3.5 | 20 |
8mm² | KFBVS50 | 8 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT8 | 9.5 | 4.5 | 24.0 |
14mm² | KFBVS60 | 6 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT14 | 11 | 6 | 30 |
22mm² | KFBVS70 | 4 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT22 | 13.5 | 8.0 | 37.0 |
38mm² | KFBVS80 | 2 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT38 | 16.5 | 9.5 | 39.5 |
KISE has been sticking to the development strategy of “being specific, precise, and advanced” for more than 20 years. Relying on the solid foundation in professional knowledge and innovative spirit, the technical team of the company adheres to the innovation pattern of “independent research & development, joint development, and technology introduction” and has established an excellent R&D system. The company has powerful capabilities in mould development and has gradually gained a technical advantage in the field of terminals.
