Micet 95% Alcohol Distiller 300L Double Distilling Tower Vodka&Rum Distillery Equipment
- Category: >>>
- Supplier: Shandong Innovative & Craft Brewing Equipment Co. Ltd.
Share on (1600650925823):
Product Overview
Description

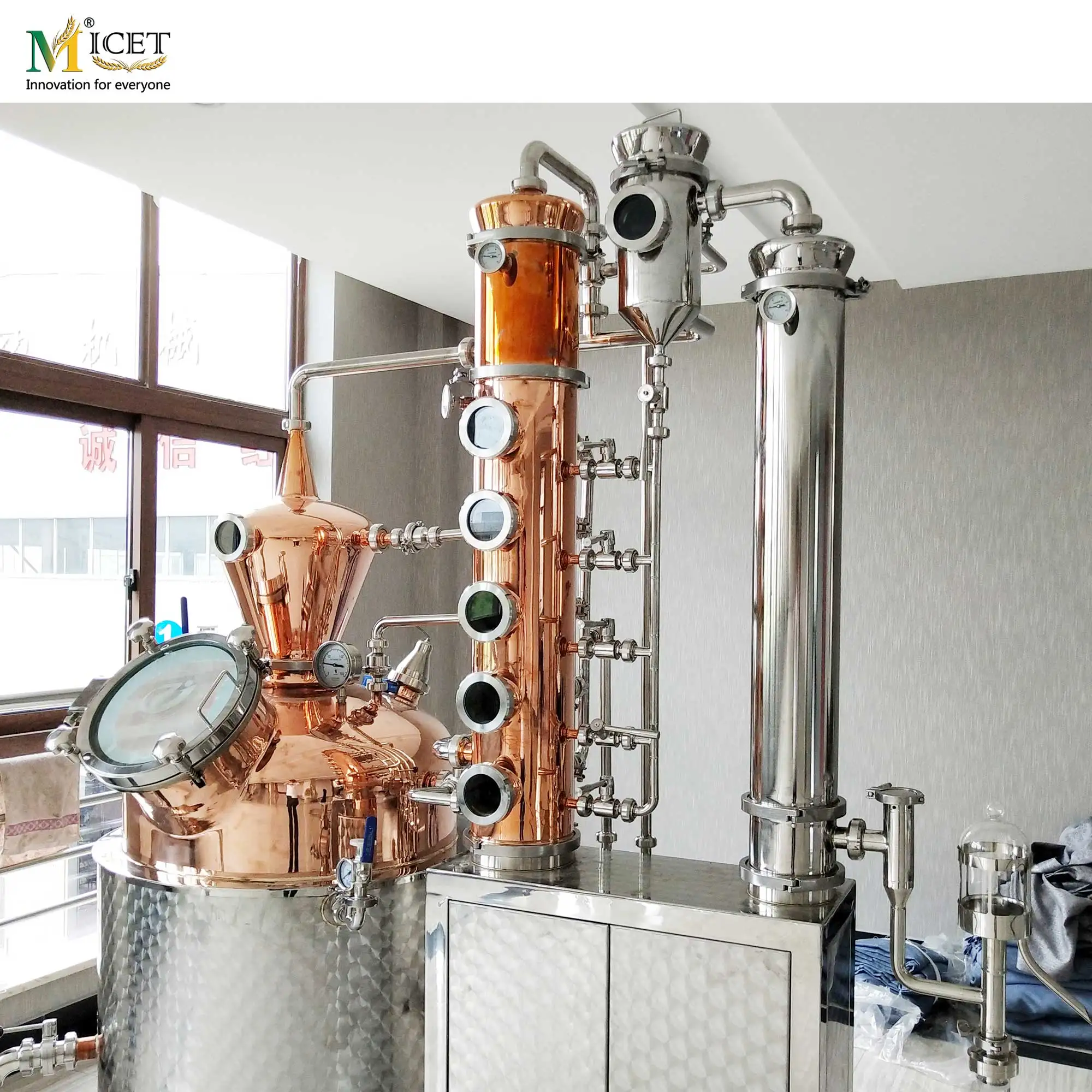

Micet 95% Alcohol Distiller 300L Double Distilling Tower Vodka&Rum Distillery Equipment

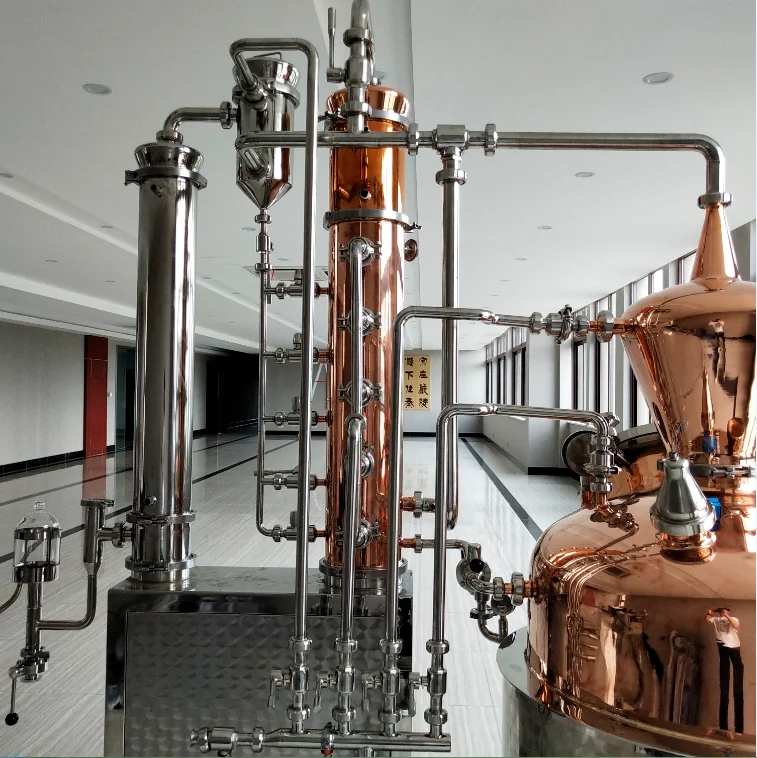

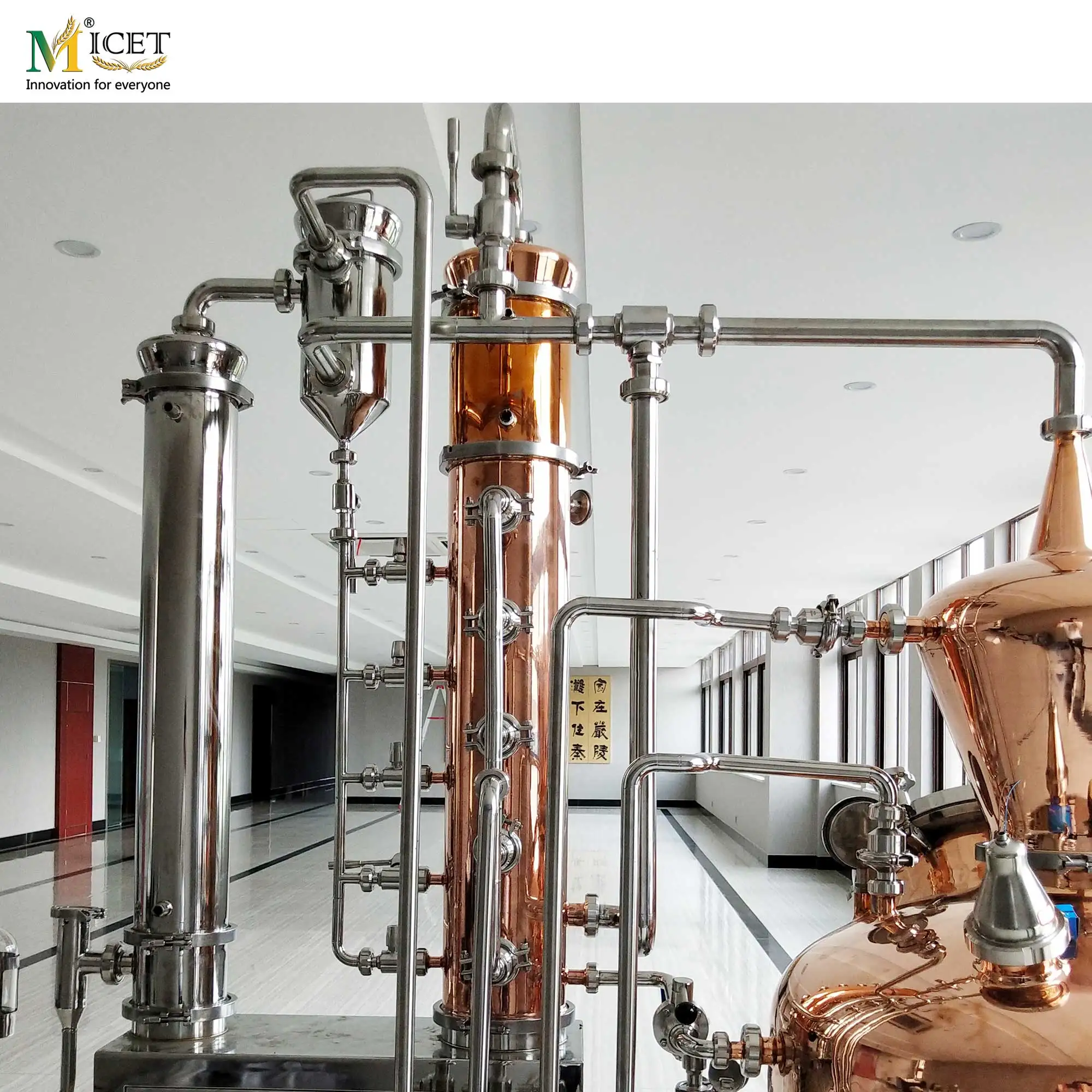

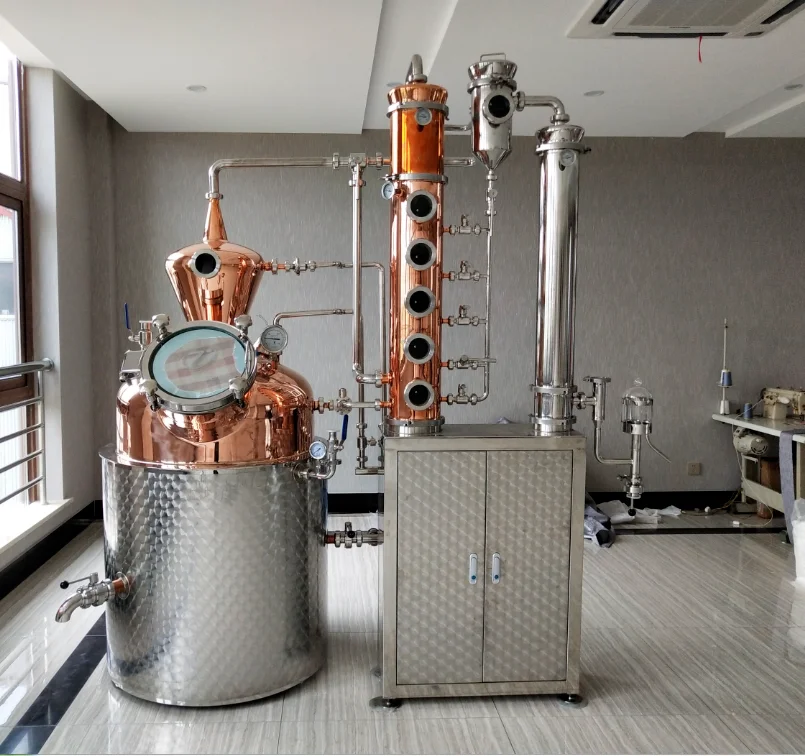

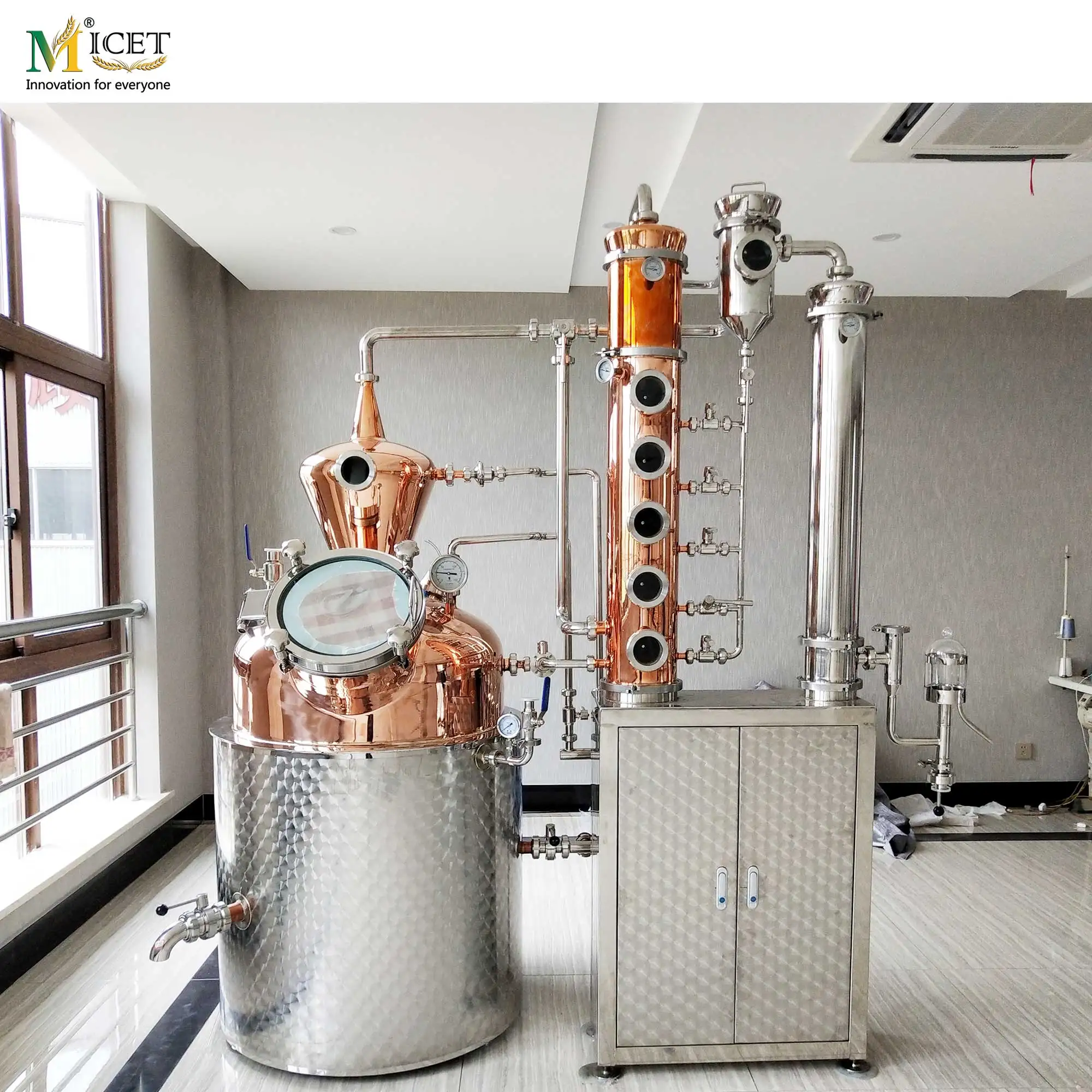

The 300l distillery equipment consists of a pot made of copper, glass, and copper columns combined, a partial condenser, and acondenser, which are heated using steam or electricity. The distillery equipment is a single unit designed to meet and exceed the needs of start-up distilleries and can be used as advanced test distillery equipment for mature distilleries of whisky, gin, fruit
brandy, rum, wine spirits. Micet Craft provides a complete distillation process system including mash tun, fermentation tank,spirit storage tanks, wine tanks, etc.
brandy, rum, wine spirits. Micet Craft provides a complete distillation process system including mash tun, fermentation tank,spirit storage tanks, wine tanks, etc.
Product Advantages

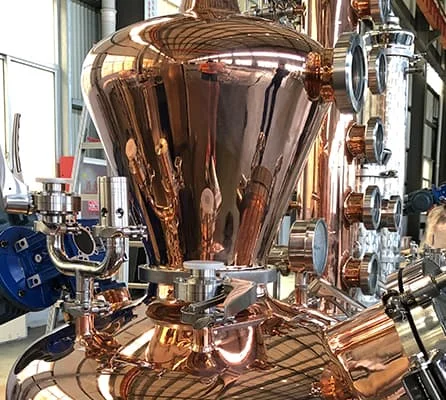

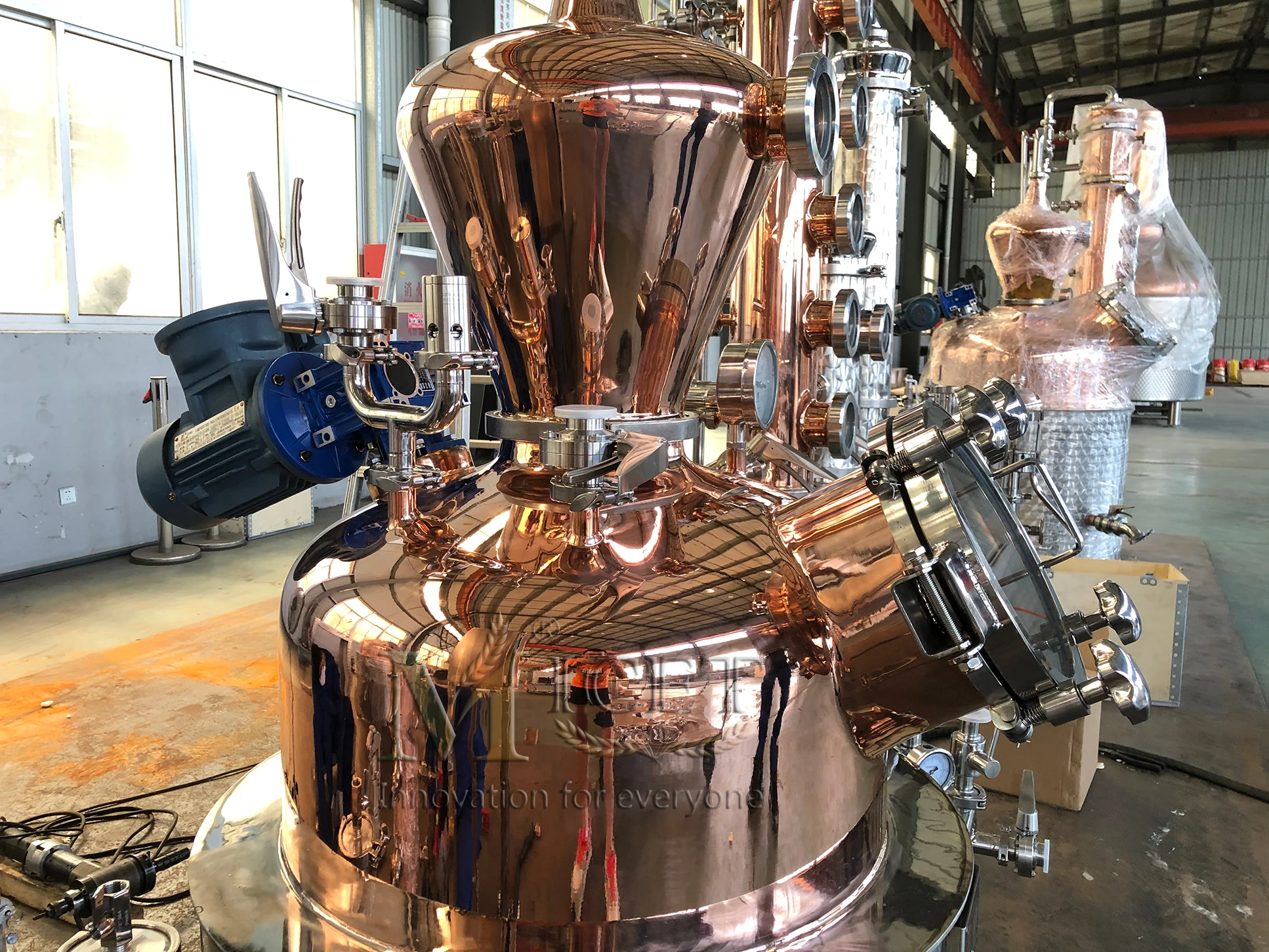

Copper head process
Quick loading and copper welding method is one-time turn over welding, to ensure that the parts in contact with the wine are made of copper material, beautiful bright side; Sealing is mainly by the sealing ring pressure, no welding position, so as to improve the service life of the equipment.
The manhole is made of red copper and welded with stainless steel flange to ensure that all parts in contact with wine are made of copper, with strong sealing performance and long service life.
The contact parts with wine gas are made of red copper, and the design process of turning welding is adopted.
Quality Assurance
All equipment has a one-year warranty from the date of delivery of the equipment. We provide on-site installation for commercial equipment through a professional team.
Material is introduced
Glass
This glass is widely used for the safe production of spirits on stills. The seller can easily know when the distillation process ends and can also resist the high temperature.
Copper
Copper can help neutralize sulfur compounds and improve the taste and odor of the final product, plus copper conducts heat better than stainless steel, which saves time on initial heating but also means increased heat loss.
Stainless steel
Stainless steel is very resistant to high temperatures, dents, and all stainless steel parts used on distillation equipment have a hygienic polish that lasts for a long time and doesn't breed bacteria.
Product Parameters
Design | 300L Multi-functional distiller | ||
Heating | Red copper boiler with insulation jacket | ||
Red copper helmet with sight glass | |||
Red copper 4plates column(5sight glass) | |||
Red copper double dephlegmator | |||
SS304 gin basket | |||
SS304 Condenser | |||
SS304 parrot | |||
With electric control panel( only electric heating needed) | |||
Function | Make: Brandy, Whiskey, Rum,Gin, Vodka(secondary distillation to increase proof) | ||
Product Specifications
Model | Descriptions | ||
Still Pot | Actual volume375L,Working volume300L; 1.Inner pot:red copper T2 thickness：3m； 2.Dished head:red copper T2,thickness：3m; 3.Jacketed:SUS304,thickness:4mm; 4.Insulated:50mm,PU; 5.Stirring motor:explosion proof mixer 0.37KW/46rpm(EX) ; 6.Outer shell:SUS304,thickness:2mm; 7.Temperature control:PT100; 8.Heating method:2*10KW electric heating rods; 9.With glass manhole,cipcleaning ball,safty valve,sight light,steam trap etc. | ||
Copper head | 1.Material：red copper T2, thickness：3mm； 2.Connection method:8" tri-clamp； 3.With cip cleaning ball,sight glass; | ||

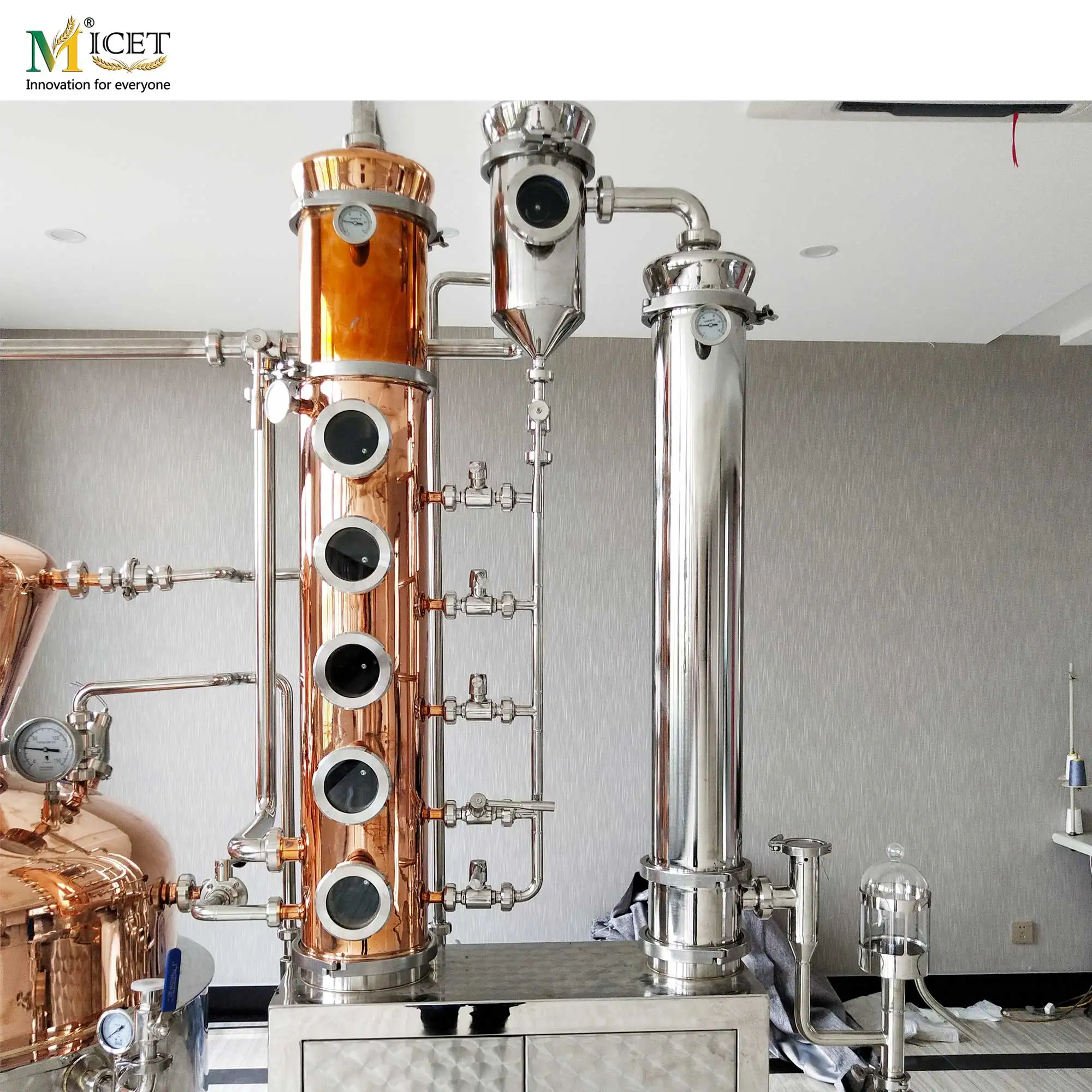

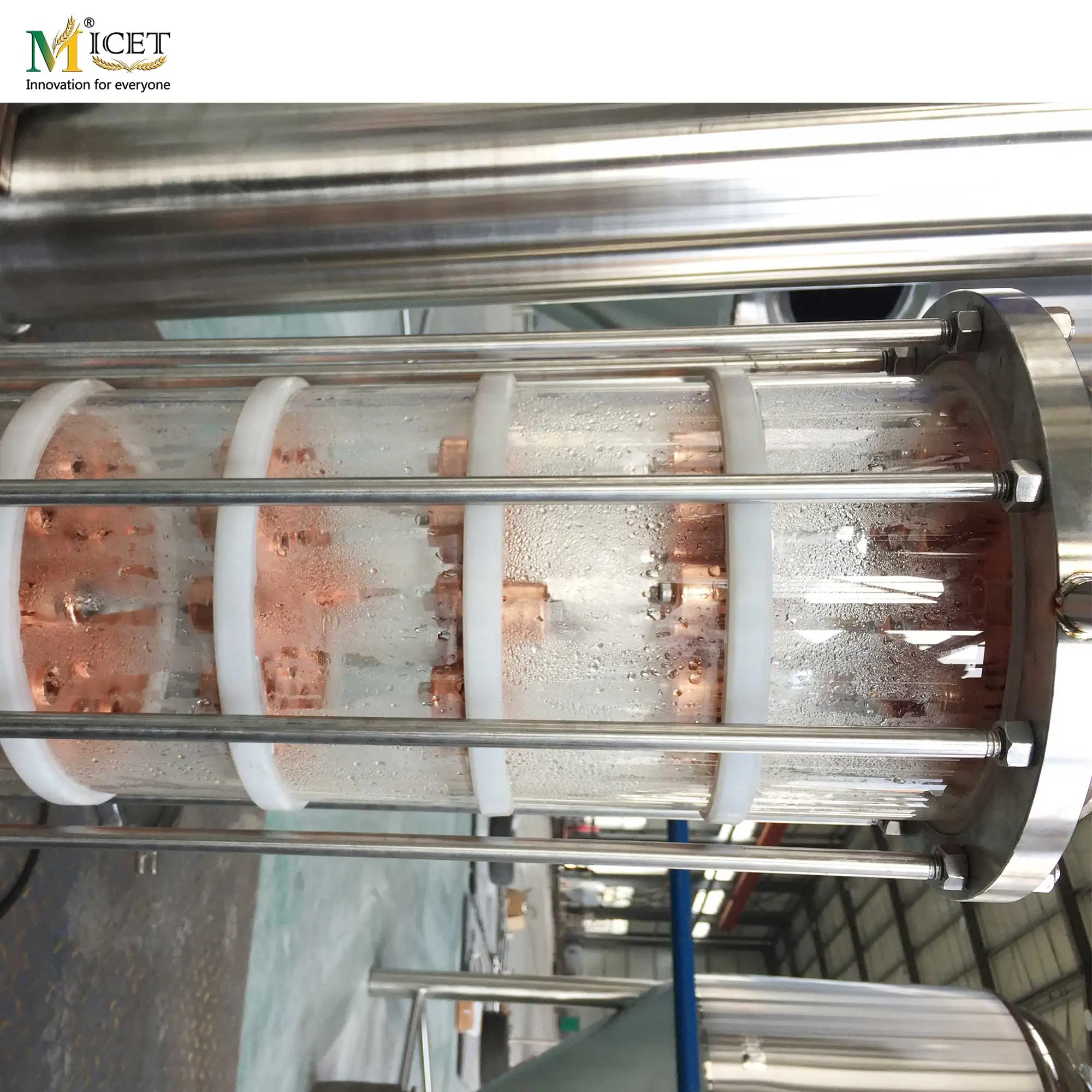

Still Column | 1.Material：red copper T2, thickness:3mm; 2.Connection method:8" tri-clamp; 3.Red copper tubes,one column with 4 bubble trays,each tray has bubble caps,and with CIP claning balls,Drain valve,thermometer; | ||
Dephlegmator | 1.Material:Red copper T2,thickness:3mm; 2.Connection method:8" tri-clamp; 3.With cooling water inlet and outlet; | ||
Gin basket | 1.Material:SUS304; 2.Size:4"; 3.Features:you can put plant spices, fumigate scented wine, such as gin | ||
Condenser | 1.Material:SUS304,thickness:3mm; 2.Size:6",900mm; 3.With cooling water inlet and outlet; | ||
CIP pump | 1. Category: Sanitary centrifugal pump 2. Power: 0.75KW (explosion-proof) 3. Flow rate: 3T/H, head 24m 4. Workingmedium: water 5.Working temperature: 10-100℃ 6.Features:Can clean the distillation kettle, copper head, column, gin basket; | ||
Bracket | 1.Material:SUS304,thickness:2mm; 2.Multifunctional lockers | ||
Control box | 1.Material:SUS304; 2.sight light, motor, CIP pump. | ||

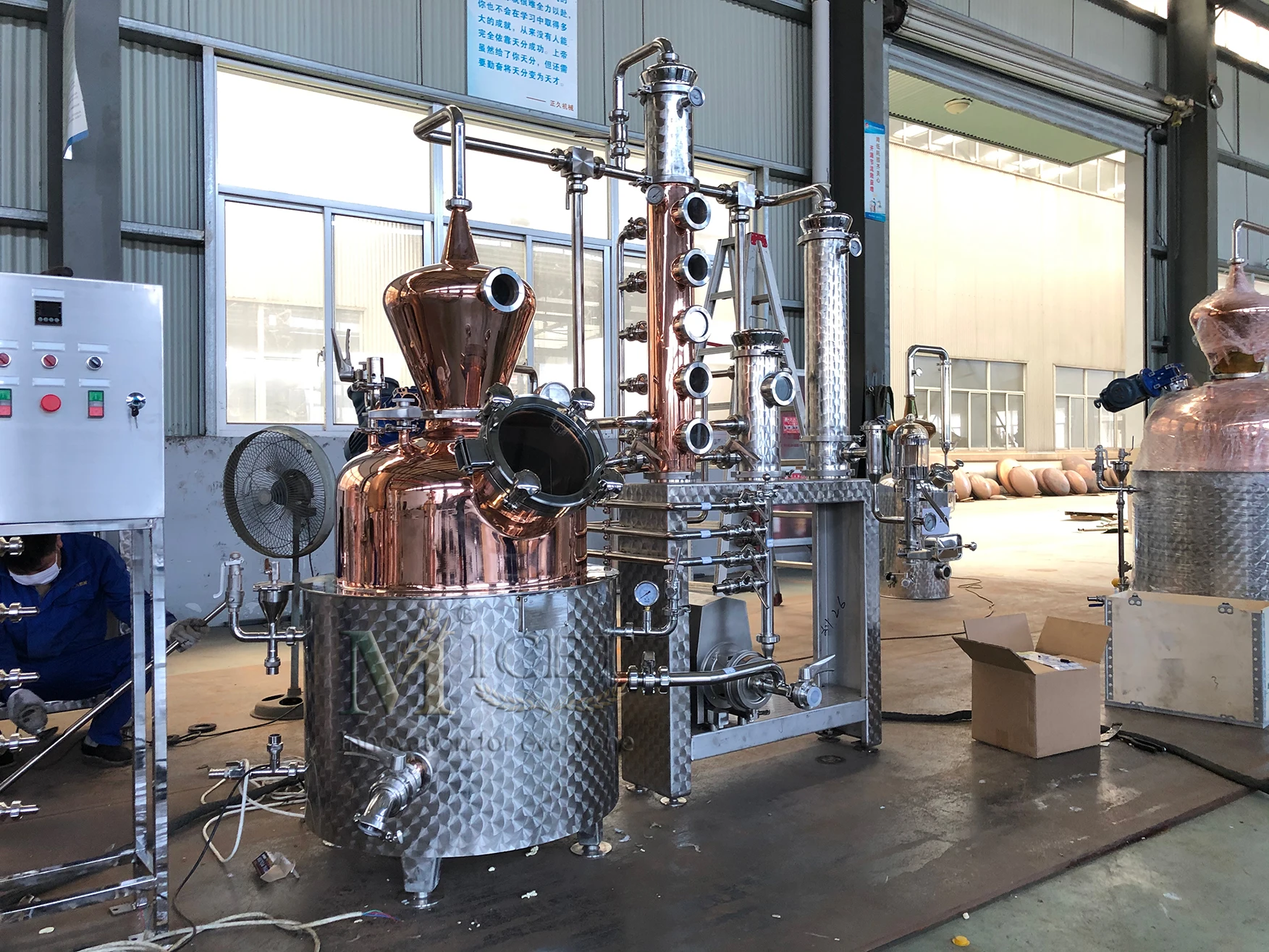

Products Show

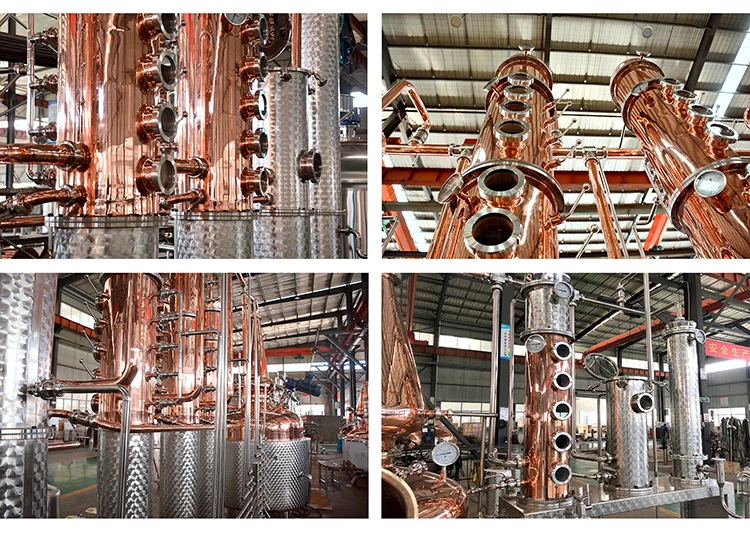

Product Details

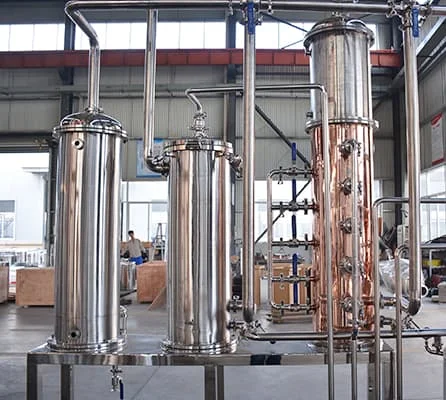

Project Cases
Our Company
Company Profile
Micet always adheres to the spirit of craftsmanship (quality), elite culture (talent), and innovation consciousness (research and development) as the competitiveness of enterprise development. We focus on high-end product lines and insist on craftsman spirit, perform strict quality control and process testing in production to ensure that customers have good expectations for equipment and on-time delivery.
Certification
Our factory adopts 5S management, professional and strict inspection and testing process, each order will have an inspection record from materials checking, production progress, finished product to delivery and packing,.etc. Each system will have 4 times inspections, including materials come in, production process, testing, finished product inspection before shipping, our goal is to mostly control the quality to reduce the client's trouble even good after-sale!
Customized design
We can not only design the brewhouse as per the client's brewing requirement and beer types but also provide the CAD & 3D design drawing, including P&ID process, vessel drawing, piping connection, and brewery layout.
Quality assurance
Insist on high-end products line, adopts high Standard design and global brand components, etc., Our welding is all full welding by water, uniform dimpled jackets to ensure no leaking and long life, all welds undergo welds passivation! Our polishing is overall mirror polishing without any welds left.
One-stop purchase
Insist on high-end products line, adopts high Standard design and global brand components, etc., Our welding is all full welding by water, uniform dimpled jackets to ensure no leaking and long life, all welds undergo welds passivation!
FAQ
How does Micet do quality control?
Micet will have at least 4 times inspections for each order, including materials come inspection, production process control, finished production inspection, and full line testing and inspection before shipping to ensure the final product will meet the client's requirements.
What is your warranty term?
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be sent immediately and get within. Provide daily maintenance and technical services.
How long is the delivery time?
1. The manufacturing time is 40 working days and will be enforced as soon as receiving the deposit.
2. The technical files (layout, drawings, etc) confirmation time shall not be included in the manufacturing time.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping.
2. Paypal or trade assurance is available.
