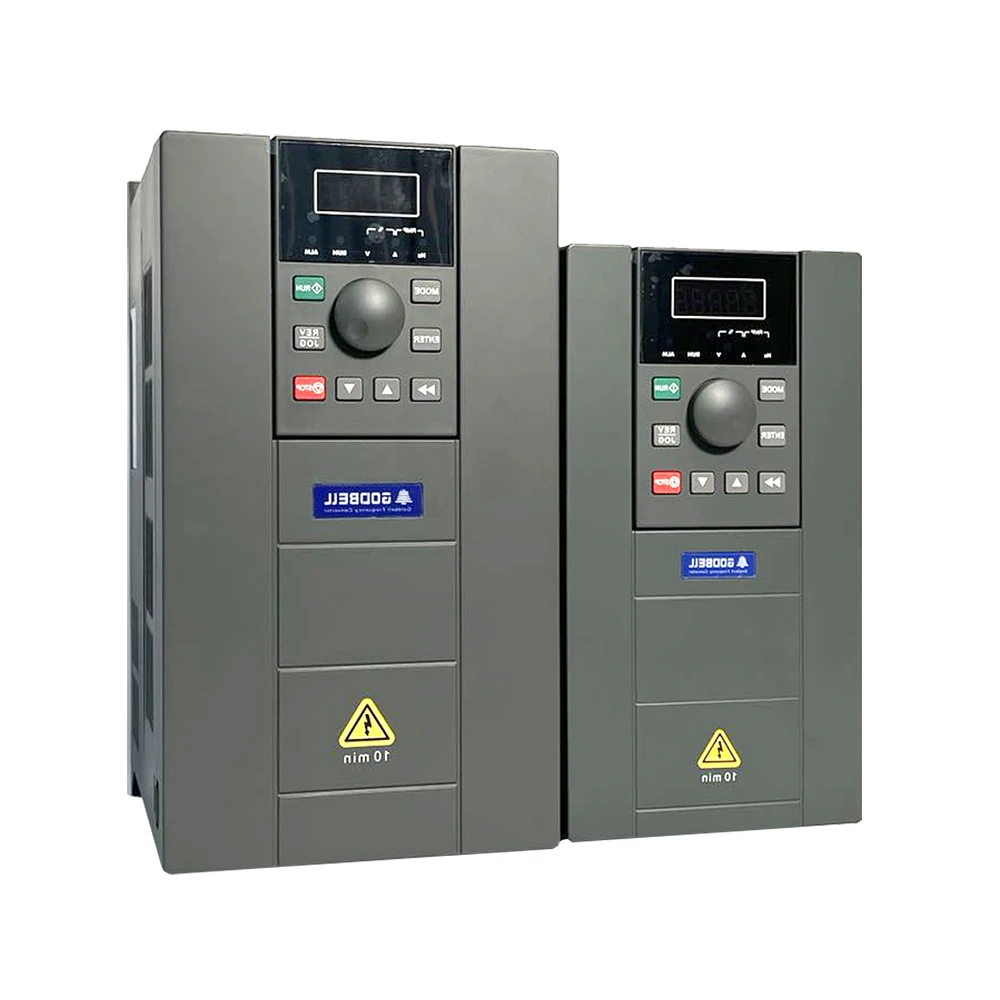

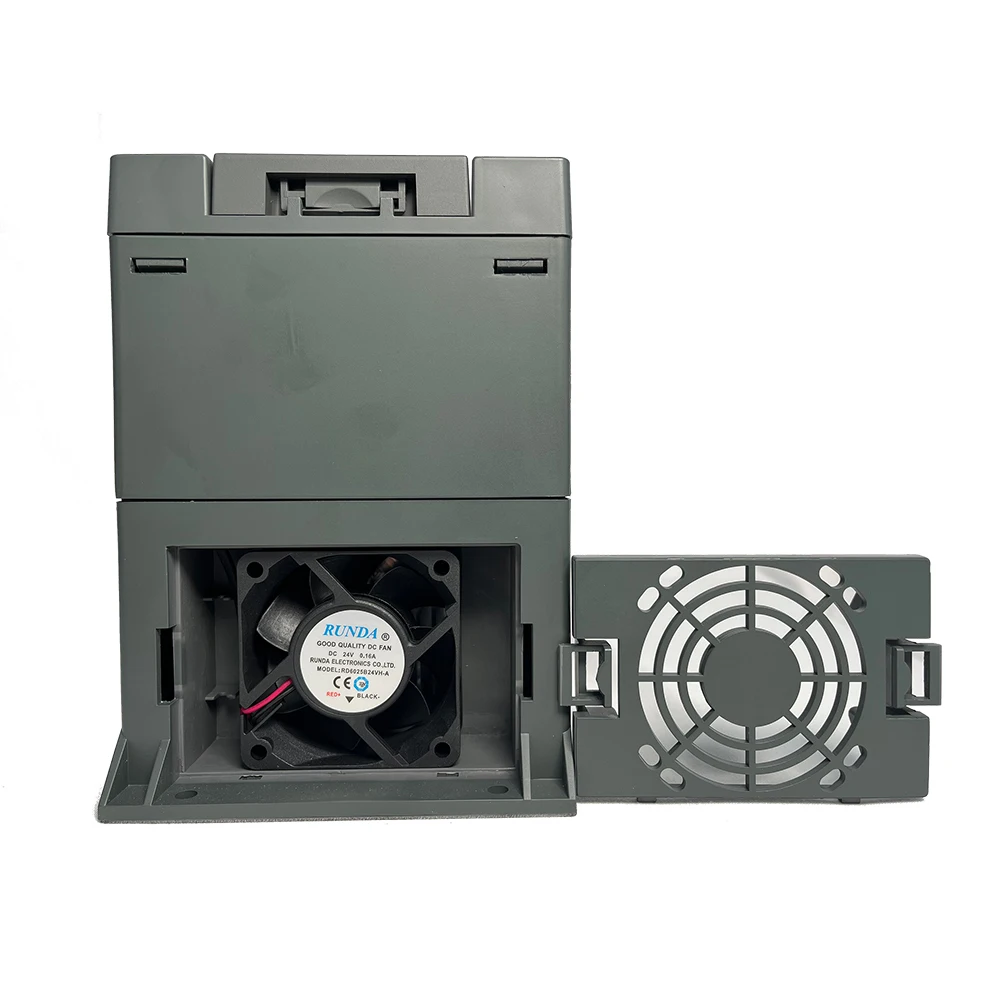

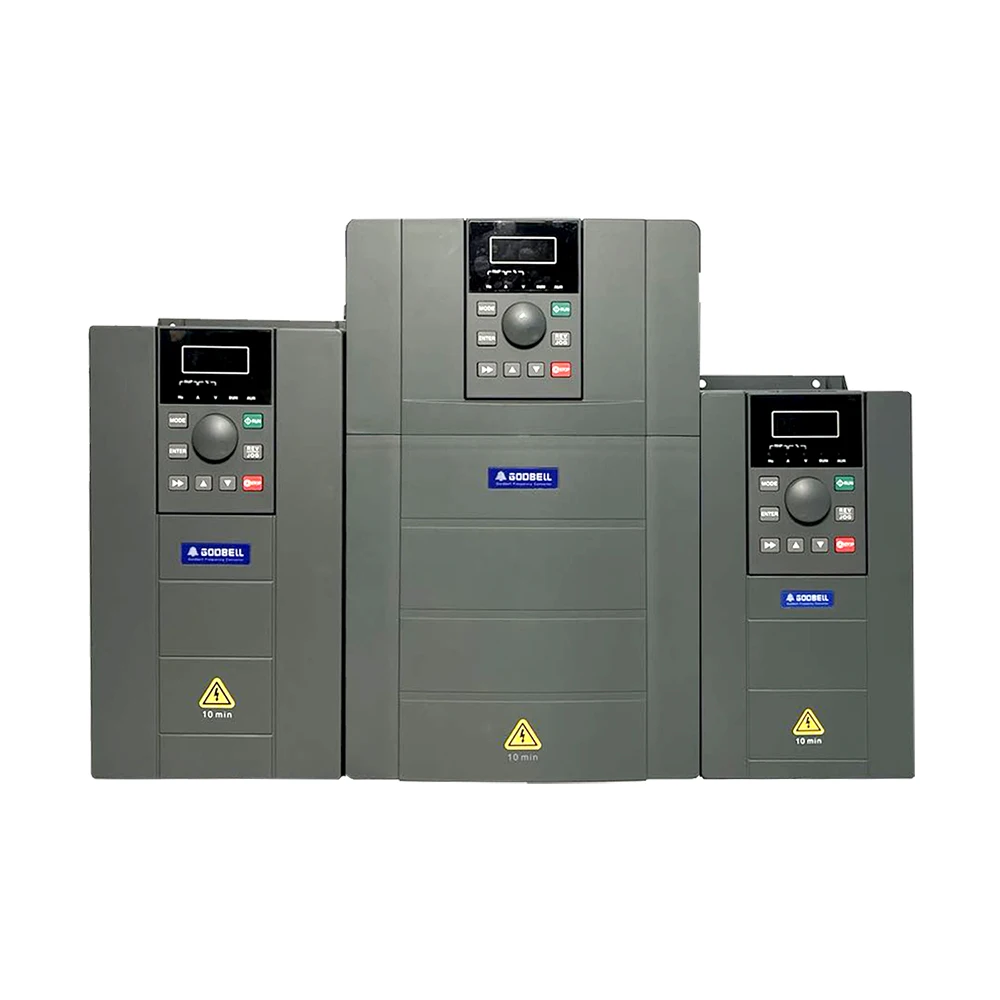

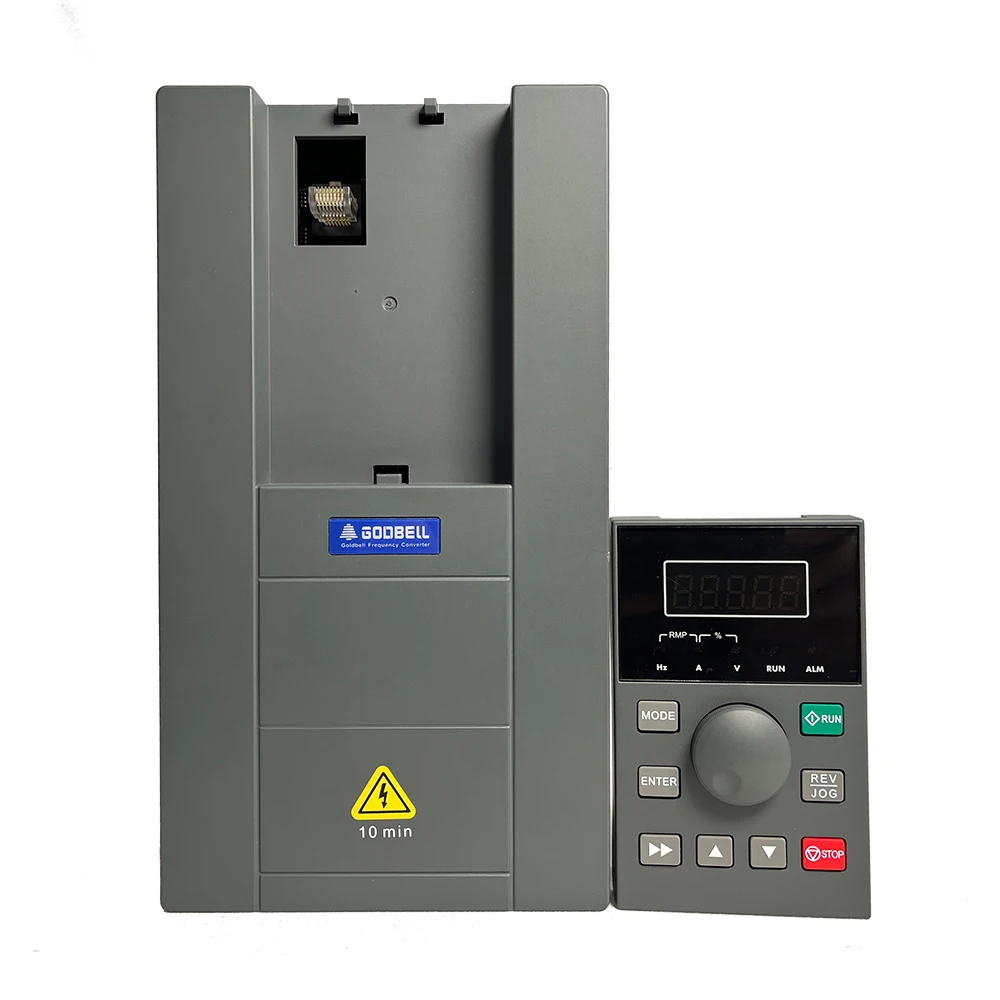

GOLDBELL GS500 series solar pump inverter, supports single-phase 220V and three-phase 220V/380V pumps, the power from 0.75KW to 630KW. Easy to use, durable quality.
High Efficiency MPPT
◆ MPPT efficiency up to 99%.
◆ The software can quickly detect the changes in DC bus voltage,Inverter will adjust dynamically to make sure the maximum output power of solar panel when sunlight and temperature change.
◆ The software can quickly detect the changes in DC bus voltage,Inverter will adjust dynamically to make sure the maximum output power of solar panel when sunlight and temperature change.
Adapt to various types of water pump
◆ Used for all type of AC 220V/380V water pump;
◆ No matter deep well water pump or surface pump,the inverter can adapt them.
◆ Applicable for various pump motors: asynchronous motor, synchronous motor,PMSM.etc
◆ No matter deep well water pump or surface pump,the inverter can adapt them.
◆ Applicable for various pump motors: asynchronous motor, synchronous motor,PMSM.etc
Multiple pump & Inverter protection
◆ Dry-pumping:auto stop when shortage of water, and auto restart when with enough water in deep well.
◆ Tank-full:auto stop when full of water,and restart when with shortage of water in the tank.
◆ Sleep-Wake up:Auto stop when weak sunlight or
sunset,and auto restart when strong sunlight or sunrise.
◆ Build-in protection: over-voltage,over-current,
overload,under load.etc
◆ Tank-full:auto stop when full of water,and restart when with shortage of water in the tank.
◆ Sleep-Wake up:Auto stop when weak sunlight or
sunset,and auto restart when strong sunlight or sunrise.
◆ Build-in protection: over-voltage,over-current,
overload,under load.etc
Compatible with AC power/generator input, PV and AC power complementary
◆ Solar DC and AC power can input inverter at same time.
◆ When strong sunlight,inverter will only use solar;
When weak sunlight,inverter will use both solar power and AC power,do not waste solar energy.
When at night,inverter will switch to only use AC power, and next morning it will switch to use solar.
◆ When strong sunlight,inverter will only use solar;
When weak sunlight,inverter will use both solar power and AC power,do not waste solar energy.
When at night,inverter will switch to only use AC power, and next morning it will switch to use solar.

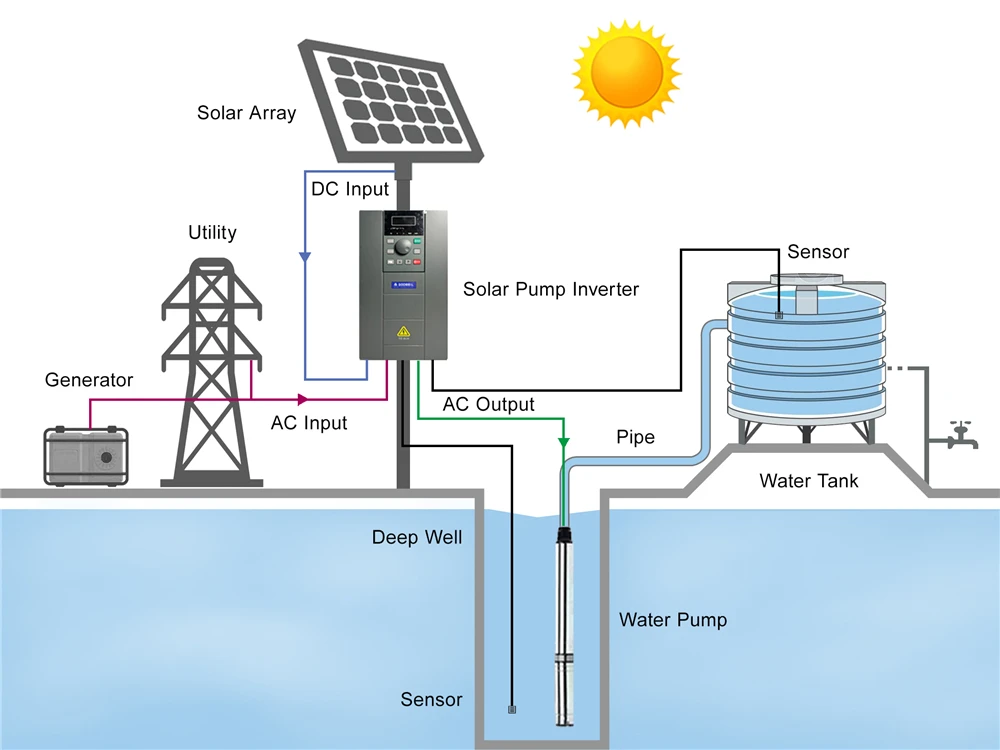

How the solar water pump system works
System composition: The GOLDBELL solar water pump system is mainly composed of solar panels, solar water pump inverters, water pumps, photovoltaic combiner boxes, mounting brackets, cables, water level sensors and other necessary accessories.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Scope of application: Widely used in photovoltaic agricultural irrigation, irrigation station renovation, household water supply and desert greening and other places without electricity or insufficient power supply.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Scope of application: Widely used in photovoltaic agricultural irrigation, irrigation station renovation, household water supply and desert greening and other places without electricity or insufficient power supply.
Specification
Name Rule
Model Selection
Model No. | AC Input (V) | Solar DC input (Voc) | AC output (V) | Power (KW) | Input Current(A) | Output Current (A) | ||||||
220~240V,2S series | ||||||||||||
GS500-0.75G-2SB | 1PH 220~240V 50/60HZ | 150~450 Voc | 1PH/3PH 220~240V 50/60HZ | 0.75KW | 8.2 | 4 | ||||||
GS500-1.5G-2SB | 1.5KW | 14 | 7 | |||||||||
GS500-2.2G-2SB | 2.2KW | 23 | 10 | |||||||||
GS500-4.0G-2SB | 4.0KW | 29.4 | 17 | |||||||||
380~480V,4T series | ||||||||||||
GS500-0.75G/1.5P-4TB | 3PH 380-480V 50/60HZ | 250-800 Voc | 3PH 380-480V 50/60HZ | 0.75KW/1.5KW | 3.4 | 2.1 | ||||||
GS500-1.5G/2.2P-4TB | 1.5KW/2.2KW | 5 | 3.8 | |||||||||
GS500-2.2G/3.0P-4TB | 2.2KW/3.0KW | 5.8 | 5.1 | |||||||||
GS500-4.0G/5.5P-4TB | 4.0KW/5.5KW | 10.5 | 9 | |||||||||
GS500-5.5G/7.5P-4TB | 5.5KW/7.5KW | 14.6 | 13 | |||||||||
GS500-7.5G/11P-4TB | 7.5KW/11KW | 20.5 | 17 | |||||||||
GS500-11G/15P-4TB | 11KW/15KW | 26 | 25 | |||||||||
GS500-15G/18P-4TB | 15KW/18.5KW | 35 | 32 | |||||||||
GS500-18G/22P-4TB | 18.5KW/22KW | 38.5 | 37 | |||||||||
GS500-22G/30P-4TB | 22KW/30KW | 46.5 | 45 | |||||||||
GS500-30G/37P-4TB | 30KW/37KW | 62 | 60 | |||||||||
GS500-37G/45P-4TB | 37KW/45KW | 76 | 75 | |||||||||
GS500-45G/55P-4TB | 45KW/55KW | 92 | 91 | |||||||||
GS500-55G/75P-4TB | 55KW/75KW | 113 | 112 | |||||||||
GS500-75G/90P-4TB | 75KW/90KW | 157 | 150 | |||||||||
GS500-90G/110P-4TB | 90KW/110KW | 180 | 176 | |||||||||

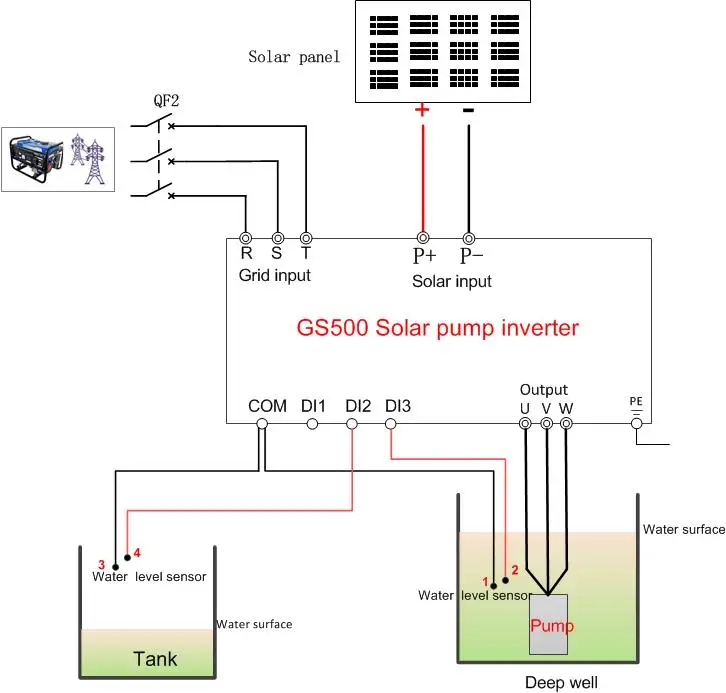

Wiring Diagram
Cooperation Case
Project country | Algeria | ||
Installtion place | Desert | ||
Solar pump system one-stop solution design | Water pump | 6SP46-20,30KW (40HP) 3PH 380V 50HZ,full AISI304 pump material Rate 46 m3/h water flow, rate 173m lift head Pump life time: more than 5 years | |
Solar pump inverter | GS500-37G/45P-4TB, 37KW 75A 3PH 380V MPPT solar inverter for water pump Lift time: more than 3 years | ||
Solar panel | 43KW total power solar panel 105PCS 415W/pcs mono half cell solar panel Connection: 15PCS series * 7 strings parallel Life time: more than 25 years | ||
Mounting structure | Ground mounting bracket structure Material: Q235B hot-dip galvanized steel bracket | ||
Accessories | PV combiner box,PV cables, AC cables,AC output reactor,water level sensor,MC4 conenctor | ||
Benifits | Customer drill a about 160m depth borehole well his agriculture land,then installed the 30KW solar pump system. The solar water pump are installed at 150m depth, when strong sunlights, it can max pump 50 m3/h,average320-400 m3 water per day, solved the problem of water shortage. | ||
Company Profile
GOLDBELL ELECTRIC (SHENZHEN) CO., LTD. is located in Shenzhen City, Guangdong Province. It is a national high-tech enterprise focusing on industrial automation control and new energy fields. Its products include frequency inverter, solar pump inverter, solar water pump, solar pump system, etc. After 10 years of industry technology precipitation, it has excellent software and hardware design, development, production and sales capabilities, and can provide customers with one-stop overall solutions.
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
Packing & Delivery
* Outer packing: high quality strong export carton or wooden box.
* Inner packing: pearl cotton and PE bag to protect the inverter or water pump from damage during transportation.
* Inner packing: pearl cotton and PE bag to protect the inverter or water pump from damage during transportation.
* We will help you choose the most suitable transportation plan according to your needs and the volume and weight of the goods, and support air, sea and land transportation.
FAQ
Q: How to let inverter run/stop automatically , weak sun sleep,strong sun wake-up?
I want the inverter to run automatically, no need manual.
* when weak sun or sunset, the inverter will sleep and stop working auto;
* when strong sun or sunrise, the inverter will wake-up and restart to work auto.
Does the inverter have the function?
* when weak sun or sunset, the inverter will sleep and stop working auto;
* when strong sun or sunrise, the inverter will wake-up and restart to work auto.
Does the inverter have the function?

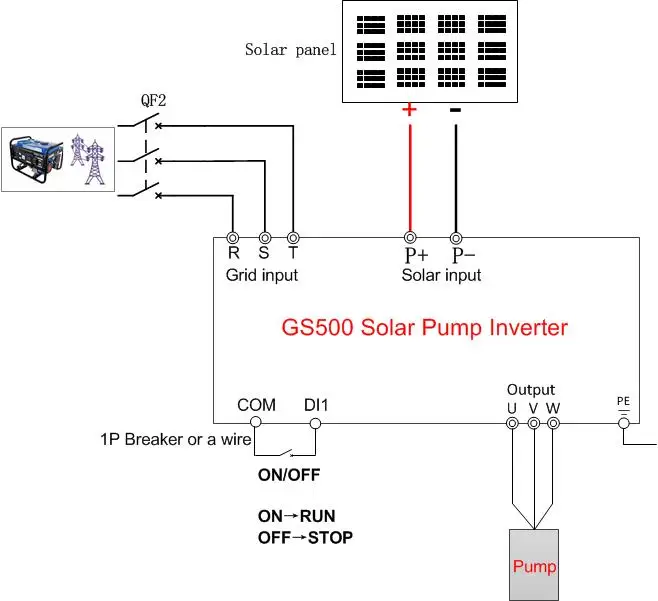

A: Yes.do like following steps
Data set | Wire connect | Description | Note |
P00.01=1 | COM and DI1 | When COM and X1 be on,the inverter will run; When COM and X1 be off,the inverter will stop. | RUN/STOP will control by COM and X1 terminal, Keypad “RUN” key is invalid,”STOP” key is valid; If you want to control “RUN/STOP” by keypad,set P00.01=0, COM and X1 will be invalid. |
P15.37=350 | NO need Change based on local condition | A: Sleep and stop running when weak sun 1: When low sun, inverter run with 30HZ(50HZ*P15.05),and keep 60S(P15.23),then inverter will stop working,and report “A-LS” 2: When low sun or sunset, solar DC voltage go down to 350V(P15.37), inverter will stop working directly, and report “A-LS”. B: Wake-up and restart to run when strong sun. 1: When strong sun or sunrise, solar DC voltage go up to more than 350V(P15.37), and keep 300S(P15.24), inverter will restart to run auto. | Suggest 300-400V |
P15.05=60 | Suggest:40%~60% | ||
P15.23=60 | Suggest 30-150S, | ||
P15.24=600 | Suggest 300-1800S, |
Q: How to use Deep well / Tank water level sensor?
In order to protect the pump to run without water,
* when the deep well no water,can inverter stop working auto ?
* when have enough water in deep well, can inverter restart to work auto ?
* when tank is full, can inverter stop working auto ?
* when tank is shortage of water, can inverter restart to work auto ?
* when the deep well no water,can inverter stop working auto ?
* when have enough water in deep well, can inverter restart to work auto ?
* when tank is full, can inverter stop working auto ?
* when tank is shortage of water, can inverter restart to work auto ?
A:
Application | Data set | Wire connect | Description | Note |
Deep well no Water protection | F05.10=004 | COM and X3 | 1:When water level lower than sensor 2,waiting and keep 10S(P15.16), inverter will stop working auto,and report “A-tL”; 2:When water level higher than sensor 2,waiting and keep 60S(P15.17), inverter will restart to run auto. | 1:Sensor 1 and 2 distance about 5cm; 2:put the sensor above pump about 1m 3:do not put the sensor cable with UVW cable too closed. |
P15.16=10 | ||||
P15.17=60 | ||||
Tank full water protection | P15.14=10 | COM and X2 | 1:When water level higher than sensor 4,waiting and keep 10S(P15.14), inverter will stop working auto,and report”A-tF”; 2:When water level lower than sensor 4,waiting and keep 60S(P15.15), inverter will restart to run auto. | 1:Sensor 3 and 4 distance about 5cm; 2:put sensor below tank top 10-30cm. |
P15.15=60 |
Note: must add a diode in solar side, otherwise when low sun or no sun, the AC power will charge to solar panel, and the solar panel will be damaged.
