Digital Torque Meter Display Head for Bike Car Repair Bicycle Torque Wrench Tester With Torque Adapter 3 200N.m

Digital Torque Meter Display Head for Bike Car Repair Bicycle Torque Wrench Tester With Torque Adapter 3 200N.m

Category: Force Measuring Instruments >>>
Supplier: Mikrometry,instruments,limited

Price:$568.00 - $741.00

Price in USD:Details

Quantity:

Product Overview

Description

Features

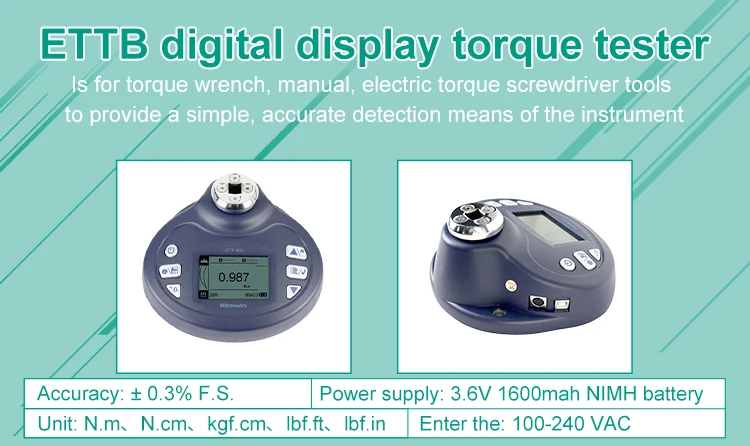

Mikrometry Digital Torque Wrench Calibrator Tester with different capacity Torsion measuring ETT-B
Mikrometry digital torque wrench calibrator tester is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.

Features:
Curve or digital display modes
Reverse display setting
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface ,easy to communicate with PLC
Accuracy: ± 0.3% Readings
Sampling Rate: up to 2KHz

Product Description

Range	5%~100% Capacity
Accuracy	± 0.3% Readings
Selectable Units	N.m、N.cm、kgf.cm、lbf.ft、lbf.in
Display	240*160 dot matrix LCD(3.1 inch) with LED Backlight
Overload Capacity	120% of F.S.
Measurement Mode	Track, Peak, First Peak、Auto Peak、Auto First Peak、Double Peak
Display Mode	Digital / Curve
Data Sampling Rate	Up to 2KHz
Memory	1000 data
Set Point	Programmable high and low limits
Battery Indicator	Display flashes battery icon when battery is low
Power	3.6VDC 1600mAH Ni-Mh rechargeable batteries
Battery Life	Approx. 25 hours per charge
Charger / Adaptor	Universal USB/BM charger, Input:110~240VAC
Temperature Effects	<0.03% FS per °C
Communication	USB or RS-232
Software	Free software for USB communication
Outputs	RS-232, "Within" set point output， "Under or over" set point output
Operating environment	Temperature: -10 to 40°C
Operating environment		Relative Humidity: 20 to 80%
Storage environment	Temperature: -20 to +50°C
Storage environment		Relative Humidity: 5 to 90%
Dimension	197X183X83 mm
Weight	~ 1.6 kg
Accessories	AC adapter/charger, USB cable, Square drive adapter
Options	Mini-printer, RS-232 Cable, Rundown Adapter, ETS-TT1 Torque Test Stand, ETS-TT2 Torque Test Stand.
