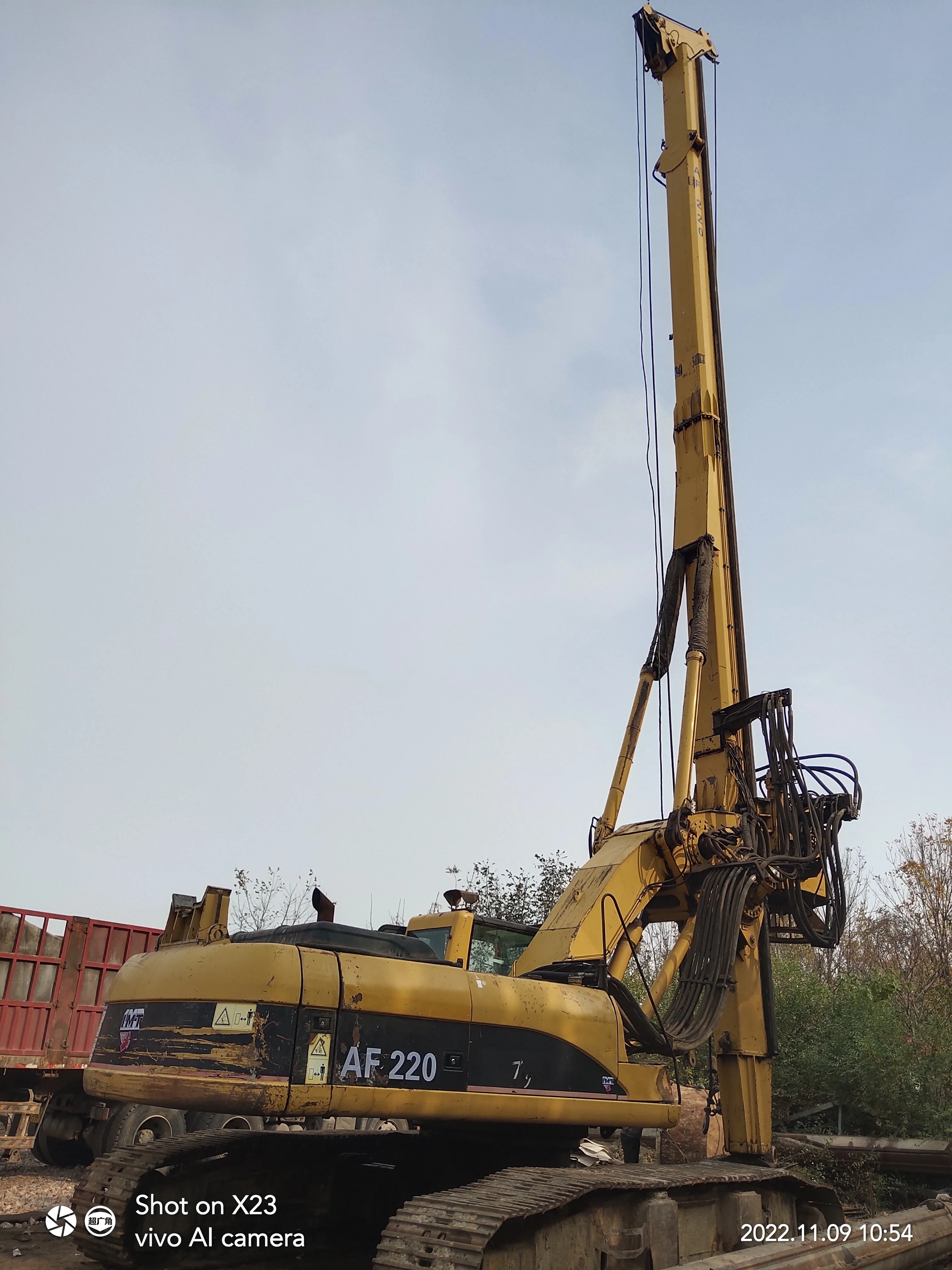

Hot sell second hand rotary drilling rig SOILMEC SR 80C R516 BAUER BG25C IMT AF220 SANYY 280D for sale
- Category: >>>
- Supplier: Shandong Jietaihaoli Machinery Equipment Co. Ltd.
Share on (1600651105950):
Product Overview
Description
Product Description

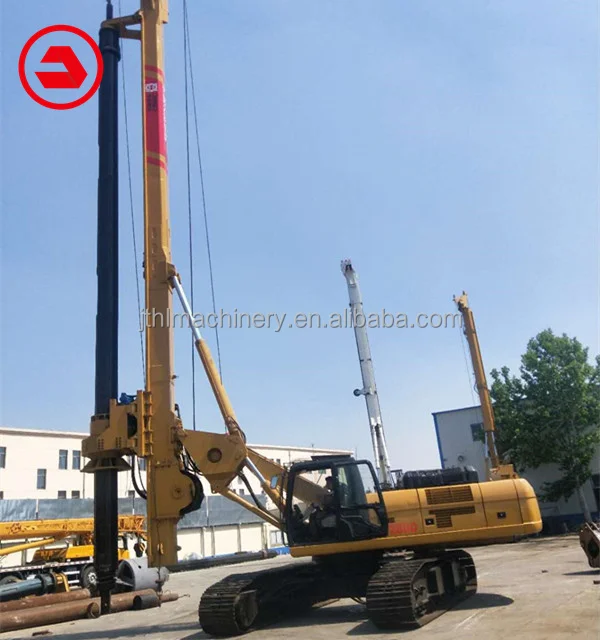

Sanny sr150 equipped with cummins dieasel engine, rated power128kw, drilling diameter1500mm, drilling depth 52m, manufacture year2013, working hour2851hours.

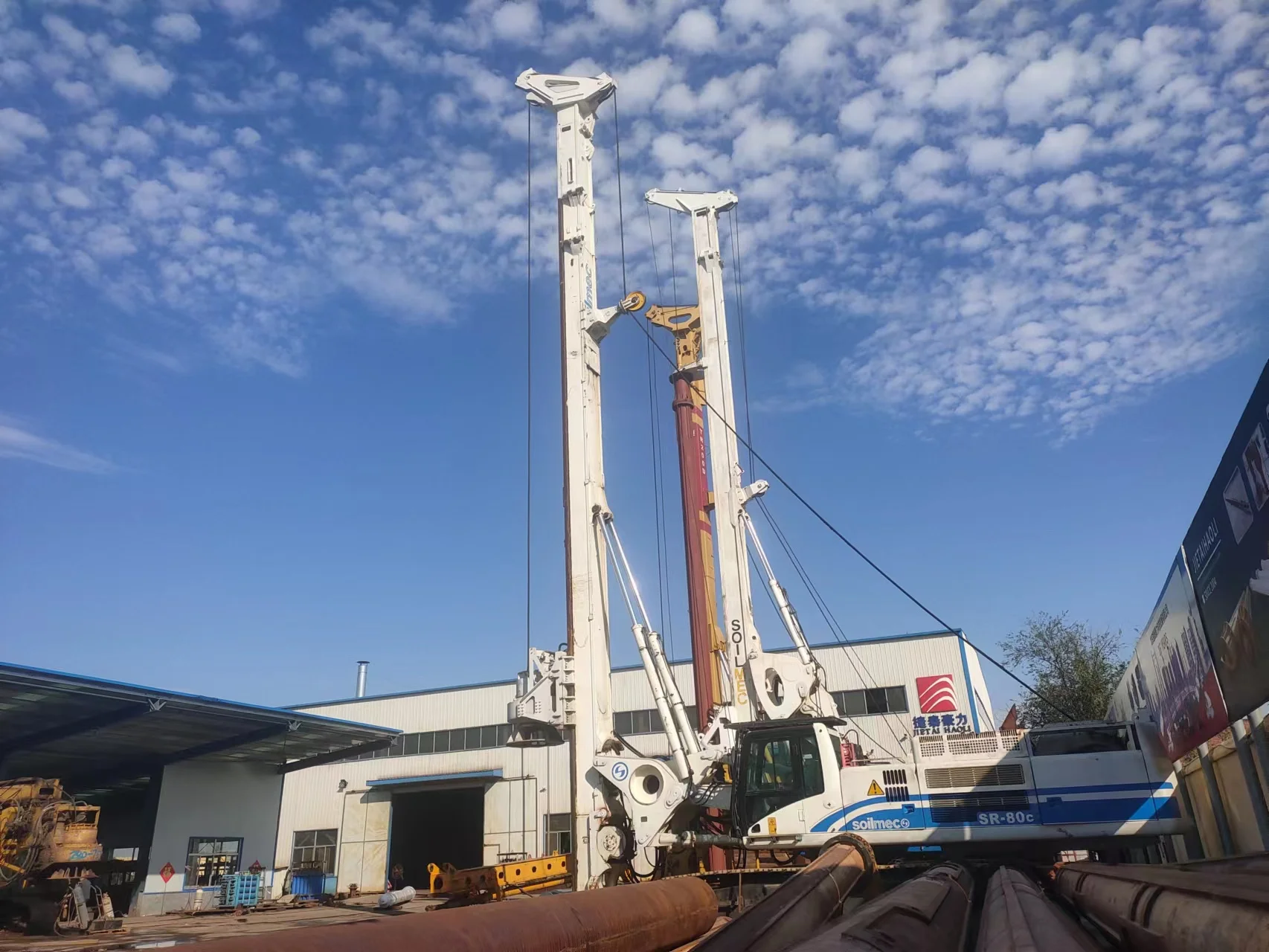

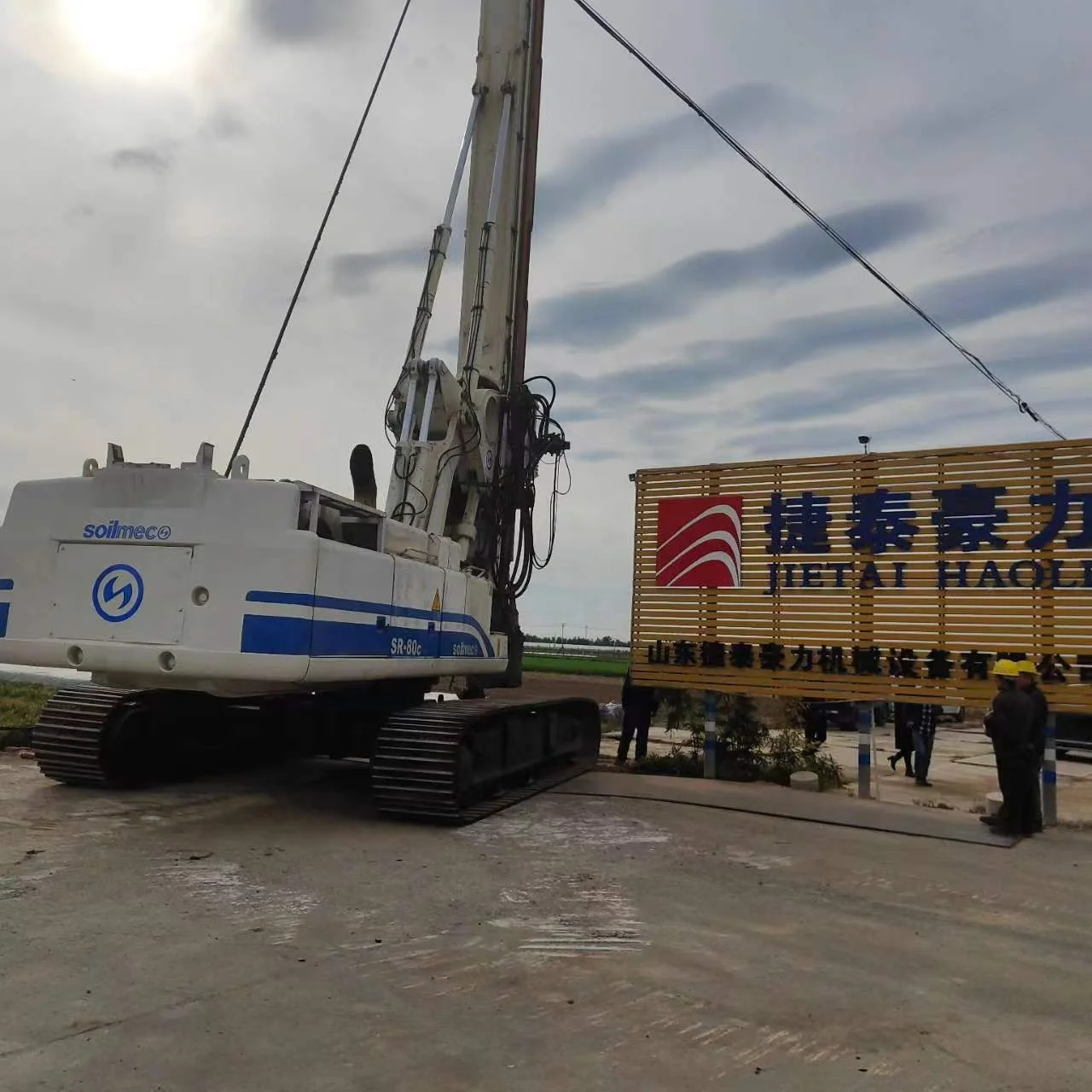

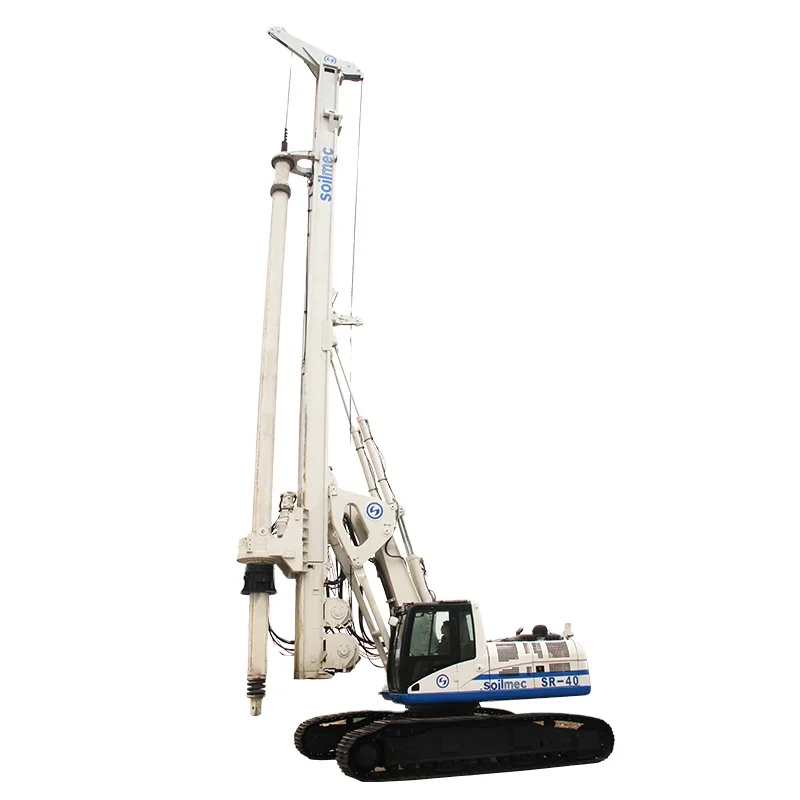

We also have SOILMEC SR80C, R516, IMT AF220, BAUER BG25C, CRRCC 200,CRRCC TR158H, CRRCC280D, CRRCC 300, SANYY SR150 , SANYY SR200, SANYY SR280D. We have focus on used piling rig for more than 18 years. we also produce and sell kelly bar, drilling tools, casing etc

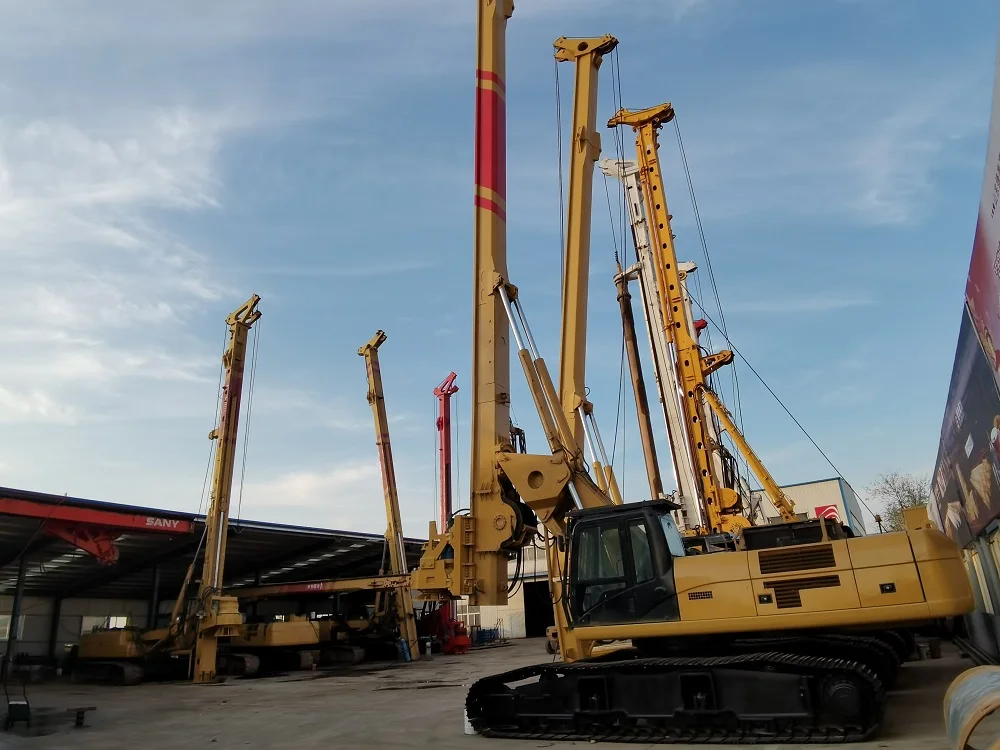

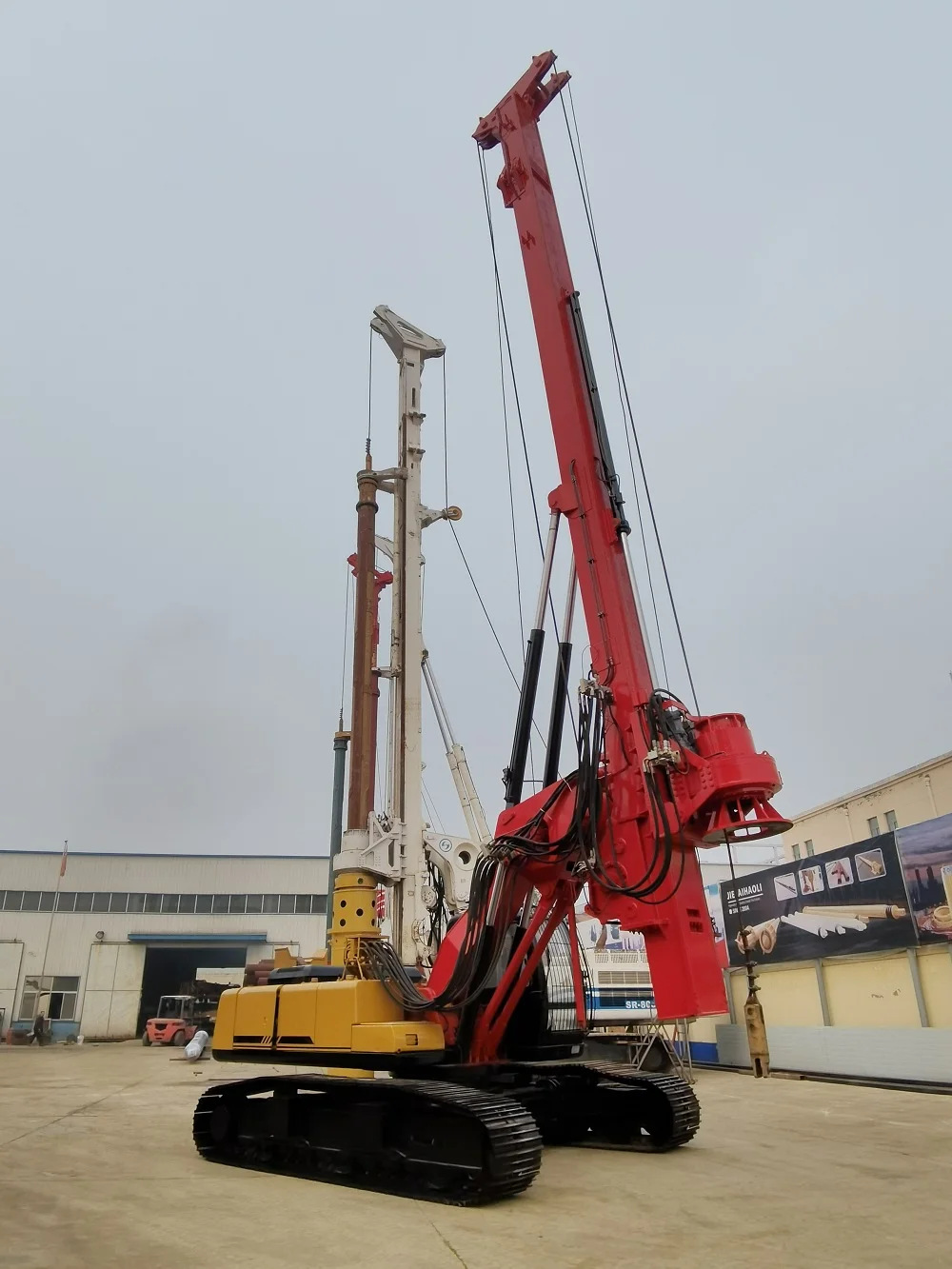

More model picture as below:
Product Paramenters
Main Technical Specifications CRRCC158H | ||
Working Width | 4300mm | |

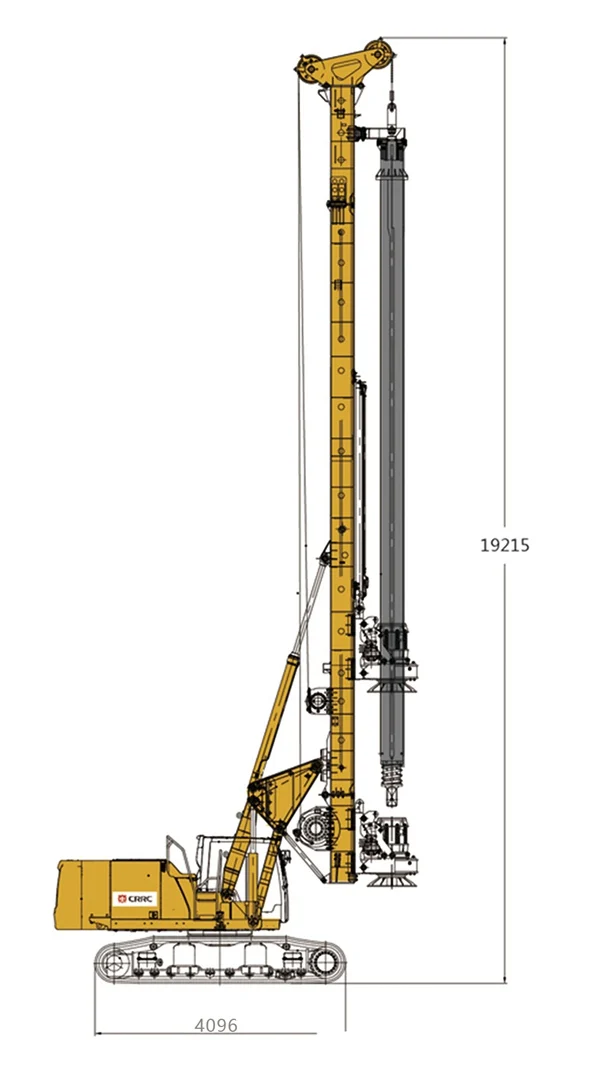

Working Height | 19215mm | |

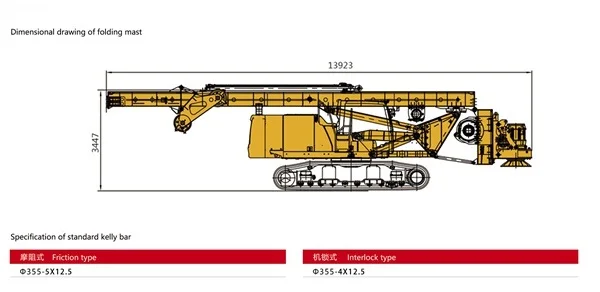

Transportation Length | 13923mm | |
Width of transportation | 3000mm | |
Height of transportation | 3447mm | |
Total Weight( with kelly bar) | 53.5tons | |
Total Weight( without kelly bar) | 47tons | |
Borehole | ||
Max. Drilling Diameter | 1500mm | |
Max. Drilling Depth | 57.5m | |
Engine | ||
Engine Model | CAT C-7.1 | |
Engine Power | 118kw | |
Engine Speed | 1650rpm | |
Rotary Drive | ||
MAX. Output Torque | 158KN.M | |
Rotational Speed | 6-32rpm | |
Crowed Cylinder | ||
Max. Pushing Force | 150KN | |
Max. Pulling Force | 160KN | |
Max. Stroke | 4000mm | |
Main Winch | ||
Max. Pulling Force | 165KN | |
Wire Rope Diameter | 28mm | |
Max lifting speed | 75m/min | |
Auxiliary Winch | ||
Max. Pulling Force | 50KN | |
Wire Rope Diameter | 16mm | |
Drilling Mast Inclination Angle | ||
Left / Right | 4 。 | |
Front | 5 。 | |
Chassis | ||
Chassis Model | CAT323 | |
Chassis overall Length | 4960mm | |
Track Shoe With | 800mm | |
Tractive Force | 380KN | |
Details Images

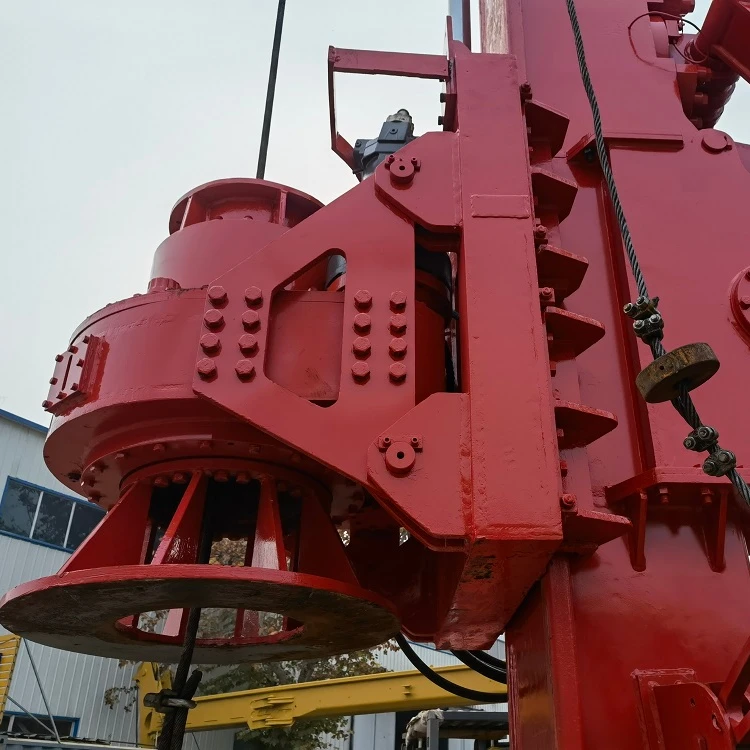

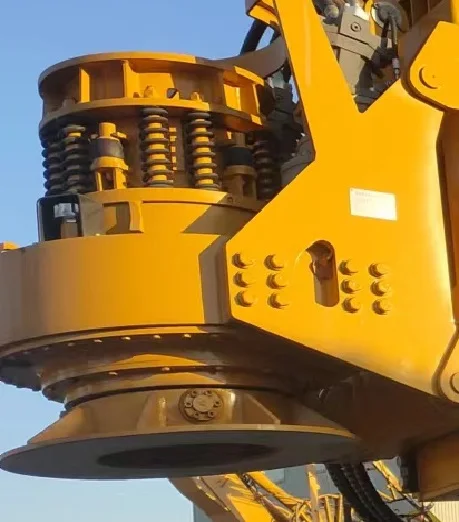

Rotary drive
1. Use reverse gear box to reduce maintenance costs use reverse gear box to reduce maintenance costs
2.Increases the Kelly bar guiding length, prolongs the service life of the Rotary drive and improves the hole-forming precision
Suspension seat
New suspension seat, thicker and wider

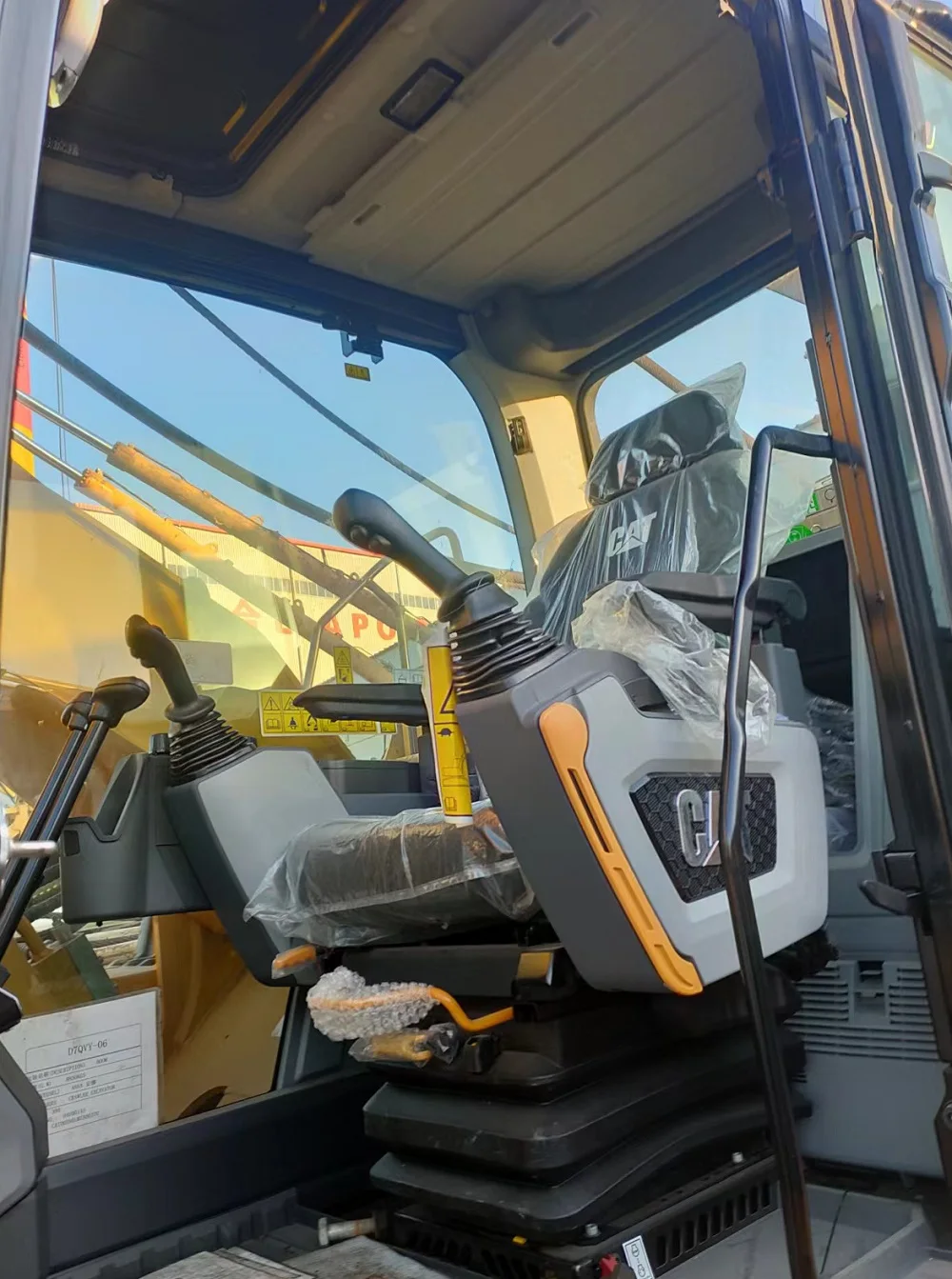

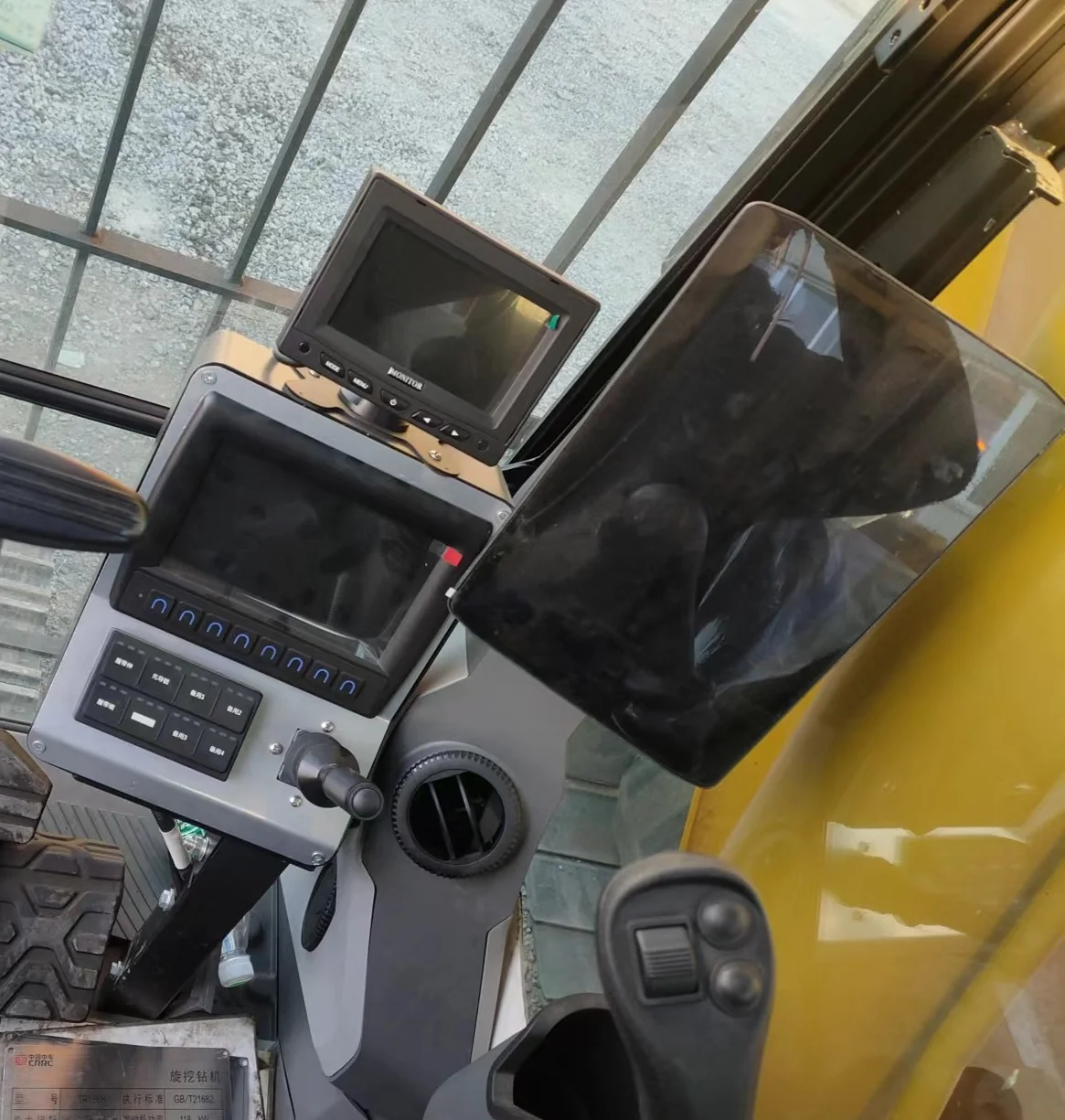

Control Center
1.8-inch colored large screen anti-glare film, high-quality image can be touched, can be used to select the dial control , simple and easy to use.
2.High-definition reverse image
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shandong Jietaihaoli Machinery Equipment Co., Ltd is specialized in producing kelly bar, drilling tools, casing, refurbished used drilling rig, drilling rig spare parts like gearbox, motor, swivel joint etc. Our kelly bar match with IMT, Bauer, Soilmec, Mait, Sany, CSR, Lovol, Yutong etc. we have export to Indian , cannada, Malaysia,Turkey, USA, Singapore, Russia etc. We have won good praise and trust of the home and abroad customers.
Exhibition
FAQ
1. What kind of kelly bar can you provide?Ans: we can provide kelly bars for almost all the brand rotary drilling rig, the interlocking kelly bar and friction kelly bar, most are for Bauer, IMT, MAIT, SOILMEC, SANY, TEG, SUNWARD, ECMG, etc. For 18 years experience supply clients all over the world with good quality.
2. what is the advantage of your kelly bar?
Ans: we use super quality seamless steel pipe material, which make the kelly bar more durable and our kelly bar with competitive and reasonable price. we have got IS9001 certification, no matter you are dealers or end user, you will get biggest profit.
3. What warranty do you provide?
Ans: we provide 6 months warranty time.
4. what is the lead time?
Ans: Usually the lead time is 7 days after receiption of your deposite.
5. what payment terms can you accept?
Ans: we can accept TT in advance , TT in advance and L/C at sight.
2. what is the advantage of your kelly bar?
Ans: we use super quality seamless steel pipe material, which make the kelly bar more durable and our kelly bar with competitive and reasonable price. we have got IS9001 certification, no matter you are dealers or end user, you will get biggest profit.
3. What warranty do you provide?
Ans: we provide 6 months warranty time.
4. what is the lead time?
Ans: Usually the lead time is 7 days after receiption of your deposite.
5. what payment terms can you accept?
Ans: we can accept TT in advance , TT in advance and L/C at sight.
