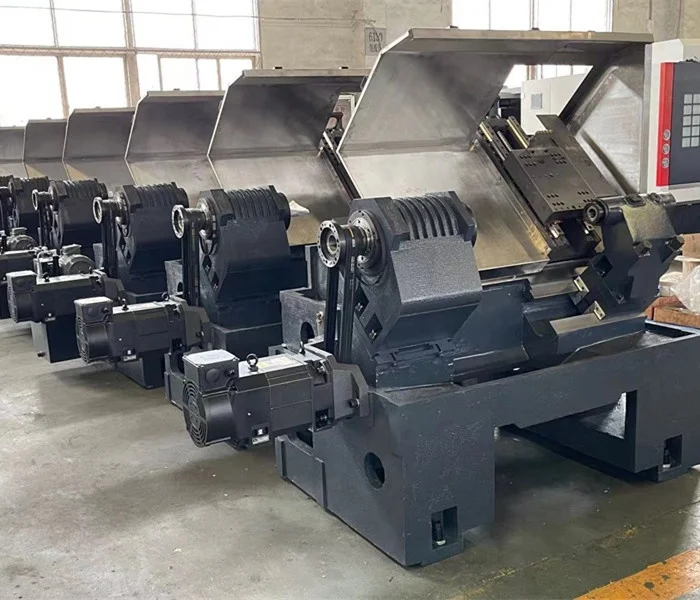

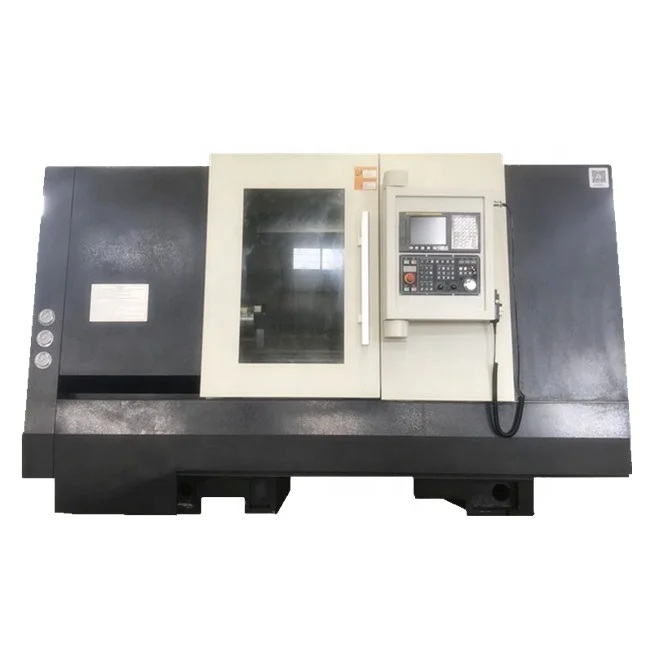

Tck36a High Rigidity Cast Iron Cnc Lathe Slant Bed And Linear Guide Tck36a

Share on (1600651237892):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Max. swing over bed
360mm
Max. swing over cross slide
140mm
Max. processing length
300mm
Max. Processing diameter
360mm
Max. Bar capacity
39mm
Spindle nose
A2-5
Spindle bore
48mm
Spindle speed
40000rpm
Spindle motor power
48
X /Z axis travel
170/350mm
X/Z rapid traverse
24/24 m/min
X/Z axis motor torque
6/6 Nm
X/Z repeat-ability
0.005mm
Tool post type
8 station servo type
Tool shank size
20x20mm
Hydraulic tail stock quill diameter
65mm
Hydraulic tail stock quill travel
70mm
Hydraulic tail stock quill taper
MT4#
Total rated power
9KW
Total rated current
19A

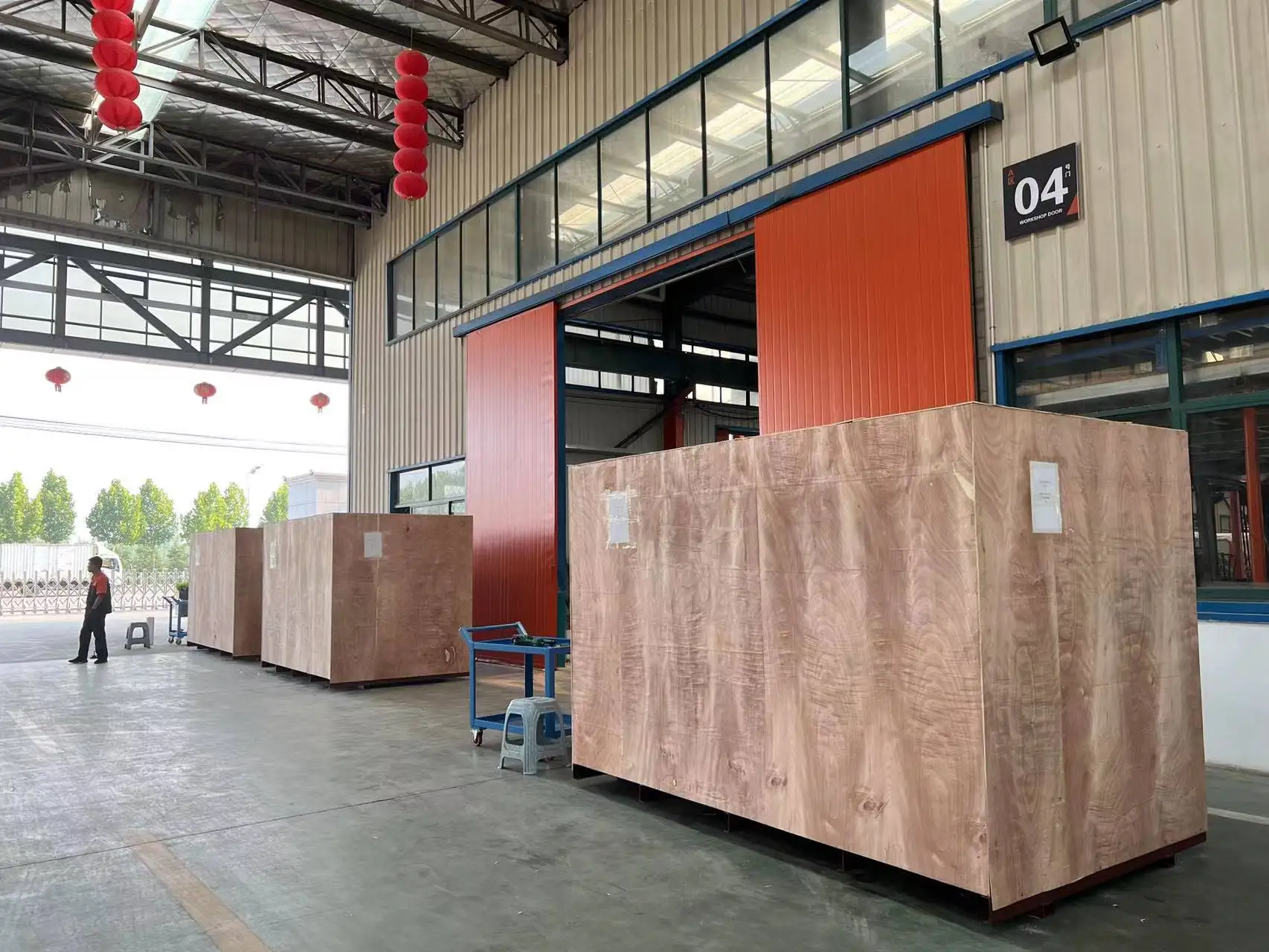

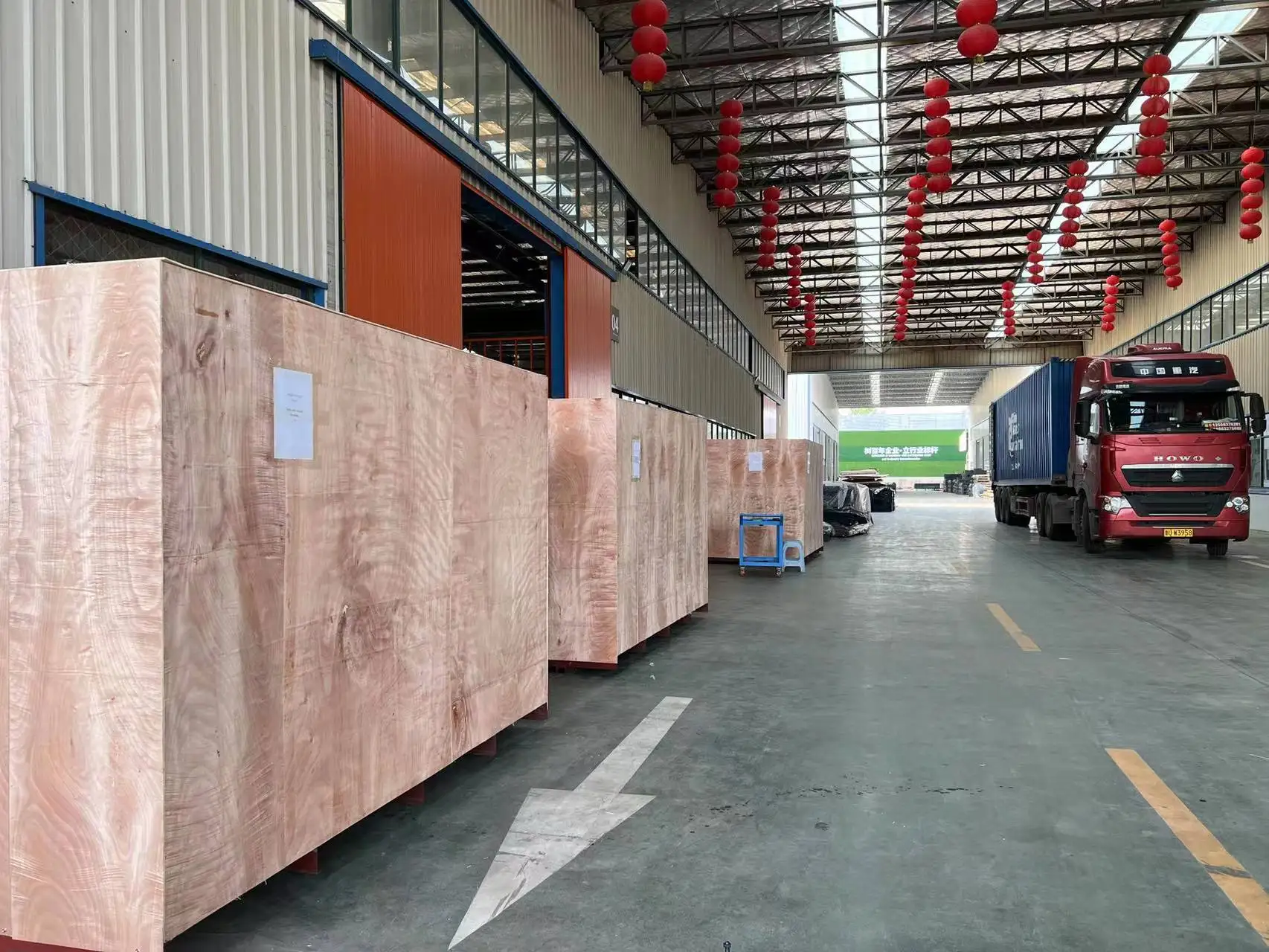

Packing & Delivery




Company Profile






Shandong Pulute Machine Tool Co., Ltd. is a high-tech enterprise integrating design, development, manufacturing and marketing of products. We are mainly engaged in production and operation of CNC lathe, engraving and milling machine, gantry machine. All of our products comply with international quality standards such as CE and are greatly appreciated in a variety of markets around the world. Besides, we have received ISO9001:2008 and ISO14001:2004 certification.

Shandong Pulute Machine Tool Co., Ltd. is located in Tengzhou, Shandong, with convenient transportation. Covering an area of 120000 square meters, there are over 200 employees and an annual sales figure that exceeds USD20 million. Currently 30% of our products are exported worldwide. Factory with well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customers satisfaction.
