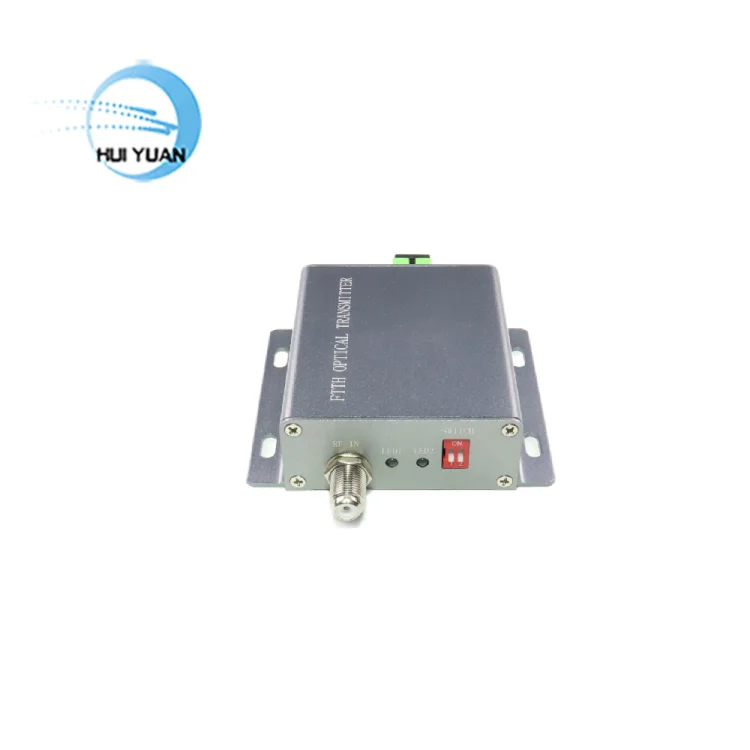

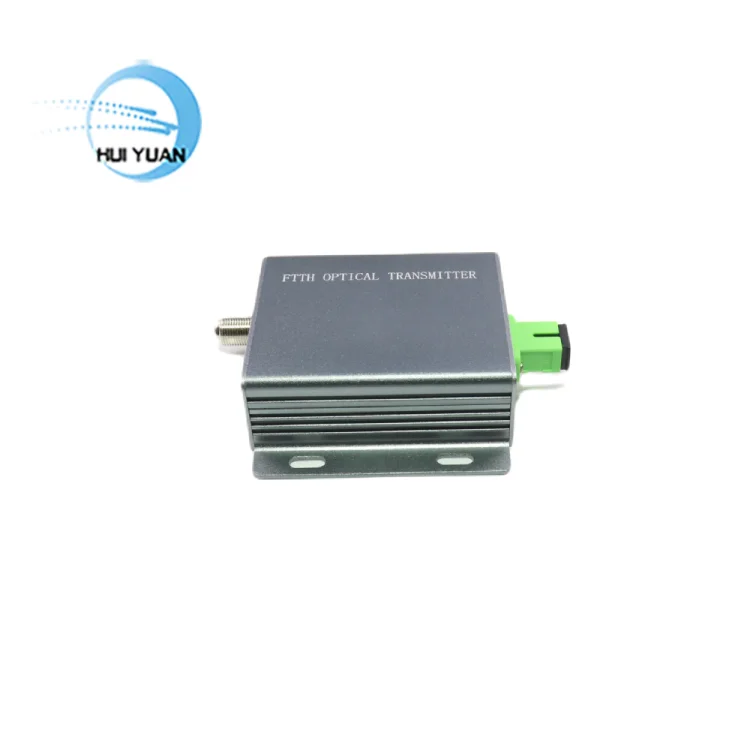

CATV SATV 1550nm Optical Transmitter SCAPC Fiber Port 47 2150MHz Satellite Transmitter
- Category: >>>
- Supplier: Fuzhou Huiyuan Communication Equipment Co. Ltd.
Share on (1600651456714):
Product Overview
Description
Product Description
CATV SATV 1550nm optical transmitter adopts famous brand high linearity DFB laser, designed for FTTH(Fiber To The Home) networks
Main features
Designed for FTTH(Fiber To The Home) networks
Wide operating frequency range:45~2150MHz
Excellent Linearity and flatness
Single-mode fiber high return loss
Using GaAs amplifier active devices
Ultra low noise technology
Wide operating frequency range:45~2150MHz
Excellent Linearity and flatness
Single-mode fiber high return loss
Using GaAs amplifier active devices
Ultra low noise technology
Smaller size and easier install
Using DFB coaxial small package laser
Output 13/18V、0/22KHz for LNB working
Using bicolor LEDs for 13/18V,0/22KHz output indication
Using Aluminum alloy Housing, good heat dissipation performance

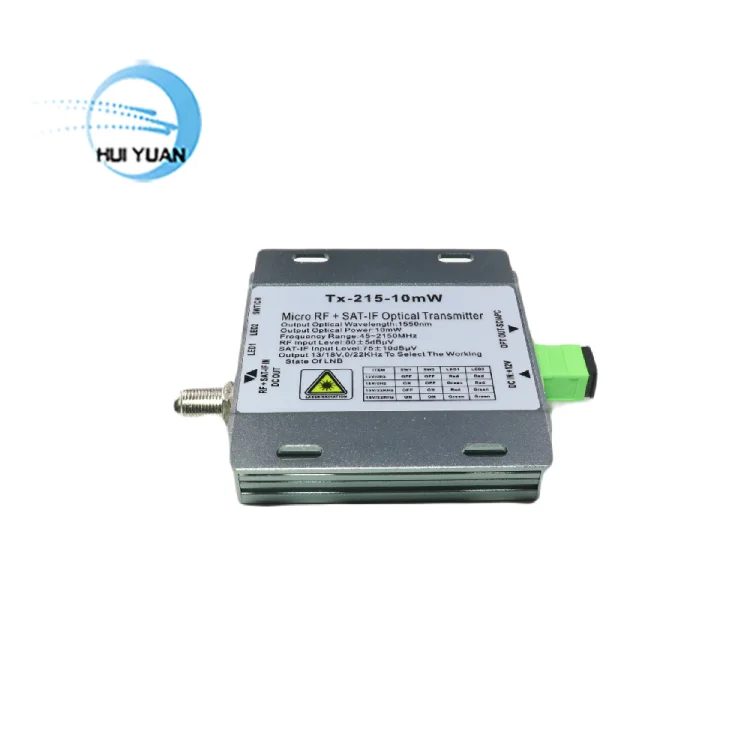

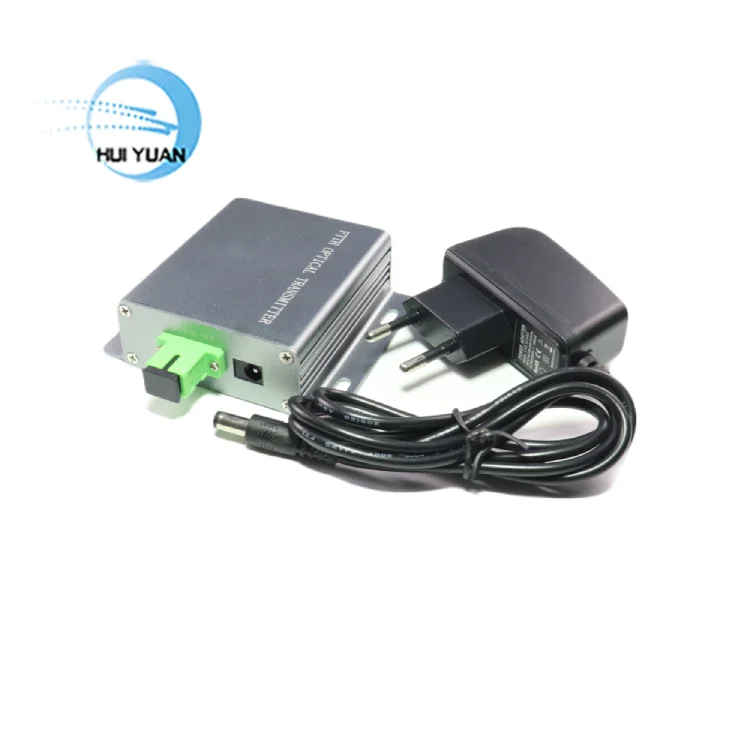

Details Images
Specification
Number | Item | Unit | Description | Remark | ||||
Customer Interface | ||||||||
1 | RF Connector | F-female | ||||||
2 | Optical Connector | SC/APC | ||||||
3 | Power Adapter | DC2.1 | ||||||
Optical Parameter | ||||||||
4 | Optical Return Loss | dB | ≥45 | |||||
5 | Output Optical Wavelength | nm | 1550 | |||||
6 | Output Optical Power | mW | 10 | 10dBm | ||||
7 | Optical Fiber Type | Single Mode | ||||||
RF+SAT-IF Parameter | ||||||||
8 | MHz | 45~860 | ||||||
CTB | 950~2150 | |||||||
9 | Flatness | dB | ±1 | |||||
10 | dBµV | 80±5 | RF | |||||
75±10 | SAT-IF | |||||||
11 | Input Impedance | Ω | 75 | |||||
12 | Return Loss | dB | ≥12 | |||||
13 | C/N | dB | ≥52 | |||||
14 | CSO | dB | ≥65 | |||||
15 | CTB | dB | ≥62 | |||||
16 | LNB Power supply | V | 13/18 | |||||
17 | Maximum Current For LNB | mA | 350 | |||||
18 | 22KHz Accuracy | KHz | 22±4 | |||||
Other Parameter | ||||||||
19 | Power Supply | VDC | 12 | |||||
20 | Power Consumption | W | ＜3 | |||||
21 | Dimensions | mm | 105x84x25 | |||||
HY-21-15ST03：Output power lever: 2mW(3dBm)
HY-21-15ST10：Output power lever: 10mW(10dBm)
HY-21-15ST10：Output power lever: 10mW(10dBm)
Recommend Products
Company Profile

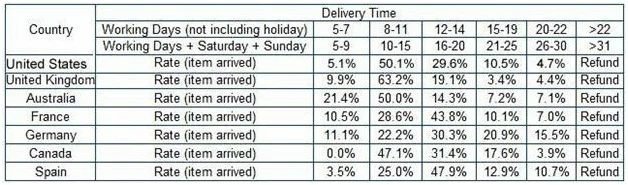

Shipment&Payment
